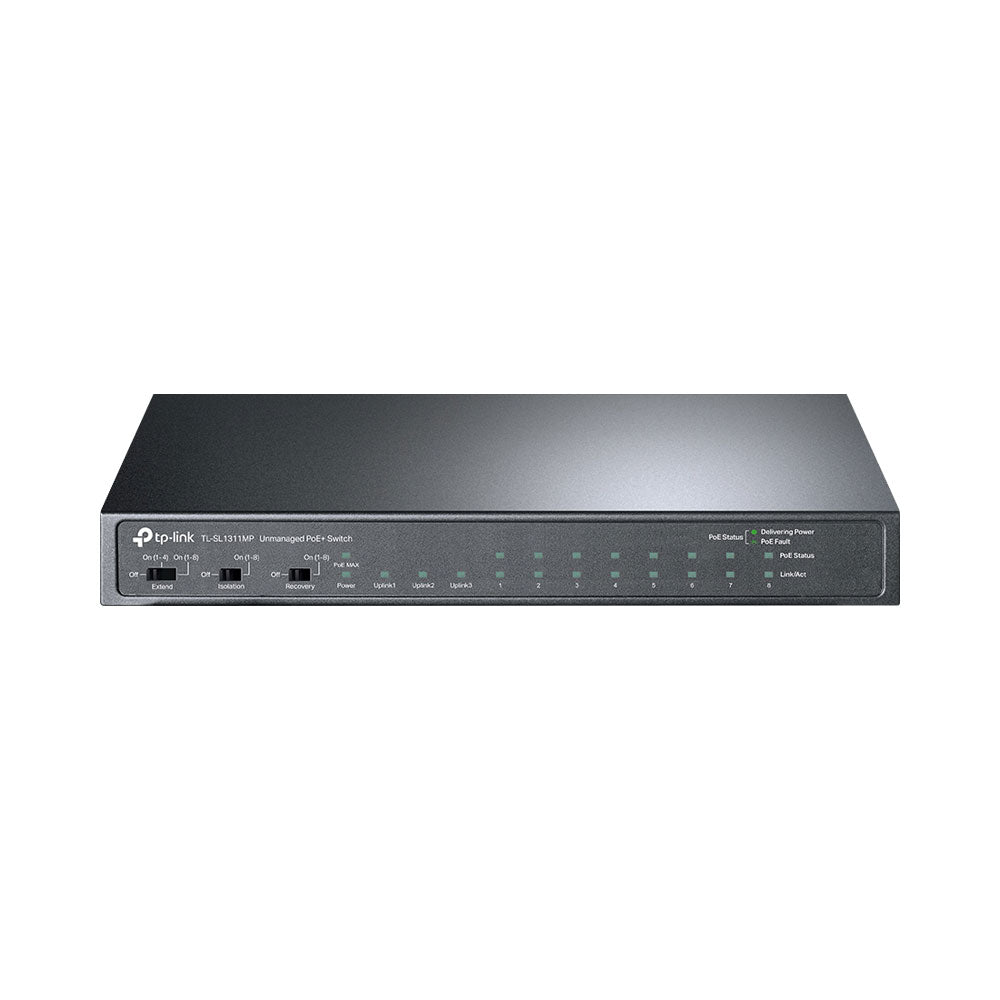

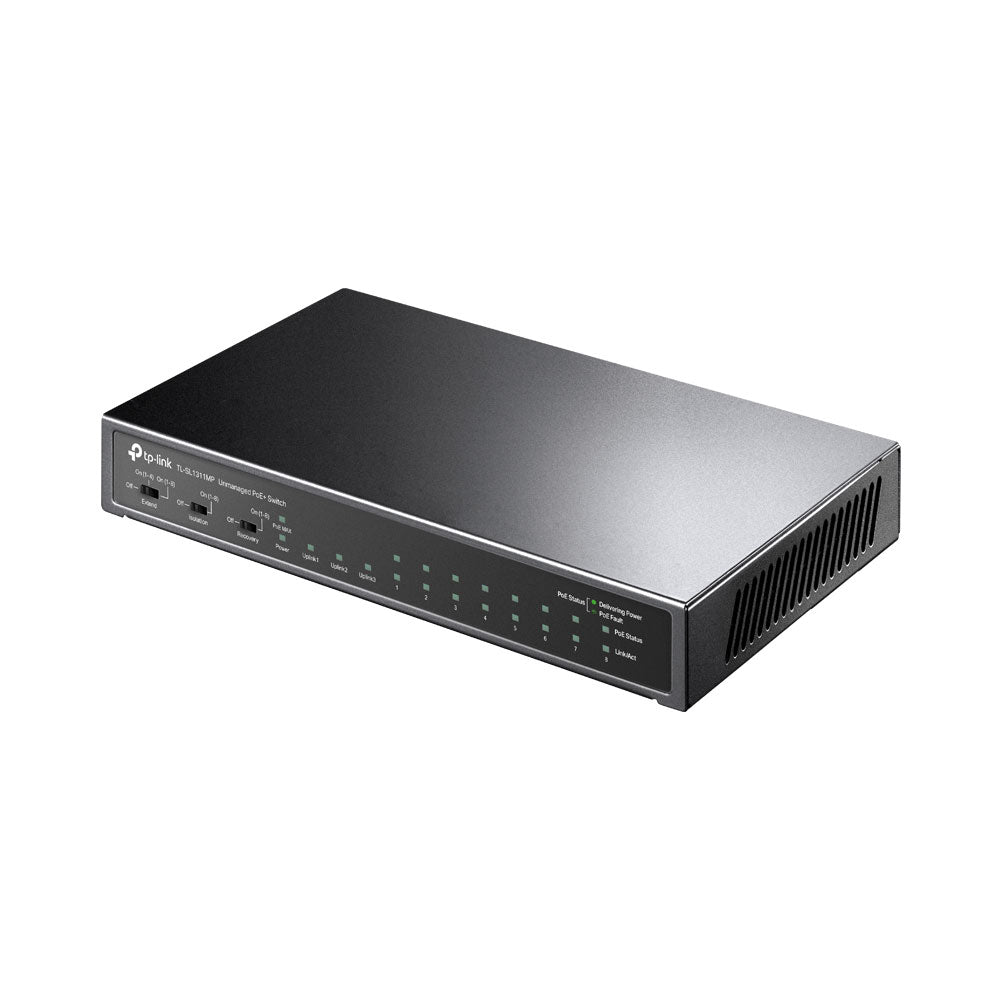

TP-Link TL-SL1311MP 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+Professional 8-Port 10/100Mbps + 3-Port Gigabit Unmanaged Switch with 8 PoE+ Ports
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 124 W PoE power budget* for the 8ﾗ PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Features
- 8x 10/100 Mbps RJ45 Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port
- 8x PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30W for each PoE port
- Supports PoE Power up to 124W for 8 PoE ports
- Up to 250m data and power transmitting range under Extend Mode
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required
Specifications
Hardware Features

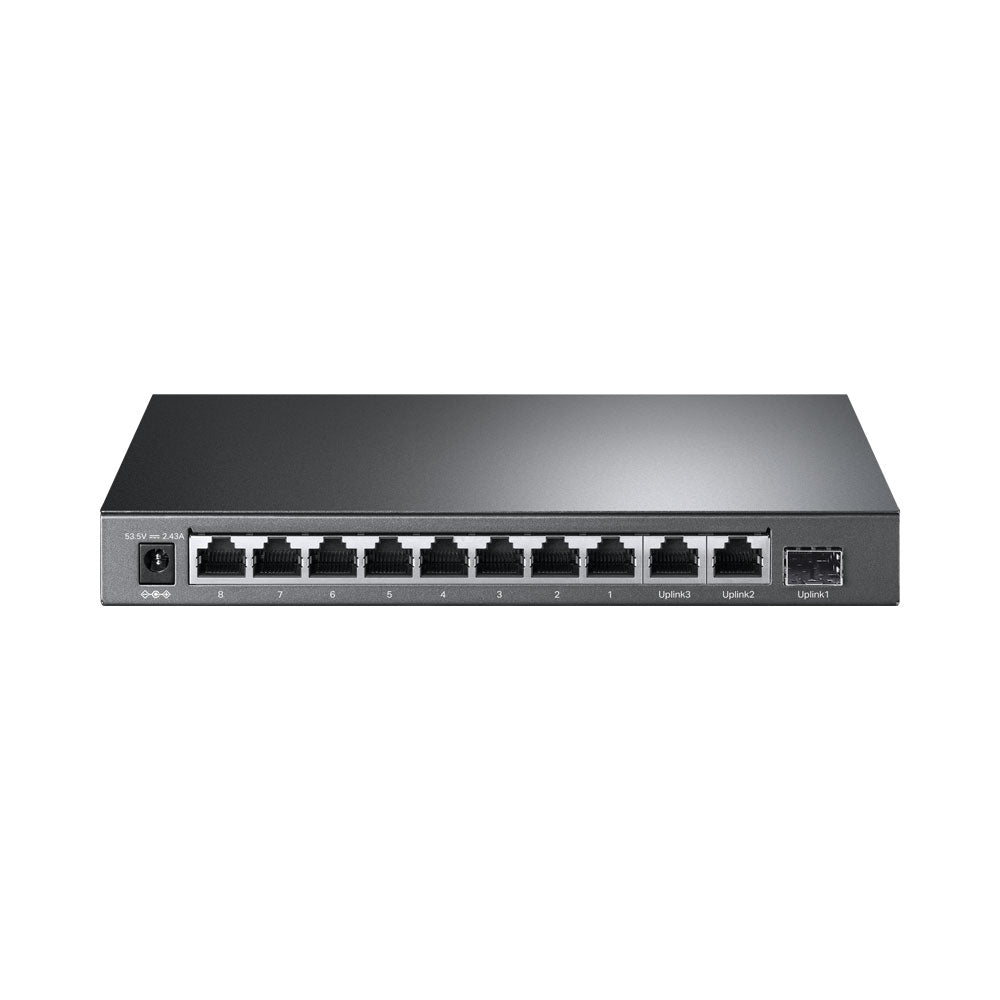

- Interface: 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
- AUTO Negotiation
- AUTO MDI/MDIX
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless
- Physical Security Lock: Yes
- External Power Supply: External Power Adapter (Output: 53.5VDC / 2.43A)
- Packet Forwarding Rate: 5.6544Mpps
- PoE Ports (RJ45): Standard: 802.3 af/at compliant
- PoE Ports: Ports 1–8
- Power Supply: 124W
- Mac Address Table: 2K
- Jumbo Frame: 16KB
- Switching Capacity: 7.6Gbps
- Dimensions (W x D x H) 209 × 126 × 26mm
- Max Power Consumption: 5.95W (220/50 Hz. no PD connected)
- 140.92W (220/50 Hz. with 124 W PD connected)
- Max Heat Dissipation: 20.29 BTU/h (no PD connected)
- 480.54 BTU/h (220/50Hz. with 124W PD connected)
Software Features
- Transmission Method: Store-And-Forward
- Advanced Functions
- Compatible With IEEE 802.3af/at Compliant PDs
- Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
- Isolation Mode Button (Ports 1–8)
- PoE Auto Recovery Button (Ports 1–8)
- Mac Address Auto-Learning and Auto-Aging
- IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
Others
- Certification: FCC, CE, RoHS
- Environment: Operating Temperature: 0–40 °C (32–104 ℉)
- Storage Temperature: -40–70 °C (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
