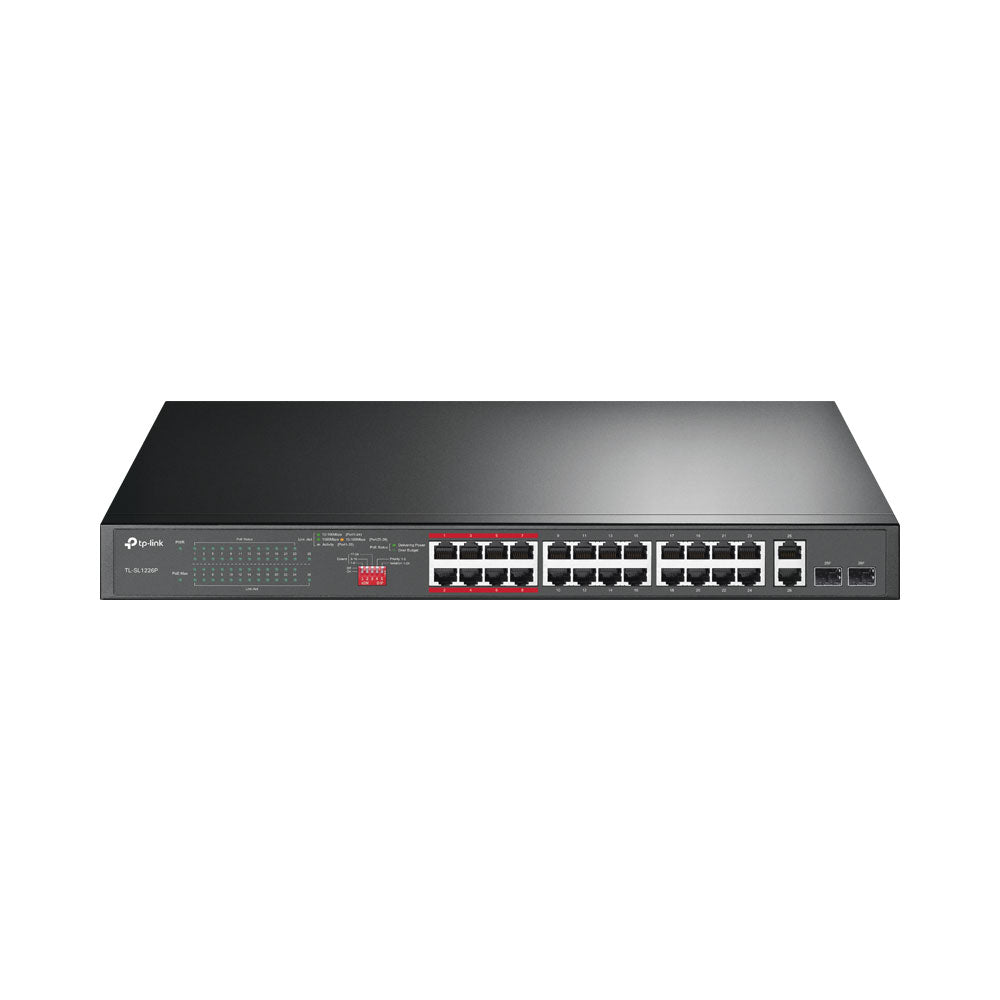

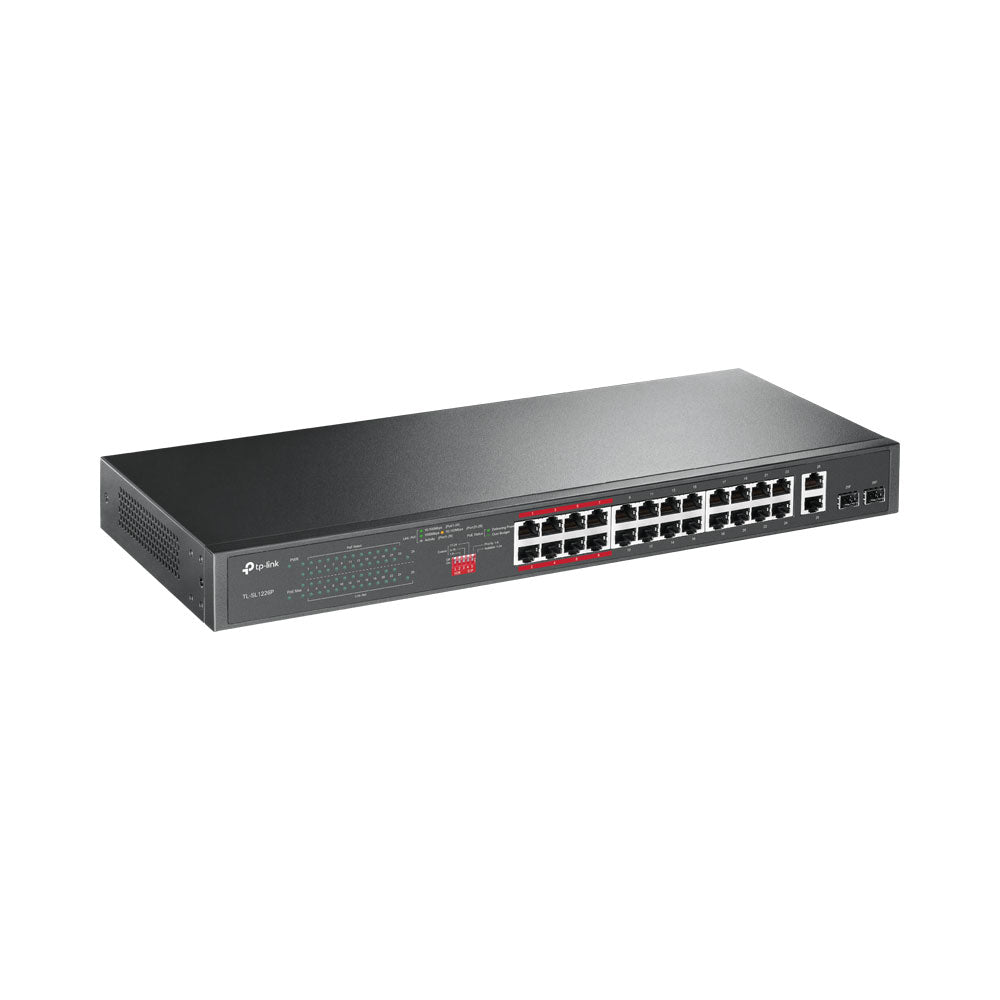

TP-Link TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
The TP-Link TL-SL1226P is a 24-port 10/100Mbps unmanaged switch with full PoE+ support, designed for cost-effective surveillance and access deployments. With extended PoE transmission mode and a high power budget, it provides reliable power and data connectivity for IP cameras and access devices.
Features
- 24 × 10/100Mbps RJ45 PoE+ ports
- 2 × Gigabit combo uplink ports
- Up to 30W per PoE+ port
- 250W total PoE power budget
- Extend Mode for up to 250m PoE transmission
- Priority Mode for critical ports
- Plug-and-play installation
- Durable metal rackmount chassis
- Intelligent PoE power management
Specifications
- Ports: 24 × 10/100Mbps RJ45 PoE+ ports
- Uplink Ports: 2 × Gigabit RJ45 / SFP combo ports
- PoE Standard: 802.3af/at PoE+
- Max Power per Port: 30W
- Total PoE Budget: 250W
- Switching Capacity: 8.8Gbps
- Forwarding Rate: 6.55Mpps
- MAC Address Table: 4K entries
- Transmission Distance: Up to 250m (Extend Mode)
- Installation: Rackmount
- Power Supply: Internal power supply
- Management: Unmanaged
