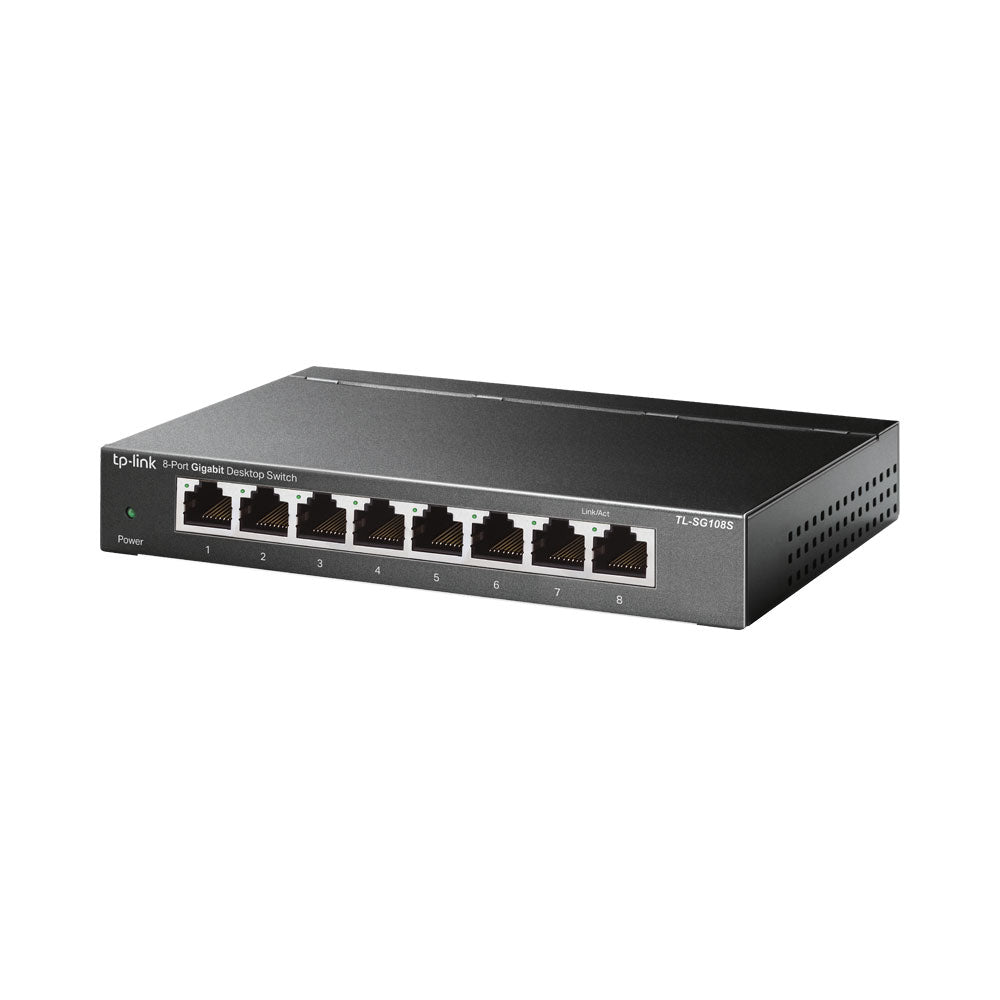

TP-Link TL-SG108S 8-Port 10/100/1000Mbps Desktop Switch
The TL?SG108S is an unmanaged 8?port Gigabit Ethernet switch (10/100/1000 Mbps) from TP?Link. It痴 designed for desktop or wall?mount use, with a steel (metal) enclosure, fanless cooling, and plug?and?play operation. You don稚 need to do any setup to get basic networking working.
Features
- 8x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, no configuration needed
Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p
- Interface: 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
- Fan Quantity: Fanless
- Power Consumption: Maximum: 3.31W (220V/50Hz)
- External Power Supply: External Power Adapter (Output: 9VDC / 0.6A)
- Buffer Size: 1.5Mb
- LED Indicator: System Power
- Link/Act indicators per port built into each RJ-45 port
- Dimensions (W x D x H): 158 x 101 x 25mm
Performance
- Packet Forwarding Rate: 11.9Mpps
- MAC Address Table: 4K
- Packet Buffer Memory: 1.5Mb
- Jumbo Frame: 16KB
Software Features
- Advanced Features: Green Technology, saving power up to 82%
- 802.3X Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- Transfer Method: Store and Forward
Others
- Certification: CE, FCC ,RoHS
- EnvironmentOperating Temperature: 0°C~40°C
- Storage Temperature: -40°C~70°C
- Operating Humidity: 10% ~ 90%, non-condensing
- Storage Humidity: 5%~90% non-condensing
