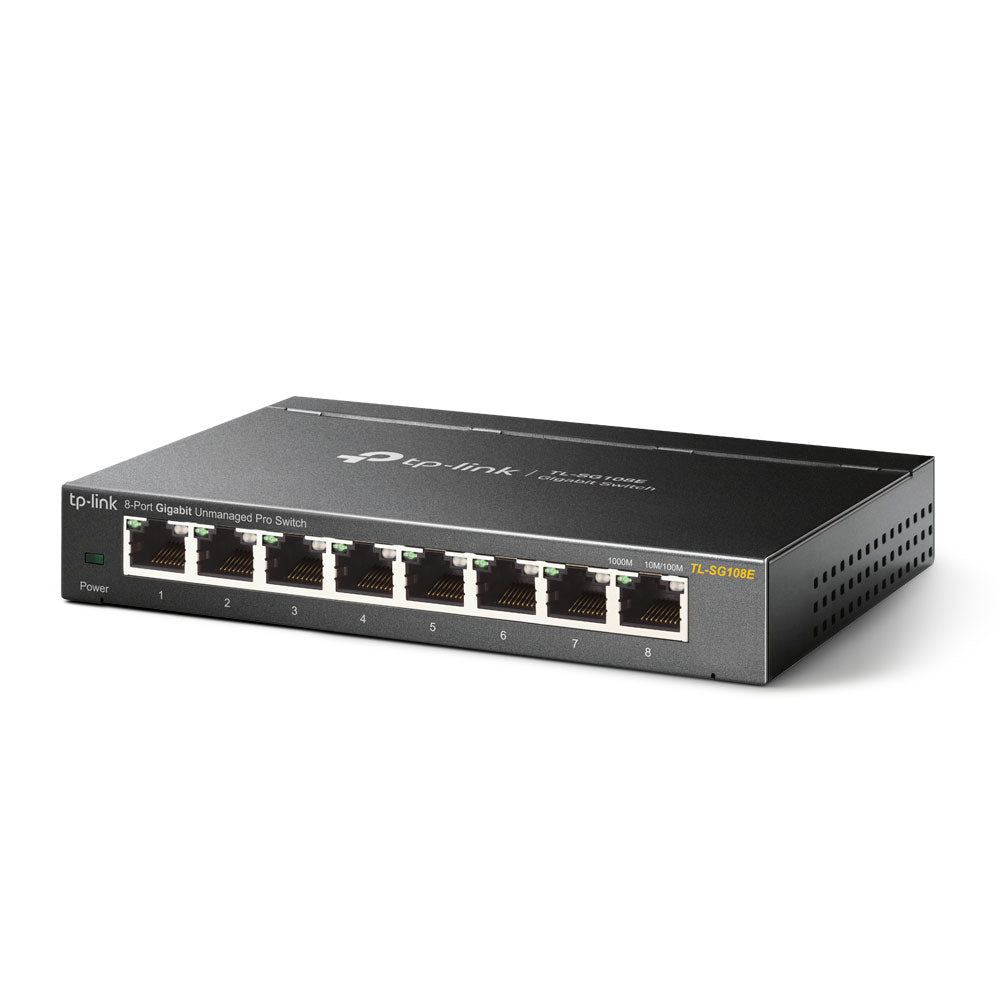

TP-Link TL-SG108E 8-Port Gigabit Easy Smart Switch
The TL?SG108E is part of TP?Link痴 Easy Smart / Unmanaged Pro line. It sits between fully unmanaged switches and fully managed switches. You get more control (VLANs, QoS, traffic monitoring, etc.) than a dumb switch, but it痴 simpler and cheaper than enterprise?grade managed gear.
Features
- 8 10/100/1000Mbps RJ45 ports
- Plug and play, with no configuration required
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface8 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless
- Power Supply: External Power Adapter(Output: 9VDC/0.6A)
- Power Consumption: Maximum: 4.48W (220V/50Hz)
- Dimensions (W x D x H) 158 x 101 x 25mm
- Max Power Consumption: 3.55W(220V/50Hz)
- Max Heat Dissipation: 12.12BTU/h
Performance
- Switching Capacity: 16Gbps
- Packet Forwarding Rate: 11.9Mpps
- MAC Address Table: 4K
- Packet Buffer Memory: 1.5Mb
- Jumbo Frame: 15KB
Software Features
- Quality of Service: Support Port-based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
- L2 Features: IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
- Transmission Method: Store-And-Forward
Others
- Certification: FCC, CE, RoHS
- System Requirements: Microsoft Windows for running Utility
