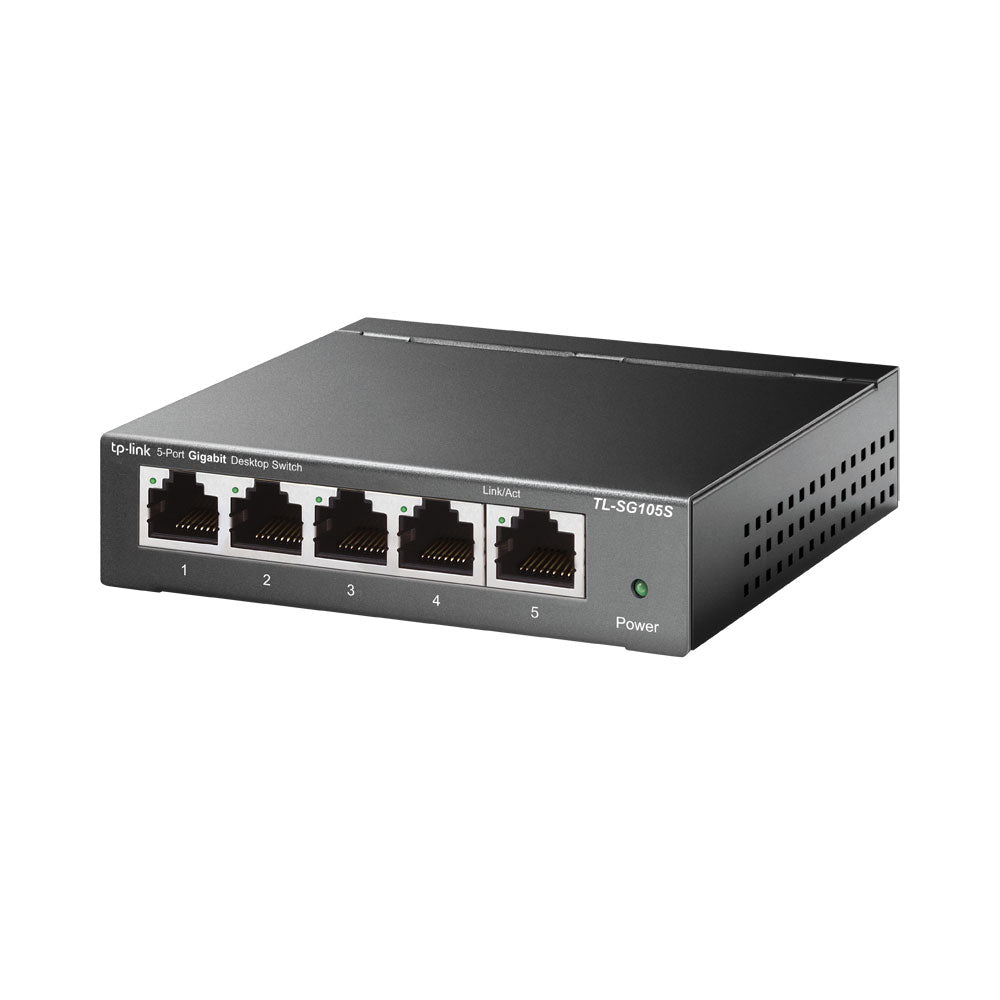

TP-Link TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch
The TL?SG105S is an unmanaged desktop (or wall?mountable) Gigabit switch with 5 RJ?45 ports. It offers plug?and?play operation - no configuration required.
Features
- 5x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, no configuration needed
Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
- Interface: 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
- Fan Quantity: Fanless
- Power Consumption: Maximum: 2.3W (220V/50Hz)

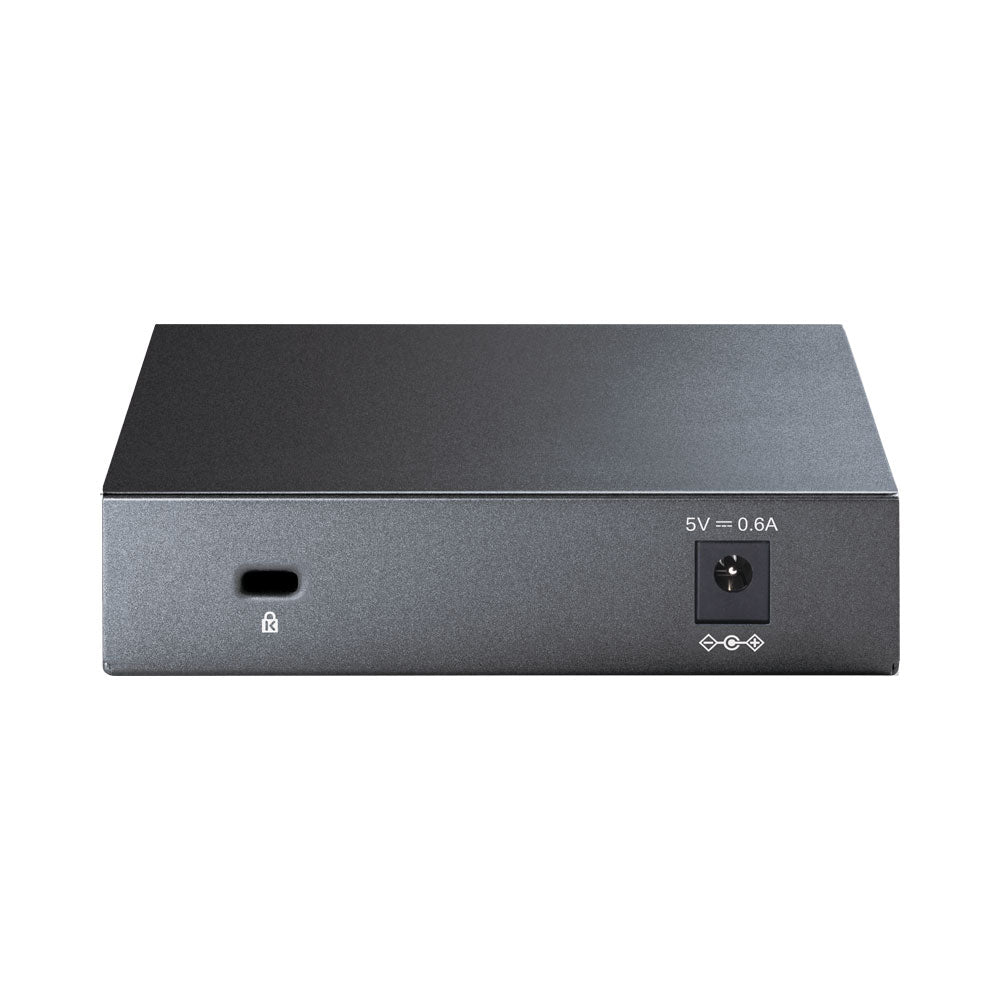

- External Power Supply: External Power Adapter (Output: 5VDC / 0.6A)
- LED Indicator: System Power
- Link/Act indicators per port built into each RJ-45 port
- Dimensions (W x D x H): 100 x 98 x 25mm
- Max Heat Dissipation: 7.83 BTU/h
Performance
- Packet Forwarding Rate: 7.4Mpps
- MAC Address Table: 2K
- Packet Buffer Memory: 1Mb
- Jumbo Frame: 16KB
Software Features
- Advanced Features: Green Technology
- 802.3X Flow Control
- 802.1P/DSCP QoS (for V2 and later version)
- IGMP Snooping
- Transfer Method: Store and Forward
Others
- Certification: CE, FCC, RoHS
- Environment: Operating Temperature: 0°C~40°C
- Storage Temperature: -40°C~70°C
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5%~90% non-condensing
