TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch
The TL?SG105E is a 5?port Gigabit Ethernet switch in the 摘asy Smart" category from TP?Link. It sits between a basic unmanaged switch and a fully managed switch: more control and features than a plug?and?play switch, but simpler and cheaper than enterprise?grade managed gear.
Features

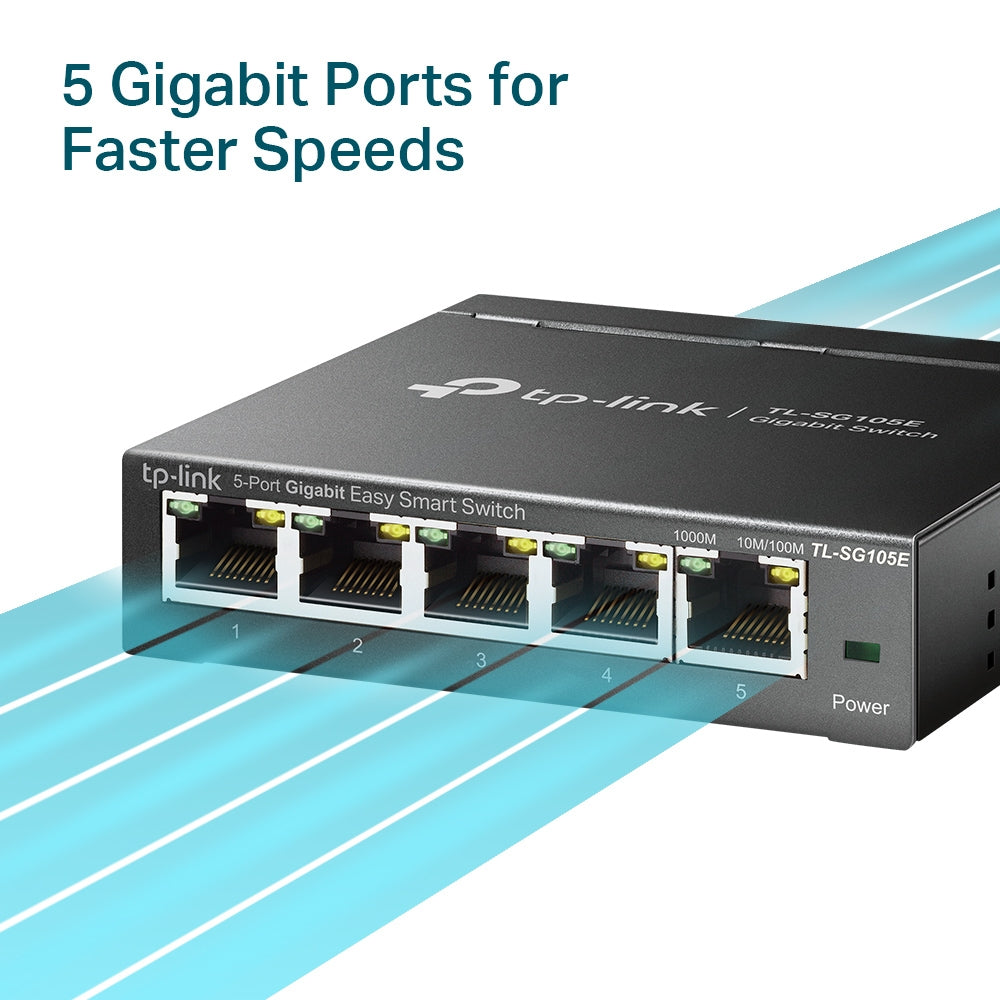

- 5 10/100/1000Mbps RJ45 ports
- Plug and play, with no configuration required

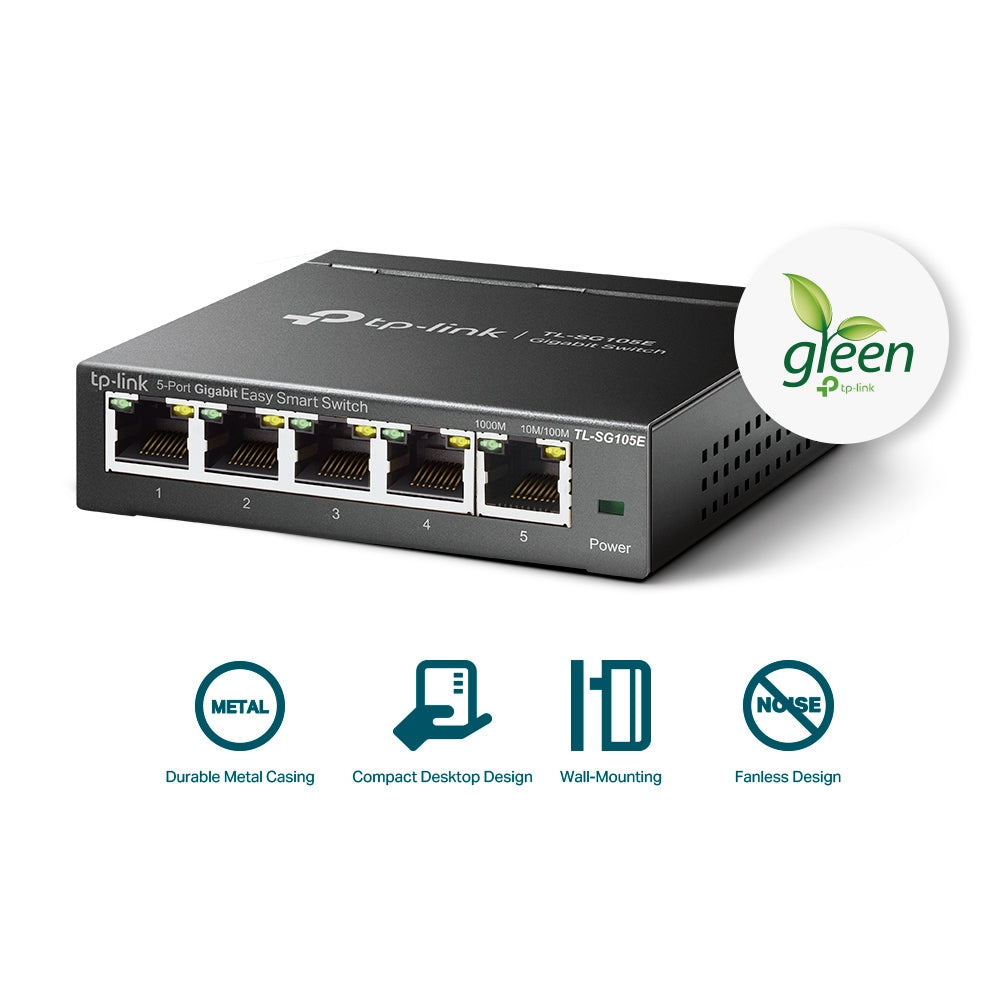

- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface: 5 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless
- Power Supply: External Power Adapter(Output: 9VDC/0.6A)
- Dimensions (W x D x H): 100 x 98 x 25mm
- Max Power Consumption: 2.66W(220V/50Hz)
- Max Heat Dissipation: 9.07BTU/h
Performance
- Packet Forwarding Rate: 7.4Mpps
- MAC Address Table: 2K
- Packet Buffer Memory: 1Mb
- Jumbo Frame: 15KB
Software Features
- Quality of Service: Support Port-based /802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
- L2 Features: IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
- Transmission Method: Store-And-Forward
Others
- Certification: FCC, CE, RoHS
- System Requirements: Microsoft Windows for running Utility
