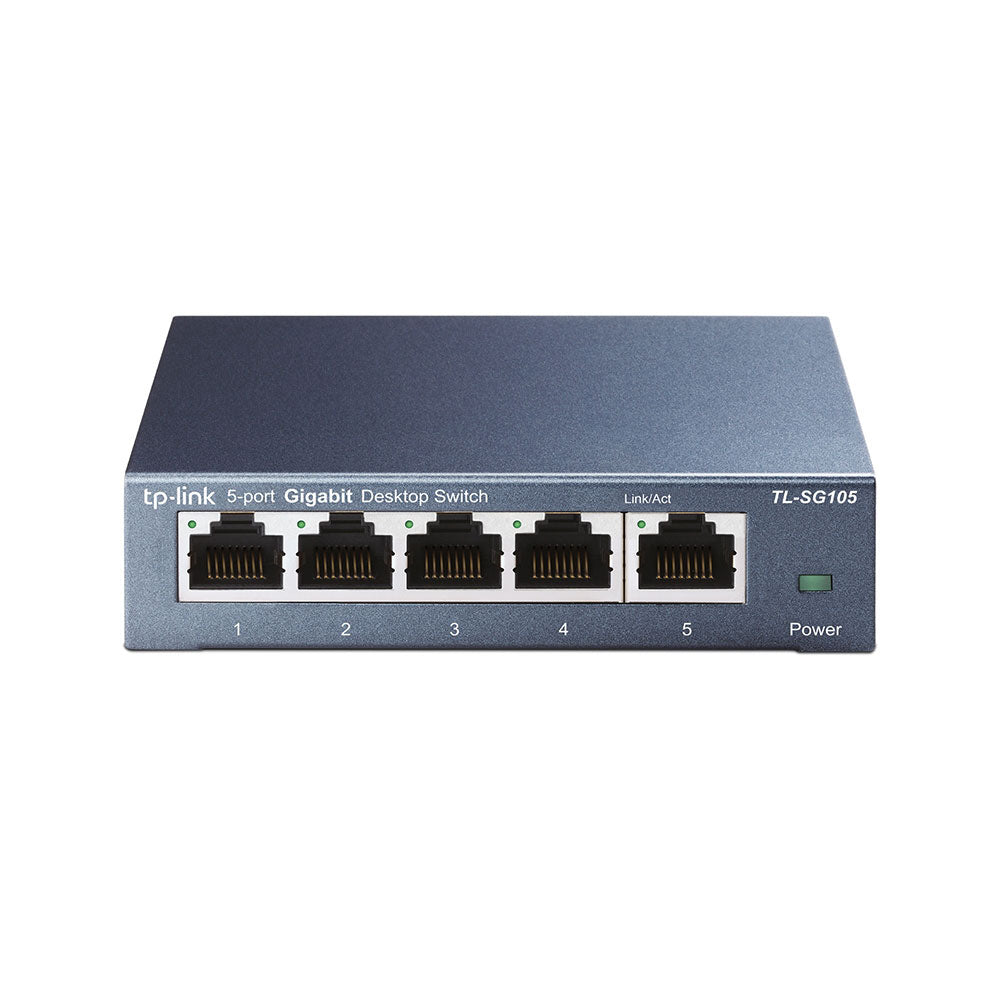

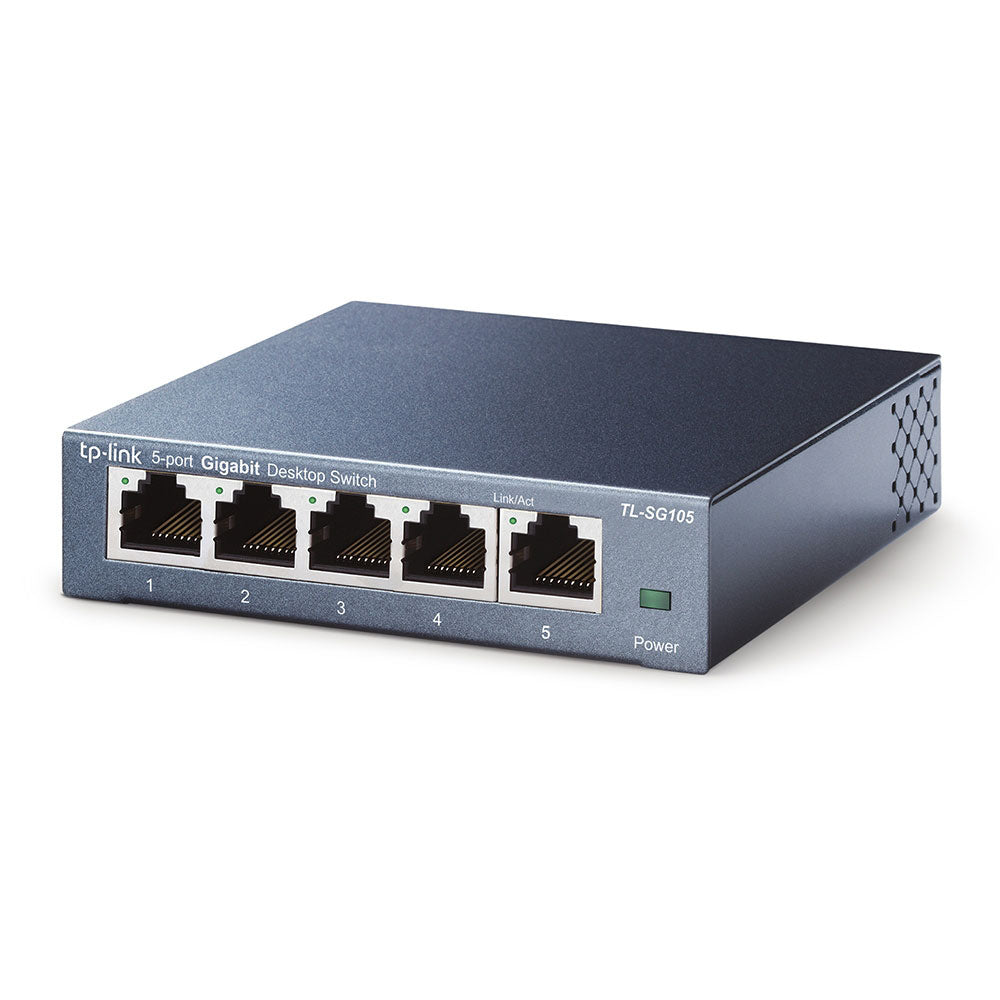

TP-Link TL-SG105 5-Port Gigabit Desktop Switch
The TL?SG105 is an unmanaged gigabit Ethernet switch. It has 5 RJ?45 ports that support 10/100/1000 Mbps. It痴 designed for expanding wired network connectivity in homes or small offices, with plug?and?play operation and no user?configuration required.
Features
- 5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, no configuration needed
Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
- Interface: 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
- Fan Quantity: Fanless
- External Power Supply: External Power Adapter (Output: 9VDC / 0.6A)
- LED Indicator: System Power
- Link, Speed and activity indicators per port built into each RJ-45 port
- Dimensions (W x D x H): 99.8 x 98 x 25mm
- Max Power Consumption: 2.43W(220V/50Hz)
- Max Heat Dissipation: 8.29BTU/h
Performance
- Packet Forwarding Rate: 7.4Mpps
- MAC Address Table: 2K
- Packet Buffer Memory: 1Mb
- Jumbo Frame: 16KB
Software Features
- Advanced Features: Green Technology, saving power up to 84%
- 802.3X Flow Control
- 802.1P/DSCP QoS (for V2 and later version)
- IGMP Snooping
- Transfer Method: Store and Forward
Others
- Certification: CE, FCC, RoHS
