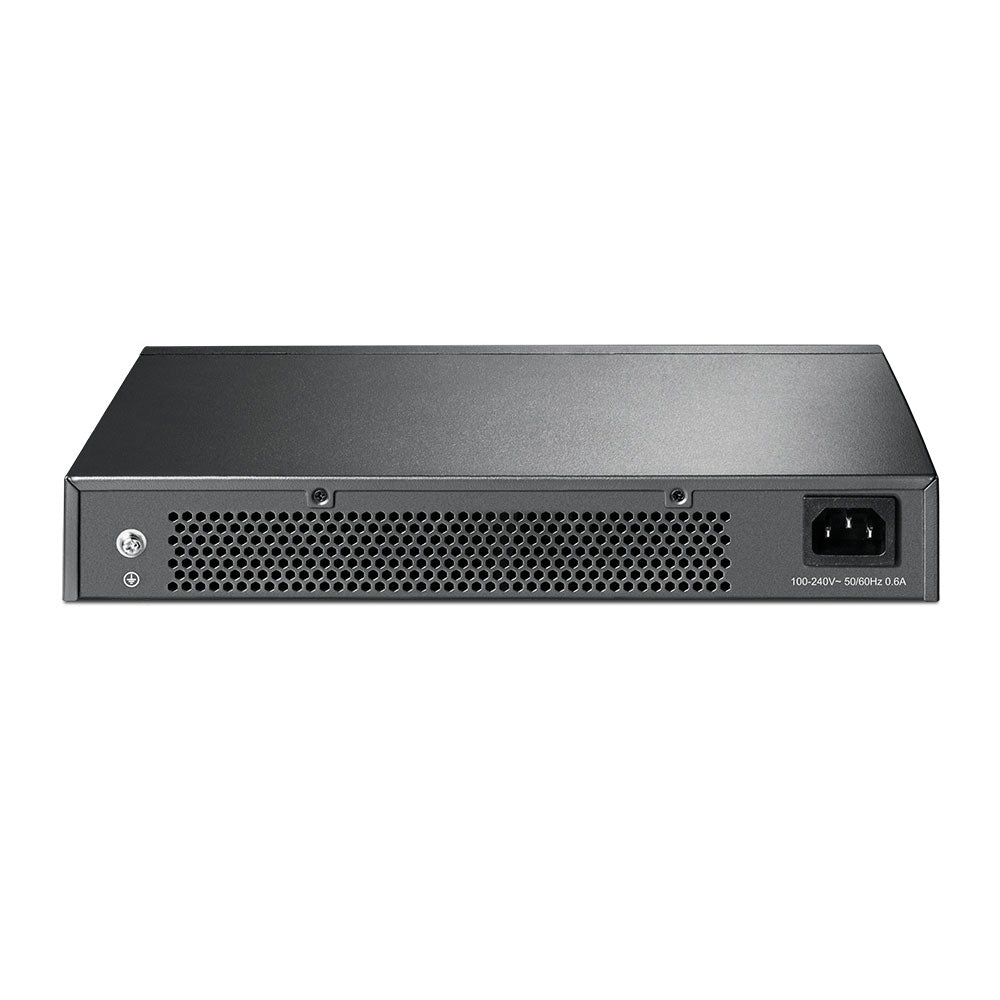

TP-Link TL-SG1024DE 24-Port Gigabit Rackmount Smart Switch
The TL?SG1024DE is an 摘asy Smart" (sometimes called 都emi?managed") switch from TP?Link. It sits between an unmanaged (plug?and?play) switch and a fully managed switch. The idea is to offer some layer?2 control and traffic management features, while keeping things simpler than enterprise gear.
Features
- 24 10/100/1000Mbps RJ45 ports
- Provides network monitoring, traffic prioritisation and VLAN features
- Innovative energy-efficient technology reduces power output by up to 18%
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface: 24 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless
- Physical Security Lock: No
- Power Supply: 100-240VAC, 50/60Hz
- Power Consumption: Maximum: 14.86W (220V/50Hz)
- Dimensions (W x D x H): 294 x 180 x 44mm
- Mounting: Rack Mountable
- Max Power Consumption: 33.52W (220V/50Hz)
- Max Heat Dissipation: 114.37 BTU/h
Performance
- Switching Capacity: 48Gbps
- Packet Forwarding Rate: 35.7Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 512KB
- Jumbo Frame: 9KB
Software Features
- Quality of Service: Support Port-based/ 802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
- L2 Features: IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
- Transmission Method: Store-And-Forward
Others
- Certification: FCC, CE, RoHS
- System Requirements: Microsoft Windows for running Utility
