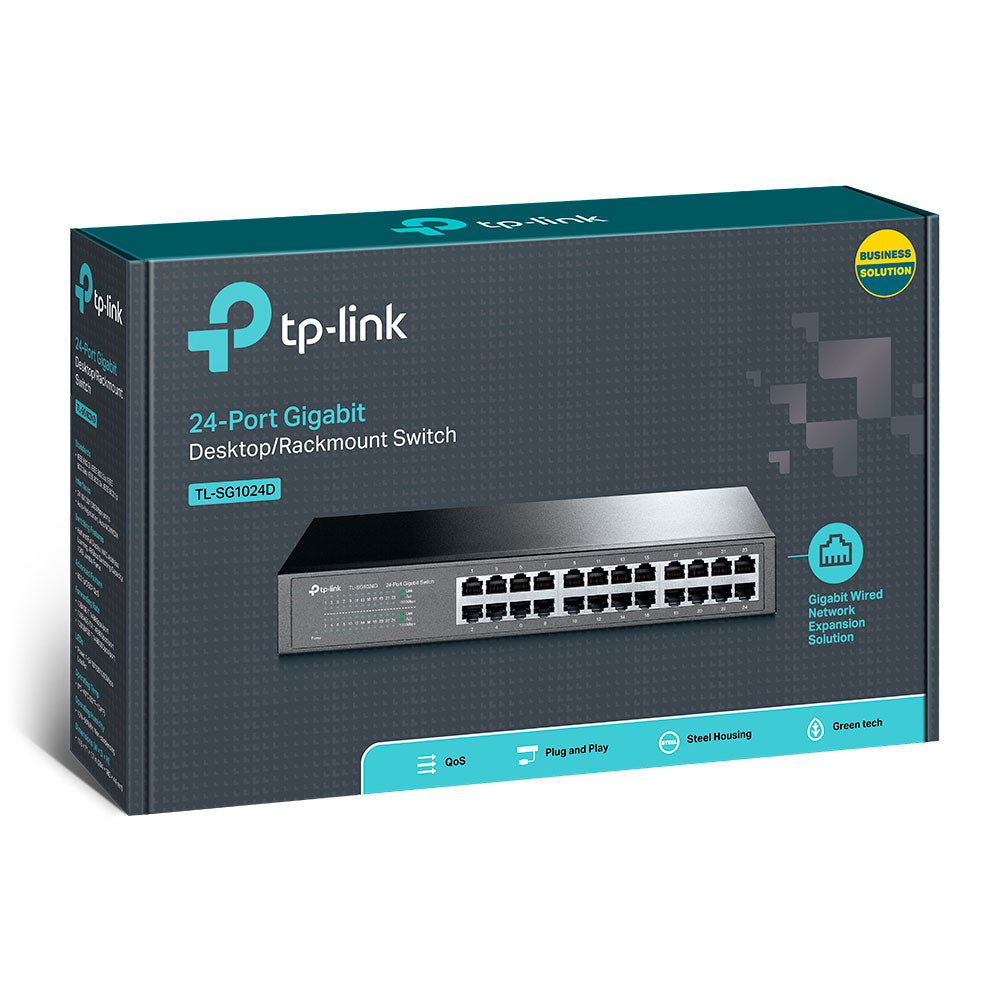

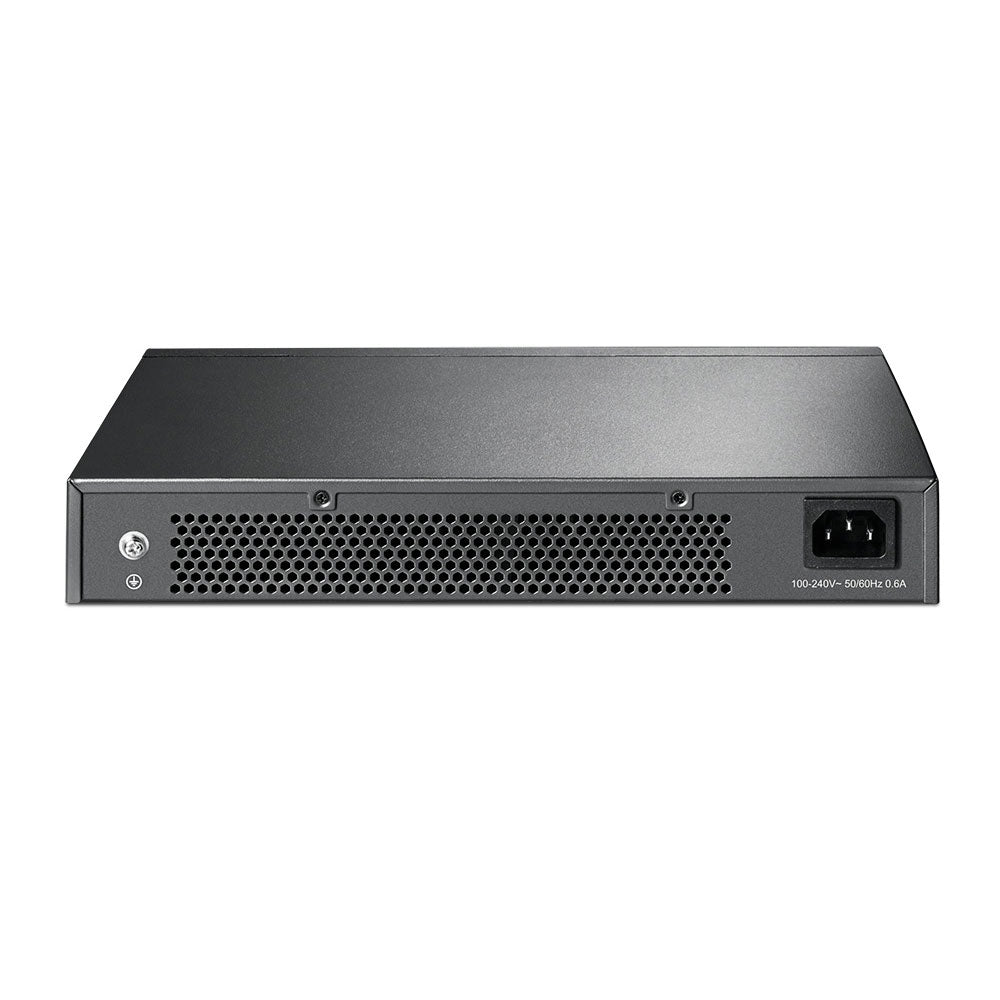

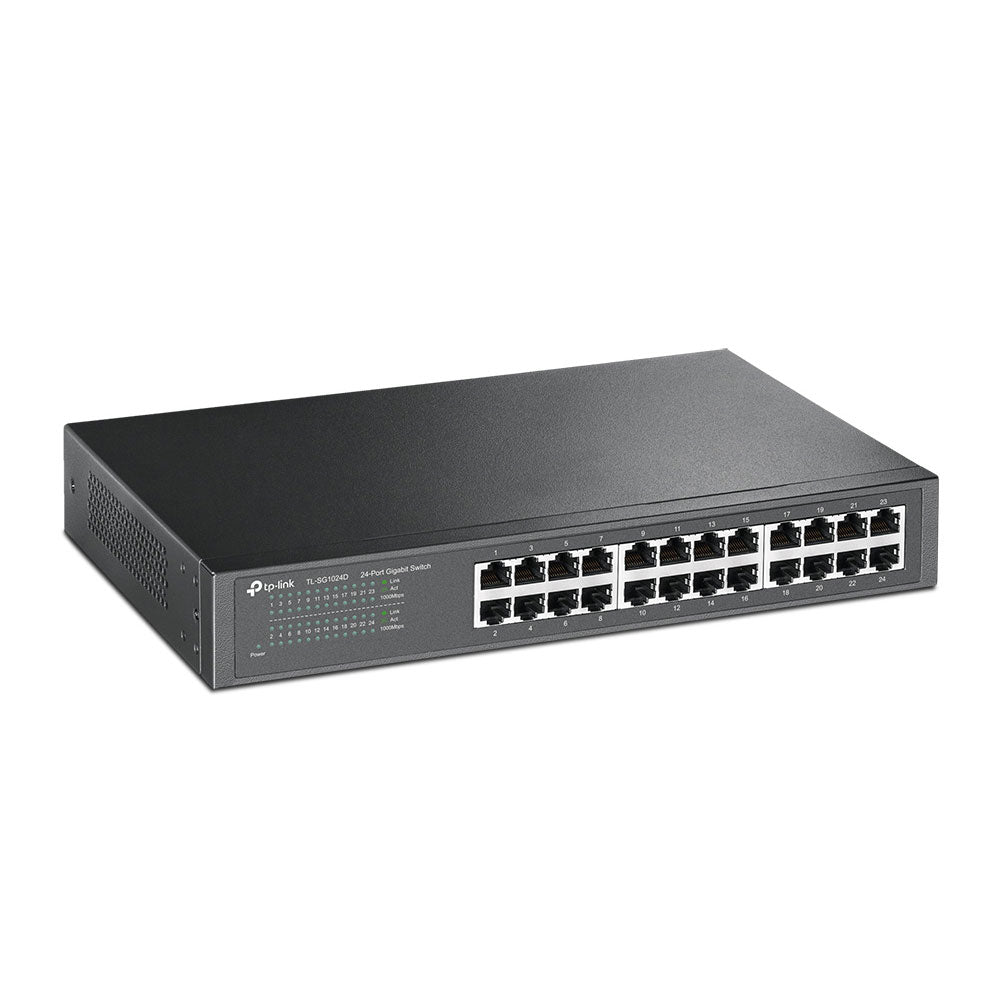

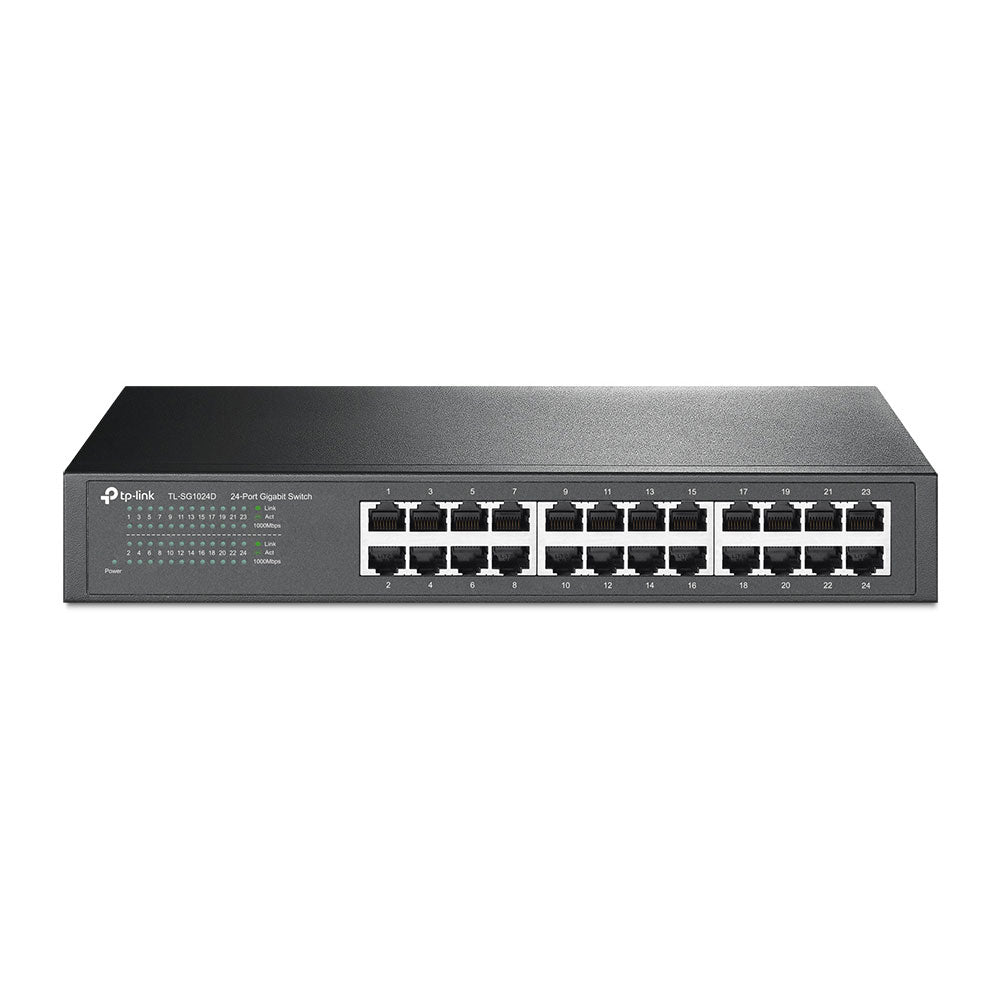

TP-Link TL-SG1024D 24-Port Gigabit Desktop/Rackmount Switch
The TP?Link TL?SG1024D is an unmanaged Gigabit Ethernet switch with 24 RJ?45 ports. It痴 designed for use in homes, small offices or racks, to expand wired connectivity-offering Gigabit speeds on all ports, low energy consumption, and plug?and?play simplicity.
Features
- 24 10/100/1000Mbps ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
- Plug & play design
Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Interface: 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
- Fan Quantity: Fanless
- Physical Security Lock: No
- Power Supply: 100-240VAC, 50/60Hz
- Dimensions (W x D x H): 294 x 180 x 44mm
- Mounting: Rack Mountable
- Max Power Consumption: 13.08W(220V/50Hz)
- Max Heat Dissipation: 44.63BTU/h
Performance
- Switching Capacity: 48Gbps
- Packet Forwarding Rate: 35.7Mpps
- MAC Address Table: 8K
- Jumbo Frame: 10KB
- Green Technology: Yes
- Transfer Method: Store-and-Forward
Others
- Certification: FCC, CE, RoHS
