TP-Link TL-SG1016PE 16-Port Gigabit Rackmount Smart Switch with 8-Port PoE+
The TL?SG1016PE is a 16?port Gigabit 摘asy Smart" PoE+ switch from TP?Link. It痴 a hybrid between unmanaged and managed: more features than a pure plug?and?play switch, but lighter weight than a full enterprise managed switch. It offers 8 ports with PoE+ (802.3af/at) to deliver data + power over Ethernet.
Features
- 16 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
- With a total PoE power budget of 110W, up to 30W per port
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface: 16 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: 1

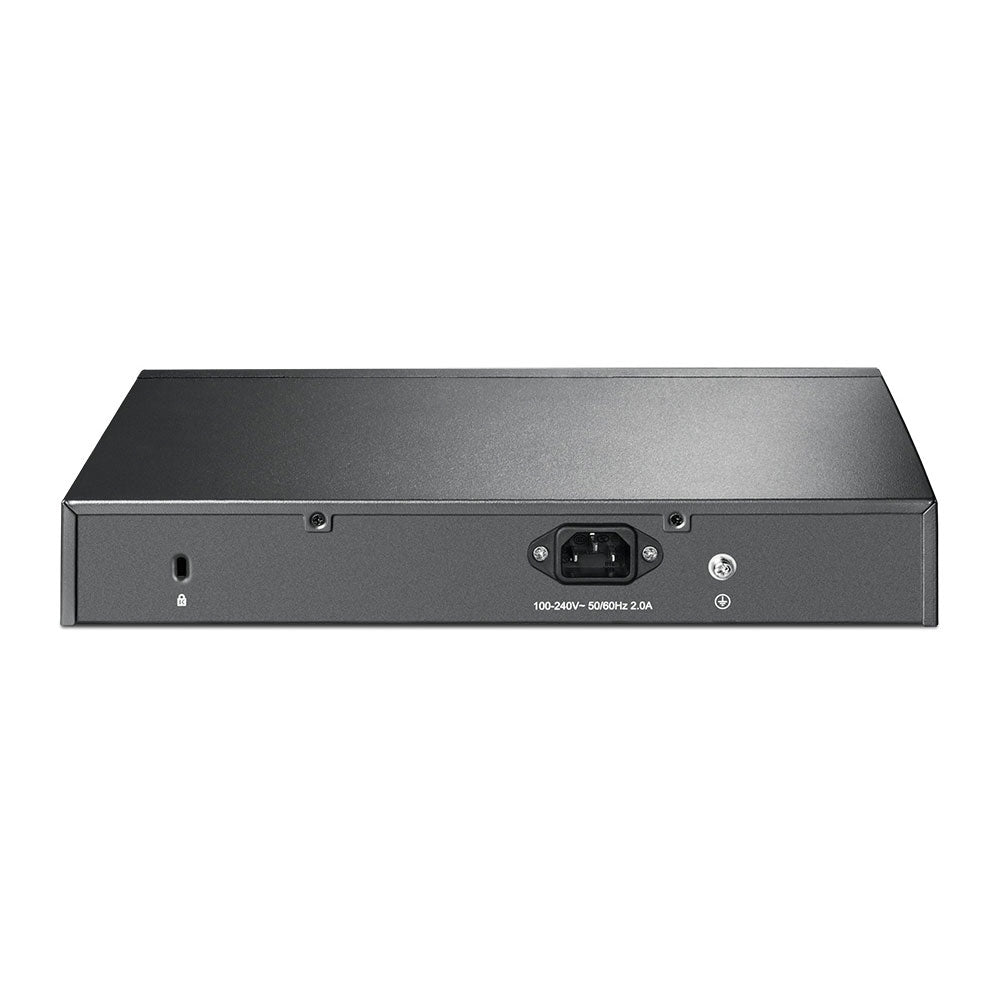

- Physical Security Lock: Yes
- Power Consumption: Maximum: 124.4W (220V/50Hz)
- PoE Ports (RJ45): Standard: 802.3 at compliant
- PoE Ports: Port 1- Port 8
- PoE Power Budget: 110W
- Dimensions (W x D x H): 294 x 180 x 44mm
- Mounting: Rack Mountable
- Max Power Consumption: 14.72W (110V/60Hz with no PD connected)
- 131.42W (110V/60Hz with 110W PD connected)
- Max Heat Dissipation: 50.22 BTU/h (with no PD connected)
- 448.41 BTU/h (with 110W PD connected)
Performance
- Switching Capacity: 32Gbps
- Packet Forwarding Rate: 23.8Mbps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1Mbit
- Jumbo Frame: 9KB
Software Features
- Quality of Service: Support Port-Based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
- L2 Features: IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
- Management: Web-based GUI
- Easy Smart Configuration Utility
- Transmission Method: Store-And-Forward
Others
- Certification: FCC, CE, RoHS
- System Requirements: Microsoft Windows for running Utility
