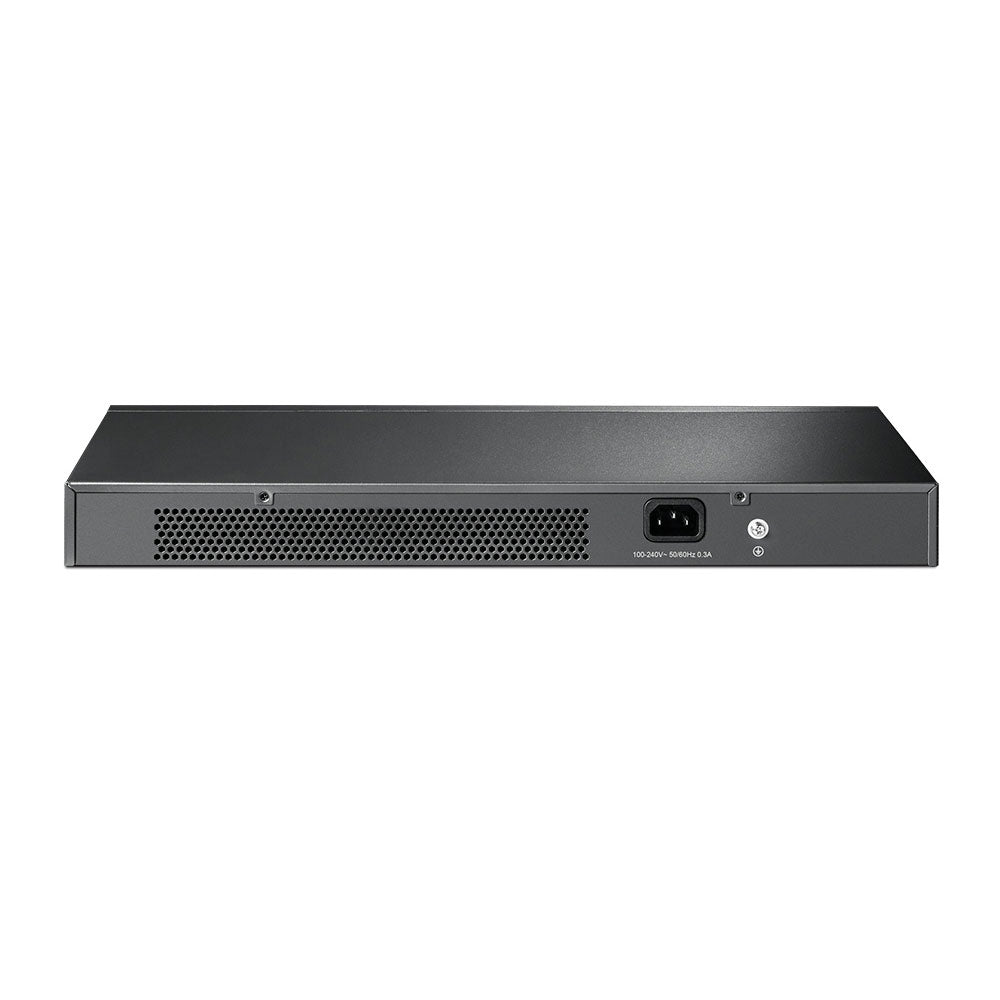

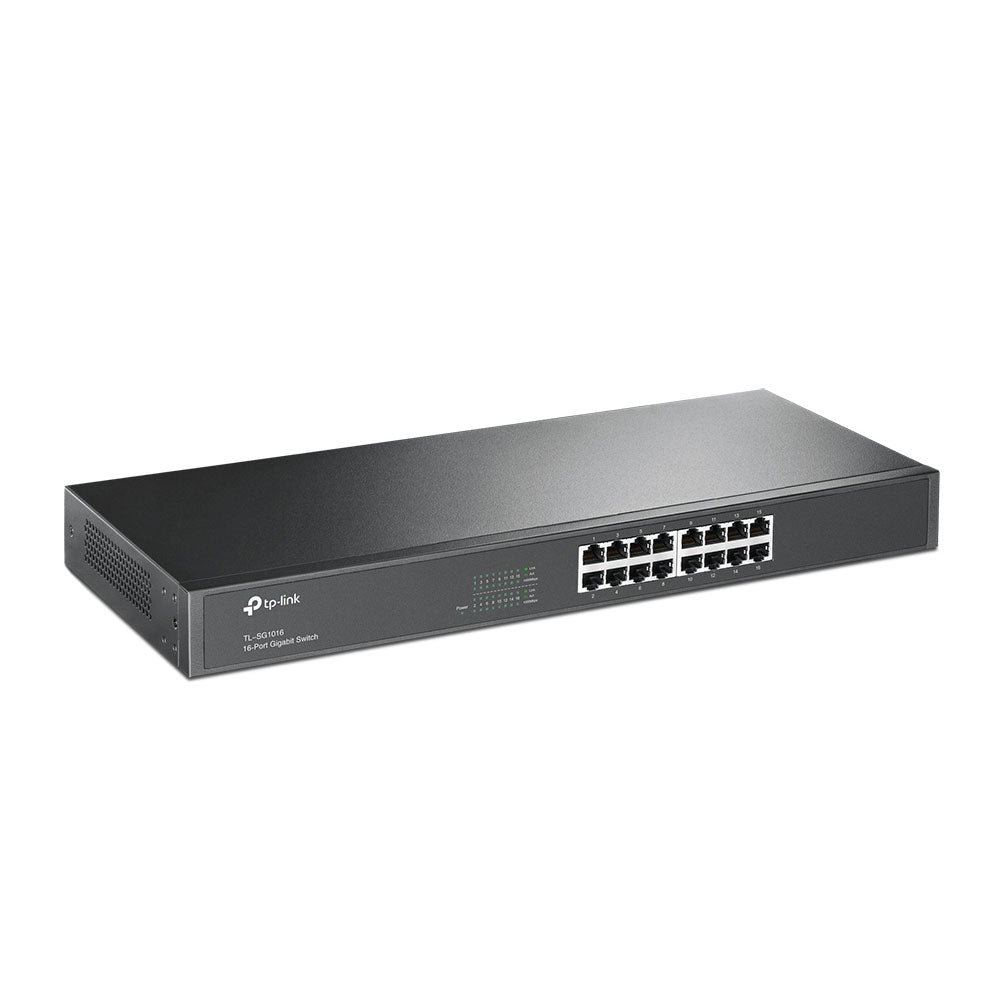

TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch
The TL?SG1016 is an unmanaged 16?port Gigabit Ethernet switch in a 19?inch rackmount steel case. Its design is aimed at environments that need many wired Gigabit ports (office, workgroup, server racks, labs etc.), but don稚 need advanced management features. It supports 10/100/1000 Mbps on all ports, auto negotiation, auto?MDI/MDIX, and is designed to be plug?and?play.
Features
- 16 10/100/1000Mbps RJ45 ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x, IEEE 802.1p
- Interface: 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
- Fan Quantity: Fanless
- Physical Security Lock: No
- Power Supply: 100-240VAC, 50/60Hz
- Dimensions (W x D x H): 440 x 180 x 44mm
- Mounting: Rack Mountable
- Max Power Consumption: 9.26W(220V/50Hz)
- Max Heat Dissipation: 31.60BTU/h
Performance
- Switching Capacity: 32Gbps
- Packet Forwarding Rate: 23.8Mpps
- MAC Address Table: 8K
- Jumbo Frame: 10KB
- QoS802.1p/DSCP QoS
- Green Technology: Yes
- Transfer Method: Store-and-Forward
Others
- Certification: FCC, CE, RoHS
