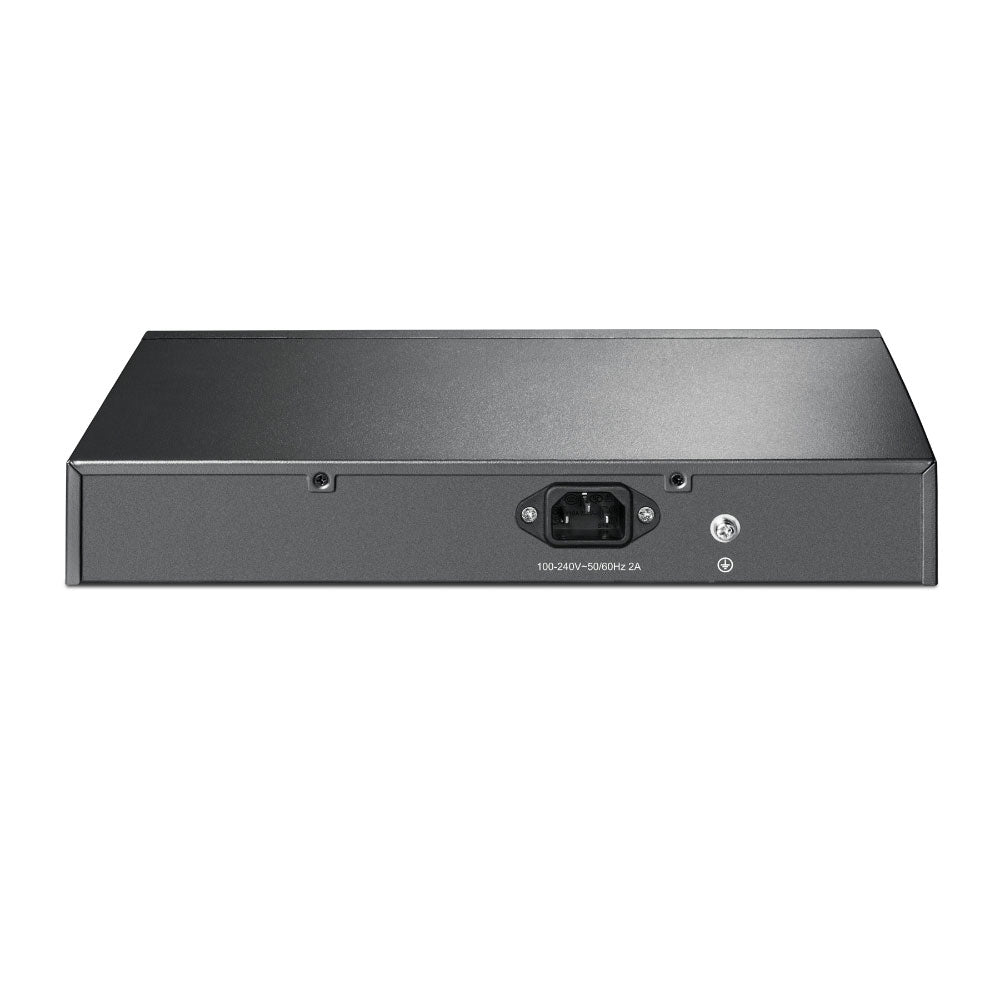

TP-Link TL-SG1008MP 8-Port PoE+ Gigabit Rackmount Switch
The TP?Link TL?SG1008MP is an unmanaged switch with 8 Gigabit Ethernet (10/100/1000 Mbps) ports, all of which support PoE+ (802.3af/at). It can be used either as a desktop device or rack-mounted (1U) using the included mounting kit.
Features
- 8 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Innovative energy-efficient technology reduces power consumption by up to 75%
- Supports PoE+ standard with total power budget of 126W and up to 30W per port
- Plug and play design, no configuration required
Specifications
Hardware Features
- Interface: 8 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: 1
- Physical Security Lock: No
- Power Supply: 100-240VAC, 50/60Hz
- PoE+ Ports(RJ45): Standard: 802.3at/af compliant
- PoE+ Ports: 8 Ports
- Power Supply: 126W
- Backbound Bandwidth: 16Gbps
- Mac Address Table: 4K
- Buffer Size: 1.5Mbits
- Dimensions (WxDxH ): 294 x 180 x 44mm
- Mounting: Rack Mountable
- Max Power Consumption: 9.89W(220V/50Hz. no PD connected)
- 140.67W(110V/60Hz. with 126W PD connected)
- Max Heat Dissipation: 33.74BTU/h(no PD connected)
- 492.56BTU/h(with 126W PD connected)
Software Features
- Advanced Features: Compatible With IEEE 802.3af/at Compliant PDs
- Priority Function
- Mac Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
- Transfer Method: Store-And-Forward
Others
- Certification: FCC, CE, RoHS
