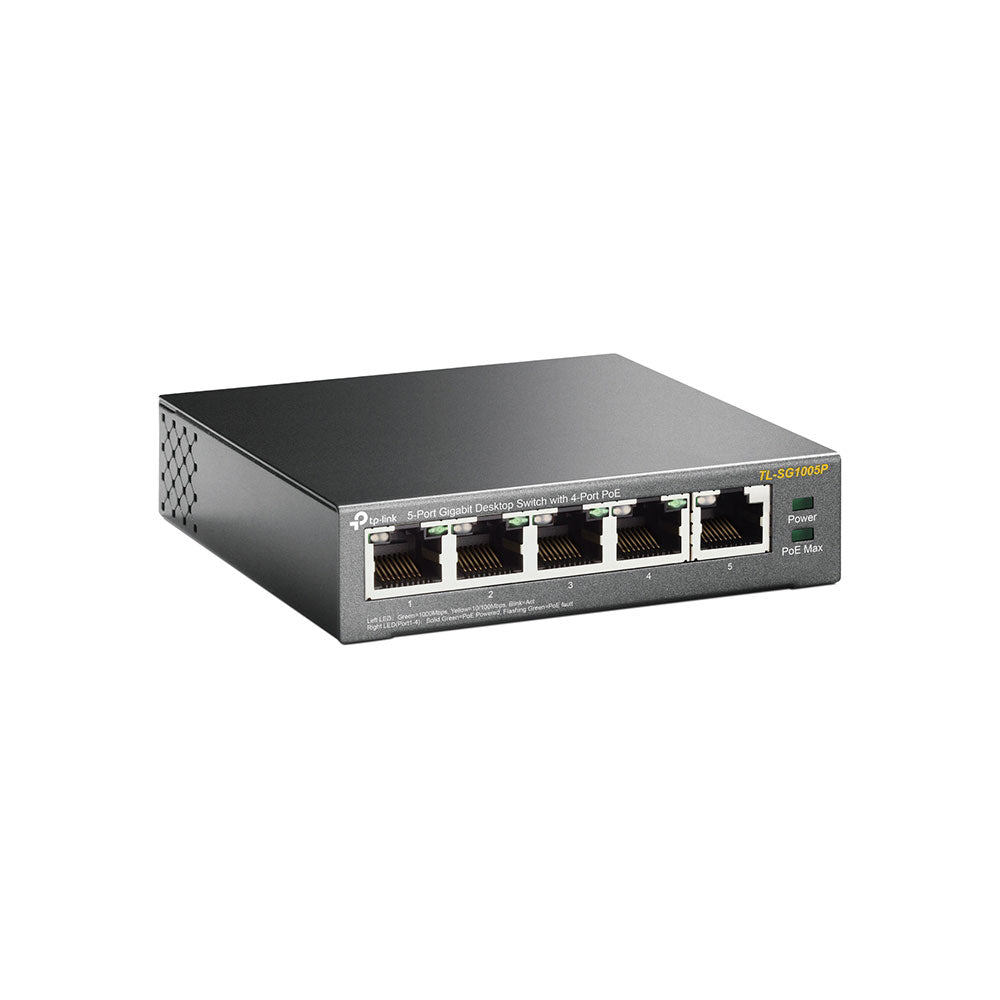

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE
The TP-Link TL-SG1005P is a compact Gigabit desktop switch featuring 4 PoE+ ports for powering devices such as IP cameras, access points, and VoIP phones. Designed for small business and surveillance deployments, it provides reliable Gigabit networking with simple plug-and-play operation.
Features
- 5 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 56W for all PoE ports
- Requires no configuration and installation
Specifications
Hardware Features
- Interface: 5 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless
- External Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
- PoE Ports (RJ45)Standard: 802.3 af compliant
- PoE Ports: Port1- Port4
- Power Supply: 56W
- Backbound Bandwidth10Gbps
- Mac Address Table2K
- Dimensions (WxDxH): 99.8 x 98 x 25mm
- Max Power Consumption: 3.95W(220/50Hz. no PD connected)
- 64.44W(220/50Hz. with 56W PD connected)
- Max Heat Dissipation: 13.48BTU/h(no PD connected)
- 219.87BTU/h(with 56W PD connected)
Software Features
- Advanced Features: Compatible With IEEE 802.3af Compliant PDs
- Priority Function
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- Transfer Method: Store-And-Forward
Others
- Certification: FCC, CE, RoHS
- Consumption: 4.26 watts (max. no PD connected)
- 63.31 watts (max. with 56w PD connected)
