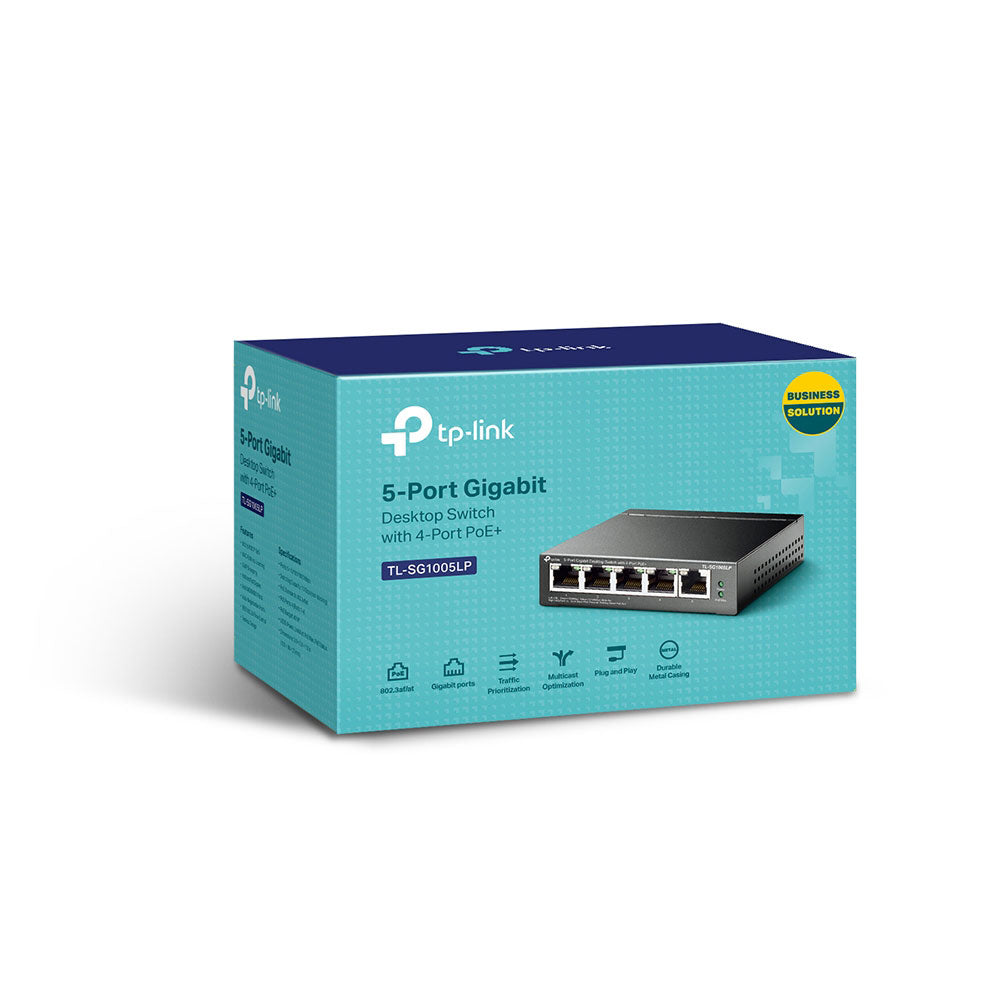

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+Professional 5-Port Gigabit Switch with 4 PoE+ Ports
The TL?SG1005LP is an unmanaged Gigabit Ethernet switch that supports Power over Ethernet (PoE+) on four of its ports. It is designed for small office / home setups where you want to supply power and data over one cable to devices like IP cameras, access points, IP phones, etc., while also supporting full gigabit speeds.
Features
- 5x 10/100/1000Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30W for each PoE port
- Supports PoE Power up to 40W for all PoE ports
- Plug and play, no configuration and installation required
Specifications
Hardware Features
- Interface: 5× 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless
- External Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A)
- Packet Forwarding Rate: 7.44 Mpps
- PoE Ports (RJ45): Standard: 802.3 af/at compliant
- PoE Ports: Ports 1–4
- Power Supply: 40 W
- Mac Address Table: 2K
- Jumbo Frame: 16 KB
- Switching Capacity: 10 Gbps
- Dimensions (W x D x H): 99.8 × 98 × 25mm
- Max Power Consumption: 4.12 W (220/50 Hz. no PD connected)
- 47.5 W (220/50 Hz. with 40 W PD connected)
- Max Heat Dissipation: 14.05 BTU/h (no PD connected)
- 161.98 BTU/h (with 40 W PD connected)
Software Features
- Advanced Features: Compatible With IEEE 802.3af/at Compliant PDs
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- Transfer Method: Store-And-Forward
Others
- CertificationFCC, CE, RoHS
- Environment: Operating Temperature: 0–40°C
- Storage Temperature: -40–70°C
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
