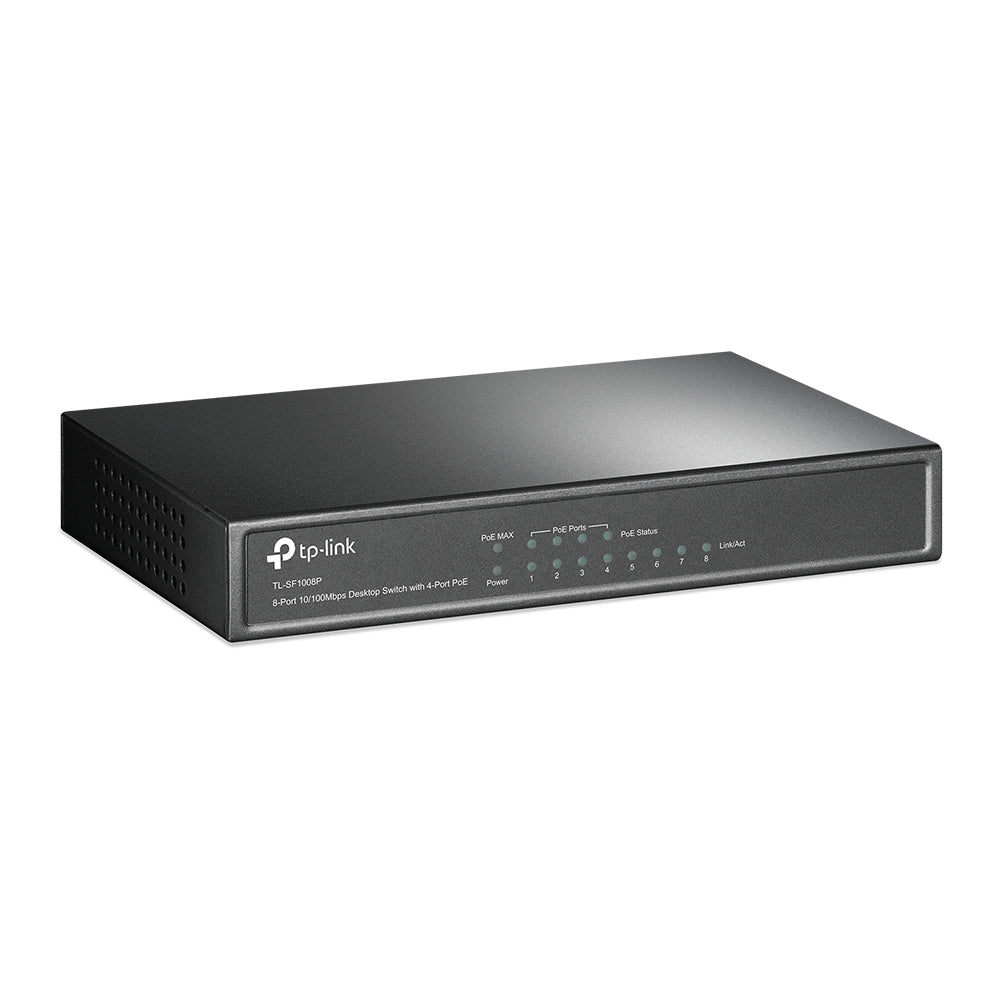

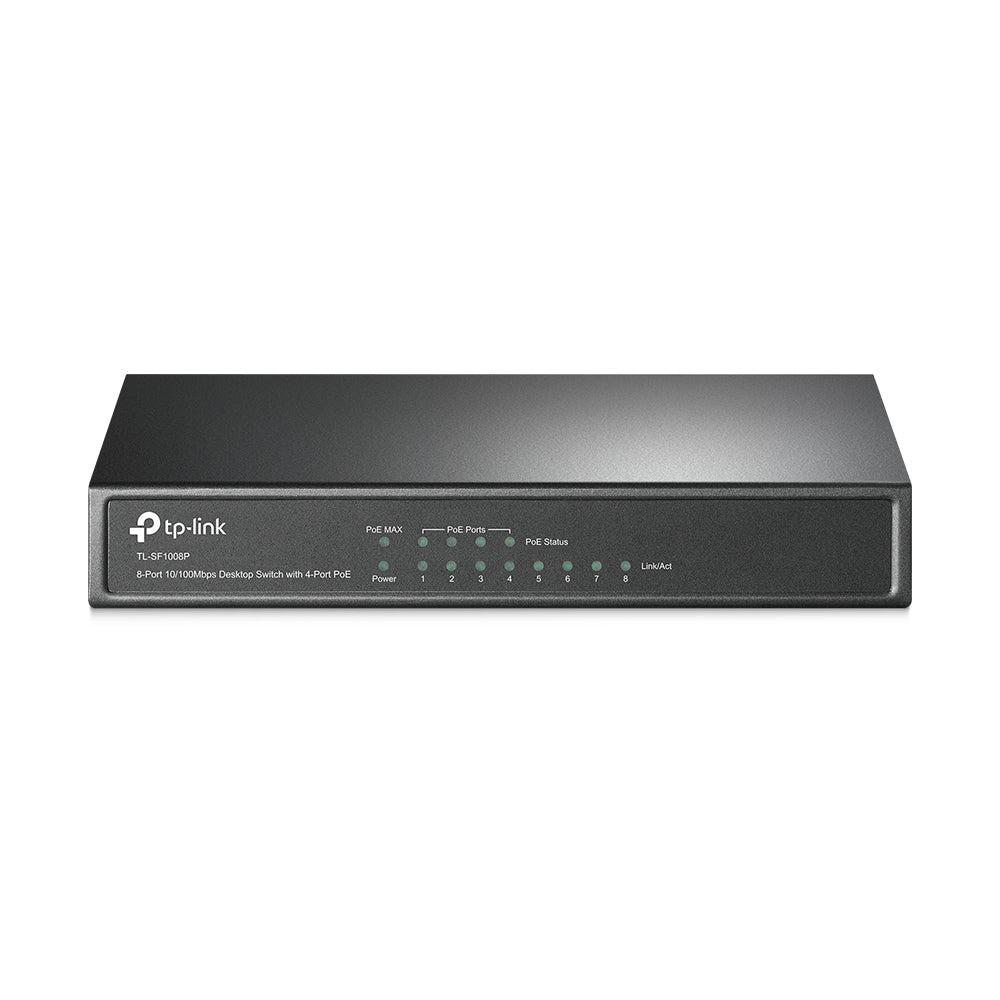

TP-Link TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE
The TL?SF1008P is an unmanaged desktop Ethernet switch that supports Power over Ethernet (PoE/PoE+) on some of its ports. It is intended for small office or home deployments where both data and power need to be delivered over the same Ethernet cable (e.g. to IP cameras, access points, IP phones).
Because it痴 unmanaged, there is no configuration interface - you just plug devices in and it handles traffic automatically.
Features
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 57W for all PoE ports
- Requires no configuration and installation
Specifications
Hardware Features
- Interface: 8 10/100Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless
- Physical Security Lock: No
- Power Consumption: Maximum (PoE on): 60.2W (220V/50Hz)
- Maximum (PoE off): 3.2W (220V/50Hz)
- External Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
- PoE Ports (RJ45)Standard: 802.3 af compliant
- PoE Ports: Port1- Port4
- Power Supply: 57W
- Backbound Bandwidth: 1.6Gbps
- Mac Address Table: 2K
- Dimensions ( W x D x H ): 171 x 98 x 27mm
- Max Power Consumption: 2.66(220/50Hz. no PD connected)
- 65.92(220/50Hz. with 57W PD connected)
- Max Heat Dissipation: 9.08BTU/h(no PD connected)
- 224.92BTU/h(with 57W PD connected)
Software Features
- Transmission Method: Store-And-Forward
- Advanced Functions: Compatible With IEEE 802.3af Compliant PDs
- Priority Function
- Mac Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Others
- Certification: FCC, CE, RoHS
- Consumption: 2.3 watts (max. no PD connected)
- 59.3 watts (max. with 57w PD connected)
