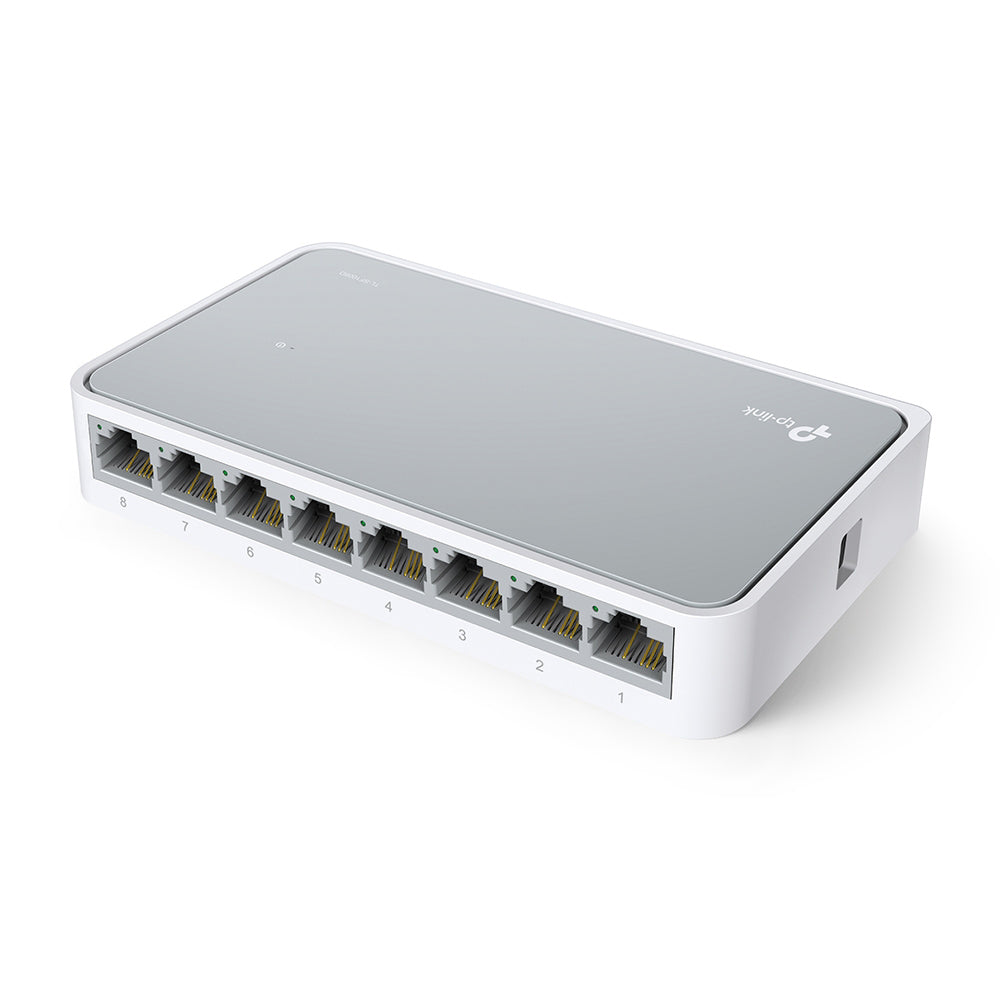

TP-Link TL-SF1008D 8-Port 10/100Mbps Desktop Switch
The TL?SF1008D is an unmanaged Fast Ethernet switch designed for Small Office / Home Office (SOHO) usage. It痴 meant to expand the number of wired Ethernet ports available, allowing multiple devices to connect to the network via RJ?45 ports. Since it痴 砥nmanaged," there are no configuration options-just plug and play.
Features
- 8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop design
- Plug and play, no configuration required
Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Interface: 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
- Fan Quantity: Fanless
- Power Supply: External Power Adapter(Output: 5.0VDC / 0.6A)
- External Power Supply: 100-240VAC, 50/60Hz
- Buffer Size: 768Kb
- Data Rates: 10/100Mbps at Half Duplex ;
- 20/200Mbps at Full Duplex
- LED Indicator: Power, 1, 2, 3, 4, 5, 6, 7, 8
- Dimensions ( W x D x H ): 134.5 x 79 x 22.5mm
- Max Power Consumption: 2.05W(220V/50Hz)
- Max Heat Dissipation: 6.99BTU/h
Software Features
- Transfer Method: Store and Forward
- Advanced Functions: Green Technology, saving power up to 60%
- 802.3X Flow Control, Back Pressure
Others
- CertificationFCC, CE, RoHS
