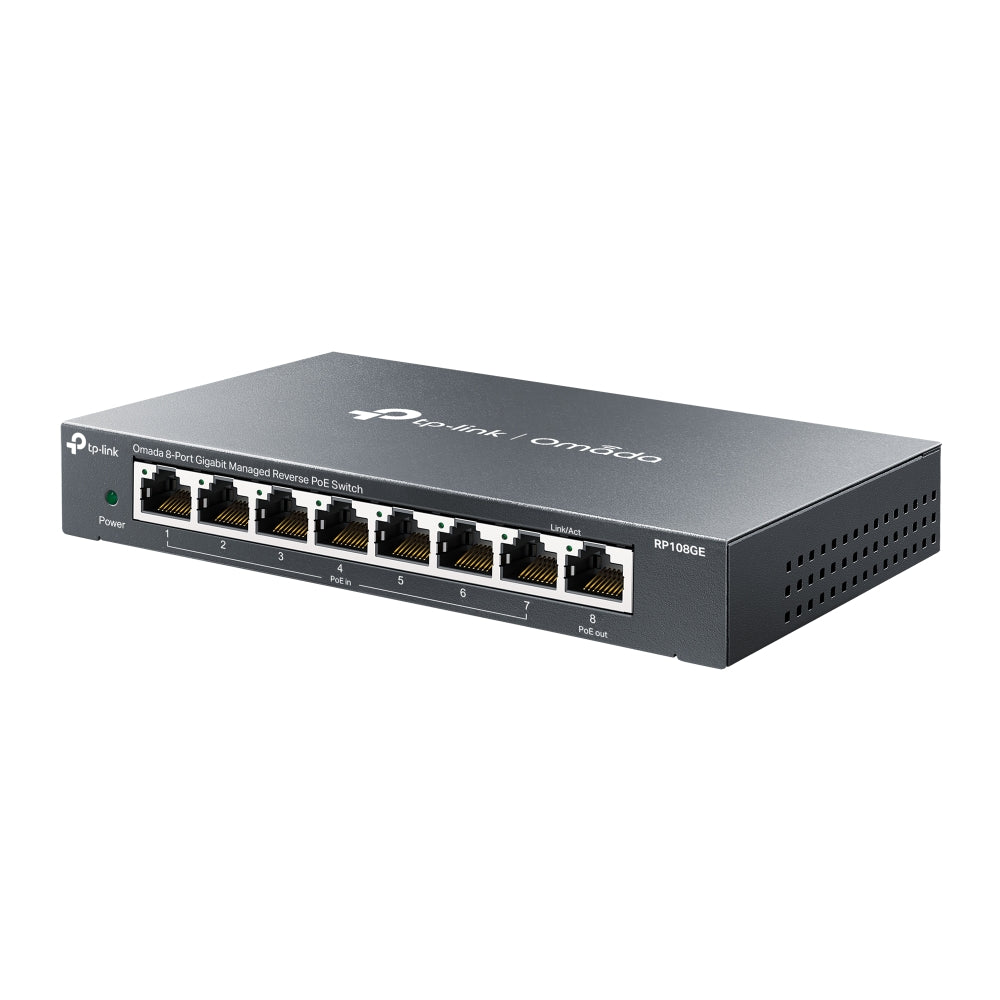

TP-LINK OMADA RP108GE 8-PORT GIGABIT REVERSE POE SWITCH

TP-Link Omada RP108GE 8-Port Gigabit Reverse PoE Switch

Simplify Power and Networking with One Compact Solution.

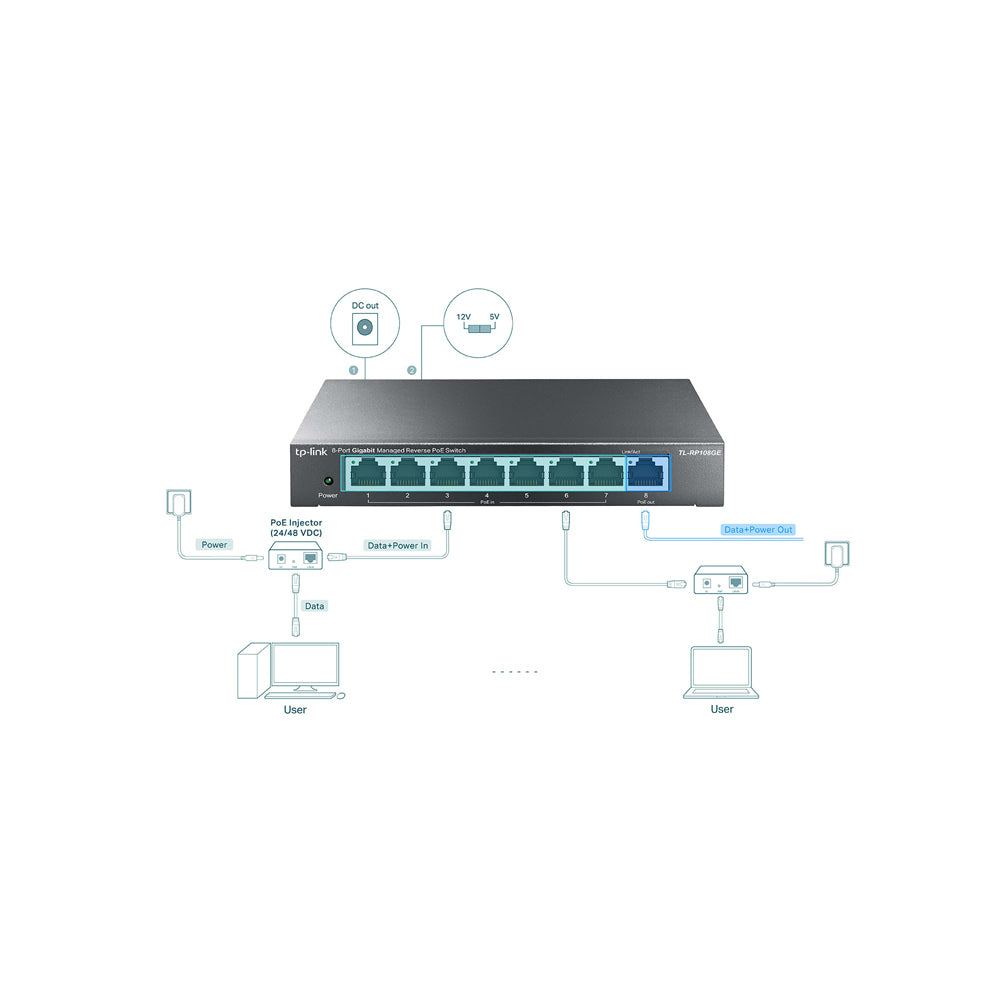

The RP108GE Passive PoE Switch combines data switching and power delivery in a single device. Featuring seven Gigabit PoE input ports and one PoE output port, it can power CPE devices while providing reliable network connectivity. A versatile 5V/12V DC output also supports devices such as ONTs. By integrating PoE and switching into one unit, the RP108GE reduces cabling, saves space and eliminates the need for additional power outlets - making deployments faster, cleaner and more cost-effective.

Features

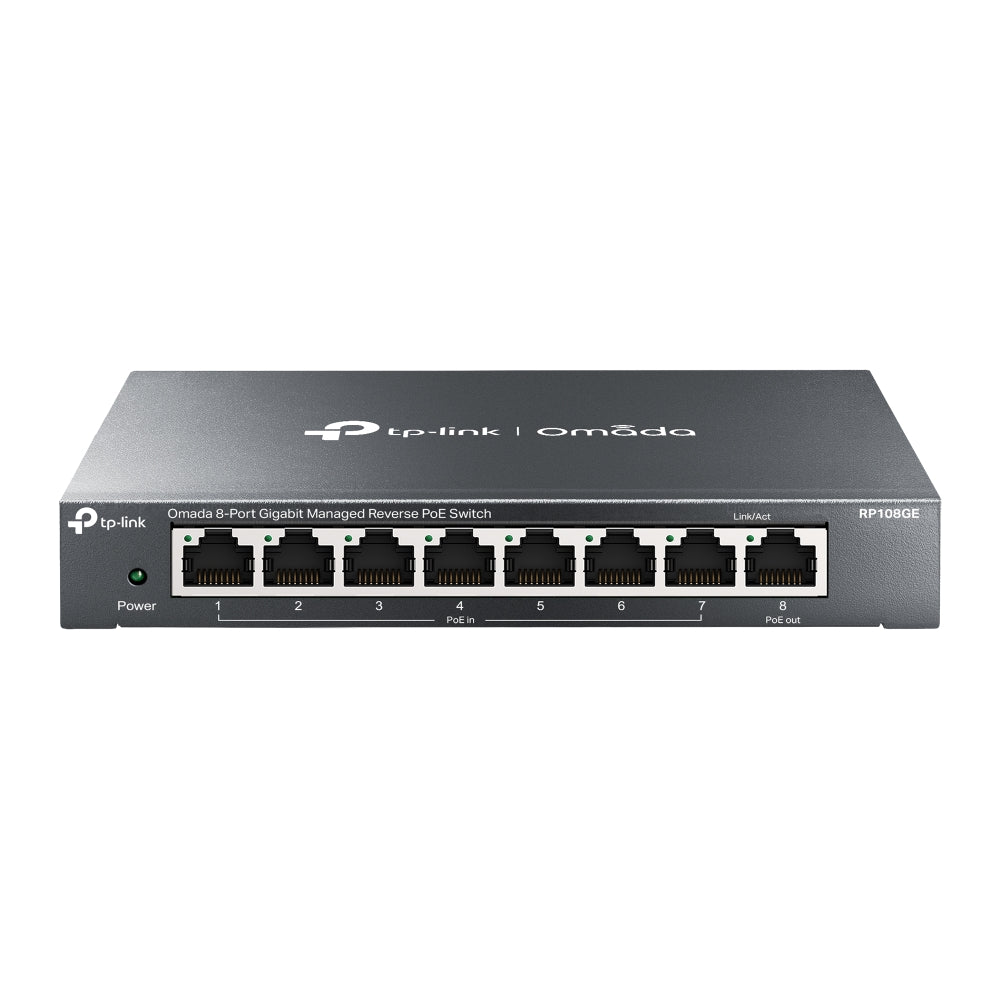

• 8× Gigabit Ports - 7× PoE input ports and 1× PoE output 10/100/1000Mbps RJ45 port for flexible network deployment
• Dual Voltage DC Output - 1× DC output port supporting selectable 5V or 12V power output
• Durable Metal Housing - High-quality metal casing provides improved durability and professional appearance
• Intelligent Management - Supports web-based management interface and downloadable configuration utility
• Energy Efficient Design - Green technology helps reduce overall power consumption
• Reliable PoE Distribution - Enables stable power and data delivery for connected network devices

Specifications

Standards And Protocols

• CSMA/CD

Interface

• 7× Passive PoE-In RJ45 Ports
• 10/100/1000Mbps Auto-Negotiation
• Voltage: 24/48V (Mixture Not Supported)
• Power Pins: 4/5+, 7/8-
• 1× Passive PoE-Out RJ45 Port
• 10/100/1000Mbps Auto-Negotiation
• Voltage Depends on PoE-In Input Voltage
• Power Pins: 4/5+, 7/8-

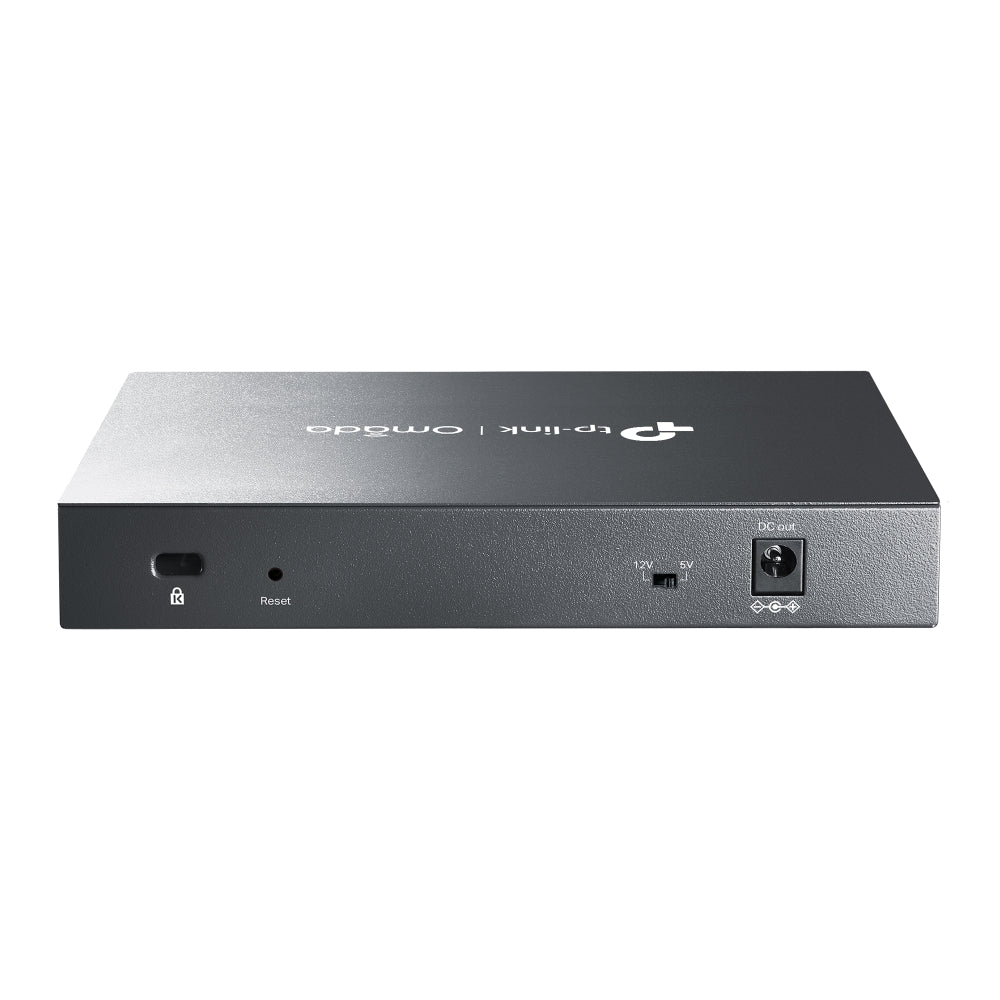

• 1× DC Output Port
• Voltage: 5/12V

Network Media

10Base-T

• UTP CAT3, 4, 5 Cable (Max. 100m)
• EIA/TIA-568 100Ω STP (Max. 100m)

100Base-TX

• UTP CAT5, 5e Cable (Max. 100m)
• EIA/TIA-568 100Ω STP (Max. 100m)

1000Base-T

• UTP CAT5e Cable (Max. 100m)
• EIA/TIA-568 100Ω STP (Max. 100m)

Led

• Power
• Link / Act LED

Packet Forwarding Rate

• 11.9Mpps

Mac Address Table

• 4K

Jumbo Frame

• 16KB

Switching Capacity

• 16Gbps

Ieee Standards

• IEEE 802.3ab
• IEEE 802.3i
• IEEE 802.3p
• IEEE 802.3q
• IEEE 802.3x
• IEEE 802.3u

Data Rates

• Ethernet: 10Mbps (Half-Duplex), 20Mbps (Full-Duplex)
• Fast Ethernet: 100Mbps (Half-Duplex), 200Mbps (Full-Duplex)
• Gigabit Ethernet: 2,000Mbps (Full-Duplex)

Dimensions (W × D × H)

• 158 × 99.1 × 25mm

Max. Power Consumption

• 3.98W (No PD Connected)
• 18.01W (24V with PD Connected)
• 32.74W (48V with PD Connected)

Max. Heat Dissipation

• 13.57BTU/h (No PD Connected)
• 61.41BTU/h (24V with PD Connected)
• 111.64BTU/h (48V with PD Connected)

Quality Of Service

• Port-Based 802.1p / DSCP Priority
• 4 Priority Queues
• Rate Limit
• Storm Control

L2 Features

• IGMP Snooping V1 / V2 / V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention

Vlan

• up to 32× VLANs Simultaneously (Out of 4K VLAN IDs)
• MTU / Port / Tag VLAN

Transmission Method

• Store-and-Forward

Certifications

• FCC
• CE
• RoHS

System Requirements

• Windows 98SE / NT / 2000 / XP / Vista / Windows 7
• Mac OS
• NetWare
• UNIX
• Linux

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% Non-Condensing
• Storage Humidity: 5~90% Non-Condensing
