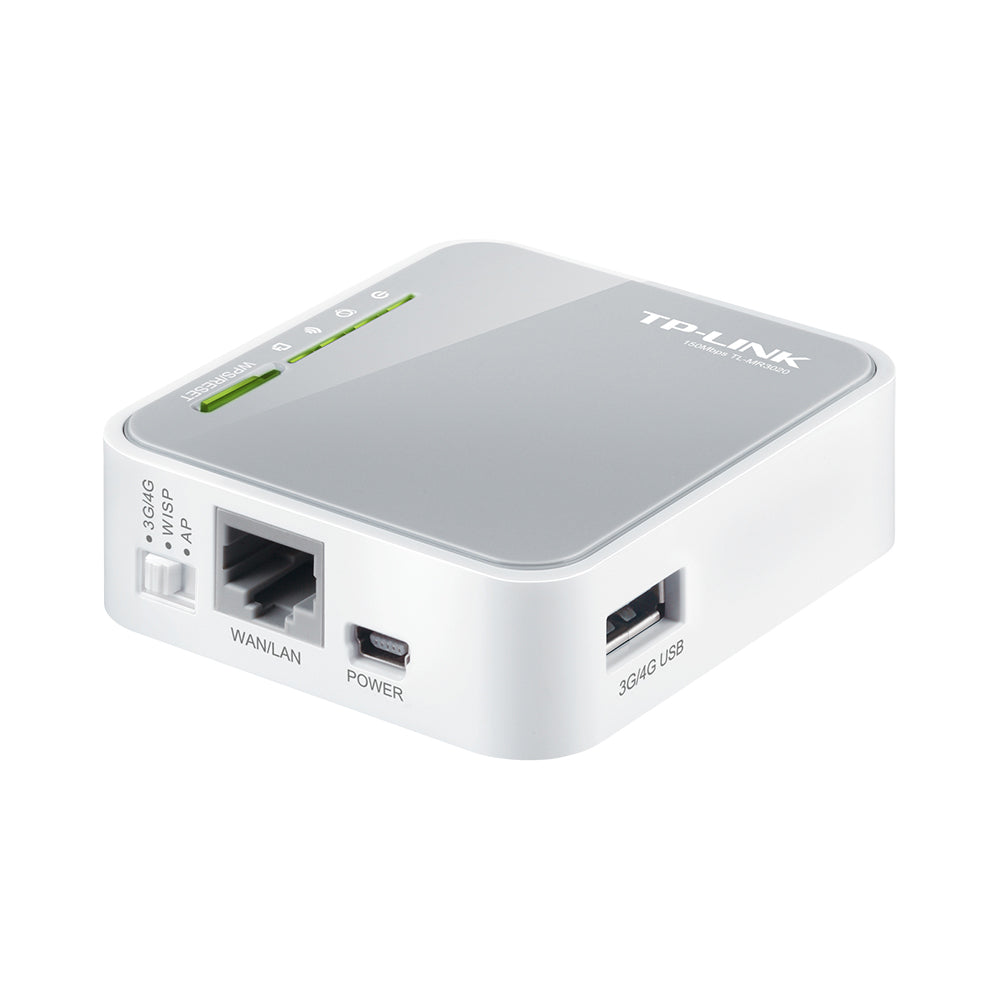

TP-Link TL-MR3020 Portable 3G/3.75G/4G Wireless N Router
The TP?Link TL?MR3020 is a compact, battery?powered or USB?powered travel router that supports 3G/4G USB modems, wired WAN, and various operation modes. It痴 designed for mobile / temporary deployment - for example, to share a cellular connection as Wi-Fi while traveling, or to convert a wired Ethernet connection into a Wi-Fi hotspot.
Features
- Plug in 3G/4G USB modem to share your Wi-Fi connections, the compatibility is assured via years of field tests
- Portable and elegant, providing carry-on wireless connections for business travel and family trips
- 300Mbps Wi-Fi speeds meet your daily internet needs
- One button switches from 3G/4G, AP and WISP modes, for access internet everywhere
- Power via your laptop's USB port, a USB power adapter or a smartphone charger
- 3G/4G and WAN fail-over backup strategy ensures TL-MR3020 provides a sustained internet connection
Specifications
Hardware Features
- Interface: 1 10/100Mbps WAN/LAN Port, USB2.0 Port for 3G/4G modem, a micro USB Port for power supply.
- Button: Reset Button, Mode Switch
- External Power Supply: 5VDC/1.0A
- Dimensions ( W x D x H ): 74 x 67 x22mm
- Antenna Type: Internal Antenna
Wireless Features
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency: 2.4-2.4835GHz
- Transmit Power: <20dBm
- Wireless Modes: 3G Router, Travel Router (AP), WISP Client Router
- Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering
Software Features
- Security: Firewall, MAC filtering, Denial of Service (DoS)
- DHCPServer, DHCP Client List, Address Reservation
- Port Forwarding: Virtual Server, Port Triggering, DMZ, UPnP
- Access Control: Parental Control, Host List, Access Schedule, Rule Management
Others
- Certification: CE, FCC, RoHS
- Environment: Operating temperature: -10°C~60°C
- Storage Temperature: -40°C~80°C
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 10, MAC OS, NetWare, UNIX or Linux
