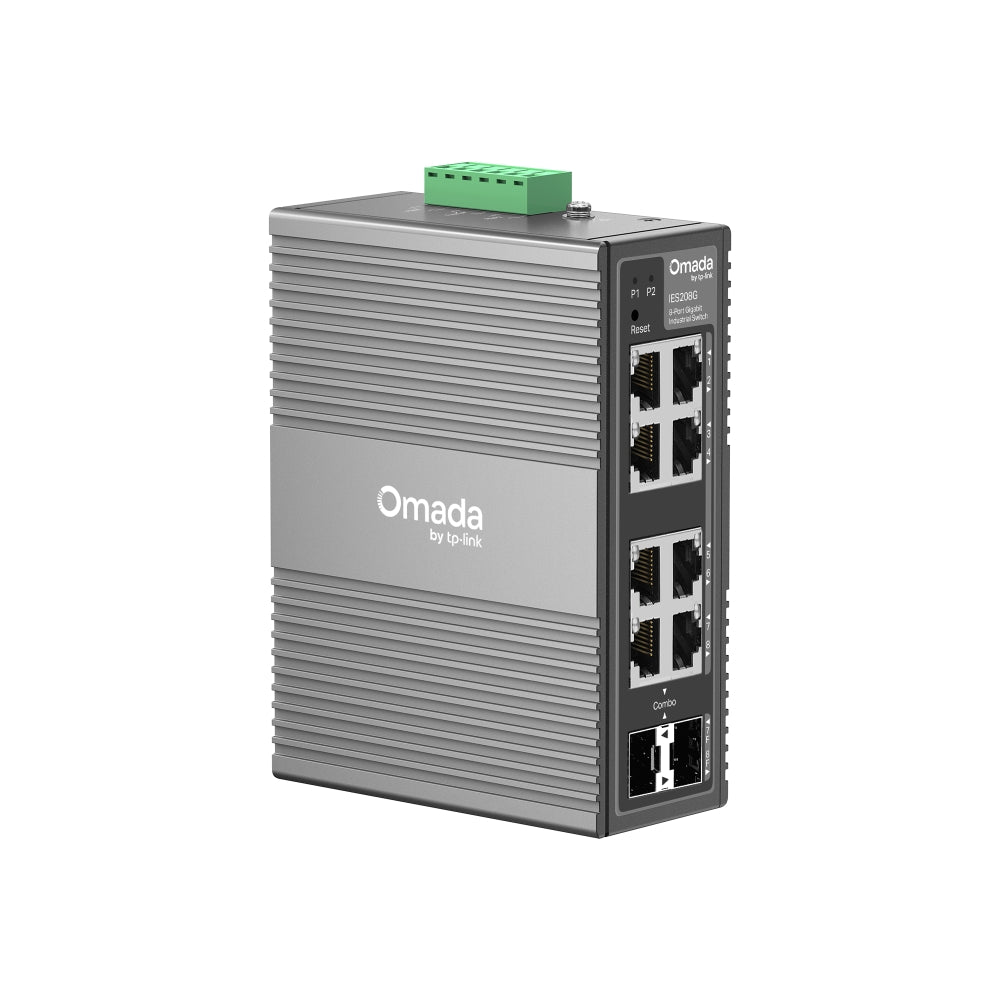

TP-LINK OMADA IES208G 8-PORT GIGABIT INDUSTRIAL EASY MANAGED SWITCH WITH 2× RJ45/SFP COMBO SLOTS

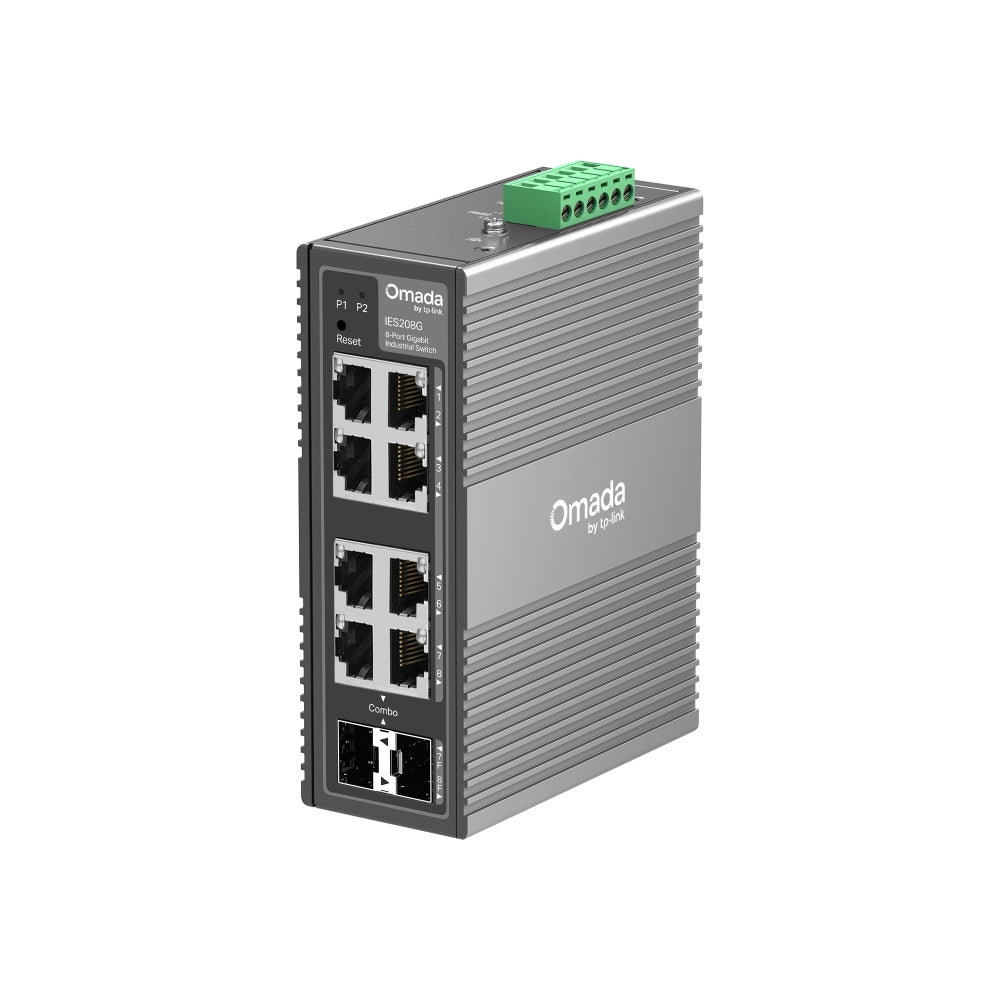

TP-Link Omada IES208G 8-Port Gigabit Industrial Easy Managed Switch with 2× RJ45/SFP Combo Slots

Industrial Connectivity Built to Endure.

The TP-Link Omada IES208G provides reliable Gigabit connectivity and essential network-management capabilities for surveillance, automation, energy and smart-building applications. Six fixed Gigabit RJ45 ports are complemented by two Gigabit RJ45/SFP combo interfaces, allowing copper or fibre connections to suit the installation. Its fanless IP40 aluminium enclosure operates across an extended -40~75°C temperature range and supports both DIN-rail and wall mounting. Dual 9.6~60V DC inputs provide 1+1 power redundancy, while the fault relay can trigger an external warning when a power or port fault occurs. VLAN, QoS, link aggregation, IGMP Snooping and STP/RSTP help improve traffic control and network resilience. Integration with the Omada platform enables centralised configuration, monitoring and cloud access through a web browser or the Omada app.

Features

• Eight Gigabit Interfaces - Provides six fixed RJ45 ports and two RJ45/SFP combo interfaces for flexible copper or fibre connectivity
• Industrial-Grade Construction - Features a durable IP40 aluminium enclosure designed for demanding deployment environments
• Extended Operating Range - Operates in temperatures from -40~75°C
• Redundant DC Power - Dual 9.6~60V DC inputs support 1+1 power redundancy for improved service continuity
• Real-Time Fault Alarm - A relay output can activate an external warning when a configured port or power fault occurs
• Electrical Protection - Provides surge, ESD, overload-current, overvoltage and reverse-polarity protection
• Essential Layer 2 Management - Supports VLAN, QoS, link aggregation, port mirroring, LLDP and loopback detection
• Resilient Network Design - STP and RSTP help prevent switching loops and improve network availability
• Omada Centralised Management - Supports unified configuration, monitoring and firmware management through compatible Omada controllers

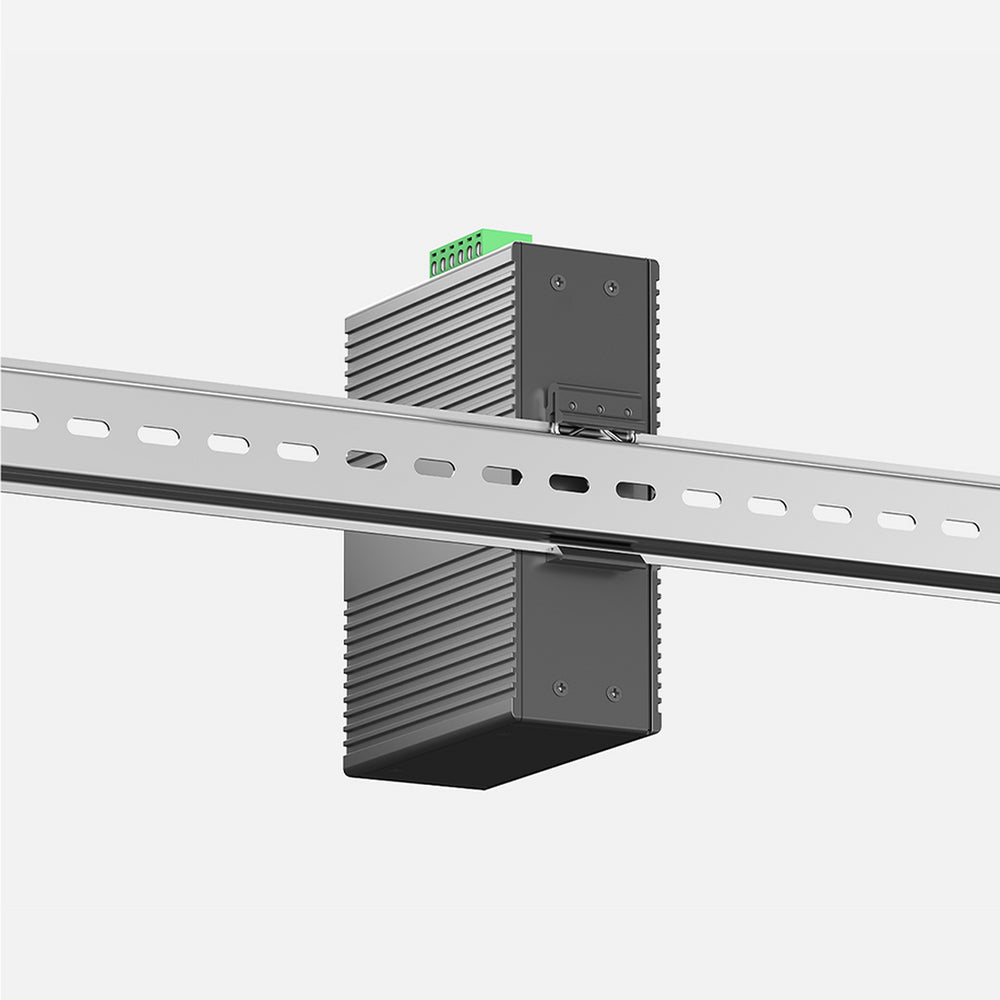

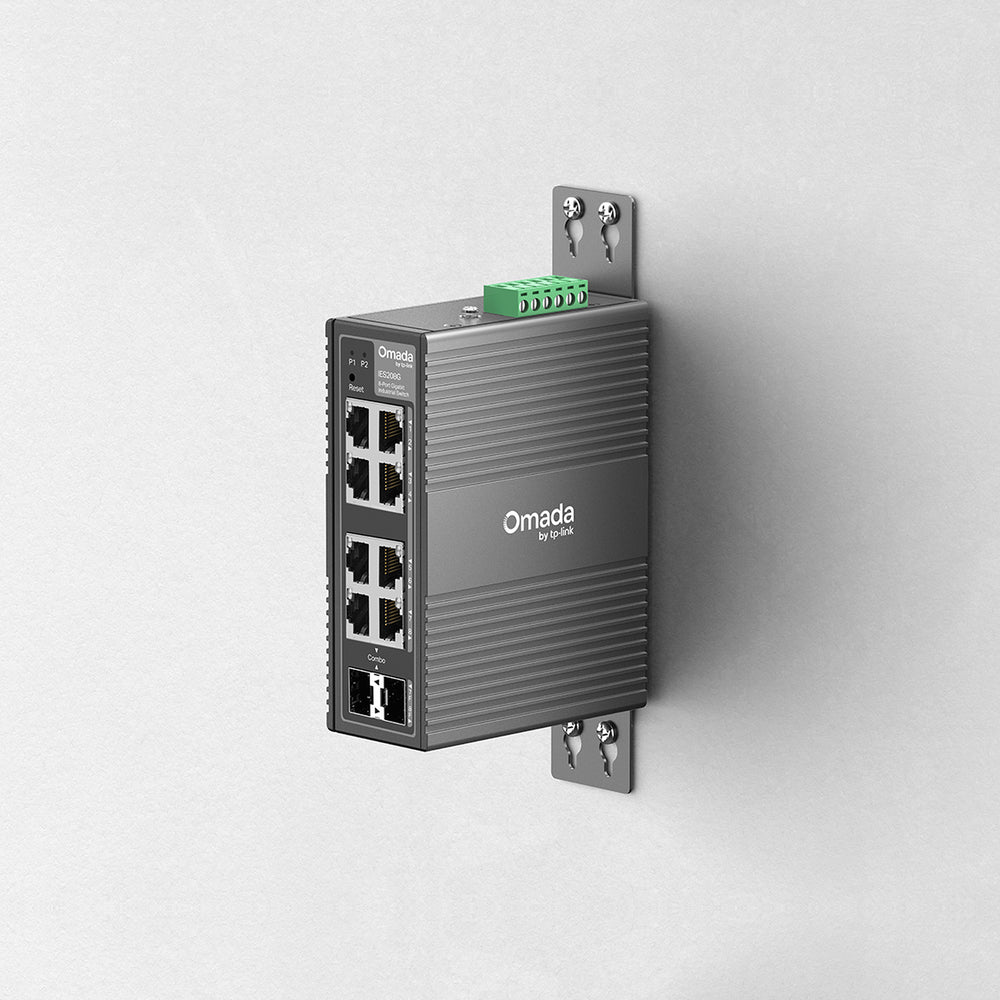

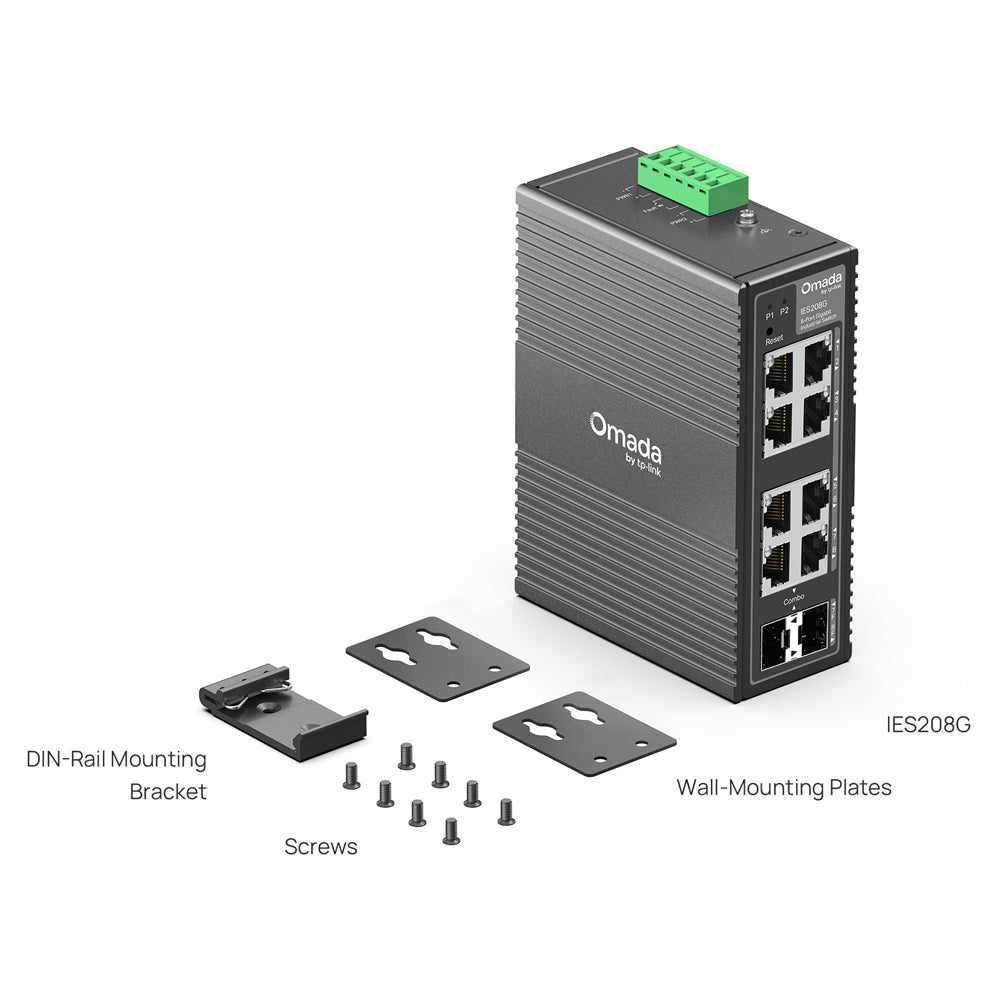

• Flexible Installation - Includes hardware for DIN-rail and wall mounting
• Fanless Operation - Passive cooling eliminates fan noise and reduces moving components

Specifications

General

• Enclosure: IP40 Aluminium
• Cooling: Fanless
• Flash Memory: 64Mbit
• Transmission Method: Store-and-Forward

Network Interfaces

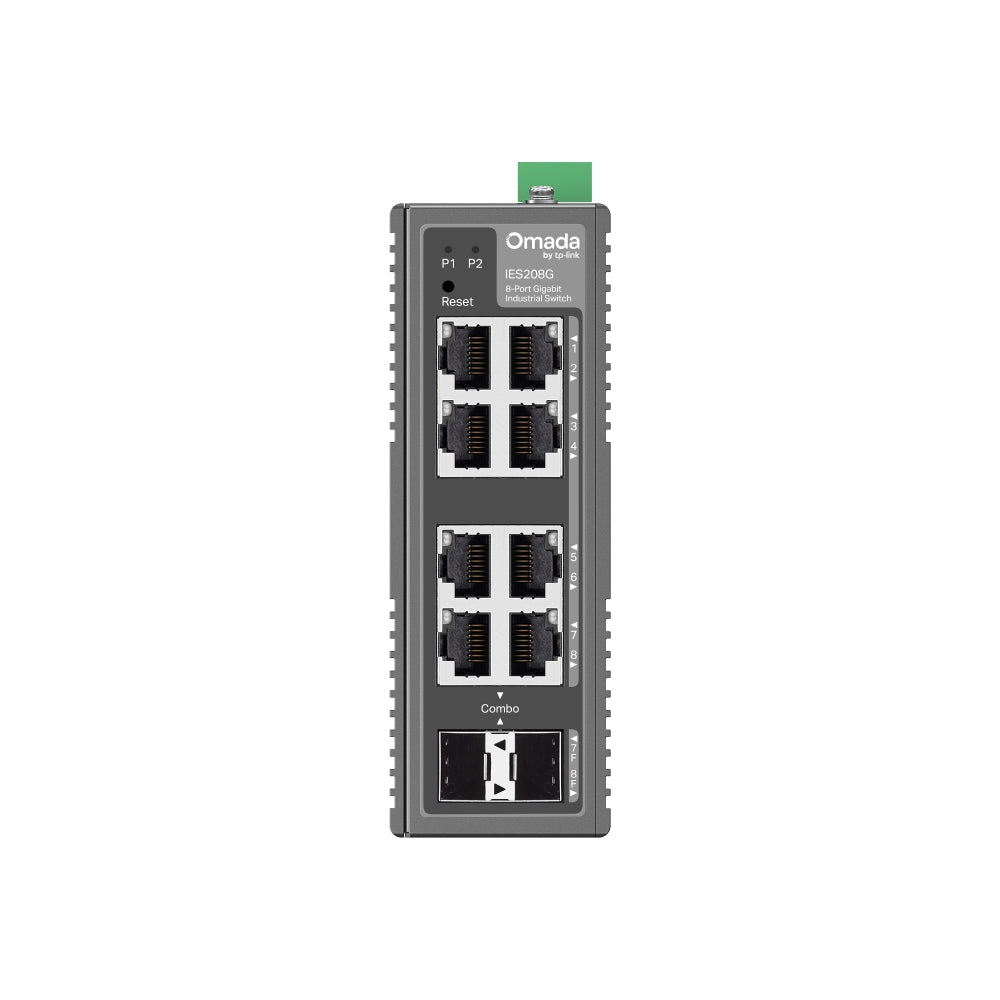

• Fixed Copper Ports: 6× 10/100/1000Mbps RJ45
• Combo Interfaces: 2× Gigabit RJ45/SFP
• Auto-Negotiation: Supported
• Auto MDI/MDIX: Supported
• Optical Interface Standard: 1000BASE-X
• Copper Interface Standards: 10BASE-T, 100BASE-TX and 1000BASE-T

Network Standards

• IEEE 802.3i: 10BASE-T Ethernet
• IEEE 802.3u: 100BASE-X Fast Ethernet
• IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
• IEEE 802.3z: 1000BASE-X Gigabit Ethernet
• IEEE 802.3x: Flow Control
• IEEE 802.1p: Traffic Prioritisation
• IEEE 802.1Q: VLAN
• IEEE 802.1D: Spanning Tree Protocol
• IEEE 802.1w: Rapid Spanning Tree Protocol
• IEEE 802.1AB: Link Layer Discovery Protocol

Performance

• Switching Capacity: 16Gbps
• Packet Forwarding Rate: 11.9Mpps
• MAC Address Table: 8K Entries
• Packet Buffer: 4Mbit
• Jumbo Frame: 15KB
• Mean Time Between Failures: 863,865 Hours @25°C

Layer 2 Features

• Link Aggregation: Static
• Aggregation Groups: Up to 2
• Ports per Aggregation Group: Up to 4
• Spanning Tree: STP and RSTP
• Loopback Detection: Supported
• Flow Control: IEEE 802.3x
• Port Mirroring: One-to-One and Many-to-One
• Mirroring Direction: Ingress, Egress or Both
• Port Statistics: Supported
• LLDP: IEEE 802.1AB
• IGMP Snooping: IGMP v1, v2 and v3
• IGMP Fast Leave: Supported

Vlan

• VLAN Modes: MTU VLAN, Port-Based VLAN and IEEE 802.1Q Tagged VLAN
• Maximum VLAN Groups: 32
• VLAN ID Range: 4K

Quality Of Service

• Traffic Prioritisation: IEEE 802.1p and DSCP
• Priority Queues: 8
• Queue Scheduling: Weighted Round Robin
• Queue Weight Configuration: Supported
• Bandwidth Control: Port-Based Rate Limiting
• Storm Control: Broadcast, Multicast and Unknown Unicast
• Storm-Control Units: kbps or pps

Management

• Standalone Management: Web-Based GUI
• Centralised Management: Omada Hardware Controller, Software Controller or Cloud-Based Controller
• Omada App: Supported with a Compatible Omada Controller
• Cloud Access: Supported with a Compatible Omada Controller
• Zero-Touch Provisioning: Supported with Omada Central
• Automatic Device Discovery: Supported
• Batch Configuration: Supported
• Batch Firmware Upgrades: Supported
• Unified Configuration: Supported
• DHCP Client: Supported
• Cable Diagnostics: Supported
• Digital Diagnostic Monitoring: Supported for Compatible SFP Modules

Power

• Power Input: Dual 9.6~60V DC
• Power Redundancy: 1+1
• Overload-Current Protection: Supported
• Overvoltage Protection: Supported
• Reverse-Polarity Protection: Supported
• Standby Power Consumption @12V DC: 1.79W Maximum
• Standby Power Consumption @24V DC: 2.16W Maximum
• Standby Power Consumption @48V DC: 3.17W Maximum
• Maximum Power Consumption @12V DC: 4.46W
• Maximum Power Consumption @24V DC: 4.17W
• Maximum Power Consumption @48V DC: 5.99W

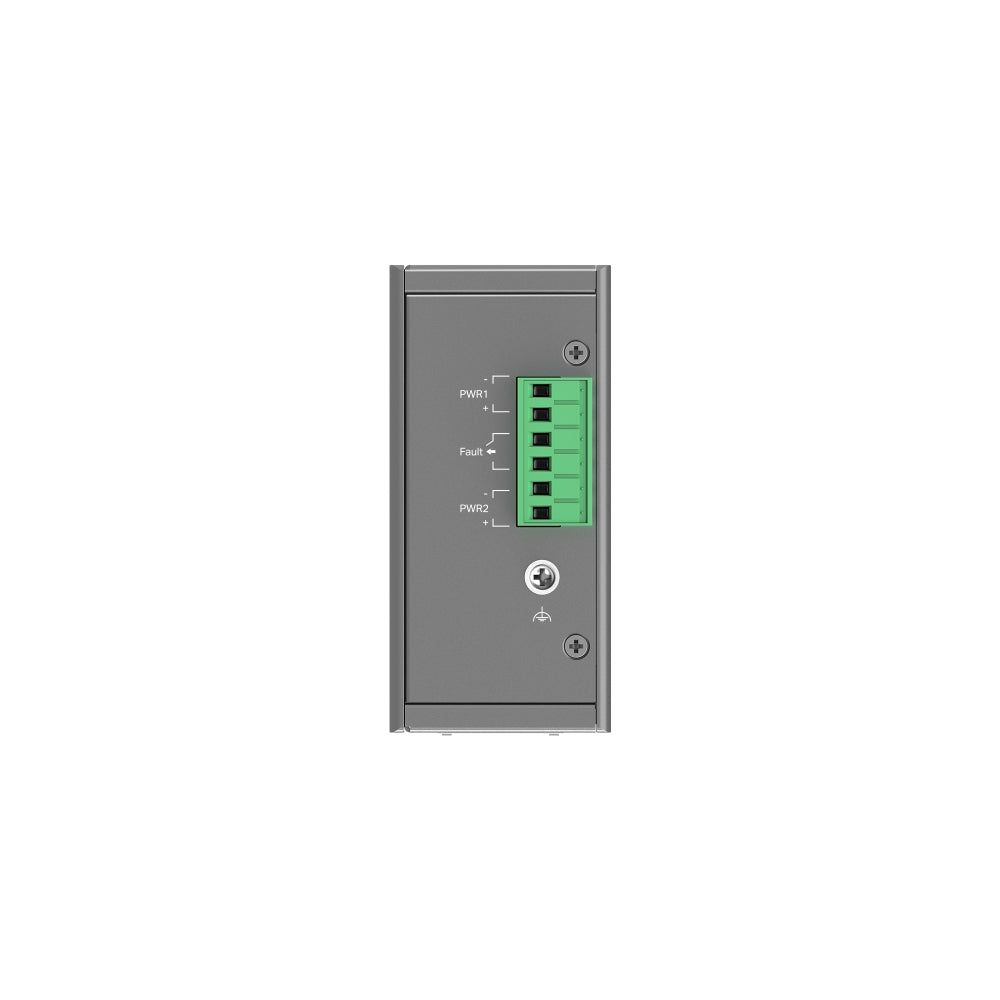

• Fault Relay: Normally Closed Contact, 24V 1A Maximum

Protection

• Ethernet-Port Surge Protection: ±6kV Common Mode
• DC-Input Surge Protection: ±4kV Common Mode
• ESD Protection: ±8kV Air Discharge and ±6kV Contact Discharge
• Shock Standard: IEC 60068-2-27
• Freefall Standard: IEC 60068-2-32
• Vibration Standard: IEC 60068-2-6

Physical

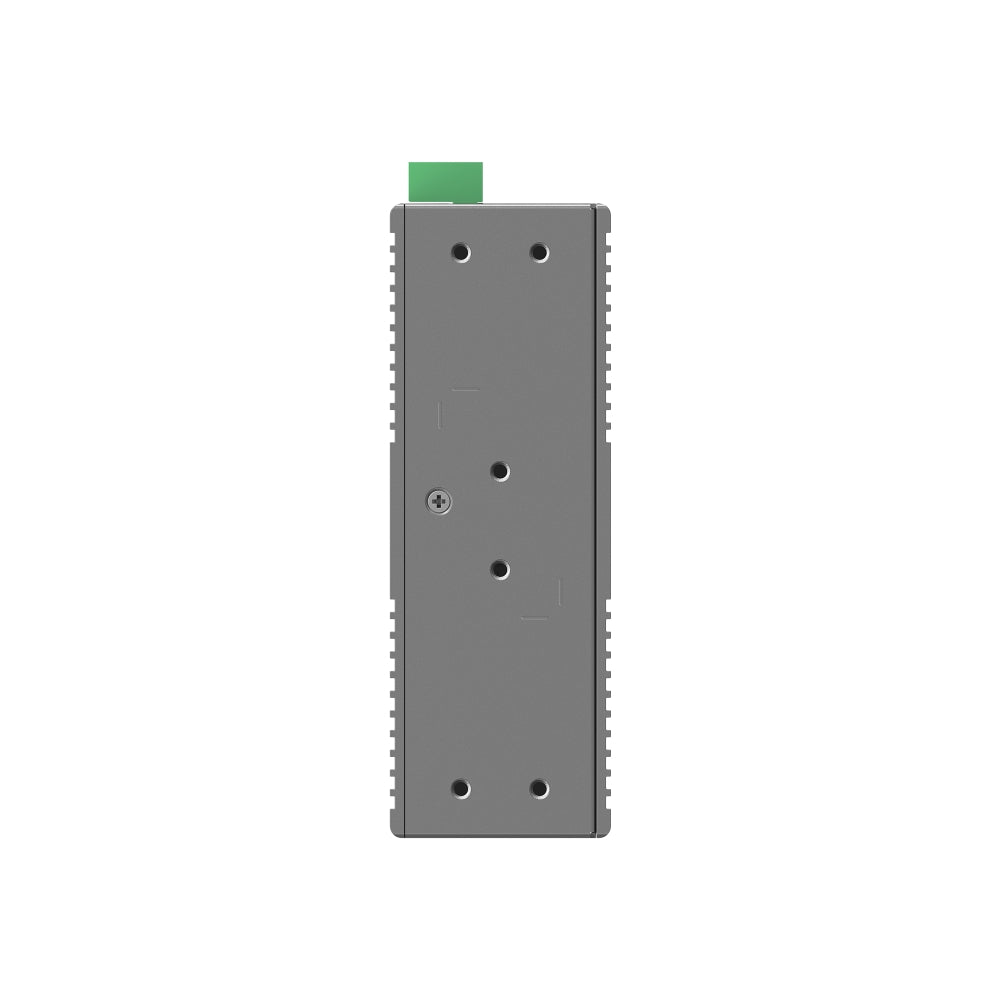

• Installation: DIN-Rail or Wall Mounting

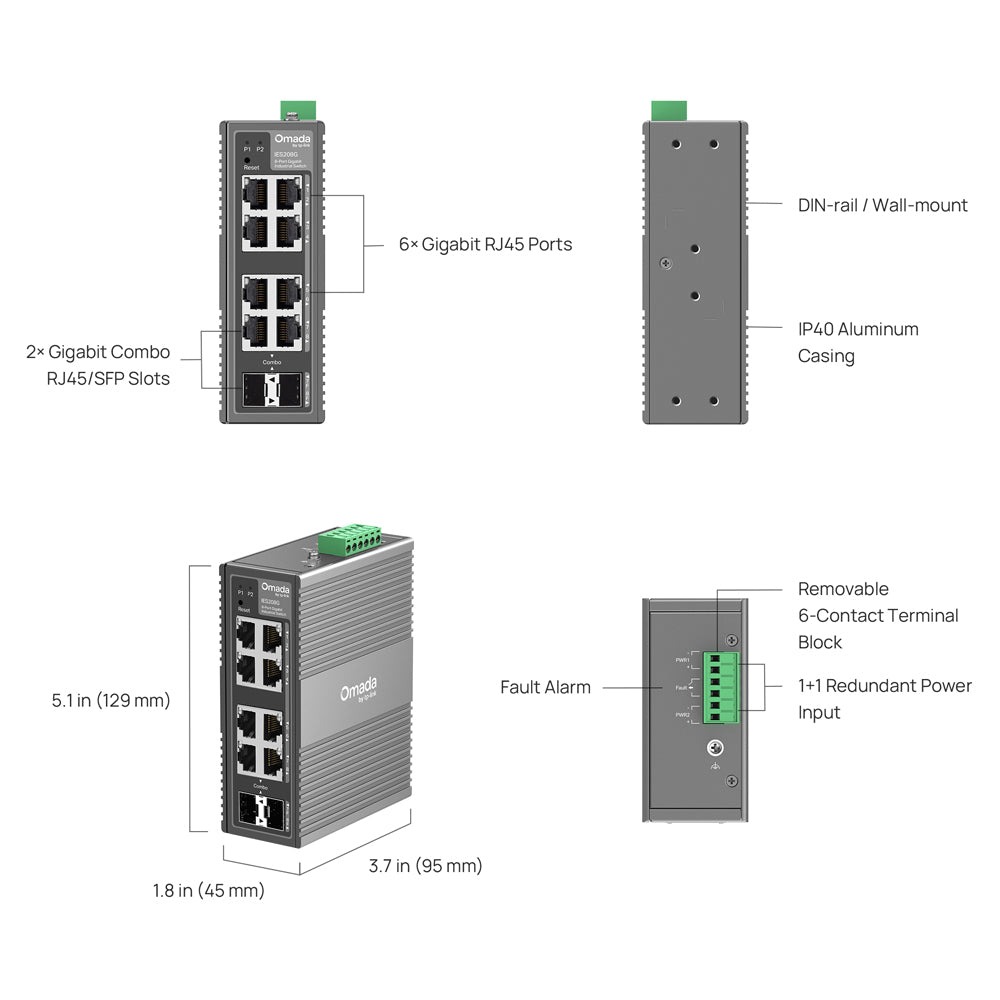

• Dimensions: 129 × 95 × 45mm
• Net Weight: 0.56kg
• Ingress Protection Rating: IP40
• Maximum Heat Dissipation @12V DC: 15.16BTU/h
• Maximum Heat Dissipation @24V DC: 14.18BTU/h
• Maximum Heat Dissipation @48V DC: 20.37BTU/h

Environmental

• Operating Temperature: -40~75°C
• Storage Temperature: -40~85°C
• Operating Humidity: 5~95% RH, Non-Condensing
• Storage Humidity: 5~95% RH, Non-Condensing

Compliance

• Certifications: CE, FCC and RoHS
• EMC Standards: IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55032/35, EN 61000-6-2 and EN 61000-6-4

Notes

• Each RJ45/SFP combo interface supports either its RJ45 connection or its corresponding SFP slot at one time
• A compatible external 9.6~60V DC power supply is required and is not included
• SFP modules are sold separately
• Centralised management functions require a compatible Omada controller
• Zero-Touch Provisioning requires Omada Central Standard or Omada Central Essentials
