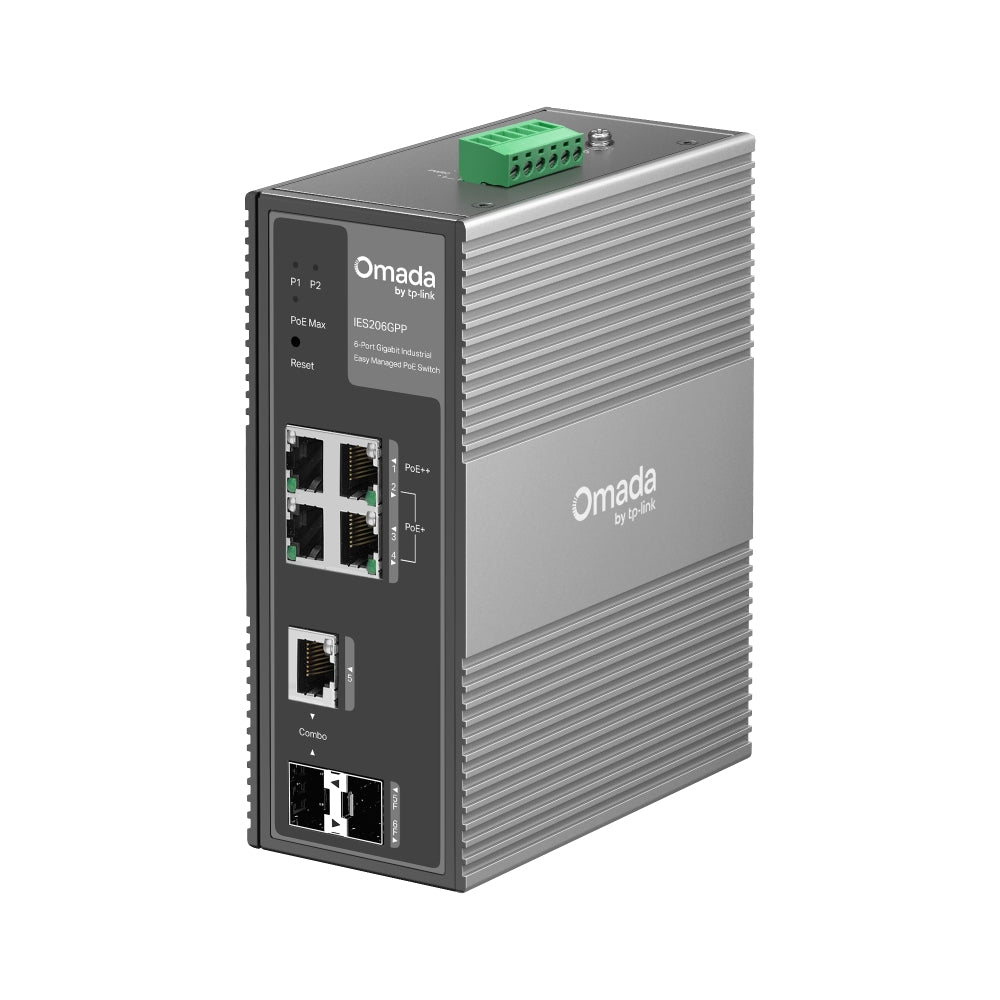

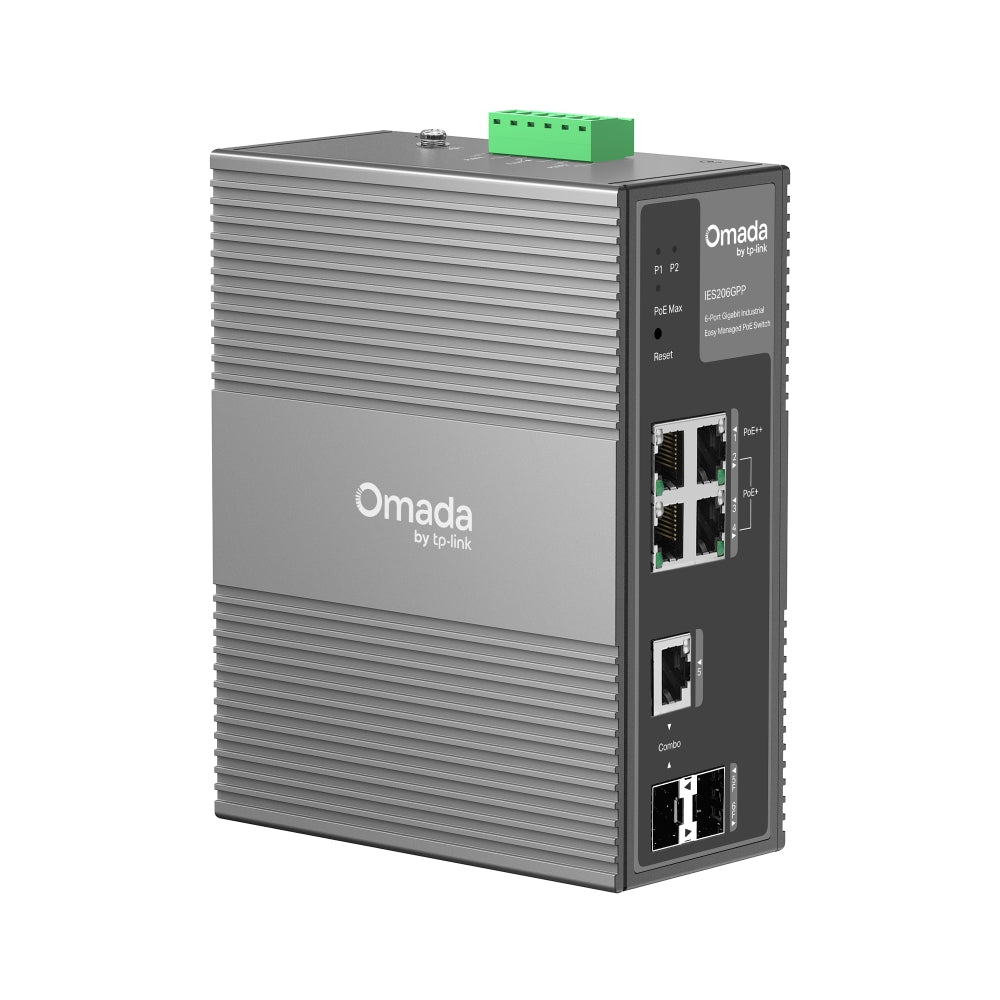

TP-Link Omada IES206GPP 6-Port Gigabit Industrial Easy-Managed Switch with 3-Port PoE+ and 1-Port PoE++
Industrial Gigabit Switching with High-Power PoE And Flexible Fibre Uplinks.
The TP-Link Omada IES206GPP is a 6-port Gigabit industrial easy-managed switch built for demanding network environments. It features 1× Gigabit PoE++ port, 3× Gigabit PoE+ ports, 1× Gigabit Combo RJ45/SFP slot and 1× Gigabit SFP slot for flexible copper and fibre connectivity. With a 120W total PoE budget, up to 60W on the PoE++ port and up to 30W per PoE+ port, it is ideal for powering access points, IP cameras, bridges and other PoE devices. Its fanless IP40 aluminium casing, -40°C to 75°C operating temperature, redundant DC power input and Omada cloud management make it suitable for industrial, surveillance and outdoor infrastructure deployments.
Features

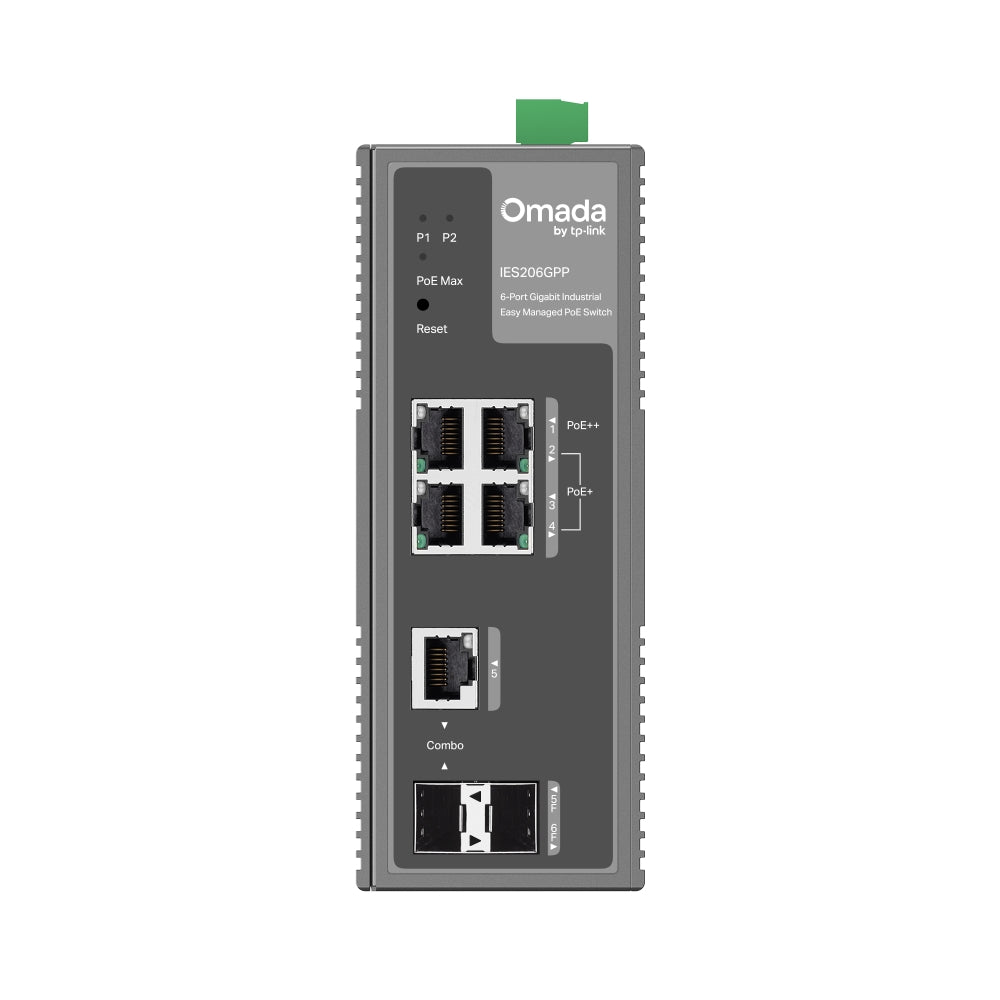

- 6-Port Gigabit Connectivity - Provides RJ45, combo RJ45/SFP and SFP connectivity for flexible network design
- High-Power PoE++ Port - Delivers up to 60W on Port 1 for compatible high-power PoE devices
- 3-Port PoE+ Output - Supports up to 30W per port on Ports 2-4
- 120W Total PoE Budget - Powers multiple PoE devices from one industrial switch
- Gigabit Fibre Uplink Support - Includes 1× Gigabit Combo RJ45/SFP slot and 1× Gigabit SFP slot
- Industrial-Grade Design - Built for reliable operation in harsh environments
- Wide Operating Temperature - Operates from -40°C to 75°C
- 1+1 Redundant Power Input - Supports dual DC power input for improved uptime
- IP40 Aluminium Casing - Durable fanless housing for industrial installations
- 6kV Ethernet Surge Protection - Helps protect network ports against electrical surges
- DIN-Rail and Wall-Mount Design - Supports flexible installation in cabinets, panels and industrial spaces
- Omada Centralised Management - Manage and monitor via Omada Controller, web interface or Omada App
- Extended PoE Transmission - Supports up to 250m PoE transmission in Extend Mode
- Layer 2 Features - Supports VLAN, QoS, STP/RSTP, IGMP Snooping and Link Aggregation
Specifications
- PoE Ports: 1× 10/100/1000Mbps PoE++ RJ45 Port, 3× 10/100/1000Mbps PoE+ RJ45 Ports
- Uplink Ports: 1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot
- PoE Standard: IEEE 802.3af/at/bt
- PoE++ Output: Port 1, Up to 60W
- PoE+ Output: Ports 2-4, Up to 30W Per Port
- PoE Power Budget: 60W with 12-21V DC Input, 120W with 21-57V DC Input
- Fast PoE: Supported
- Perpetual PoE: Supported
- Switching Capacity: 12Gbps
- Packet Forwarding Rate: 8.93Mpps
- MAC Address Table: 8K
- Packet Buffer: 4Mbit
- Jumbo Frame: 15KB
- Transmission Method: Store-and-Forward

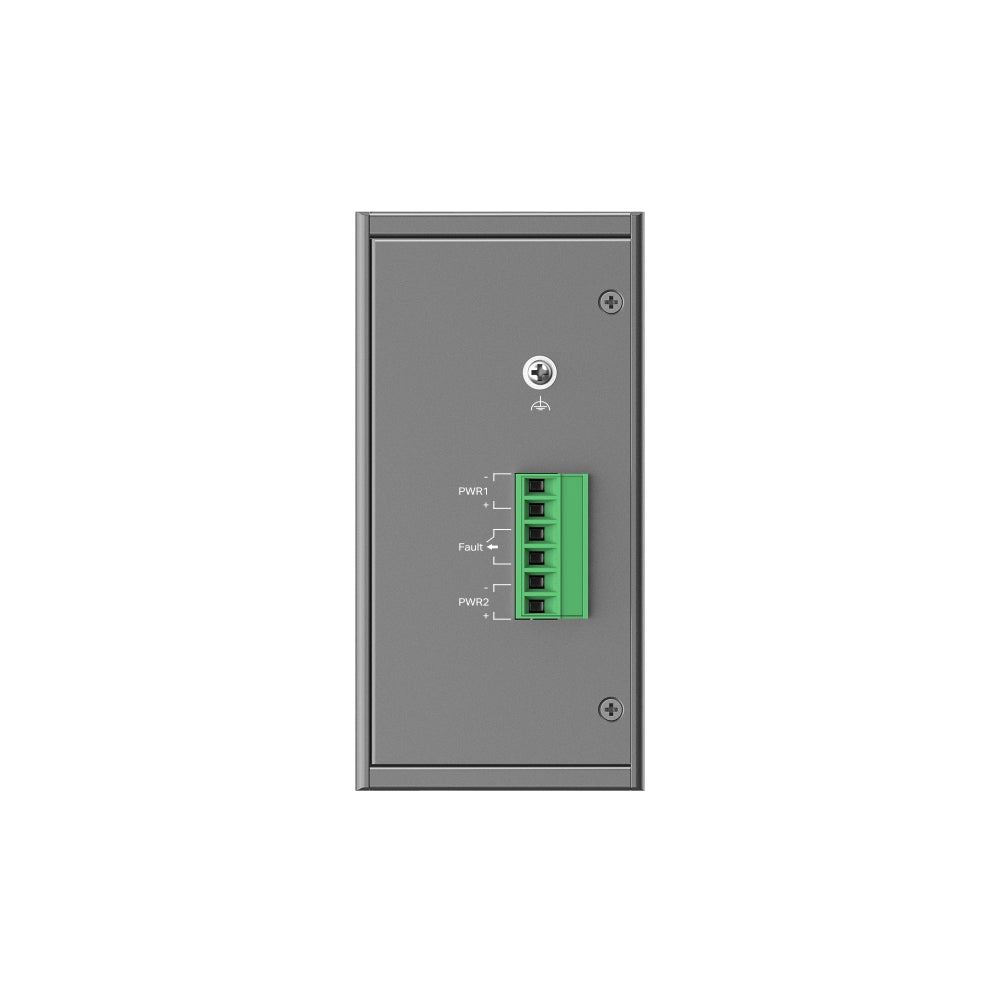

- Power Input: 12~57V Dual Redundant DC Power Input
- Fault Relay: 24V 1A Max., Normally Closed Contact
- Standby Power Consumption: 2.43W Max. at 12V DC, 2.85W Max. at 24V DC, 2.62W Max. at 48V DC
- Max. Power Consumption: 79.48W with 60W PD at 12V DC, 135.64W with 120W PD at 24V DC, 126.92W with 120W PD at 48V DC

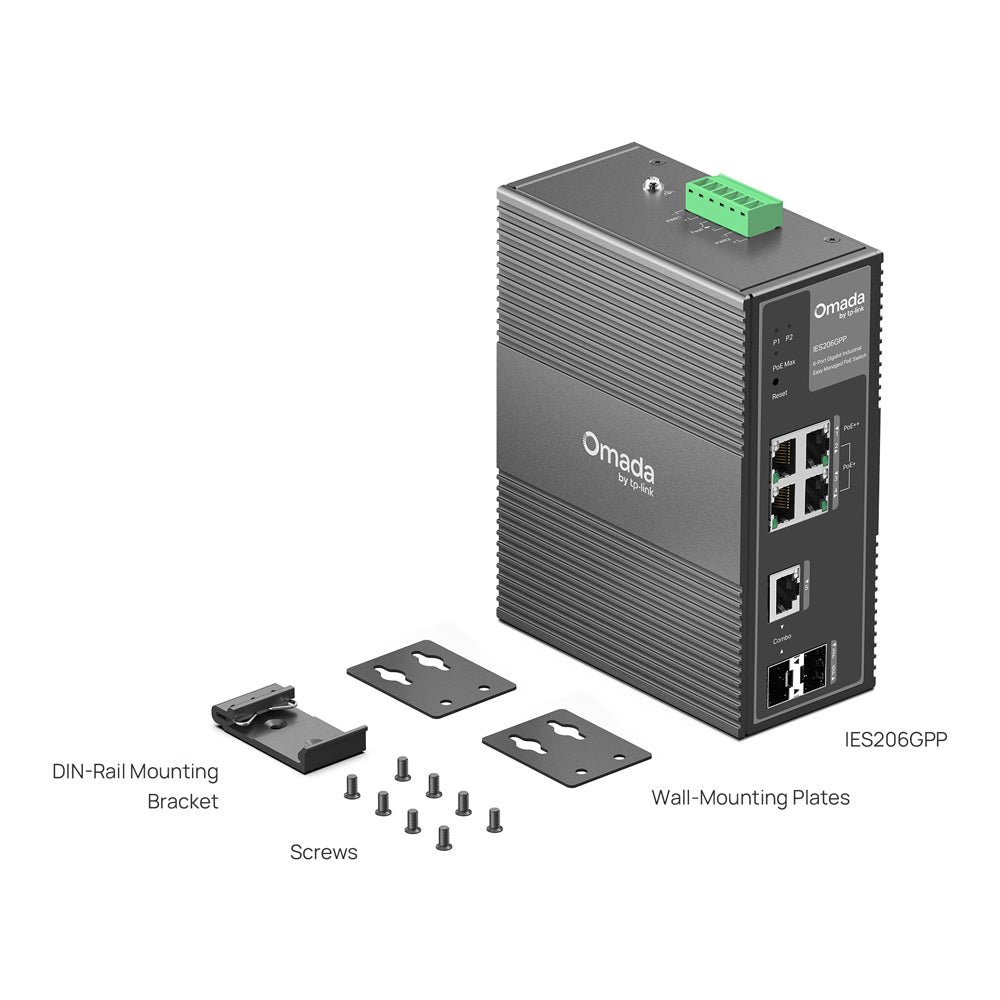

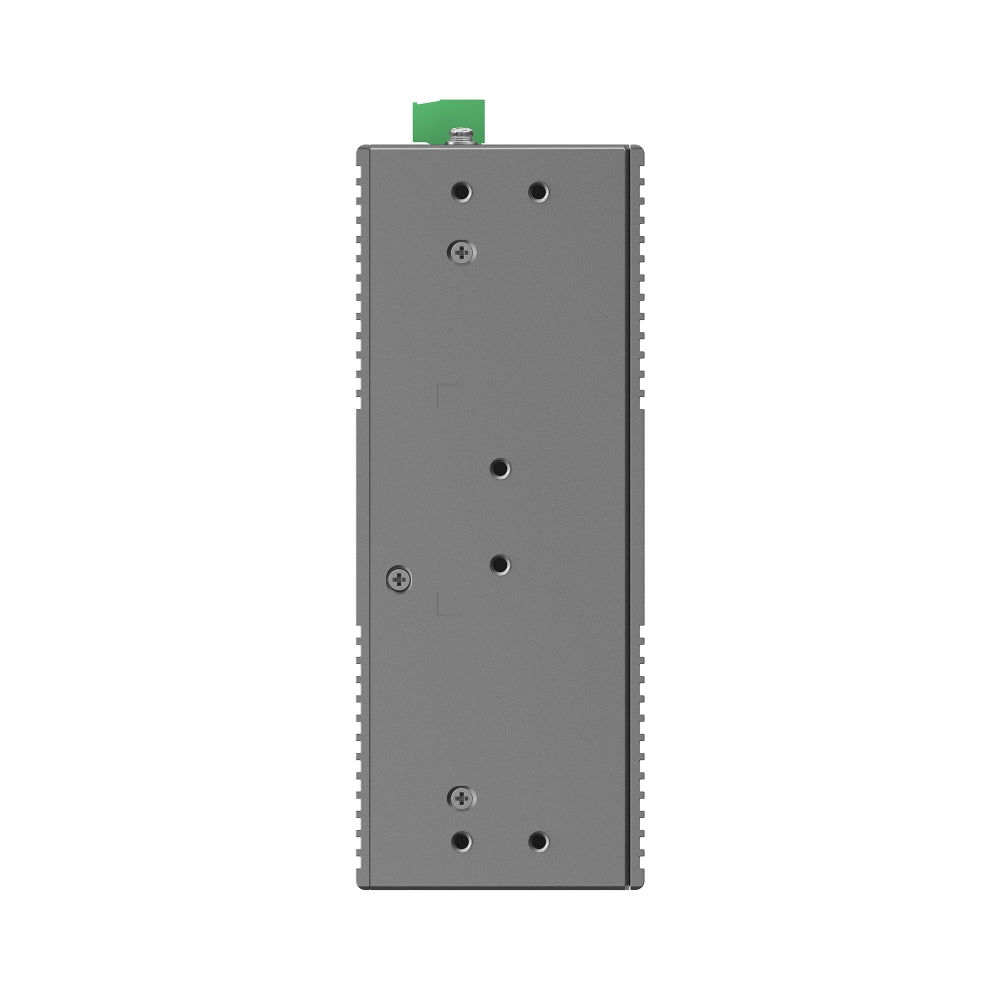

- Installation: DIN-Rail Mounting, Wall Mounting
- Casing: IP40 Aluminium
- Fan Quantity: Fanless

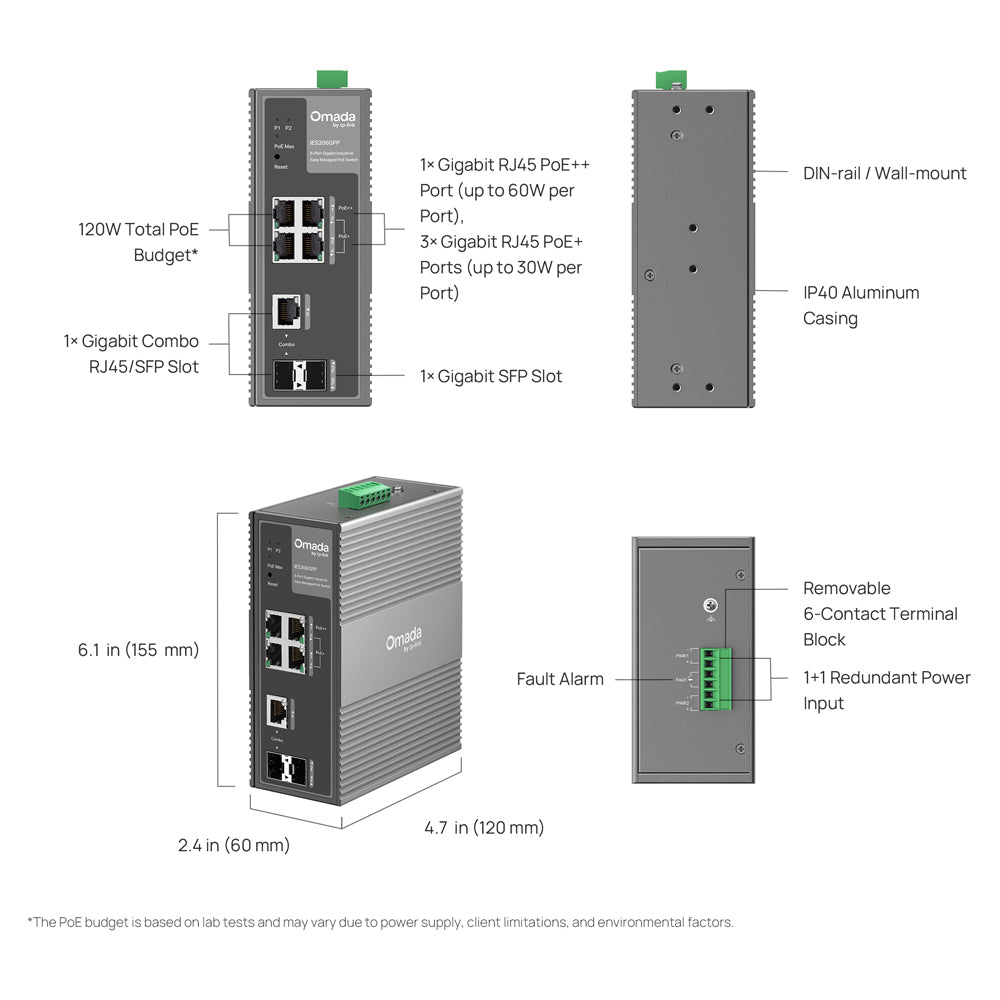

- Dimensions: 155 × 120 × 60mm
- Net Weight: 1.12kg
- Operating Temperature: -40~75°C
- Storage Temperature: -40~85°C
- Operating Humidity: 5~95% RH, Non-Condensing
- Surge Protection: ±6kV Ethernet Ports, ±4kV DC Power Input Ports
- ESD Protection: ±8kV Air, ±6kV Contact
- Certifications: CE, FCC, RoHS
Notes
- External DC power supply is required and sold separately
- 60W PoE budget is available with 12~21V DC input
- 120W PoE budget requires 21~57V DC input
- PoE budget may vary depending on power supply, connected devices and environmental conditions
- Extend Mode supports up to 250m PoE transmission, but port speed is reduced to 10Mbps
- SFP modules are sold separately
- Omada Controller features require a compatible Omada Controller setup
