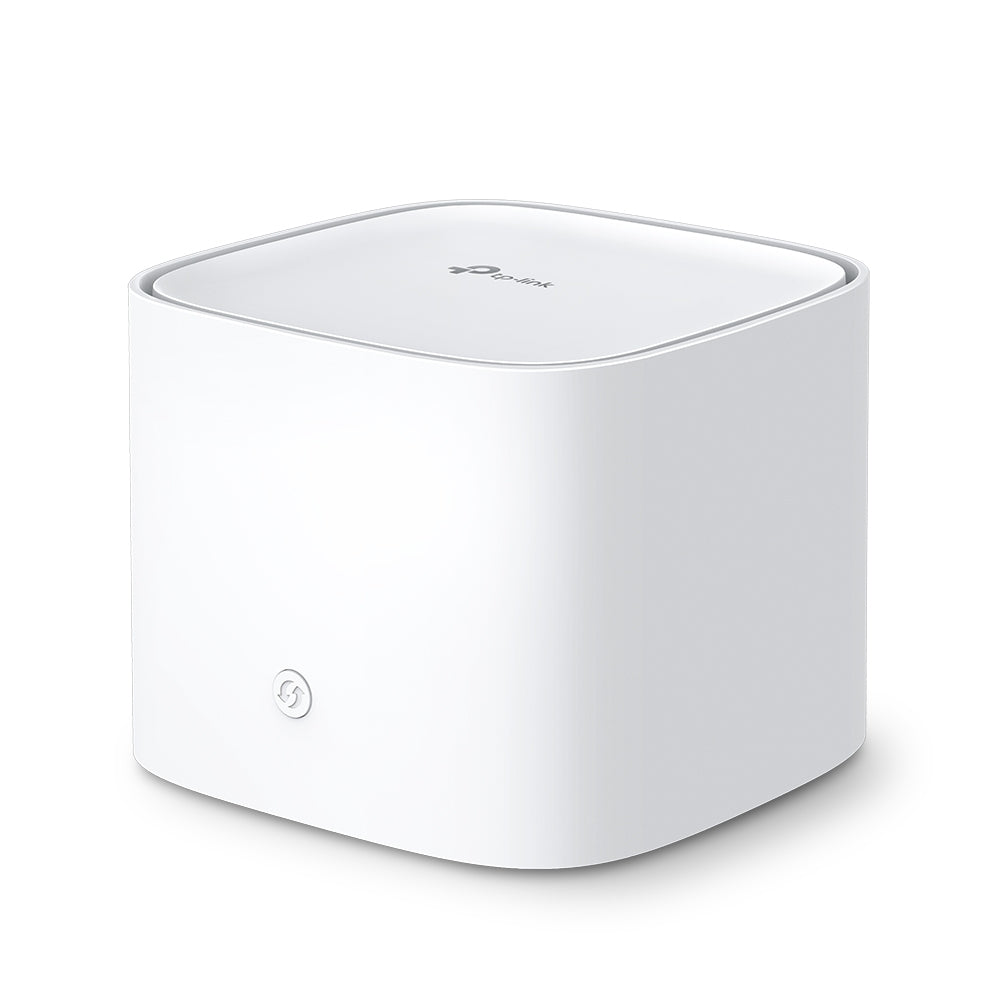

TP-Link HX520 AX3000 Whole-Home Mesh Dual-Band Wi-Fi System (1-Pack)
Fast Wi-Fi 6 Mesh Performance for Seamless Home Coverage.
The TP-Link HX520 AX3000 Whole-Home Mesh Wi-Fi System delivers fast dual-band Wi-Fi 6 performance with speeds up to 3,000Mbps, including 2,402Mbps on 5.0GHz and 574Mbps on 2.4GHz. Designed for smooth streaming, gaming and everyday connected homes, it supports EasyMesh for seamless whole-home coverage, one unified Wi-Fi network and optional Ethernet backhaul when used with additional compatible units. With 3× Gigabit ports, WPA3 security, parental controls, Multi-SSID support and Aginet app setup, the HX520 is a practical mesh-ready solution for modern homes and service provider deployments.
Features
- AX3000 Dual-Band Wi-Fi 6 - Delivers combined wireless speeds up to 3,000Mbps
- 2,402Mbps 5.0GHz Band - Ideal for 4K/8K streaming, gaming and high-speed downloads
- 574Mbps 2.4GHz Band - Provides reliable connectivity for browsing and smart home devices
- EasyMesh Compatible - Creates a unified smart mesh network with compatible EasyMesh devices
- Seamless Roaming - Supports 802.11k/v/r for smoother movement between mesh units
- Optional Ethernet Backhaul - Connects compatible mesh units by cable for more stable performance
- 3× Gigabit Ports - Provides fast wired connections for PCs, TVs, consoles and network devices
- WAN/LAN Auto-Sensing - 1× port automatically detects WAN or LAN use
- Wi-Fi 6 Efficiency - Supports OFDMA, 1024-QAM, 160MHz channel and Target Wake Time on compatible devices
- WPA3 Security - Provides enhanced wireless protection for compatible client devices
- Parental Controls - Helps manage access and online time for connected users
- Multi-SSID Support - Creates separate wireless networks for different users or services
- Aginet App Setup - Enables quick setup and management from a smartphone or tablet
- ISP Remote Management - Supports TR-369, TR-069, TR-098, TR-181, TR-111 and TR-143 protocols
Specifications
- Wireless Standard: Wi-Fi 6, IEEE 802.11a/n/ac/ax 5.0GHz and IEEE 802.11b/g/n/ax 2.4GHz
- Wi-Fi Speed: AX3000
- 5.0GHz Speed: Up to 2,402Mbps
- 2.4GHz Speed: Up to 574Mbps
- Frequency: 2.4GHz and 5.0GHz
- Mesh Technology: EasyMesh Compatible, 802.11k/v/r and Ethernet Backhaul

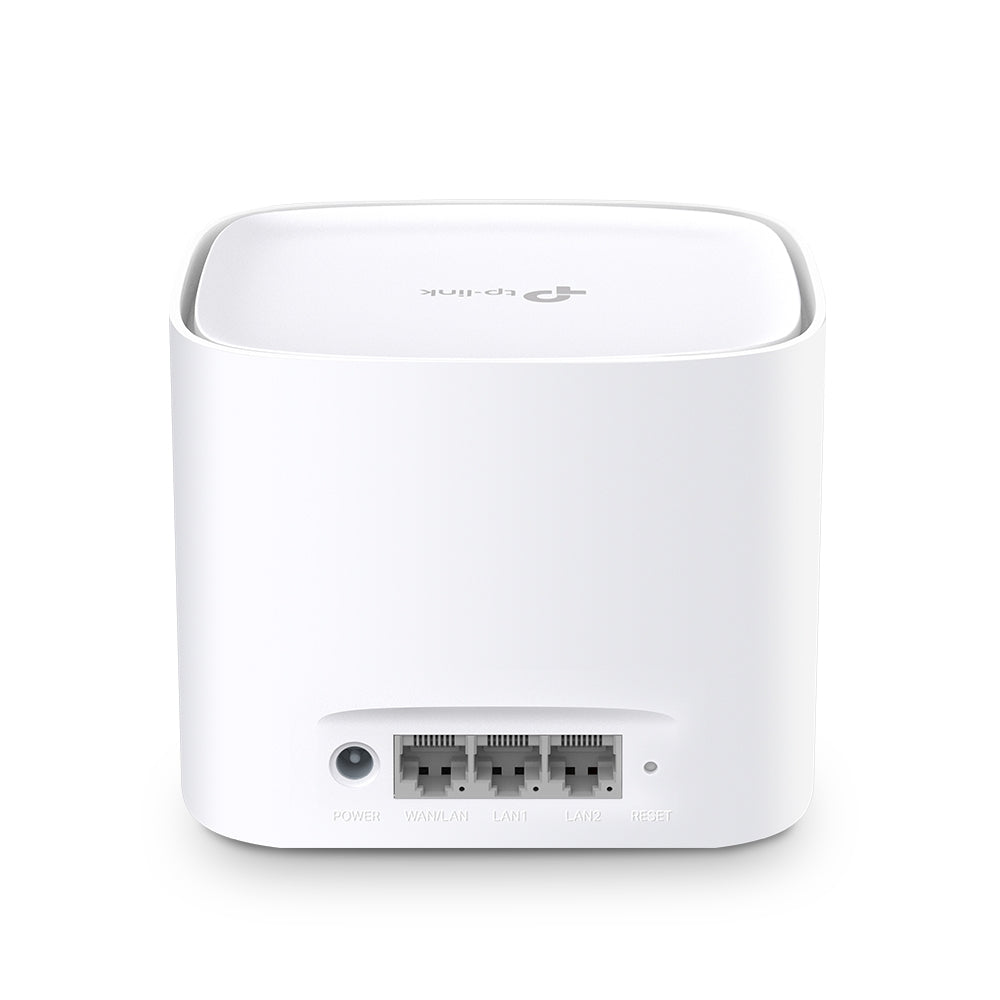

- Ports per Unit: 3× Gigabit Ports
- WAN/LAN Support: 1× WAN/LAN Auto-Sensing Port
- Working Modes: Router Mode, Access Point Mode
- Wireless Security: WPA, WPA2 and WPA3 Personal Encryption
- Multi-SSID: 2× 5.0GHz Multi-SSID, 2× 2.4GHz Multi-SSID
- WAN Type: Dynamic IP, Static IP and PPPoE
- Quality of Service: WMM
- Advanced Features: Parental Controls, QoS, Address Reservation, Port Forwarding and Wi-Fi Schedule
- Management: WebGUI, Aginet App, TR-369, TR-069, TR-098, TR-181, TR-111 and TR-143
- Power Supply: 12V 1.5A
- Dimensions: 120 × 120 × 96.5mm
Notes
- Mesh networking requires two or more compatible units
- EasyMesh support is based on standard mesh technology and may require compatible EasyMesh devices
