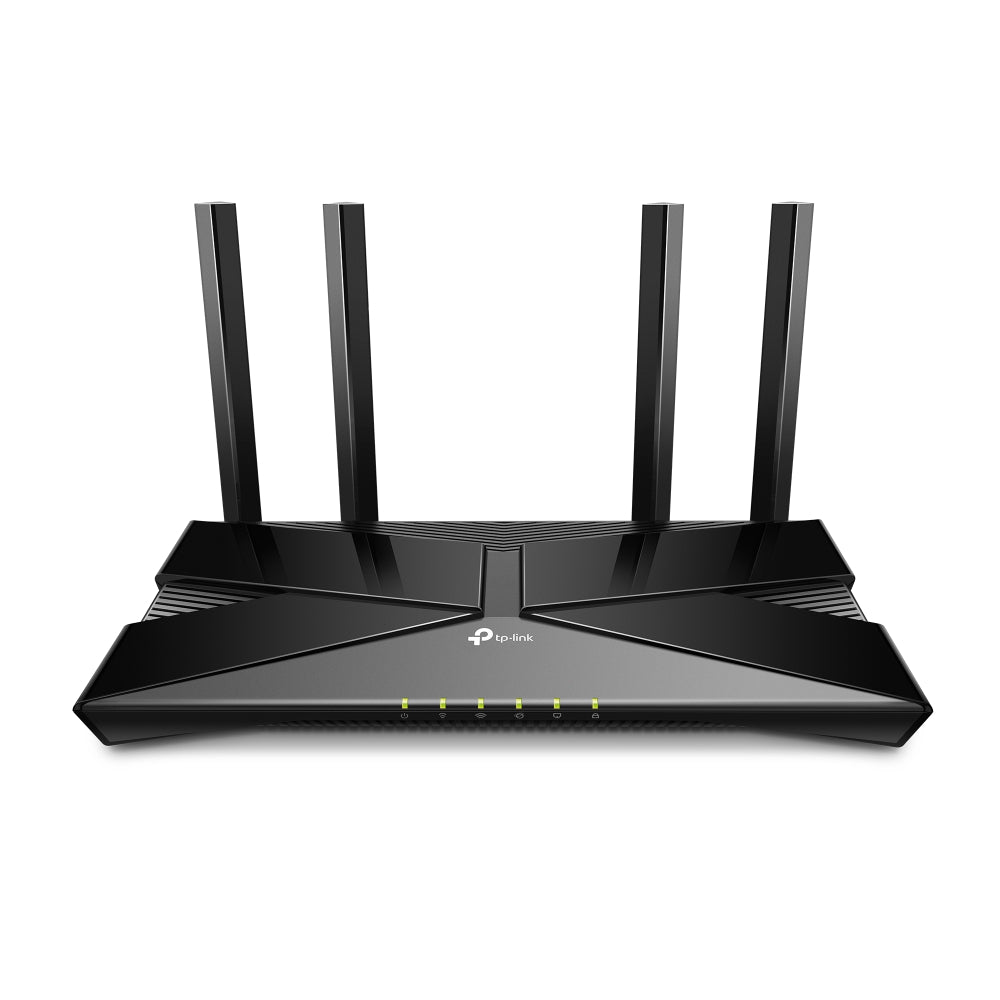

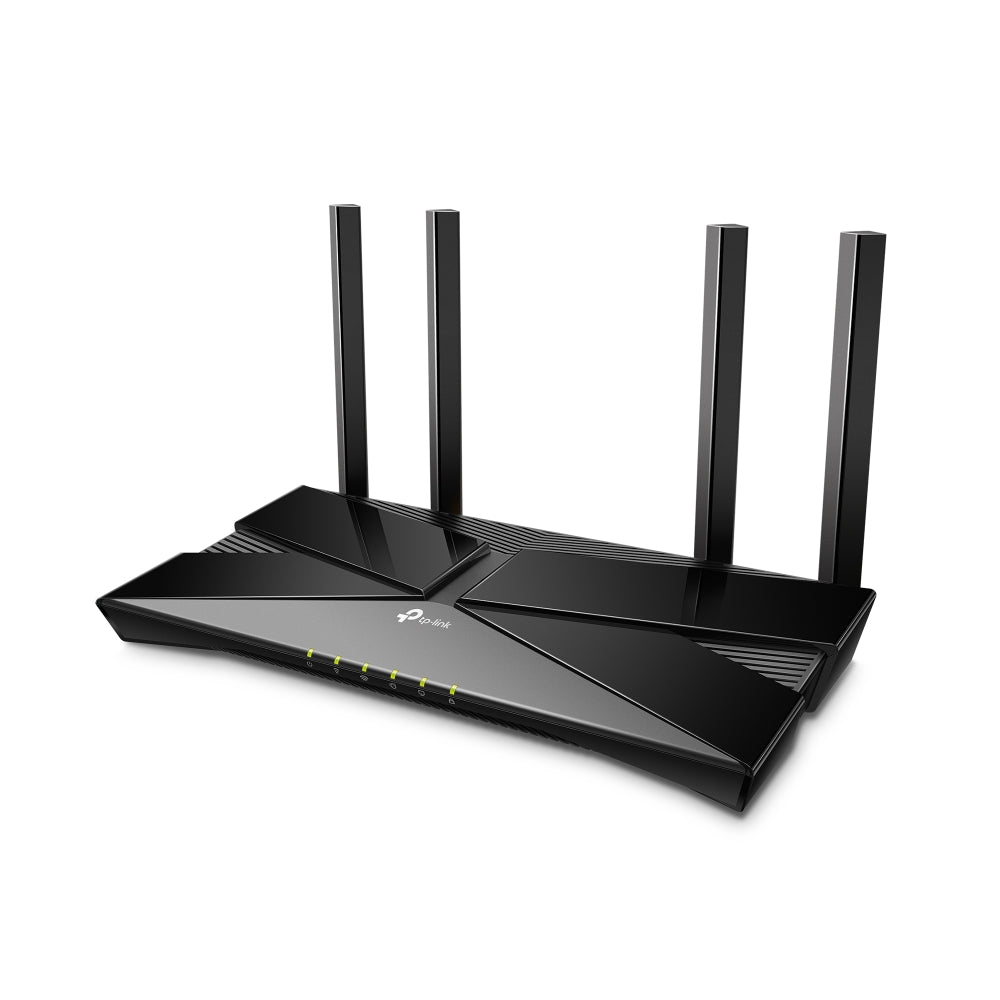

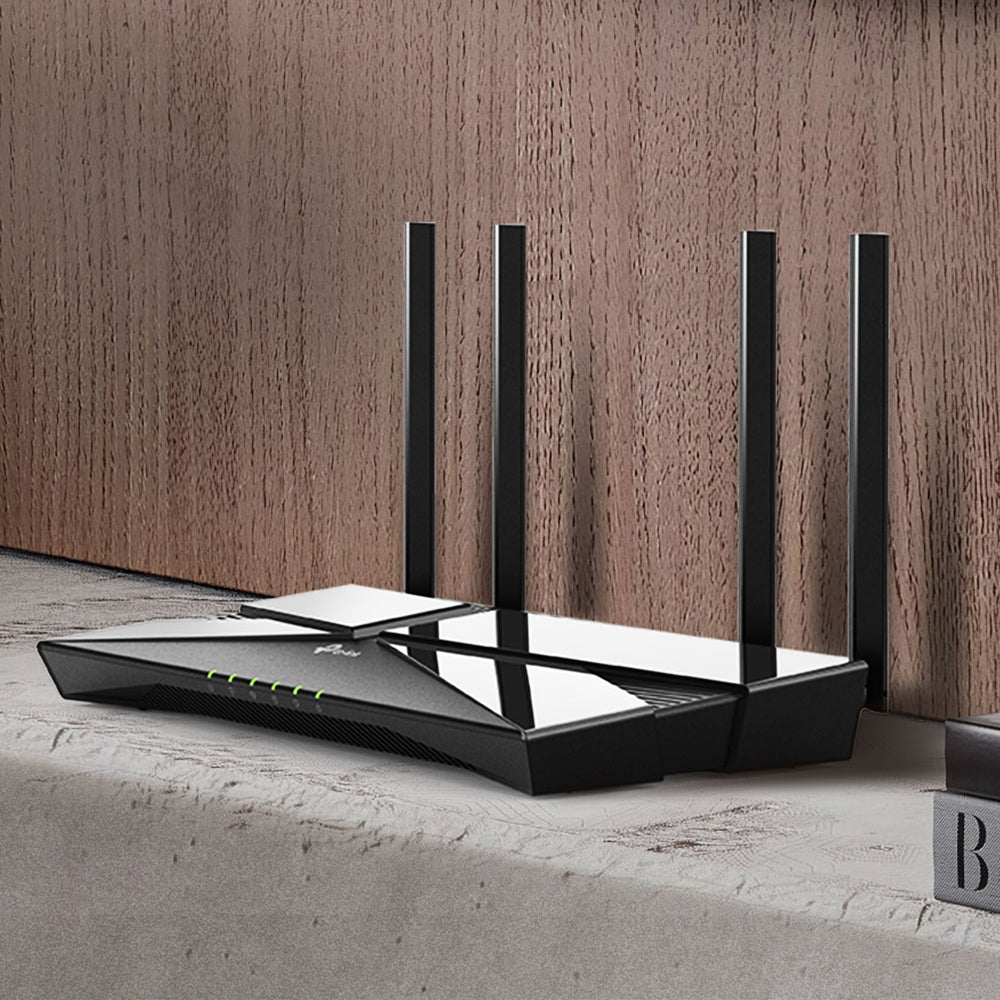

TP-Link EX520 AX3000 Dual-Band Wi-Fi 6 Router
Fast Wi-Fi 6 Connectivity for Modern Home Networks.
The TP-Link EX520 AX3000 Dual-Band Wi-Fi 6 Router delivers fast, reliable wireless performance for streaming, gaming, browsing and connected homes. With combined speeds up to 3,000Mbps, including 2,402Mbps on 5.0GHz and 574Mbps on 2.4GHz, it provides smooth connectivity across multiple devices. Four high-performance external antennas, Beamforming, OFDMA and MU-MIMO help improve coverage, capacity and efficiency, while EasyMesh support allows the router to form a unified mesh network with compatible devices. With Gigabit wired ports, WPA3 security, parental controls, Multi-SSID support, Aginet app setup and ISP remote management features, the EX520 is ideal for home and service provider deployments.
Features
- AX3000 Dual-Band Wi-Fi 6 - Delivers combined wireless speeds up to 3,000Mbps
- 2,402Mbps 5.0GHz Band - Ideal for 4K/8K streaming, gaming and high-speed downloads
- 574Mbps 2.4GHz Band - Provides reliable connectivity for everyday devices and wider coverage
- Four External Antennas - Helps extend strong Wi-Fi coverage throughout the home
- Beamforming Technology - Focuses wireless signal towards connected devices for improved performance
- OFDMA And MU-MIMO - Increases network efficiency when multiple devices are connected
- EasyMesh Compatible - Creates a unified mesh network with compatible EasyMesh devices
- Gigabit Wired Connections - Includes 1× Gigabit WAN port and 4× Gigabit LAN ports
- WPA3 Security - Provides enhanced wireless protection for compatible devices
- Multi-SSID Support - Creates separate wireless networks for different users or services
- Parental Controls - Helps manage access and online time for connected users
- Aginet App Setup - Enables quick setup and network management from a smartphone or tablet
- ISP Remote Management - Supports TR-069, TR-098, TR-181, TR-369, TR-111 and TR-143 protocols
Specifications
- Wireless Standard: IEEE 802.11a/n/ac/ax 5.0GHz, IEEE 802.11b/g/n/ax 2.4GHz
- Wi-Fi Speed: AX3000
- 5.0GHz Speed: Up to 2,402Mbps
- 2.4GHz Speed: Up to 574Mbps
- Frequency: 2.4GHz and 5.0GHz

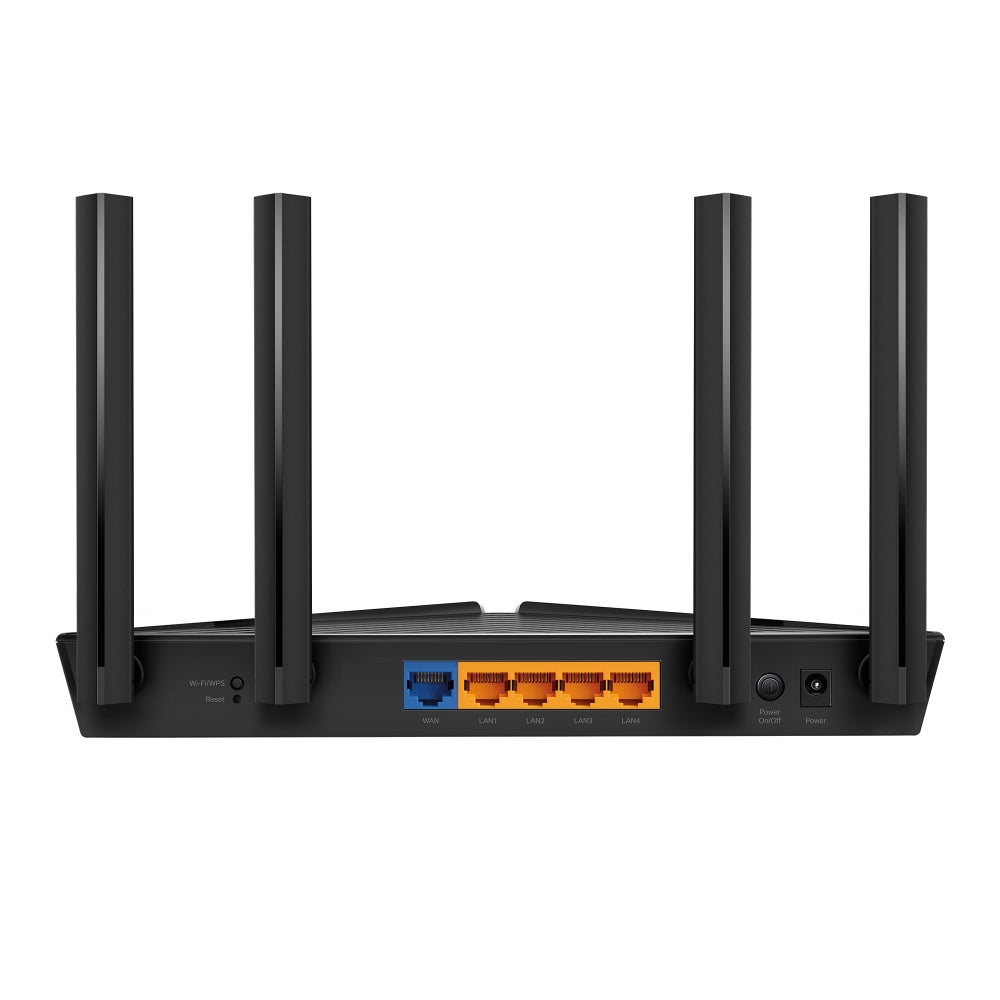

- Ethernet Ports: 1× 10/100/1000Mbps RJ45 WAN Port, 4× 10/100/1000Mbps RJ45 LAN Ports
- Antennas: Four High-Performance External Antennas
- Mesh Technology: EasyMesh Compatible, 802.11k/v/r Support
- Wireless Security: WPA, WPA2 and WPA3 Encryption
- Multi-SSID: 2× 5.0GHz Multi-SSID, 2× 2.4GHz Multi-SSID
- Advanced Wireless Features: Beamforming, MU-MIMO, DL/UL OFDMA and Airtime Fairness
- Operating Modes: Router Mode, Access Point Mode
- WAN Type: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
- Quality Of Service: Hardware QoS, Flow Classification
- VPN Pass-Through: IPSec, PPTP, L2TP
- VPN Server: PPTP, OpenVPN, IPSec
- Protocols: IPv4 and IPv6
- Management: WebGUI, Aginet App, Aginet ACS, TAUC and TR-069 Remote Management
- Buttons: Power On/Off, Reset, Wi-Fi/WPS
- Power Supply: 12V 1.5A
- Dimensions: 260.2 × 135 × 41.6mm
- Operating Temperature: 0~40°C
- Certification: CE
