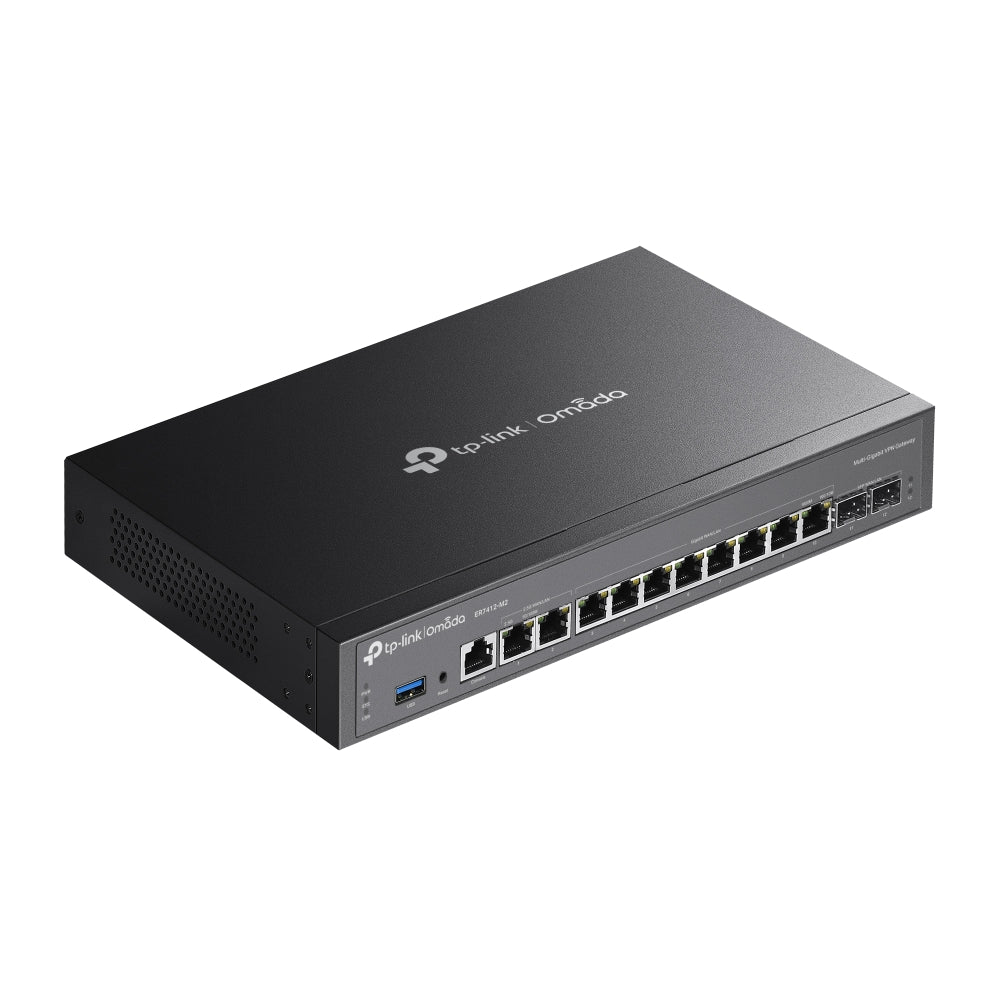

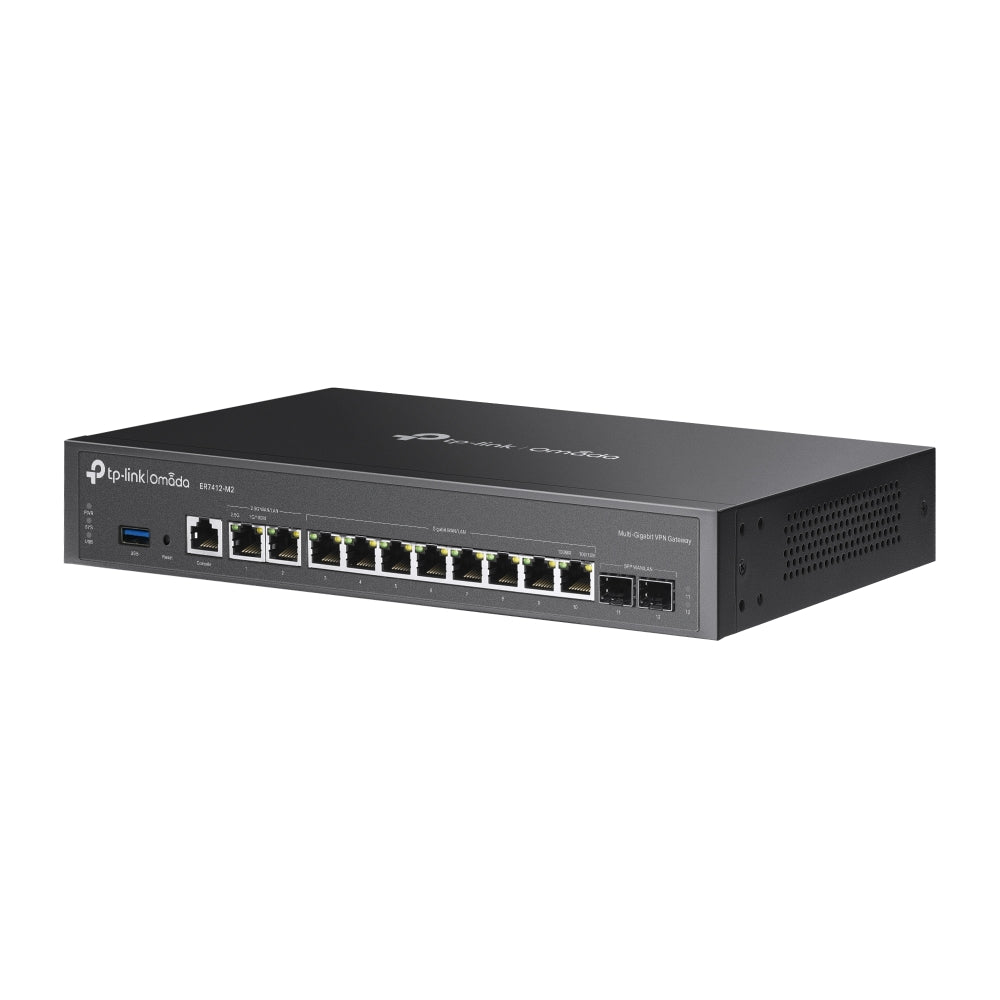

TP-Link Omada ER7412-M2 Multi-Gigabit VPN Router
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
Features
- Quad-core @2.0GHz CPU
- 2× 2.5G RJ45 WAN/LAN ports
- 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
- 1× USB3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
- Up to 11 WAN ports
- Multi-WAN Load Balancing raises the utilization rate of multi-line broadband
- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralized cloud management via the web or the Omada APP
- DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security
Specifications
Security
Access Control:
- Source/Destination IP-Based ACL
- Stateful ACL
- IPv4/IPv6 ACL
- Location Based ACL
Filtering:
- WEB Group Filtering
- URL Filtering
- Web Security
ARP Inspection:
- Sending GARP Packets
- ARP Scanning
- IP-MAC Binding
Attack Defense:
- TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
Hardware Features
Standards and Protocols:
- IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q
- TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

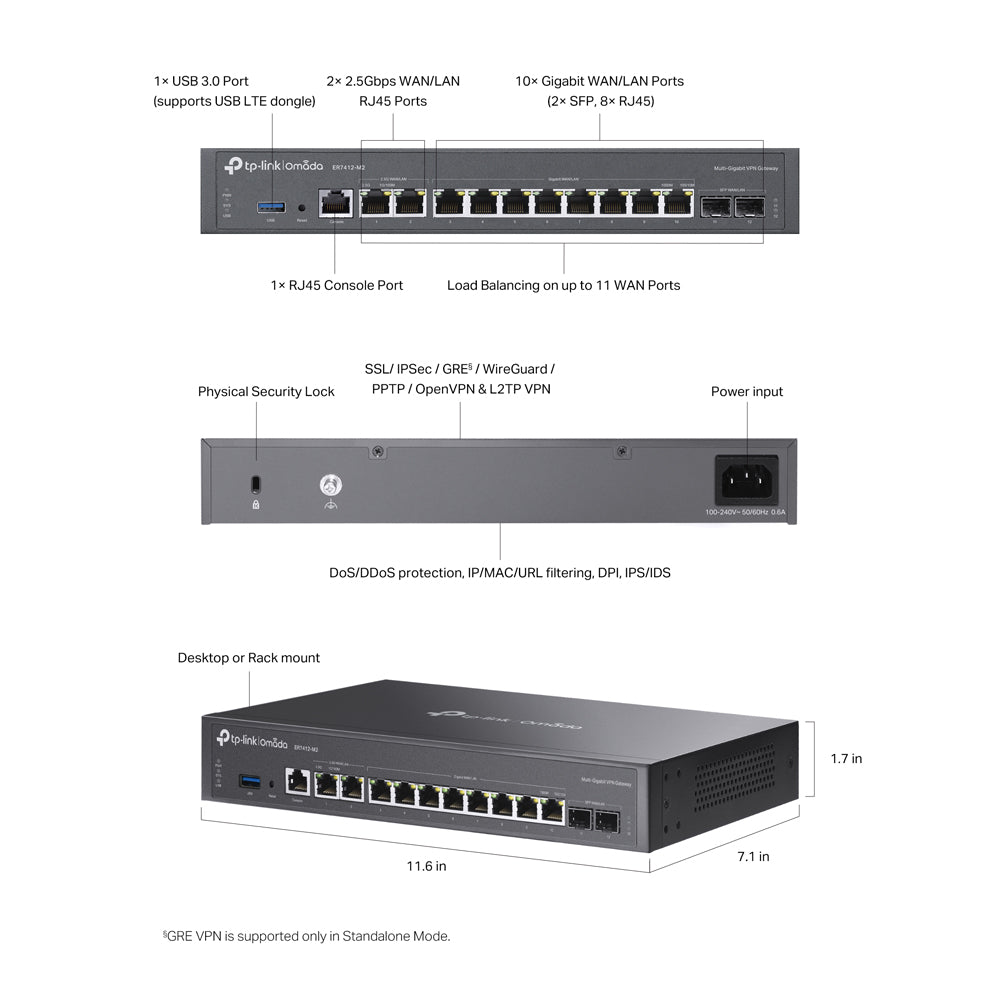

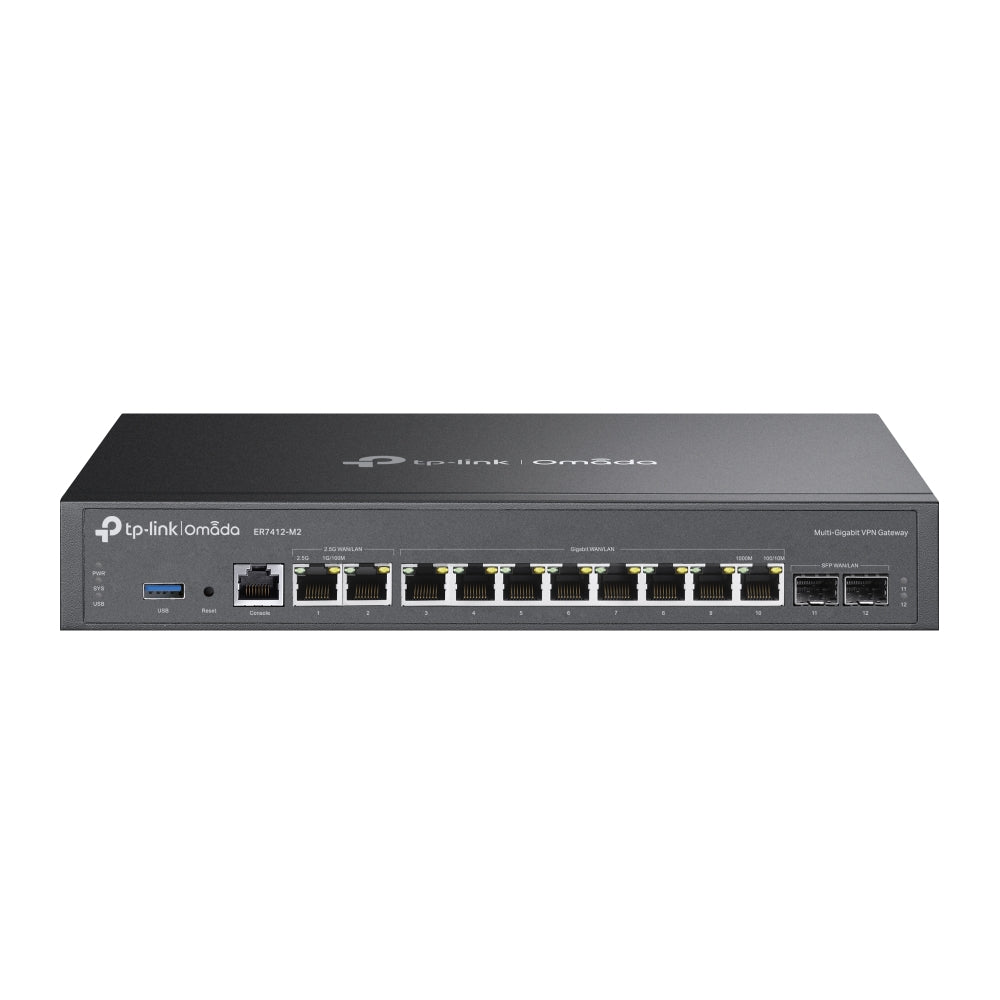

Interface:
- 1× 2.5G RJ45 WAN/LAN Port
- 1× 2.5G RJ45 WAN/LAN Port
- 2× Gigabit SFP WAN/LAN Ports
- 8× Gigabit RJ45 WAN/LAN Ports
- 1× RJ45 Console Port
- 1× USB3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
- 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)
Button: Reset Button

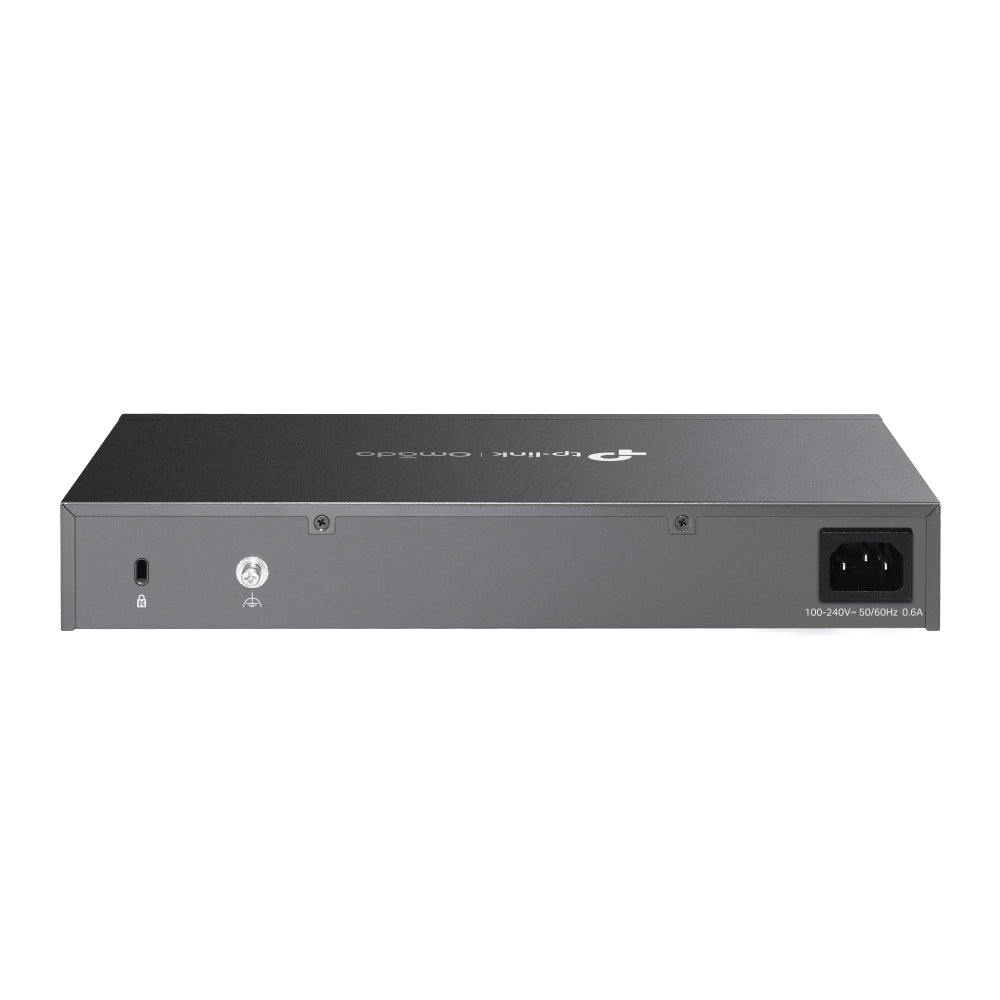

Power Supply: 100–240 VAC, 50/60 Hz
Flash: 128MB NAND
Dram: 1 Gb Ddr4
Dimensions ( W x D x H ): 294×180×44mm
Protection: 4 kV surge protection
Enclosure: Steel
Mounting:
Max. Power Consumption: 18.5W (With USB3.0 connected)
Basic Functions
WAN Connection Type:
- Static IP/Dynamic IP
- PPPoE (supports MRU Configuration)
- PPTP
- L2TP
- Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone: Modify WAN/LAN MAC Address
Dhcp:
- DHCP Server
- DHCPv6 PD Server (only in Standalone Mode)
- DHCP Options Customization
- DHCP Address Reservation
- Multi-IP Interfaces
- Multi-Net DHCP
IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
Vlan: 802.1Q Vlan
IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Features
Advanced Routing:
- Static Routing
- Policy Routing
- RIP (available in Standalone Mode)
- OSPF (available in Standalone Mode)
Bandwidth Control: IP/Port-based Bandwidth Control
Load Balance:
- Intelligent Load Balance
- Application Optimized Routing
- Link Backup (Timing, Failover)
- Online Detection
Nat:
- One-to-One NAT
- Multi-Net NAT
- Virtual Server
- Port Triggering
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG
- UPnP
Session Limit: IP-based Session Limit
Vpn
GRE: Only in Standalone Mode
SSL VPN: 80 Tunnels
IPsec VPN:
- 150 IPSec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- IPsec Failover
- IKE v1/v2
- MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
Pptp Vpn:
- PPTP VPN Server
- PPTP VPN Client (15)
- 150 Tunnels
- PPTP with MPPE Encryption
L2Tp Vpn:
- L2TP VPN Server
- L2TP VPN Client (15)
- 150 Tunnels
- L2TP over IPSec
OpenVPN:
- OpenVPN Server
- OpenVPN Client (11)
- 121 OpenVPN Tunnels
- "Certificate + Account" Mode
- Full Mode
WireGuard VPN:
Authentication
Web Authentication:
- No Authentication
- Simple Password
- Hotspot (Local User/Voucher/SMS/Radius)
- External Radius Server
- External Portal Server
- LDAP
Management Features
Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Service: Dynamic DNS (DynDNS, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance:
- Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute)
- NTP Synchronize
- Port Mirroring
- CLI (only in Standalone Mode)
- Syslog Support
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller
Management Features:
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
