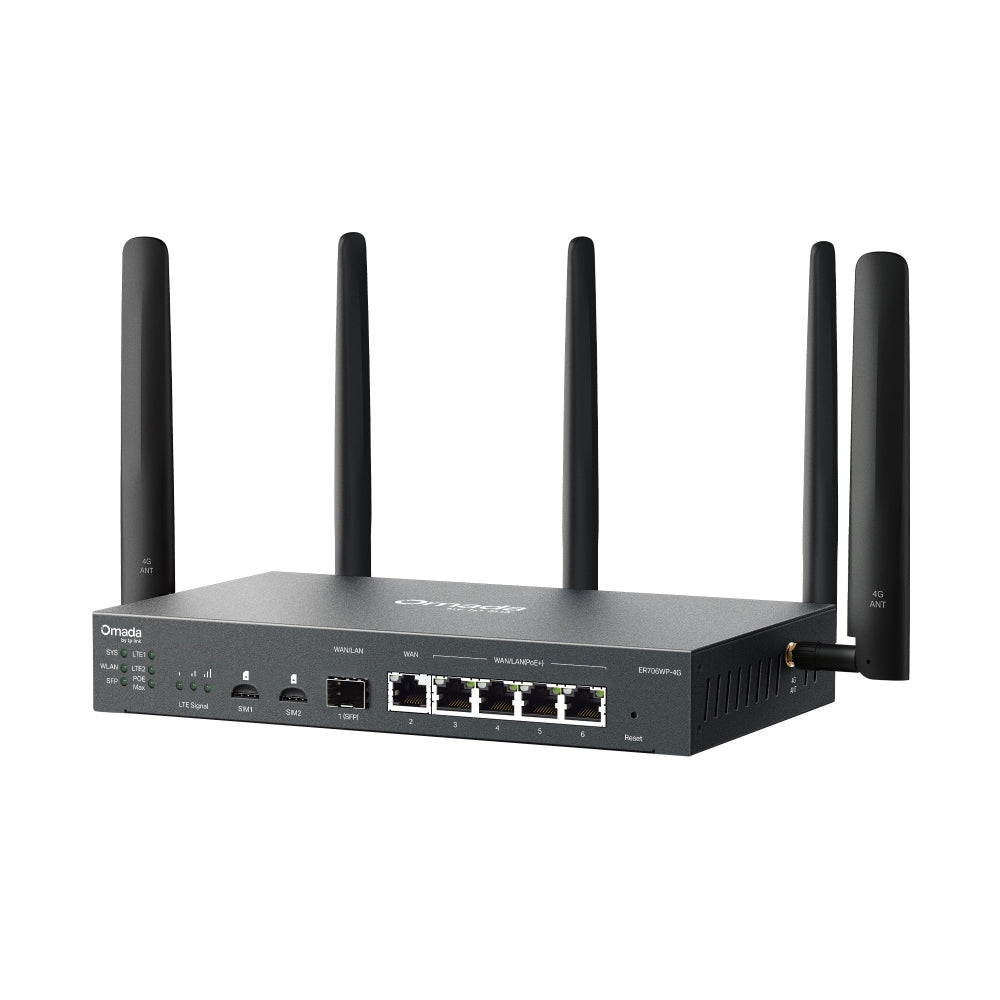

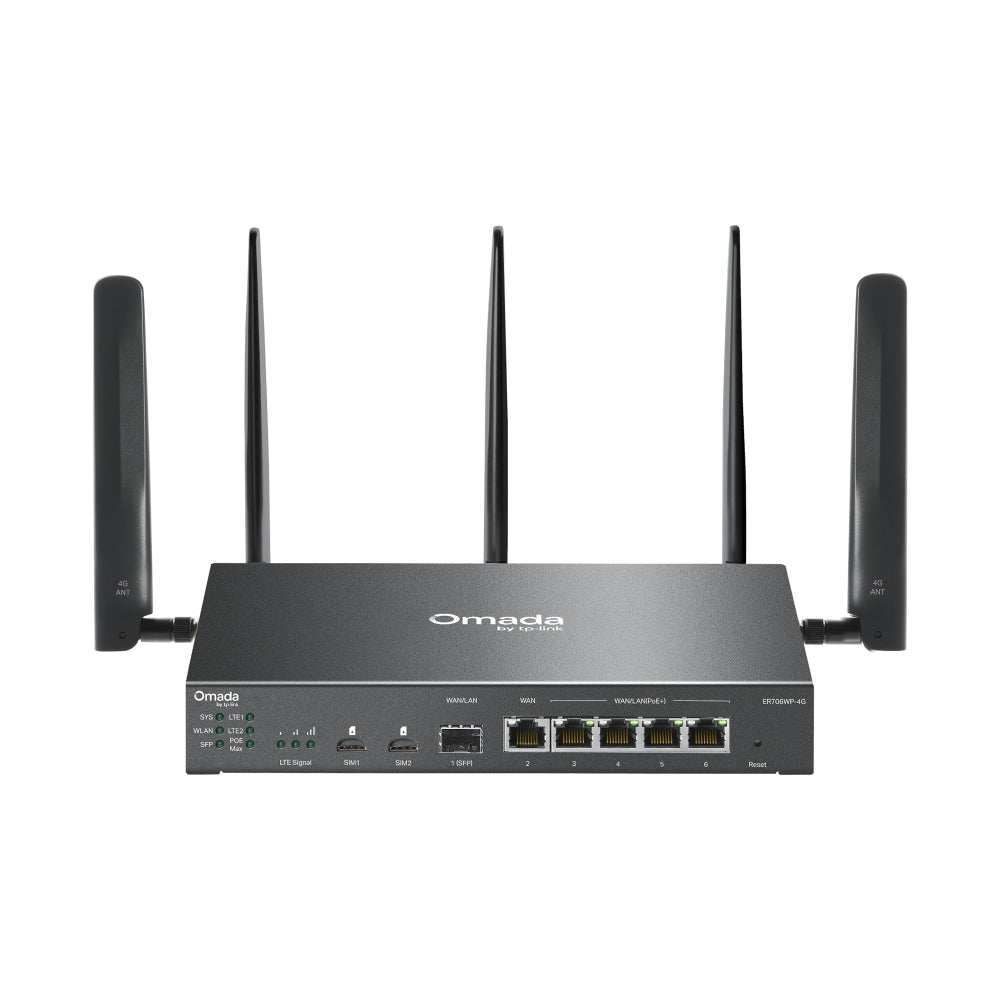

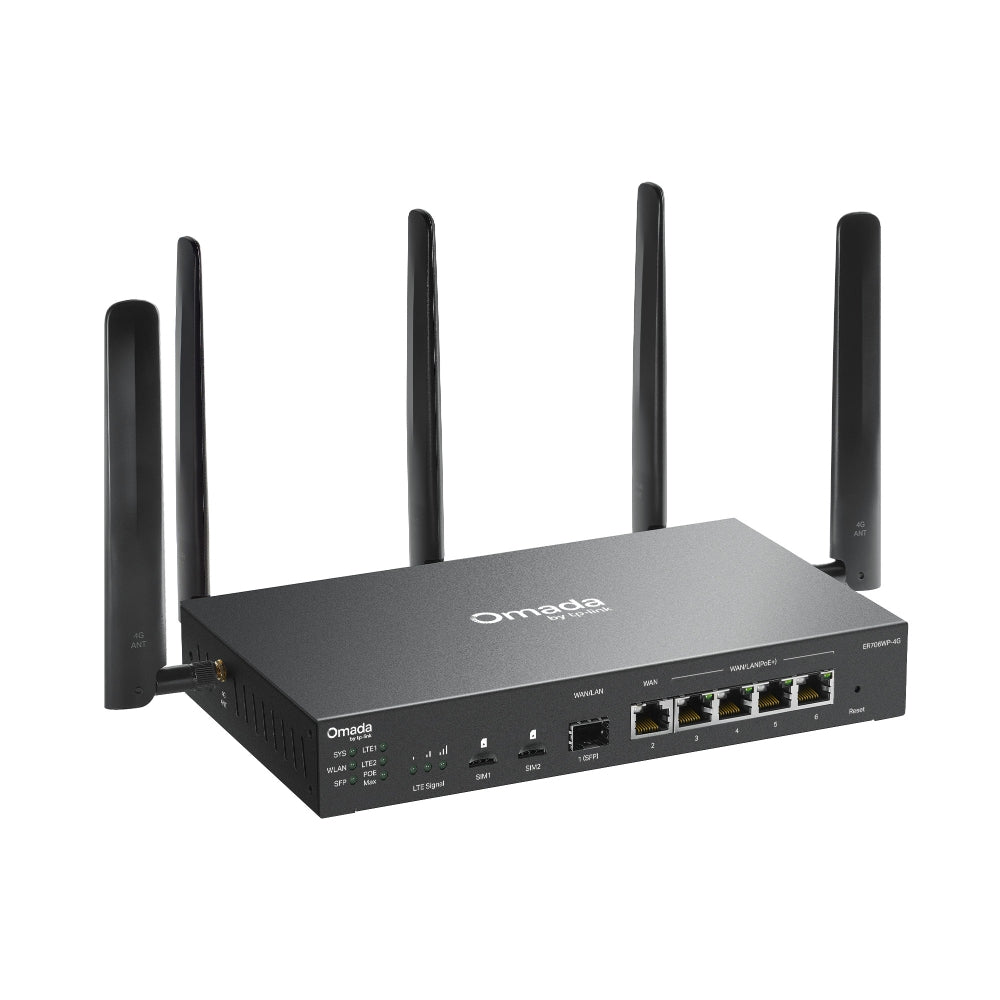

TP-Link Omada ER706WP-4G 4G+ Cat6 AX3000 Gigabit VPN Gateway with 4-Port PoE+
Business-Grade 4G Backup, Wi-Fi 6 and PoE+ in One Gateway.
The TP-Link Omada ER706WP-4G is a powerful 4G+ Cat6 AX3000 Gigabit VPN Gateway designed for business networks that need reliable internet, secure VPN connectivity and flexible deployment. It supports 4G+ Cat6 speeds up to 300Mbps, AX3000 dual-band Wi-Fi 6, dual Nano SIM slots, 1× Gigabit SFP WAN/LAN port, 1× Gigabit WAN port and 4× Gigabit WAN/LAN PoE+ ports with a 45W total PoE budget. With Omada SDN centralised management, advanced VPN support and detachable high-gain antennas, it is ideal for offices, retail stores, remote sites, surveillance networks and backup connectivity deployments.
Features
- 4G+ Cat6 Connectivity - Supports LTE downlink speeds up to 300Mbps and uplink speeds up to 50Mbps
- AX3000 Dual-Band Wi-Fi 6 - Delivers up to 2,402Mbps on 5.0GHz and 574Mbps on 2.4GHz
- Dual Nano SIM Slots - Provides flexible mobile network connectivity and failover options
- Gigabit SFP WAN/LAN Port - Supports fibre connectivity with compatible SFP modules
- 6× Gigabit Ports - Includes 1× Gigabit WAN port and 5× Gigabit WAN/LAN ports for flexible networking
- 4-Port PoE+ Output - Powers compatible access points, cameras and network devices
- 45W PoE Budget - Supports multiple PoE+ devices from one gateway

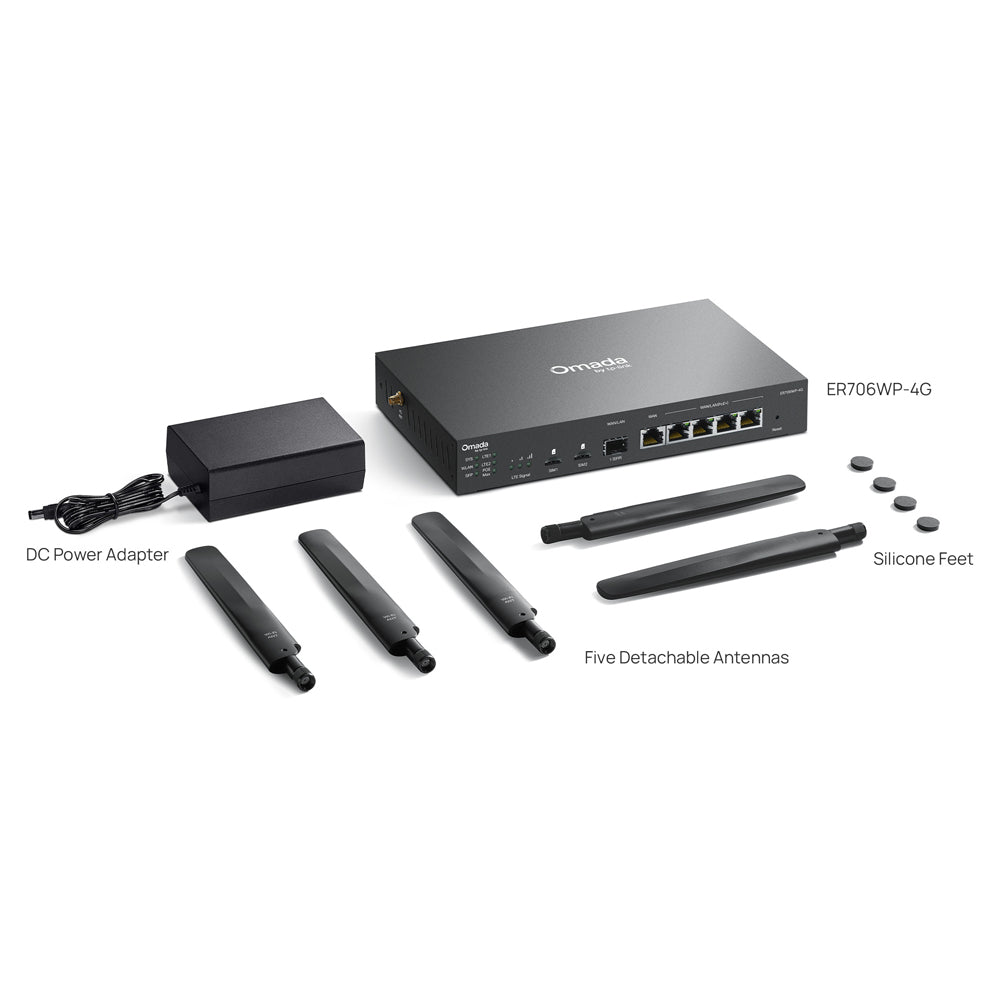

- Five Detachable Antennas - Includes 3× Wi-Fi antennas and 2× LTE antennas for improved signal performance
- Omada SDN Management - Enables centralised cloud or on-premises network management
- Advanced VPN Support - Supports IPSec, L2TP, PPTP, OpenVPN, GRE, WireGuard and SSL VPN
- Load Balancing and Link Backup - Helps maintain stable network access across available WAN connections
- Omada Mesh Support - Works with compatible Omada EAPs for flexible wireless expansion
- Business Security Features - Supports firewall, ACL, attack defence, DNS security and DPI inspection

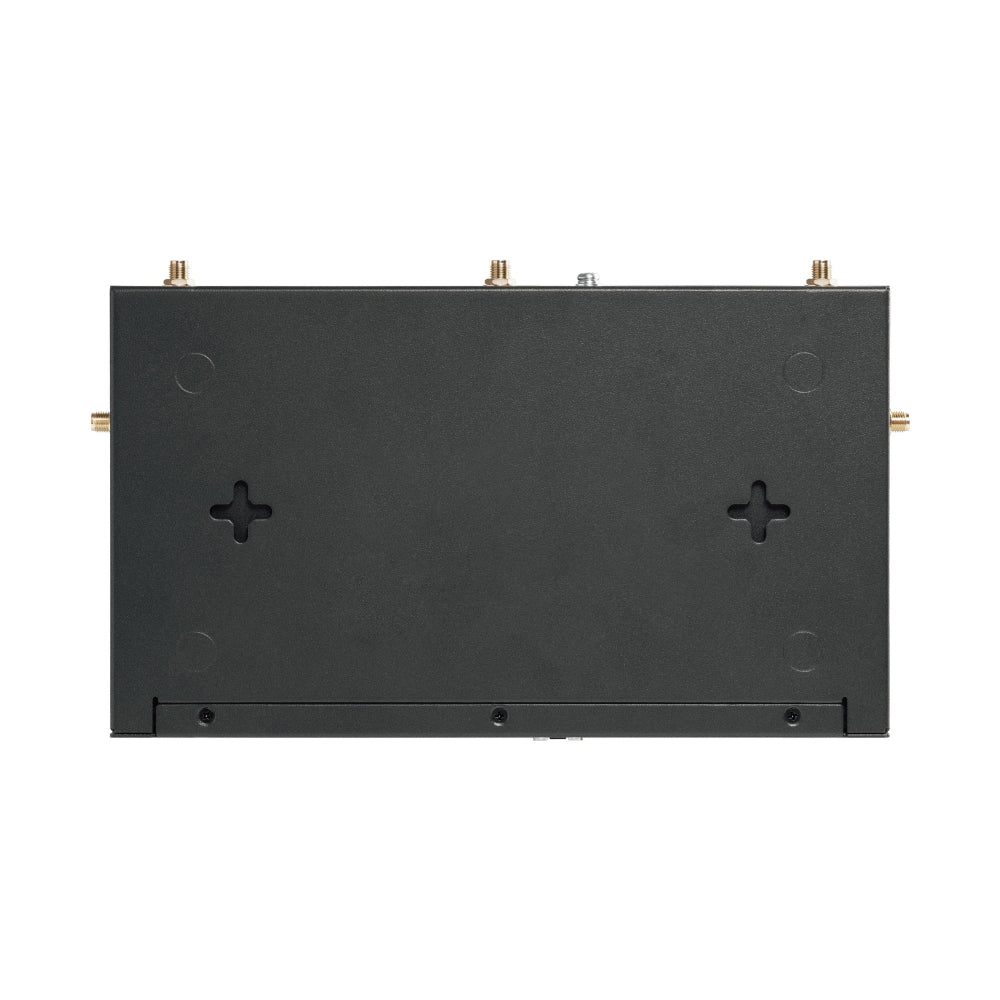

- Flexible Mounting - Supports desktop, wall-mounting and rackmount installation
Specifications
- 4G Standard: LTE Cat6
- LTE Speed: Up to 300Mbps Downlink, 50Mbps Uplink
- SIM Slots: 2× Nano SIM
- Wi-Fi Standard: Wi-Fi 6, IEEE 802.11a/b/g/n/ac/ax
- Wi-Fi Speed: AX3000
- 5.0GHz Speed: Up To 2,402Mbps
- 2.4GHz Speed: Up To 574Mbps
- Ports: 1× Gigabit SFP WAN/LAN, 1× Gigabit WAN, 4× Gigabit WAN/LAN PoE+
- PoE Output: 4× PoE+ Ports
- PoE Budget: 45W Total

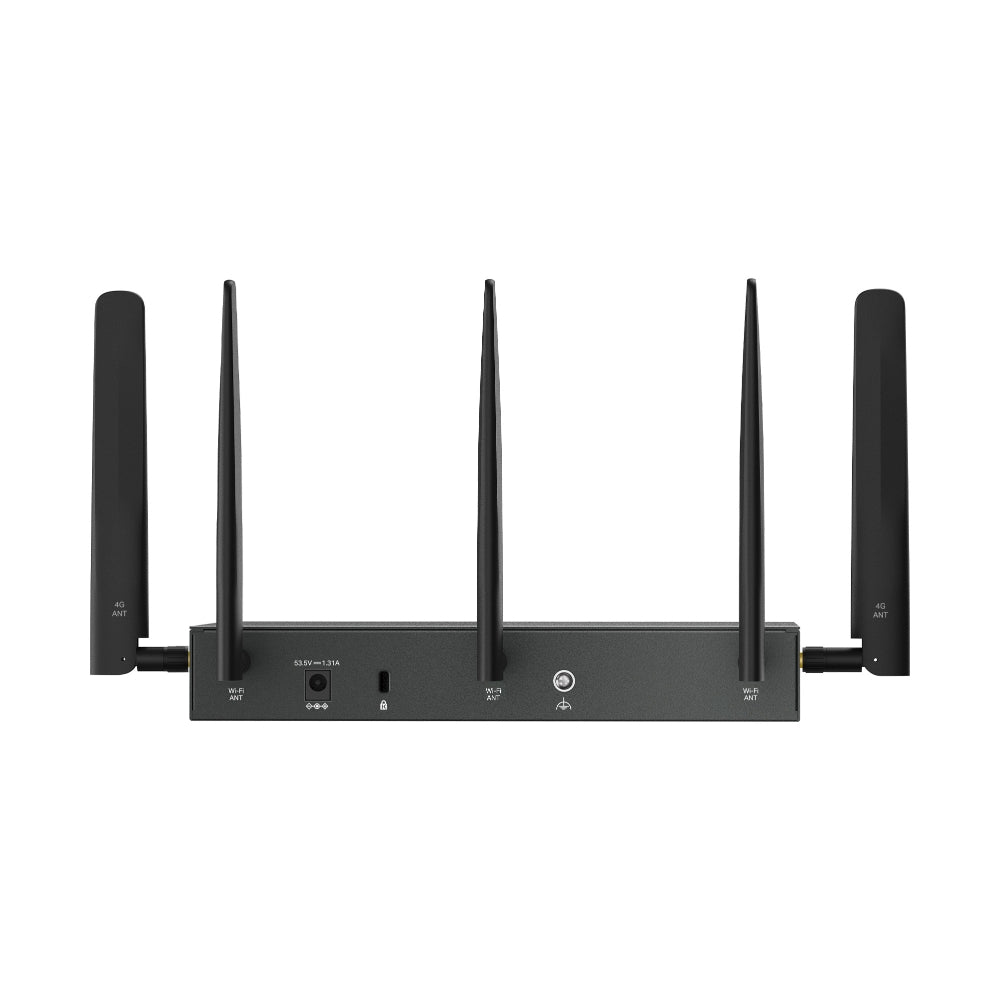

- Antennas: 3× Detachable Wi-Fi Antennas, 2× Detachable LTE Antennas
- VPN Support: IPSec, PPTP, L2TP, OpenVPN, GRE, WireGuard And SSL VPN
- Concurrent Sessions: 150,000
- New Sessions per Second: 4,500
- IPSec VPN Throughput: Up to 627Mbps
- WireGuard VPN Throughput: Up to 335.1Mbps
- OpenVPN Throughput: Up to 101.8Mbps
- Wireless Security: WPA, WPA2 and WPA3 Personal/Enterprise
- Multiple SSIDs: 16 Total, 8 per Radio
- Surge Protection: 4kV
- Power Supply: 53.5V DC 1.31A
- Max Power Consumption: 64W with PoE Max., 18W without PoE

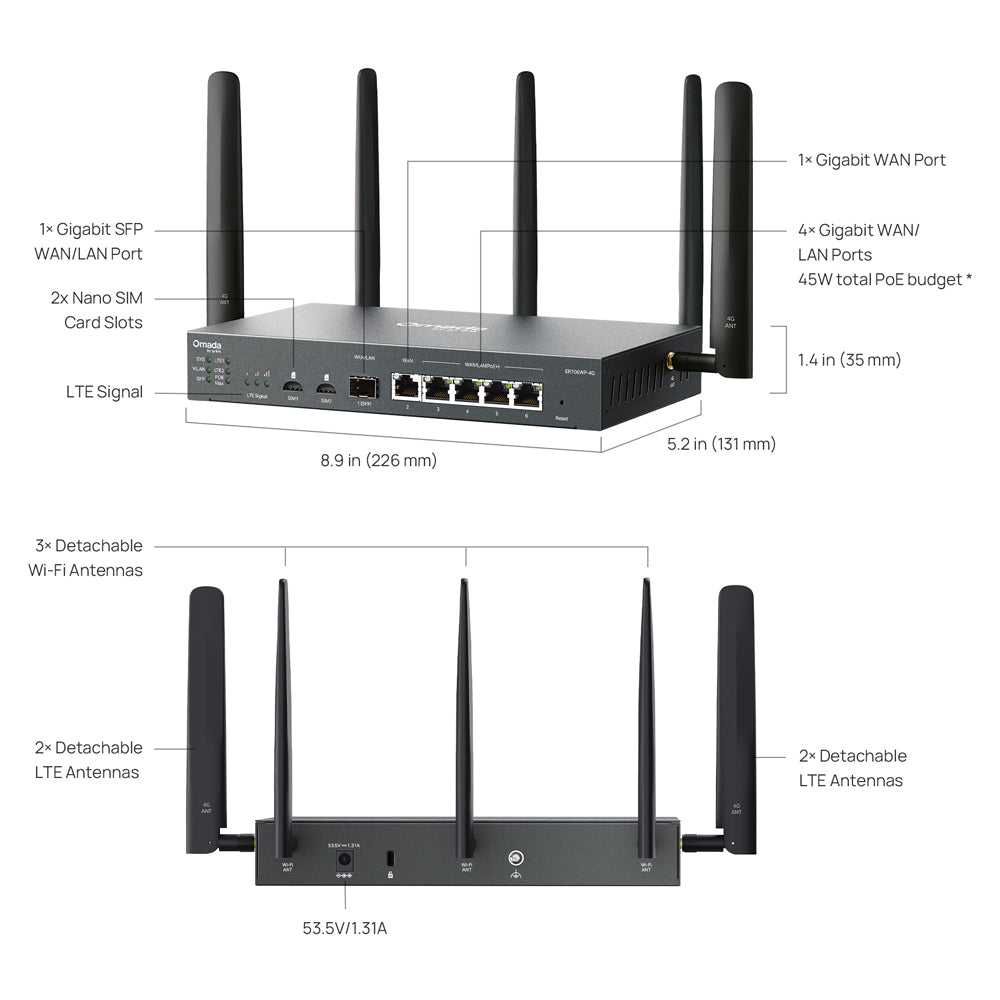

- Dimensions: 226 × 131 × 35mm
- Net Weight: 1.11kg
- Mounting: Desktop, Wall-Mounting And Rackmount
- Operating Temperature: 0~40°C
- Certification: CE, FCC
Notes
- Rackmount kit is not included
- Omada Mesh requires compatible Omada EAPs that support mesh functionality
- SFP module is sold separately
