TP-Link Omada ER605W AC1200 Wi-Fi Gigabit Gateway
Reliable Business Router with Integrated Dual-Band Wi-Fi
The TP-Link Omada ER605W delivers stable and secure business networking with built-in dual-band Wi-Fi, making it ideal for small offices, retail environments and remote sites. Designed for seamless Omada SDN integration, it offers centralised cloud management, advanced security and flexible multi-WAN connectivity in a single solution. With reliable wireless performance, robust VPN support and intelligent traffic management, the ER605W ensures efficient and secure connectivity for both wired and wireless networks.
Features
- Dual-Band Wi-Fi 5 - Combined wireless speeds up to 1,167Mbps (300Mbps on 2.4GHz + 867Mbps on 5.0GHz)

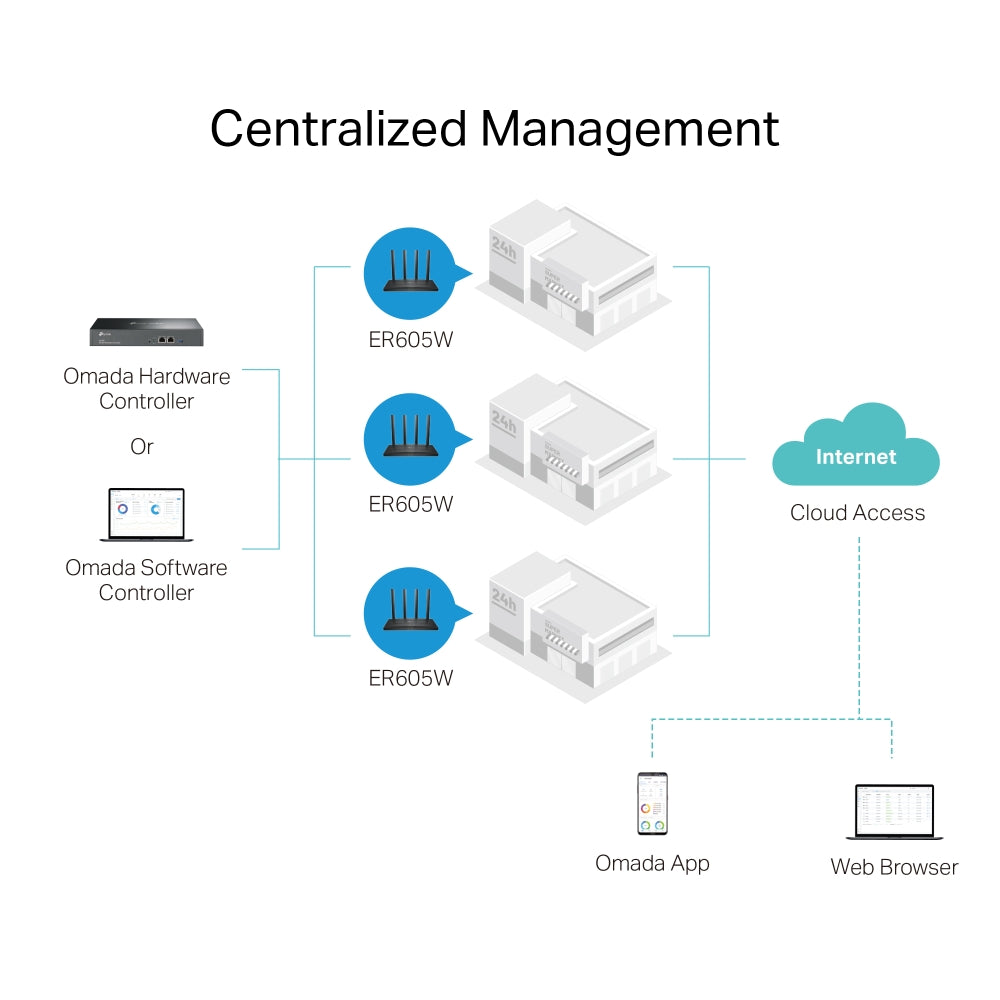

- Omada SDN Integration - Centralised cloud management via Omada Controller, app or web interface
- Multi-WAN Support - up to 3× WAN ports with load balancing for improved uptime and reliability

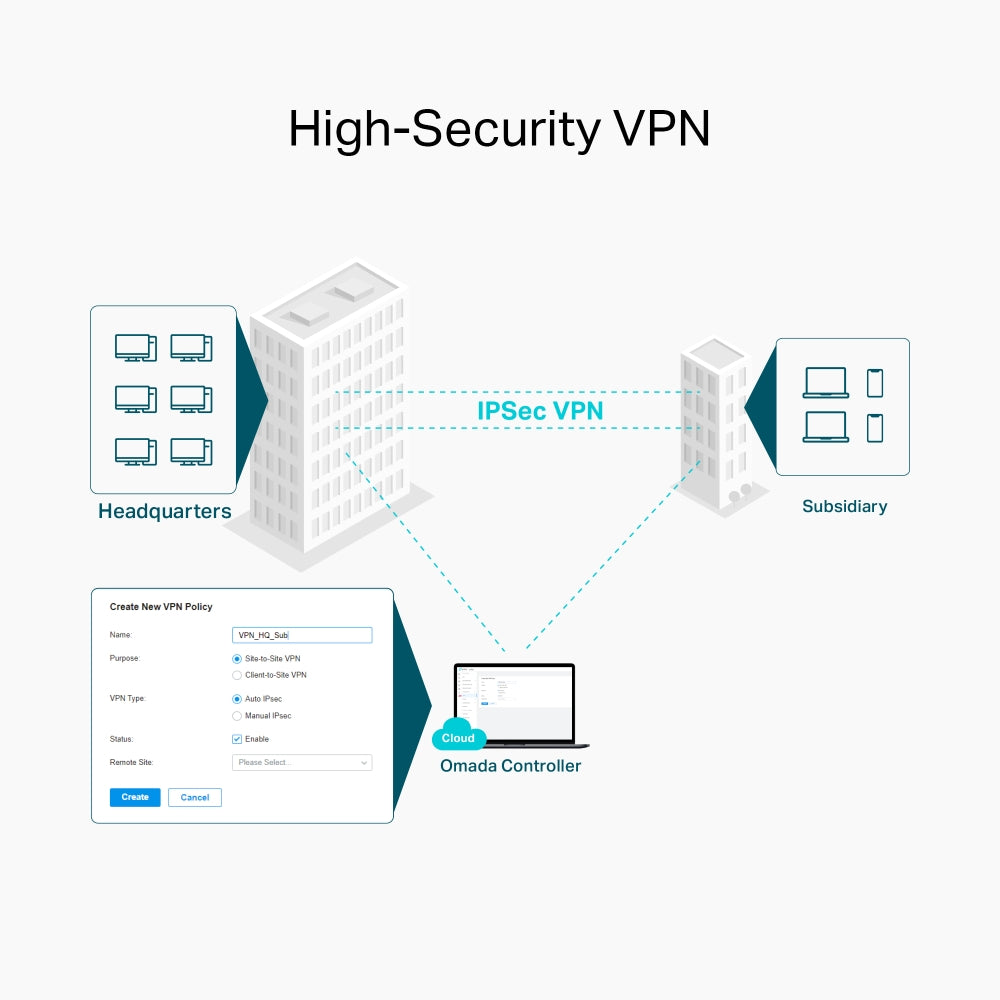

- Advanced VPN - Supports IPsec, PPTP, L2TP and OpenVPN for secure remote access

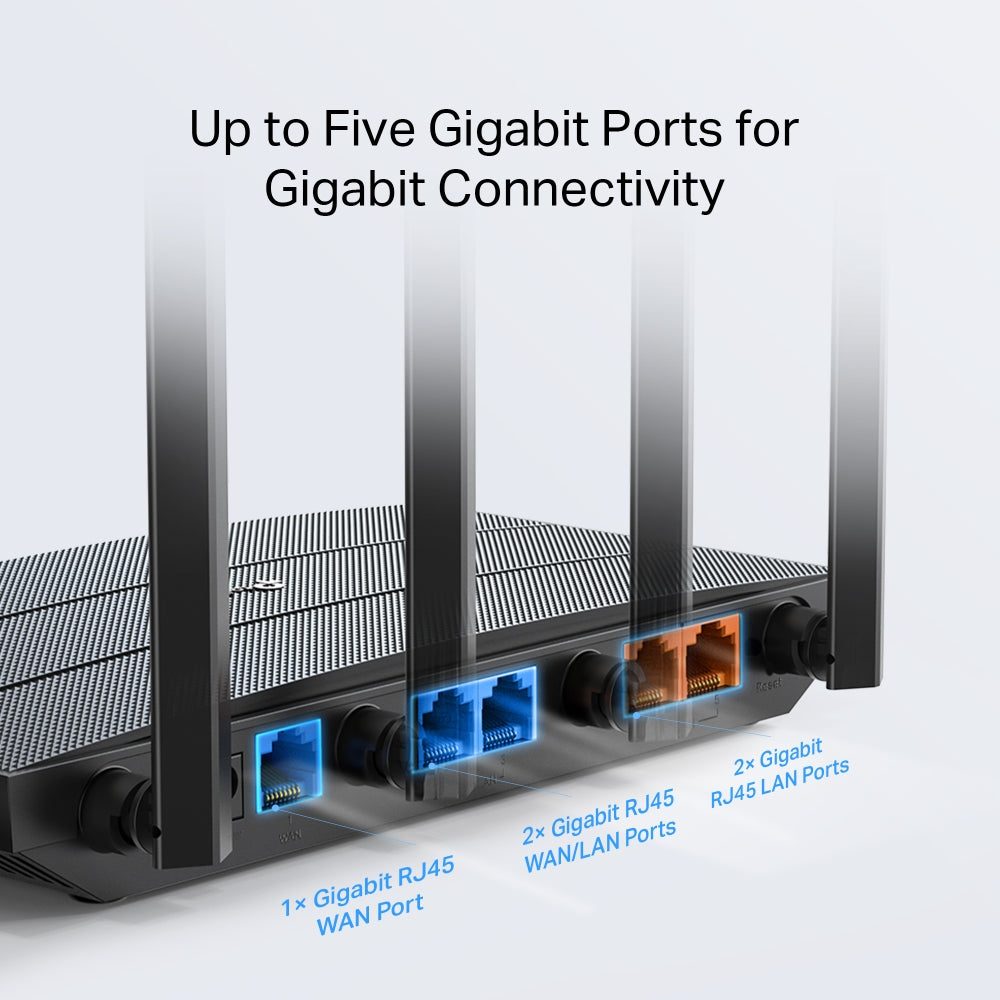

- Gigabit Connectivity - 5× Gigabit ports for high-speed wired networking
- Enterprise Security - Firewall, VLAN, QoS and access control for secure and efficient network management
Specifications
- Wireless Standards: IEEE 802.11a/b/g/n/ac
- Frequency: 2.4GHz, 5.0GHz
- Wi-Fi Speed: up to 300Mbps (2.4GHz) + 867Mbps (5.0GHz)

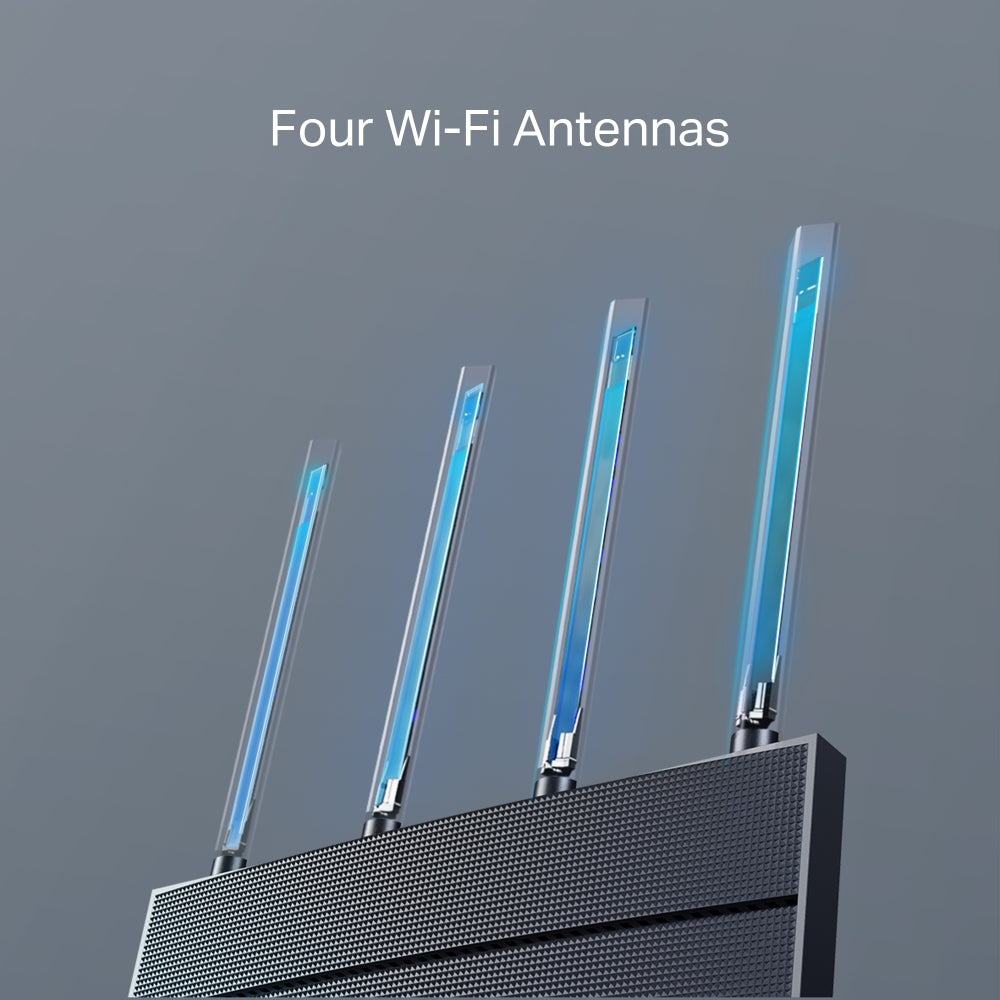

- Antennas:
- 2.4GHz: 2× 5dBi Fixed Antennas
- 5.0GHz: 2× 5dBi Fixed Antennas
- Max. SSIDs: 16× (8× per Band)

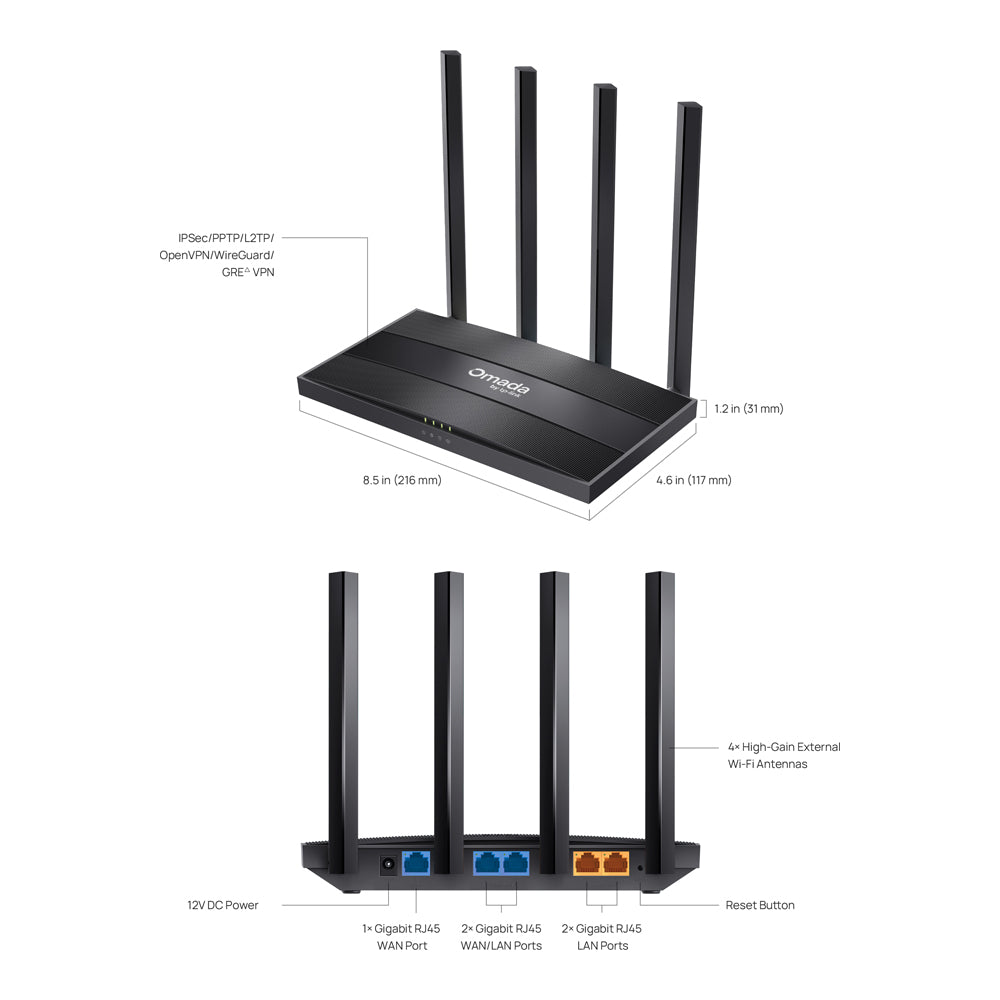

Interfaces And Hardware

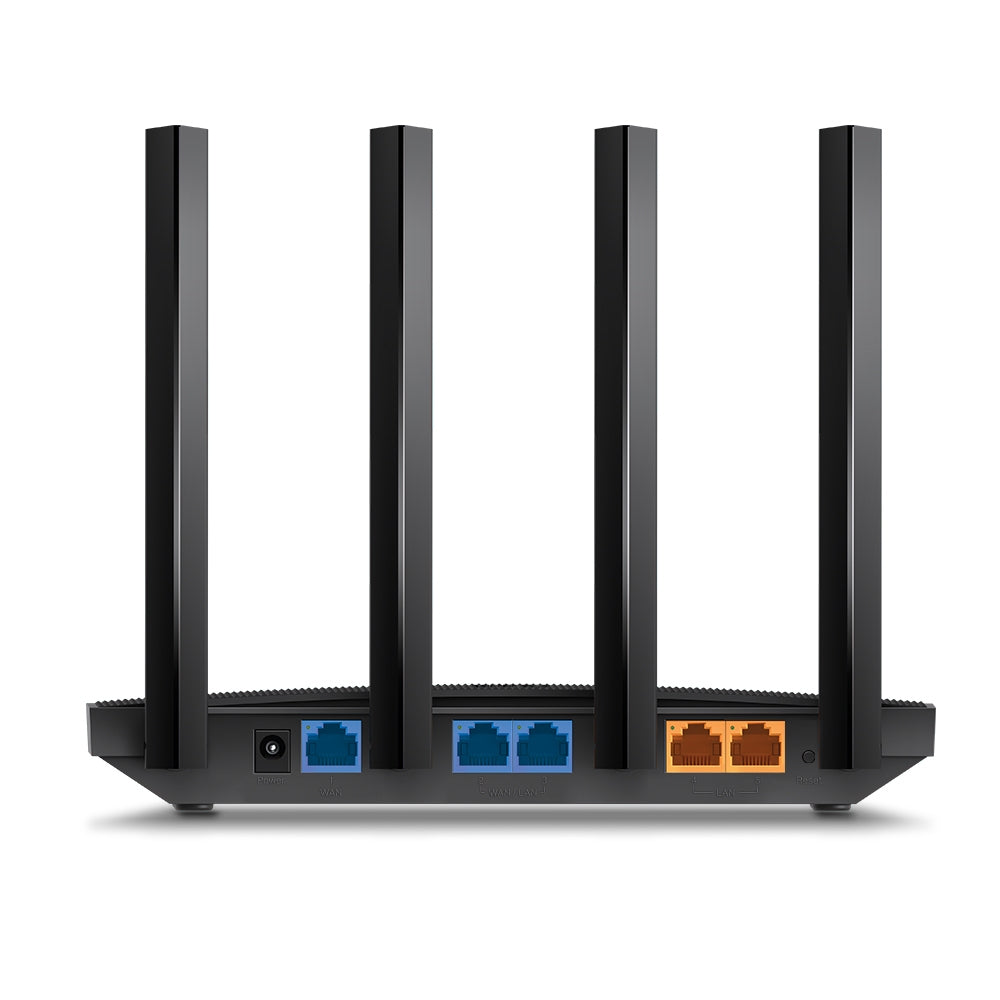

- Ports:
- 1× Gigabit WAN
- 2× Gigabit WAN/LAN
- 2× Gigabit LAN
- Button: Reset
- Power Supply: 12VDC 1A
- Flash: 128MB NAND
- DRAM: 256MB DDR3
- Max. Power Consumption: 9W
- Mounting: Desktop / Wall Mount
- Dimensions (W × D × H): 215 × 117 × 31mm
Performance
- Concurrent Sessions: 50,000
- New Sessions: 2,028/sec
- NAT Throughput: up to 900Mbps+
- IPsec VPN Throughput: up to 175.5Mbps
- WireGuard VPN Throughput: 71.2Mbps
- OpenVPN Throughput: 16.8Mbps
Wireless Features
- Multiple SSIDs: up to 16×
- Wireless Features: Band Steering, Load Balance, Airtime Fairness
- Transmit Power Control: Adjustable
- Advanced Features: VLAN, QoS, Captive Portal, RADIUS
Network And Routing
- WAN Types: Static IP, Dynamic IP, PPPoE, PPTP, L2TP
- DHCP: Server, DHCP Reservation, DHCP Options
- VLAN: 802.1Q VLAN
- Routing: Static Routing, Policy Routing, RIP, OSPF
- NAT: One-to-One, Multi-Net, Virtual Server, Port Triggering
Vpn
- Protocols: IPsec, PPTP, L2TP, OpenVPN, WireGuard
- IPsec: up to 6× Tunnels (IKEv1/v2, AES256, SHA)
- OpenVPN: Server/Client (up to 18× Tunnels)
- WireGuard: Supported
- L2TP/PPTP: Server and Client support
Security
- Firewall: SPI Firewall
- Protection: DoS, TCP/UDP/ICMP Flood Defence
- Filtering: IP/MAC/URL Filtering
- Security: ARP Inspection, IP-MAC Binding
- DNS Security: DNSSEC, DoH, DoT
Management
- Management: Omada Cloud, App, Web UI
- Controllers: Hardware and Software Controller Support
- Features: Centralised Management, Remote Monitoring, Alerts
- Maintenance: Syslog, Diagnostics, Config Backup/Restore
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
