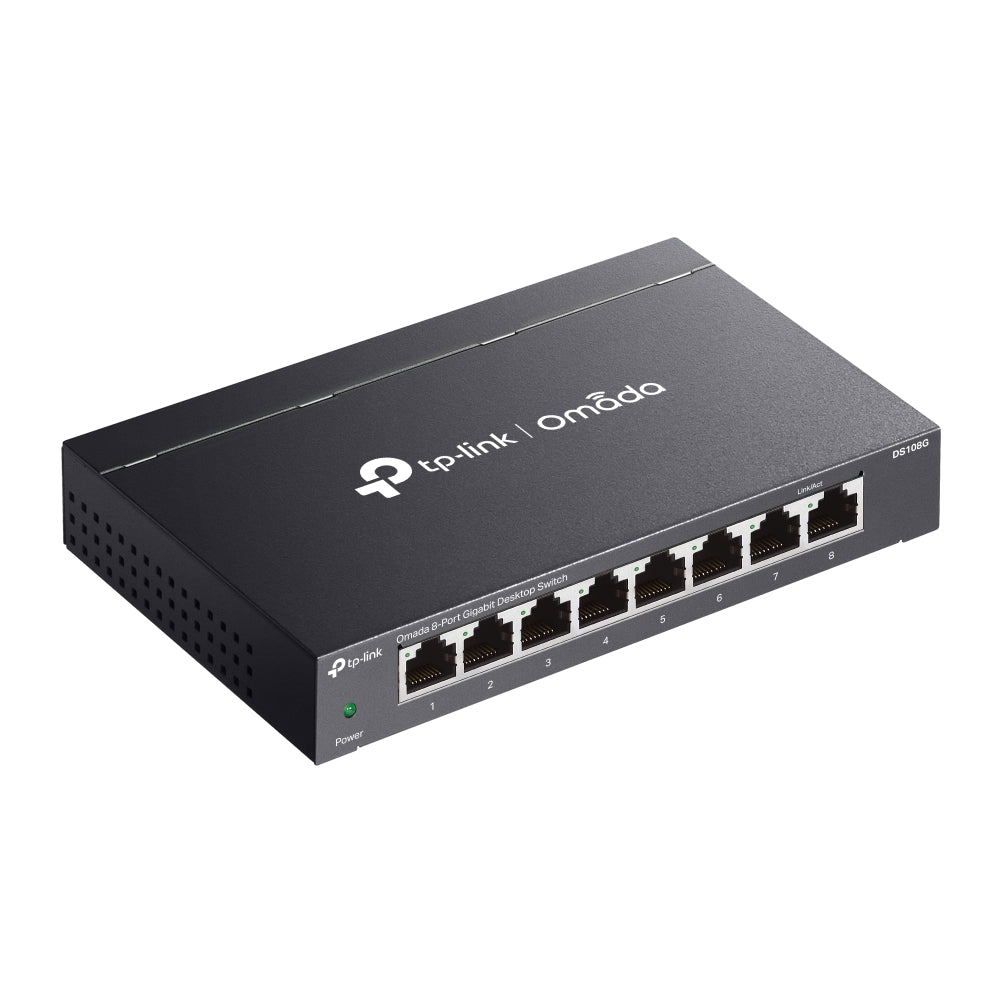

TP-Link Omada DS108G 8-Port Gigabit Unmanaged Desktop Switch
The TP-Link Omada DS108G 8-Port Gigabit Unmanaged Switch provides fast and reliable wired connectivity for small offices, home networks and business environments. Designed for simple network expansion, it offers plug-and-play operation with no configuration required, making it easy to deploy in minutes. With a durable metal housing, intelligent traffic optimisation and energy-efficient technology, the DS108G ensures stable Gigabit performance for everyday networking needs.
Features
- 8× Gigabit Ethernet Ports - 10/100/1000Mbps RJ45 ports for high-speed wired networking
- Plug-and-Play Operation - No configuration required for quick and easy deployment
- Auto-Negotiation and Auto-MDI/MDIX - Automatically detects cable type and optimal speed
- Energy-Efficient Technology - Intelligent power management reduces energy consumption
- QoS Support - Prioritises network traffic for smoother performance
- IGMP Snooping - Optimises multicast traffic for improved network efficiency

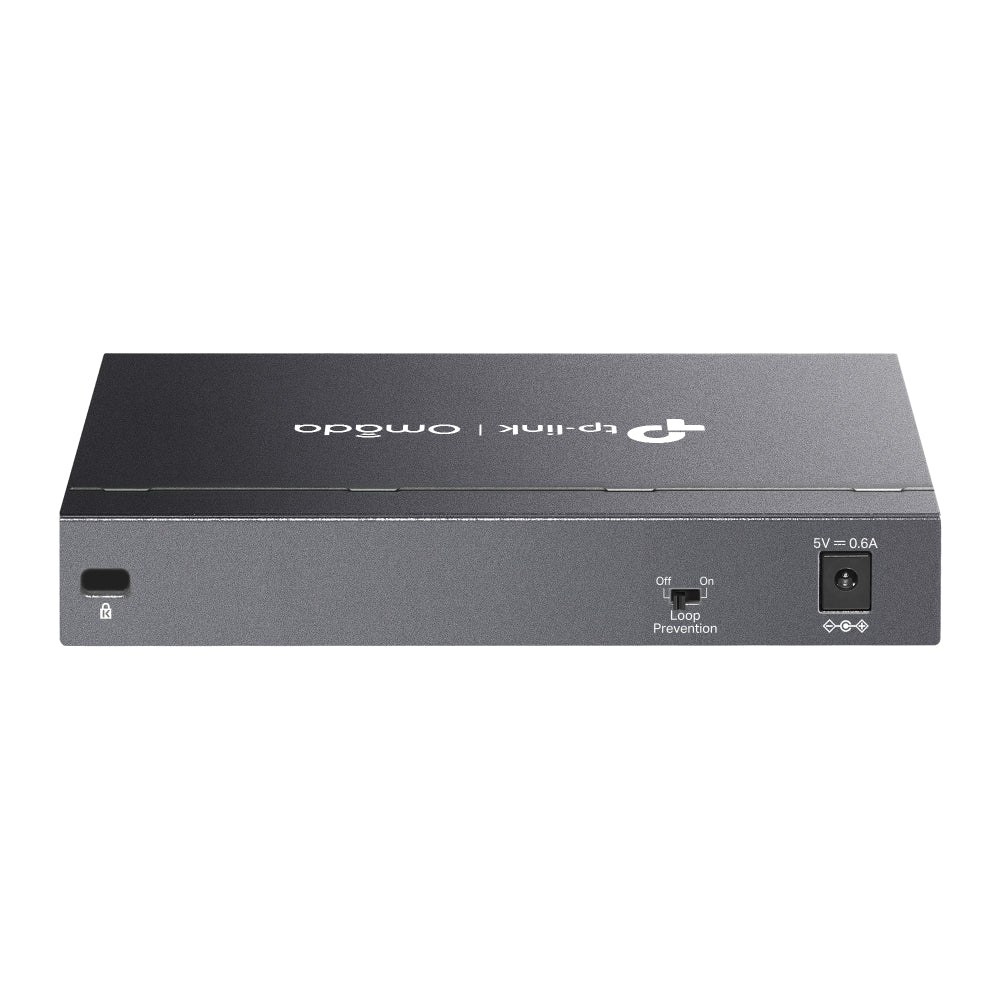

- Loop Prevention Function - Detects and prevents network loop issues
- Durable Metal Housing - Strong, reliable construction for long-term operation

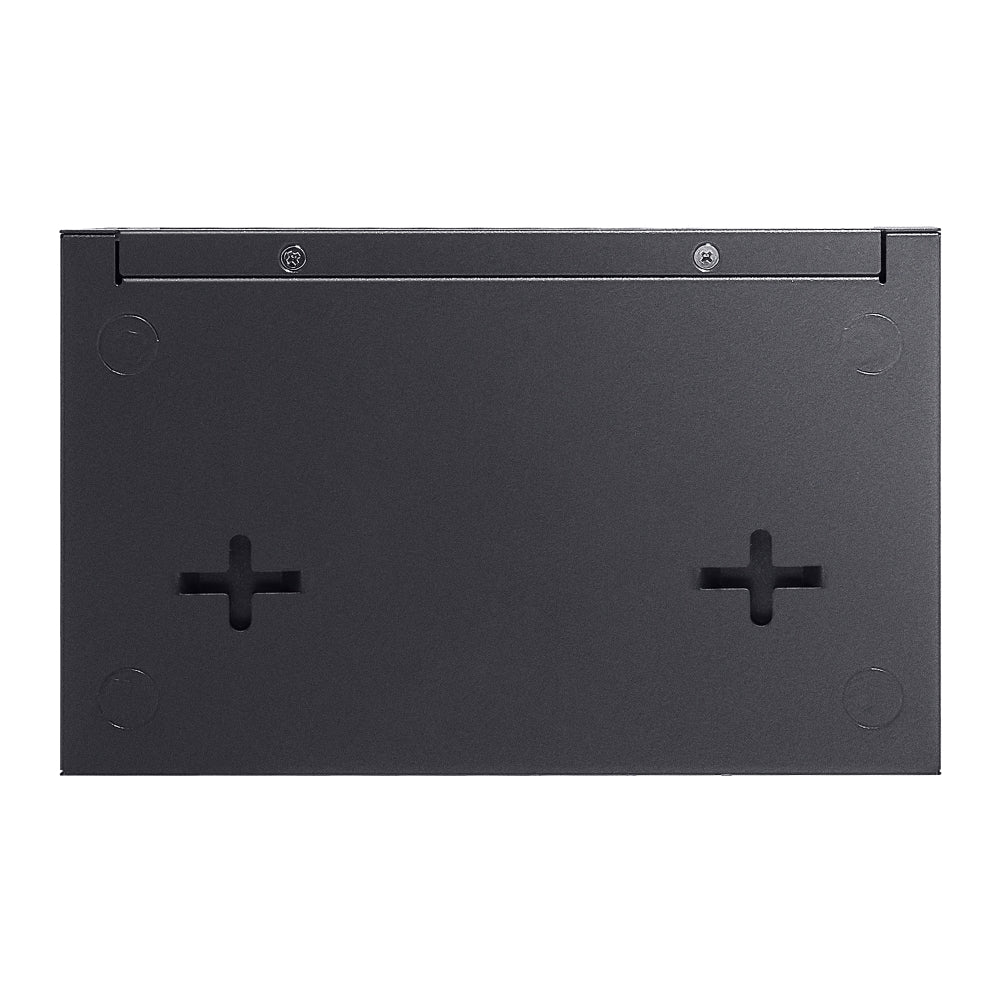

- Desktop or Wall-Mount Installation - Flexible placement options for various environments
Specifications
Interface
- 8× 10/100/1000Mbps RJ45 Ports
- Auto-Negotiation / Auto MDI-MDIX
Standards
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.1p
Performance
- Switching Capacity: 16Gbps
- Packet Forwarding Rate: 11.9Mpps
- MAC Address Table: 4K
- Packet Buffer Memory: 1.5Mbit
- Jumbo Frame: 16KB
- Transmission Method: Store-and-Forward
Power
- Max. Power Consumption: 3.924W (220V 50Hz)
- Max. Heat Dissipation: 13.34 BTU/h
- External Power Supply: 5V DC 0.6A
Advanced Functions
- Green Ethernet Technology
- 802.3X Flow Control
- 802.1p / DSCP QoS
- IGMP Snooping
- Loop Prevention
Cooling
Physical

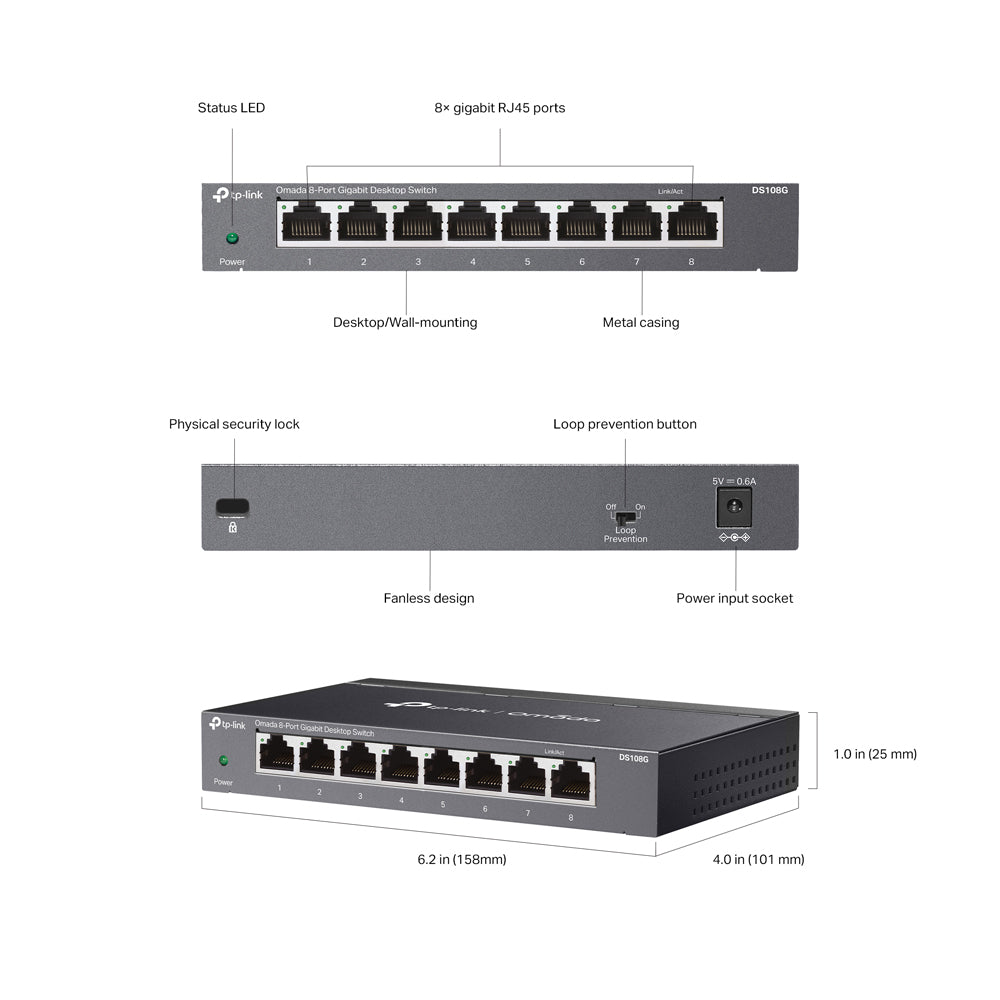

- Dimensions (W × D × H): 158 × 100.7 × 25.4mm
Certification
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
