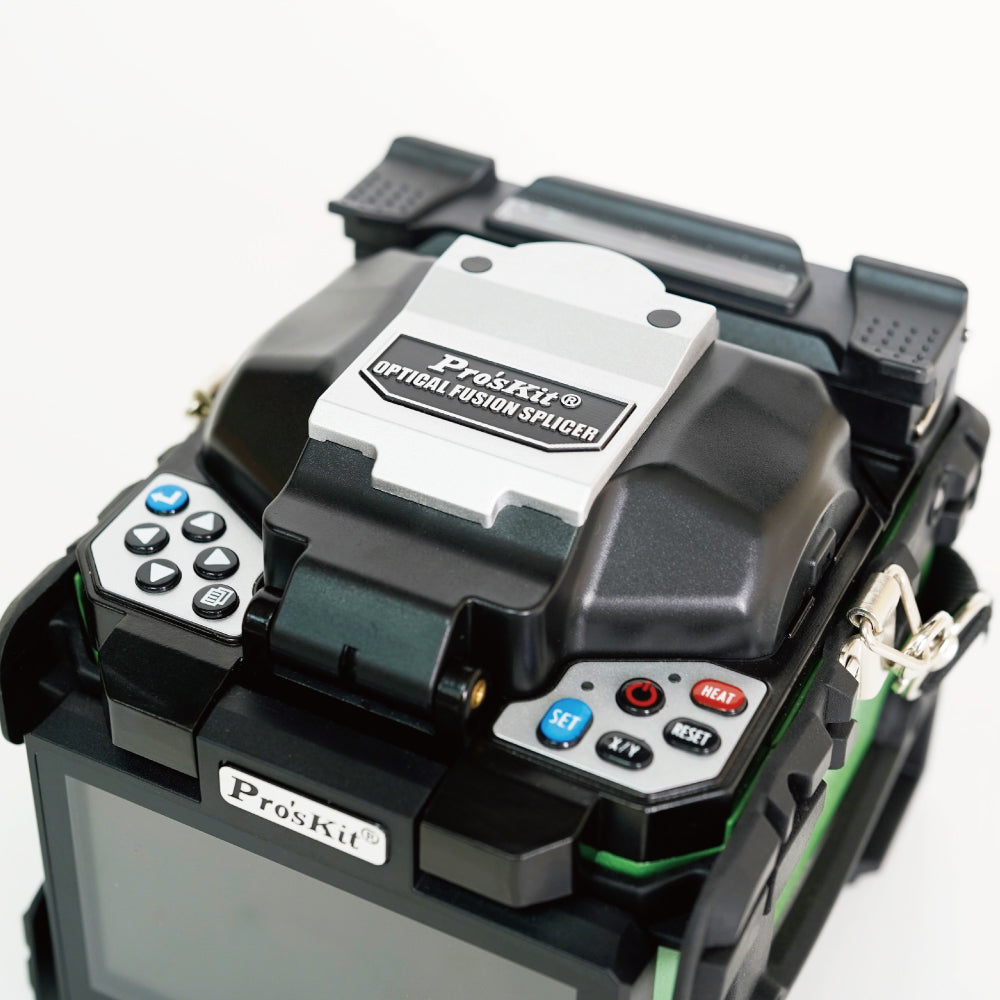

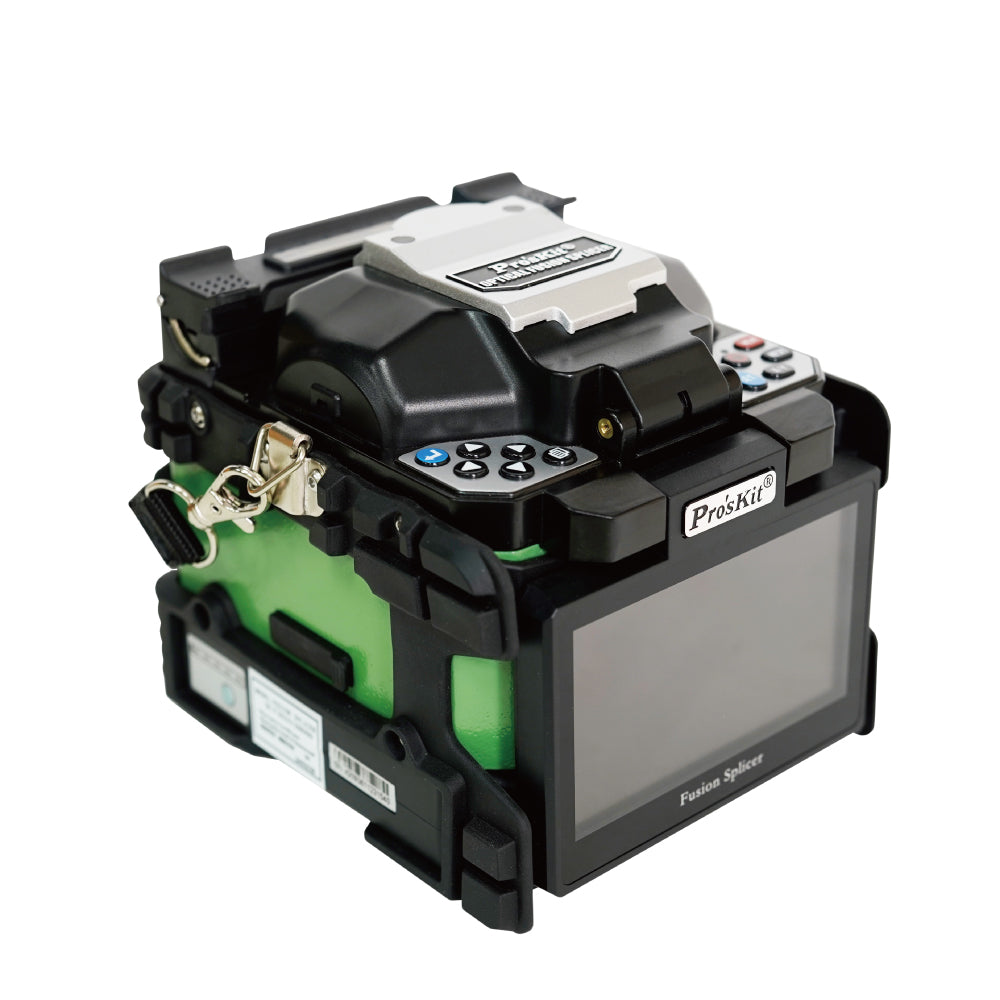

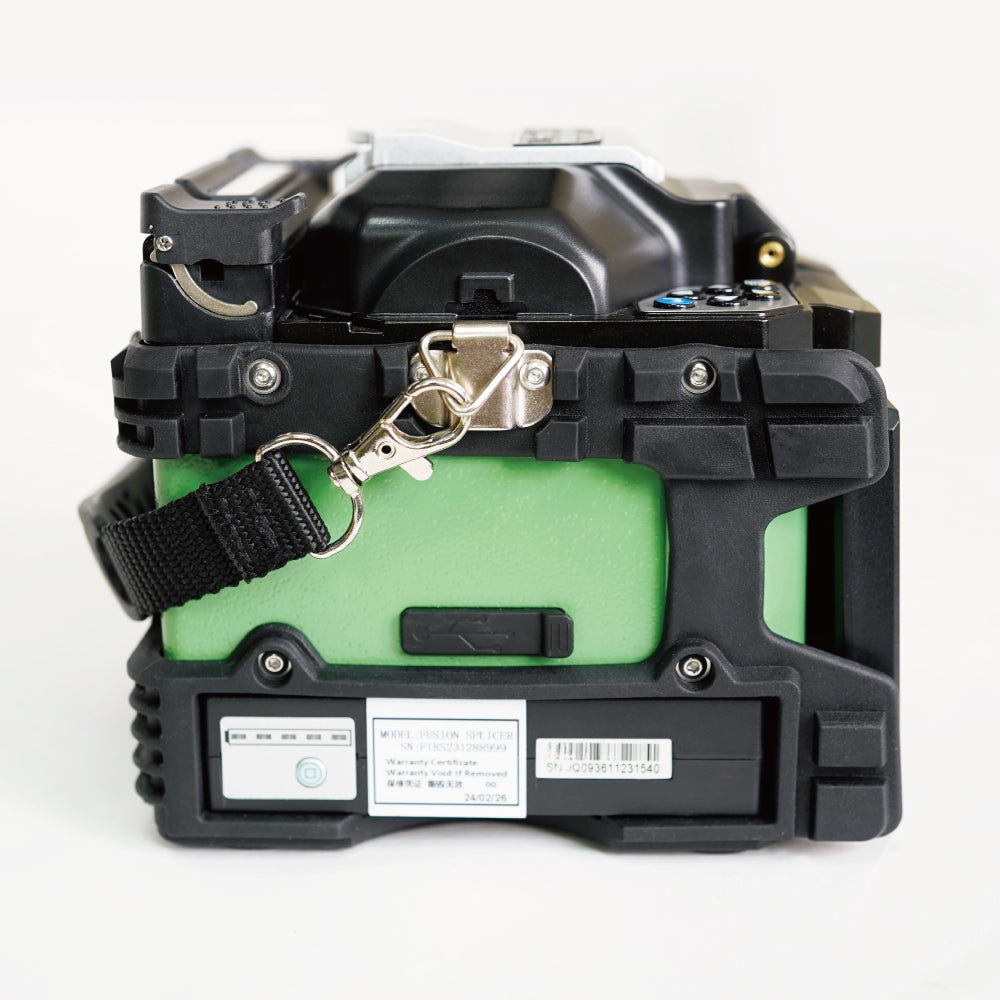

ProsKit TE-6801F-W Fibre Optic Fusion Splicing Machine Kit
Precision Splicing. Reliable Fibre Performance.
The ProsKit TE-6801F-W Optical Fusion Splicer delivers fast, accurate fibre splicing for professional network installations. Designed for FTTH, telecom and data centre environments, it ensures low-loss, high-strength splices for consistent signal performance. With intelligent alignment, a clear display and a rugged, portable design, it enables efficient field operation and dependable results in demanding fibre deployment scenarios.
Features

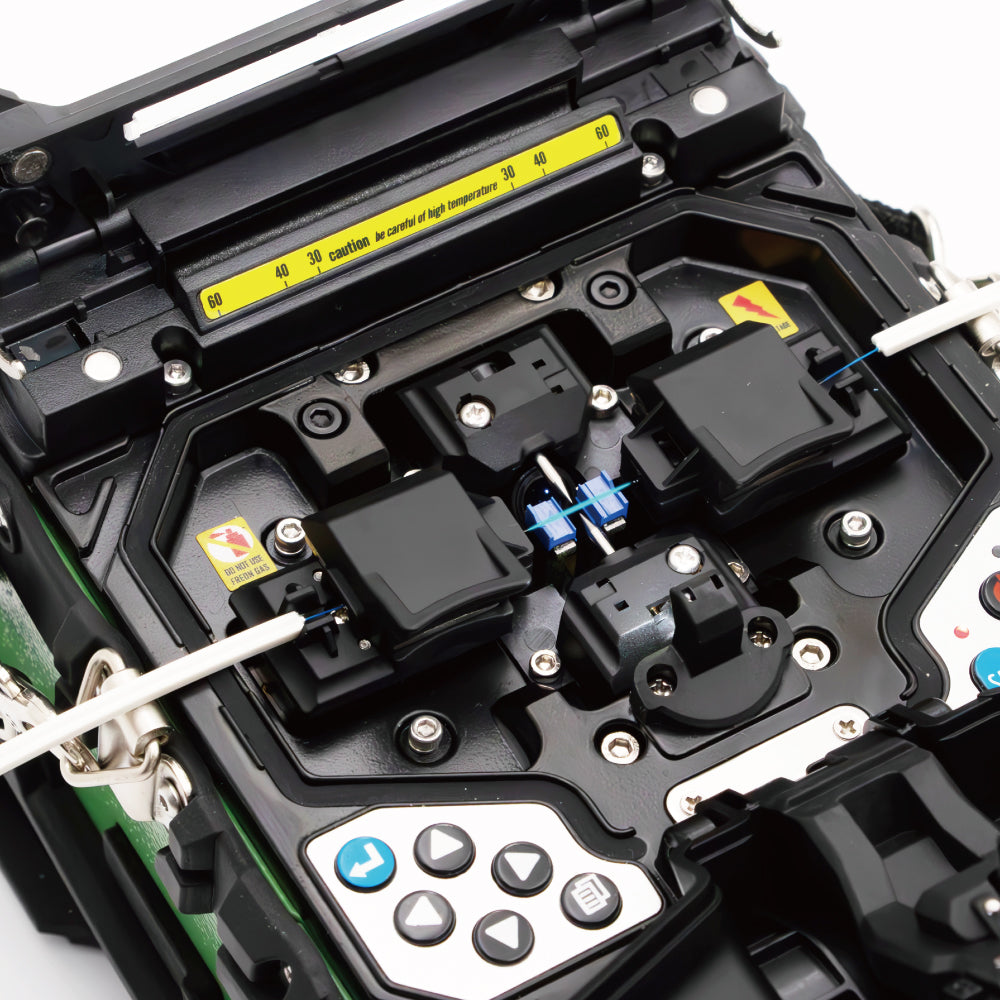

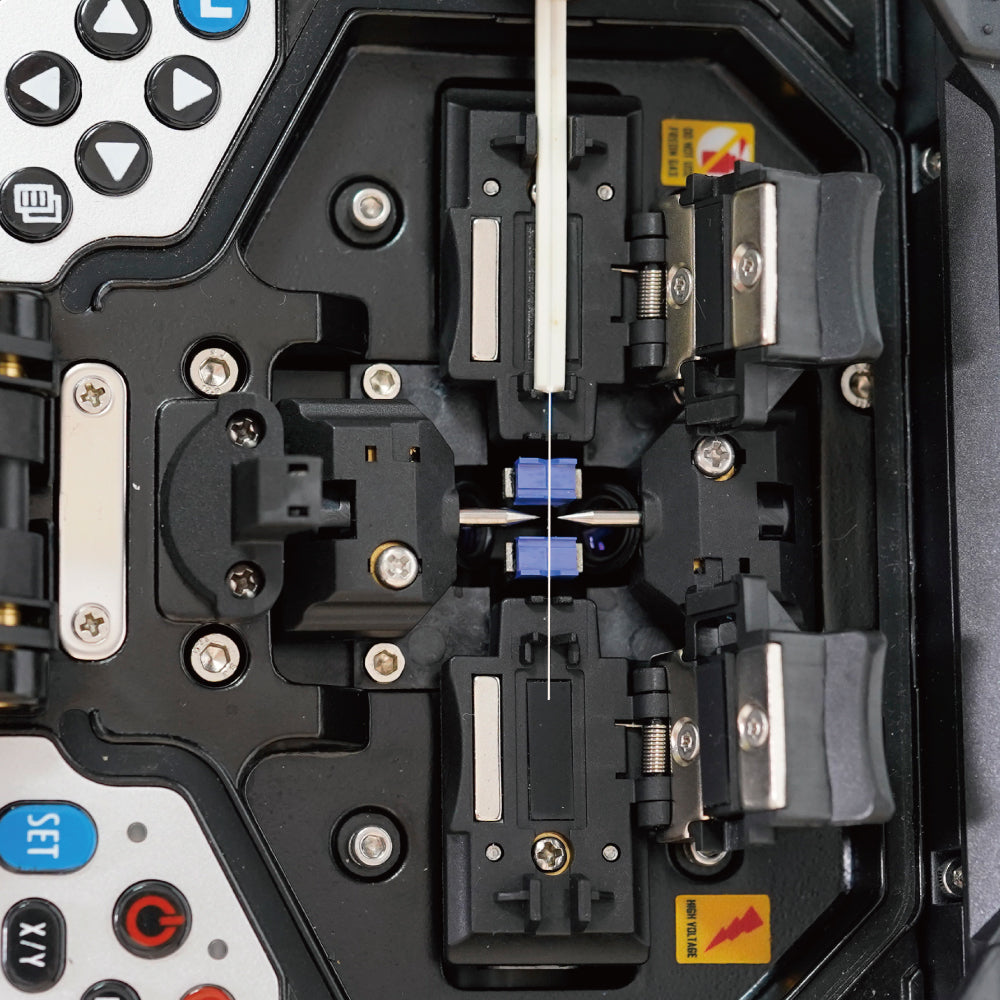

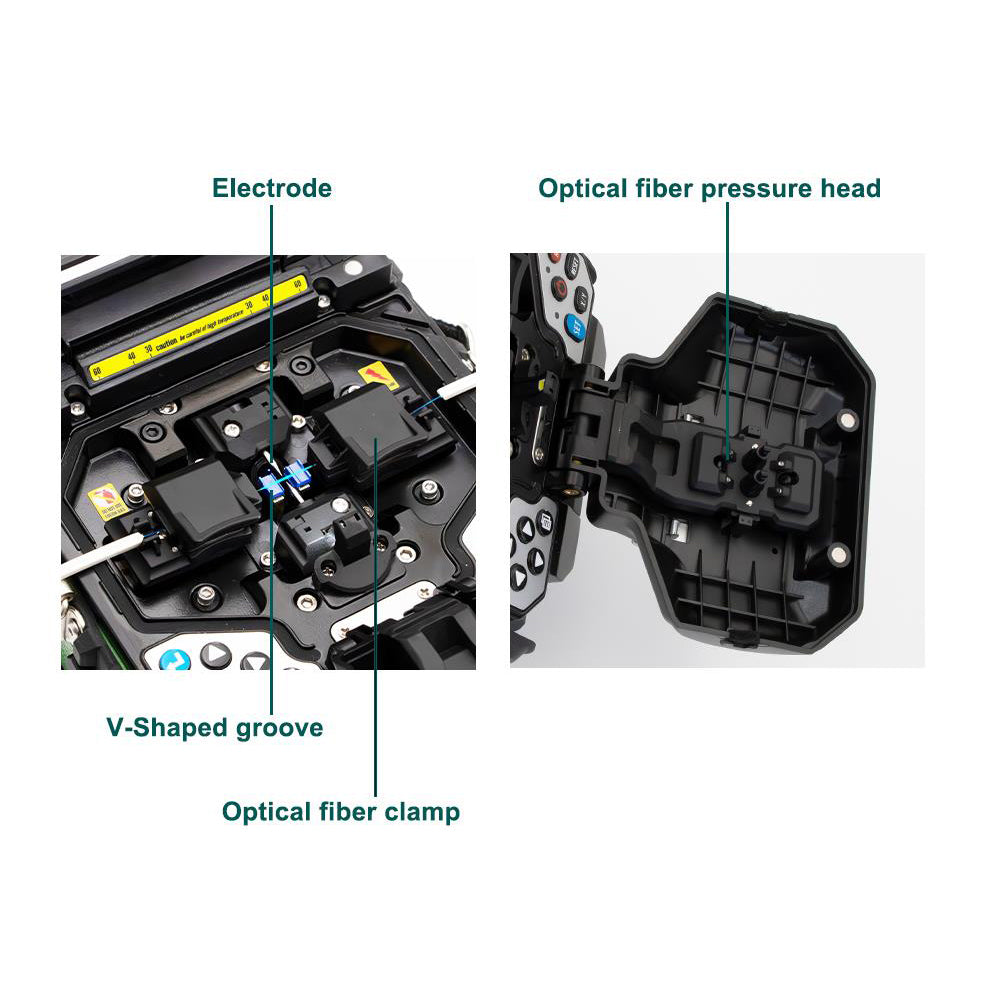

- 6-Motor Core Alignment - Precise core-to-core splicing for low-loss performance
- Fast Splicing and Heating - 9s splice time and 30s heat cycle for efficient workflows

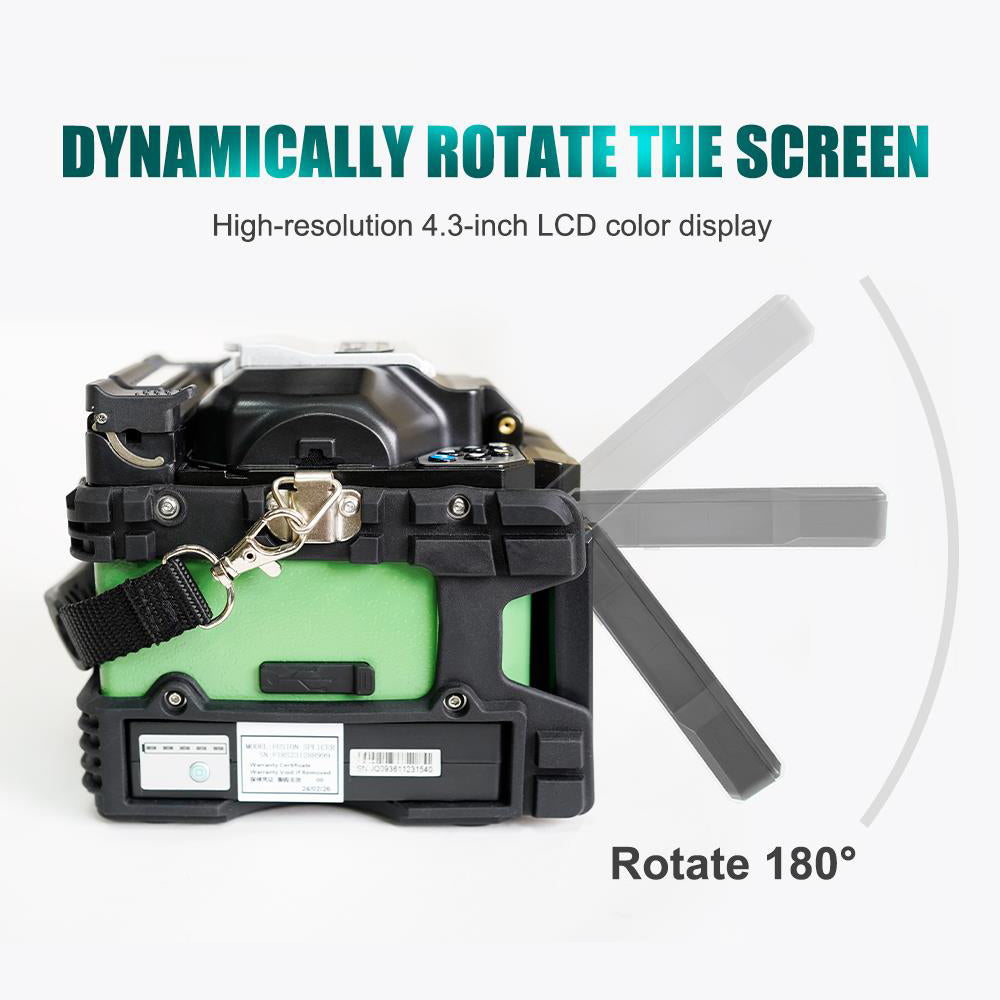

- 4.3" High-Resolution LCD - Adjustable display for clear viewing in any position
- 520× Magnification - Accurate X/Y axis alignment for reliable results
- High-Capacity Battery - up to 220× splice and heat cycles per charge

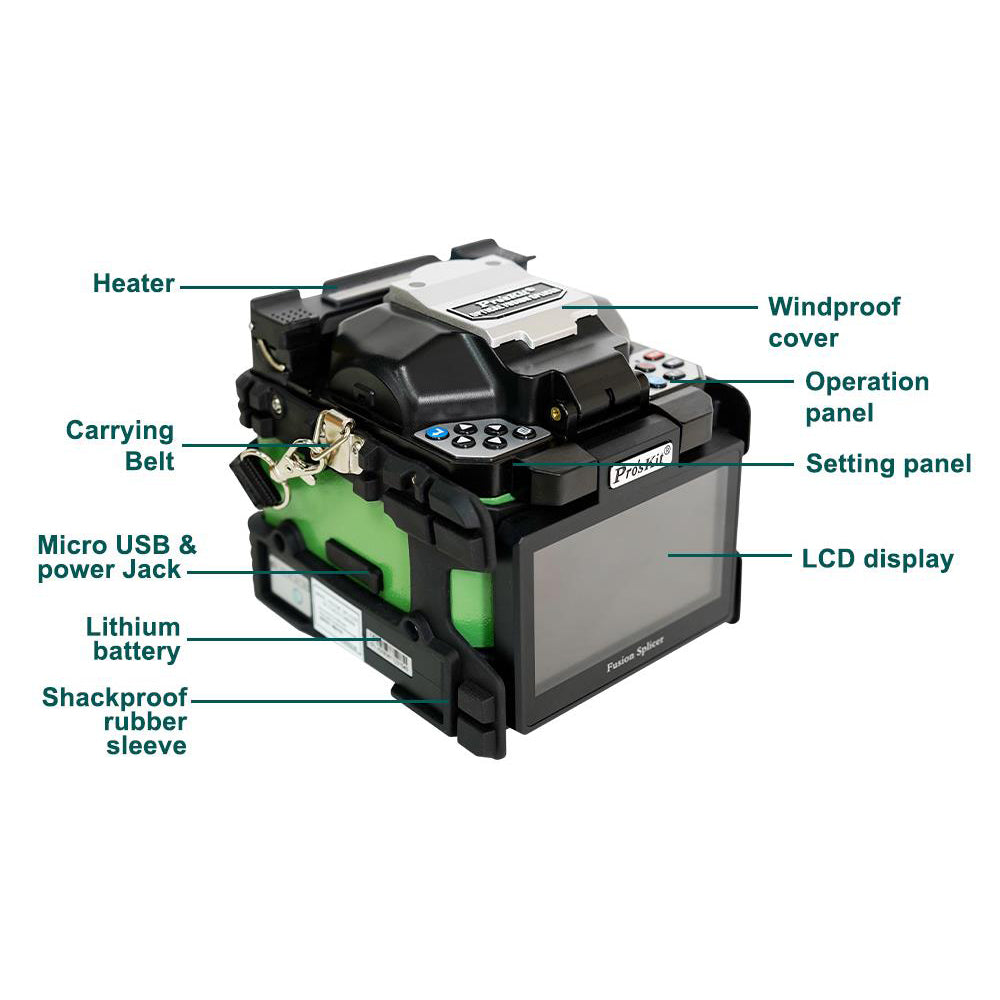

- Rugged Field Design - Wind and dust-resistant for dependable outdoor use
Specifications
- Applicable Fibre: SM, MM, NZDS, EDF
- Average Splice Loss: 0.015dB (SM), 0.01dB (MM), 0.04dB (NZDS), 0.04dB (EDF)
- Splice Time: 9s (SM Fibre)
- Cleave Length: 10~16mm
- Fibre Support: Cladding 80~150µm, Coating 100~1000µm
- Return Loss: ≥60dB
- Magnification: 520× (X or Y), 260× (X and Y)
- Working Motor: 6-Motors
- Fibre Alignment: Core-to-Core
- Fibre Recognition: G651 / G652 (654) / G655
- Tension Test: 2.0N (200gf)
- Splice Programs: 50 Groups
- Electrode Life: 5,000 Times
- Protection Sleeve Length: 20~60mm
- Storage (Results): 6,000 Groups
- Storage (Images): 100 Groups
- Display: 4.3" High-Resolution Colour LCD
- Interface: Micro USB
- Working Light: 1× LED
- Power Indication: 5× LED
- Operating Conditions: -10~50°C, 0~95% RH, up to 5,000m
- Power Supply: Lithium Battery 10.95V 5.2A
- Adapter: Input AC 100~240V, Output DC15V 5A

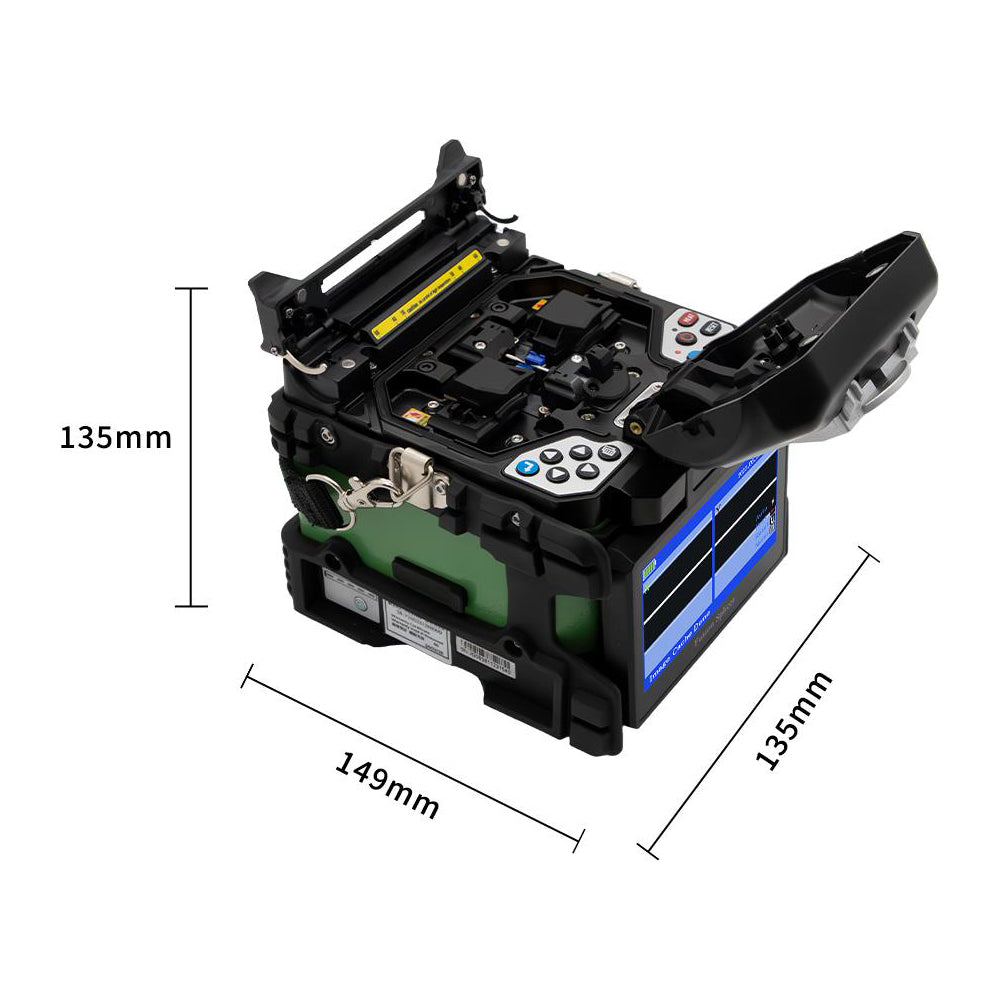

- Dimensions (W × D × H): 149 × 135 × 135mm
- Weight: 1.75kg (With Battery), 1.4kg (Without Battery)
