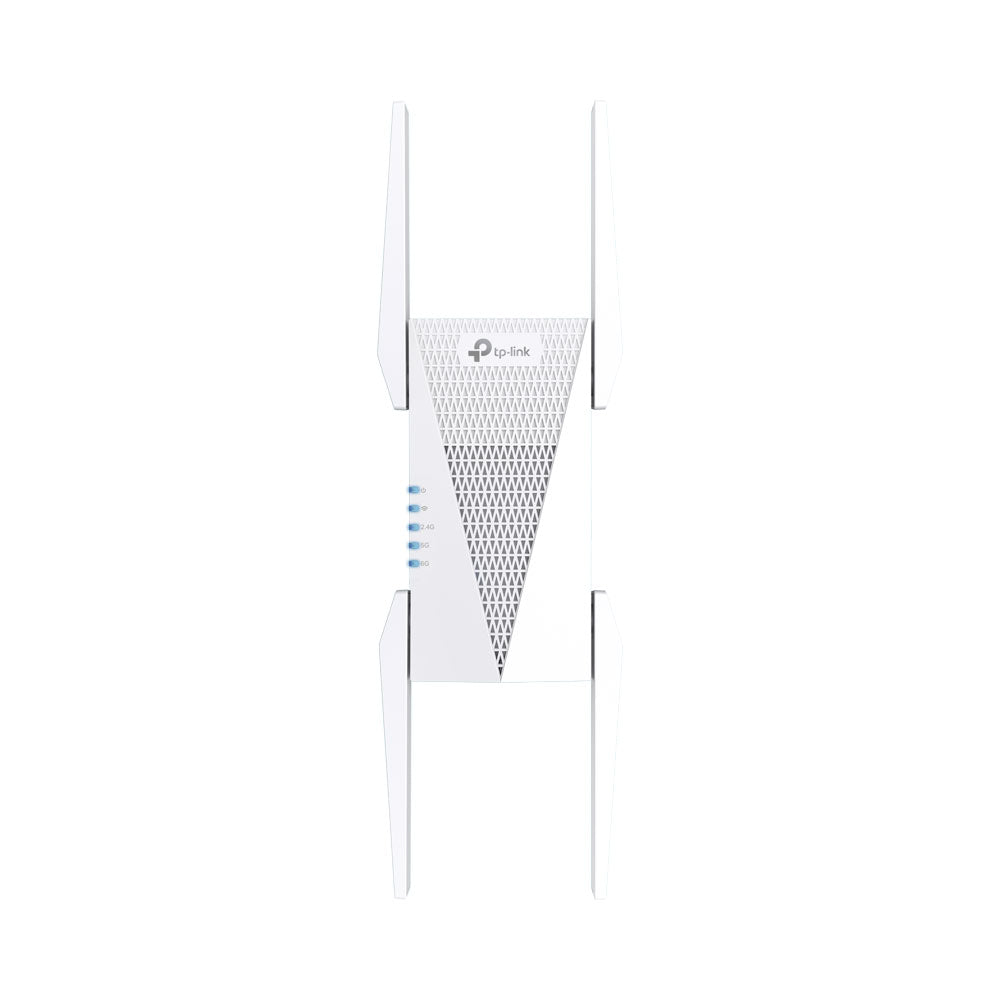

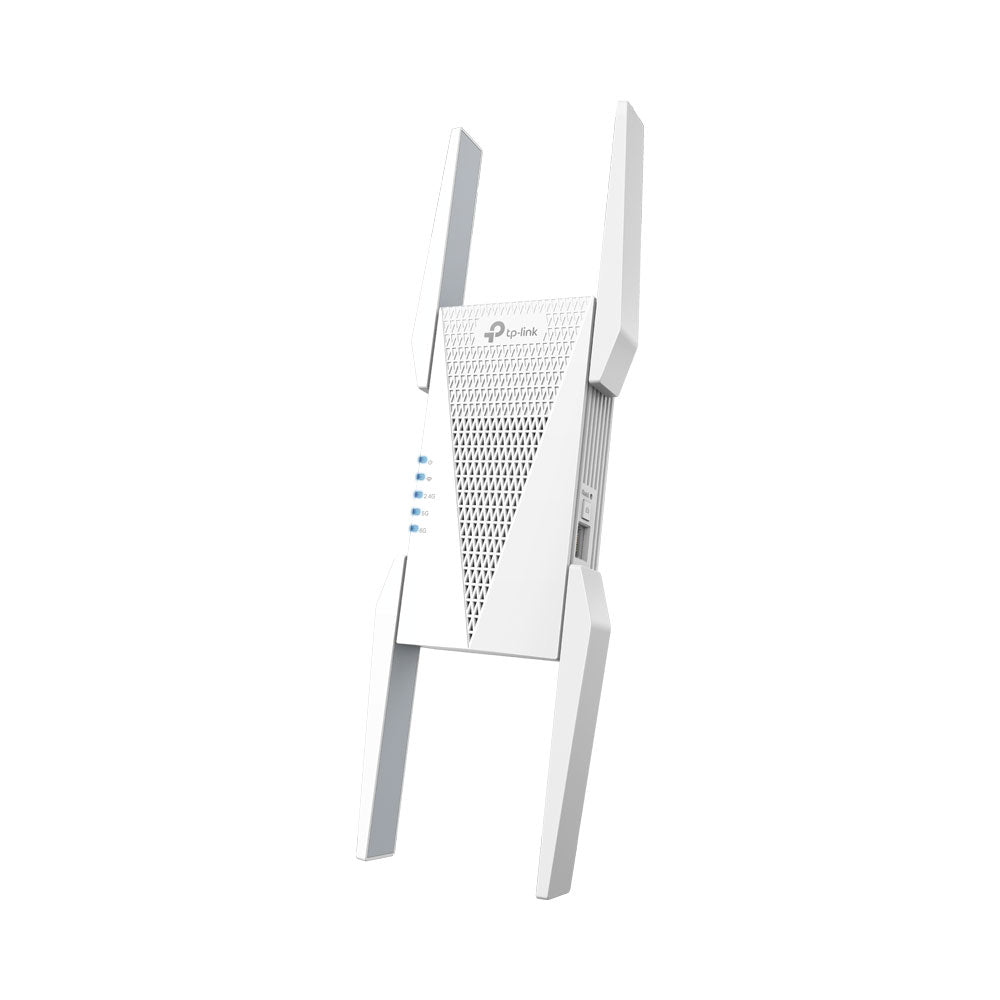

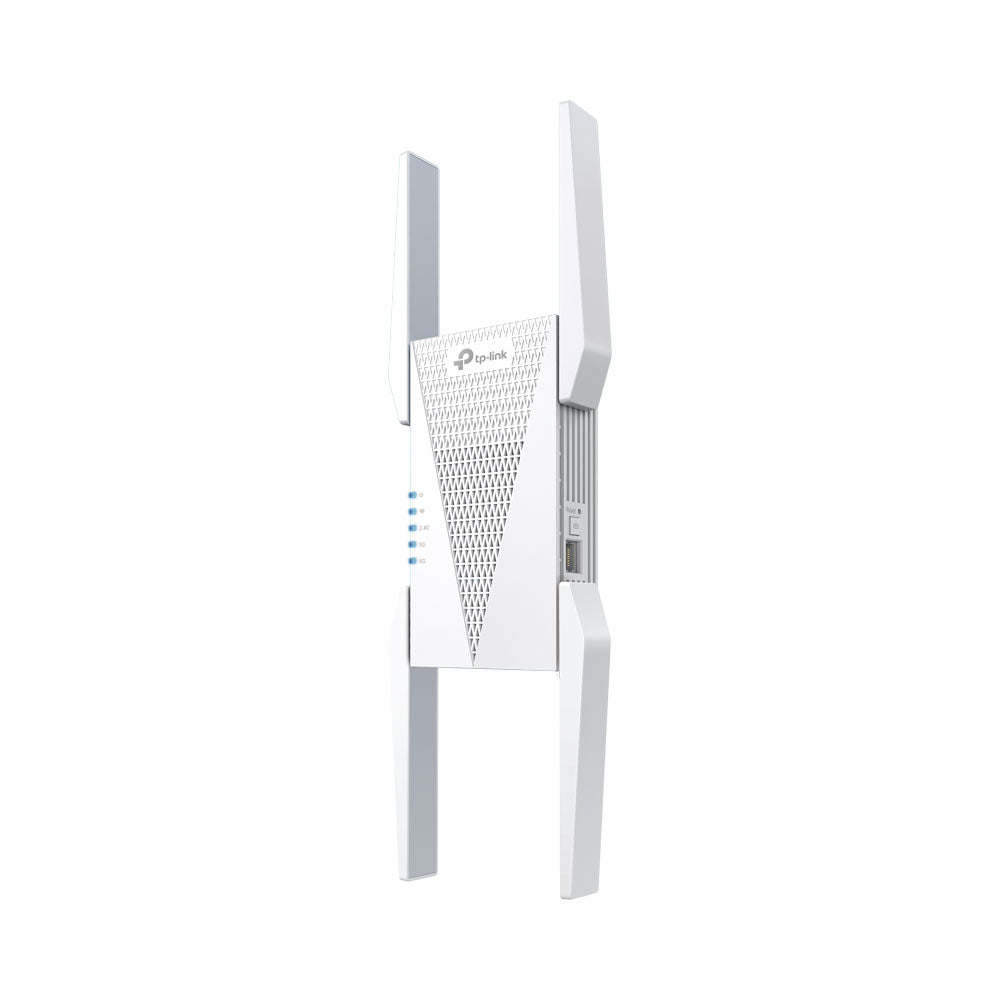

TP-Link RE815XE AXE5400 Tri-Band Wi-Fi 6E Mesh Range Extender
Cutting-Edge Technology. Broader, Faster, Stronger

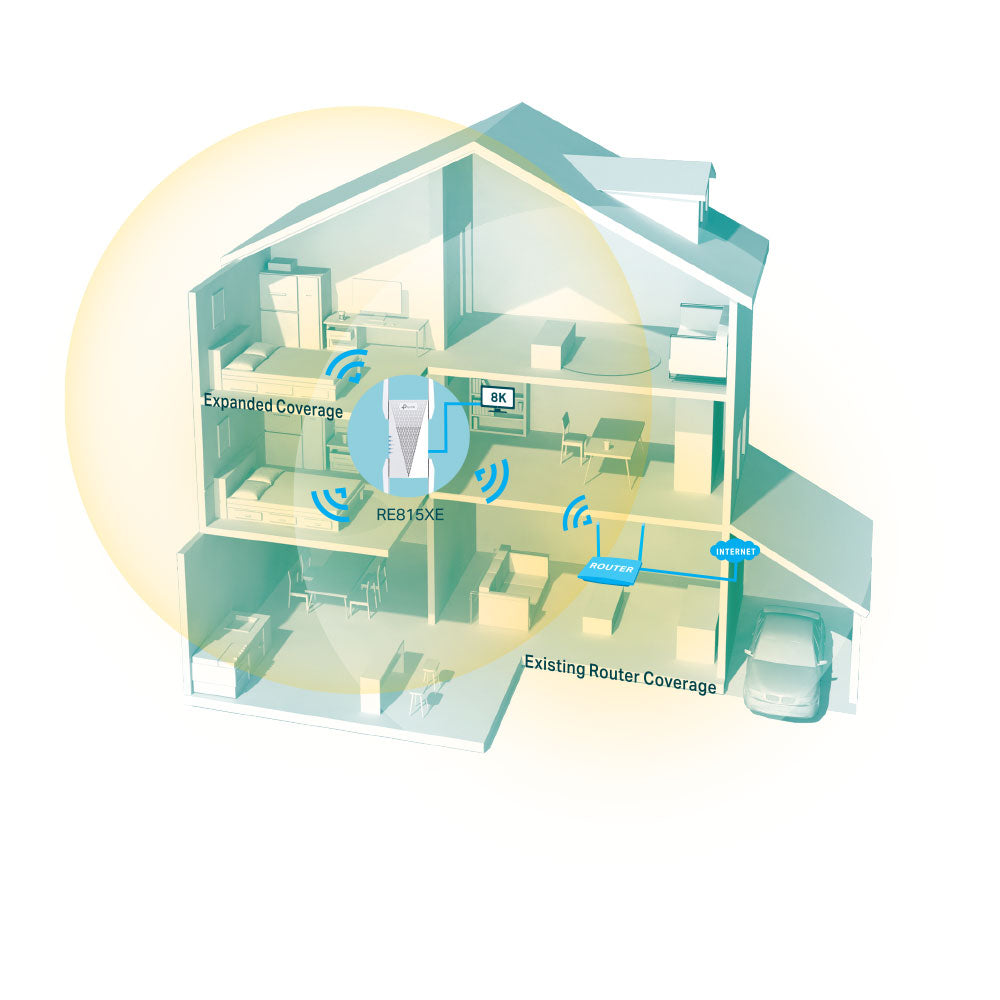

The TP-Link RE815XE AXE5400 Tri-Band Wi-Fi 6E Mesh Range Extender eliminates dead zones and expands your network with ultra-fast tri-band speeds. With the new 6.0GHz band, OneMesh support and a Gigabit Ethernet port, it delivers faster, more stable connections for streaming, gaming and smart home devices.
Features
- Creates a Mesh Network - By connecting to a TP-Link OneMesh router for seamless whole-home coverage
- Gigabit Ethernet Port - Provides faster-wired connections to smart TVs, computers and gaming consoles
- Intelligent Signal Light - Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength • in the current placement
- AP Mode - Creates a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
- TP-Link Tether App - Easily access and manage your network using any iOS or Android mobile device
- Ultimate Compatibility - Extends the range of any Wi-Fi router or wireless access point
Specifications
Working Modes
- Range Extender
- Access Point
Ports
Button
Input Power
Power Consumption
Dimensions (W × D × H)
Antenna
Wireless Standards
- IEEE 802.11ax (6.0GHz)
- IEEE 802.11a/n/ac/ax (5.0GHz)
- IEEE 802.11b/g/n/ax (2.4GHz)
Frequency
Signal Rate
- up to 574Mbps (2.4GHz)
- up to 2,402Mbps (5.0GHz)
- up to 2,402Mbps (6.0GHz)
Reception Sensitivity
6.0GHz
- 11ax HE20 MCS0: -92dBm
- 11ax HE20 MCS11: -61dBm
- 11ax HE40 MCS0: -89dBm
- 11ax HE40 MCS11: -58dBm
- 11ax HE80 MCS0: -86dBm
- 11ax HE80 MCS11: -55dBm
- 11ax HE160 MCS0: -83dBm
- 11ax HE160 MCS11: -52dBm
5.0GHz
- 11ax HE20 MCS0: -93dBm
- 11ax HE20 MCS11: -62dBm
- 11ax HE40 MCS0: -90dBm
- 11ax HE40 MCS11: -59dBm
- 11ax HE80 MCS0: -87dBm
- 11ax HE80 MCS11: -56dBm
- 11ax HE160 MCS0: -84dBm
- 11ax HE160 MCS11: -53dBm
2.4GHz
- 11ax HE20 MCS0: -95dBm
- 11ax HE20 MCS11: -64dBm
- 11ax HE40 MCS0: -92dBm
- 11ax HE40 MCS11: -62dBm
Wireless Functions
- LED Control
- Access Control
- Power Schedule
- Wi-Fi Coverage
Wireless Security
- 64/128-bit WEP
- WPA/WPA-PSK/WPA2-PSK
- WPA3
Transmission Power
- FCC: <30dBm (2.4GHz)
- FCC: <30dBm (5.0GHz)
- FCC: <30dBm (6.0GHz)
Mesh Technology
Certifications
Package Contents
- Wi-Fi Range Extender RE815XE
- Quick Installation Guide
System Requirements
- Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1 / 10
- macOS
- NetWare
- UNIX
- Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% Non-Condensing
- Storage Humidity: 5~90% Non-Condensing
