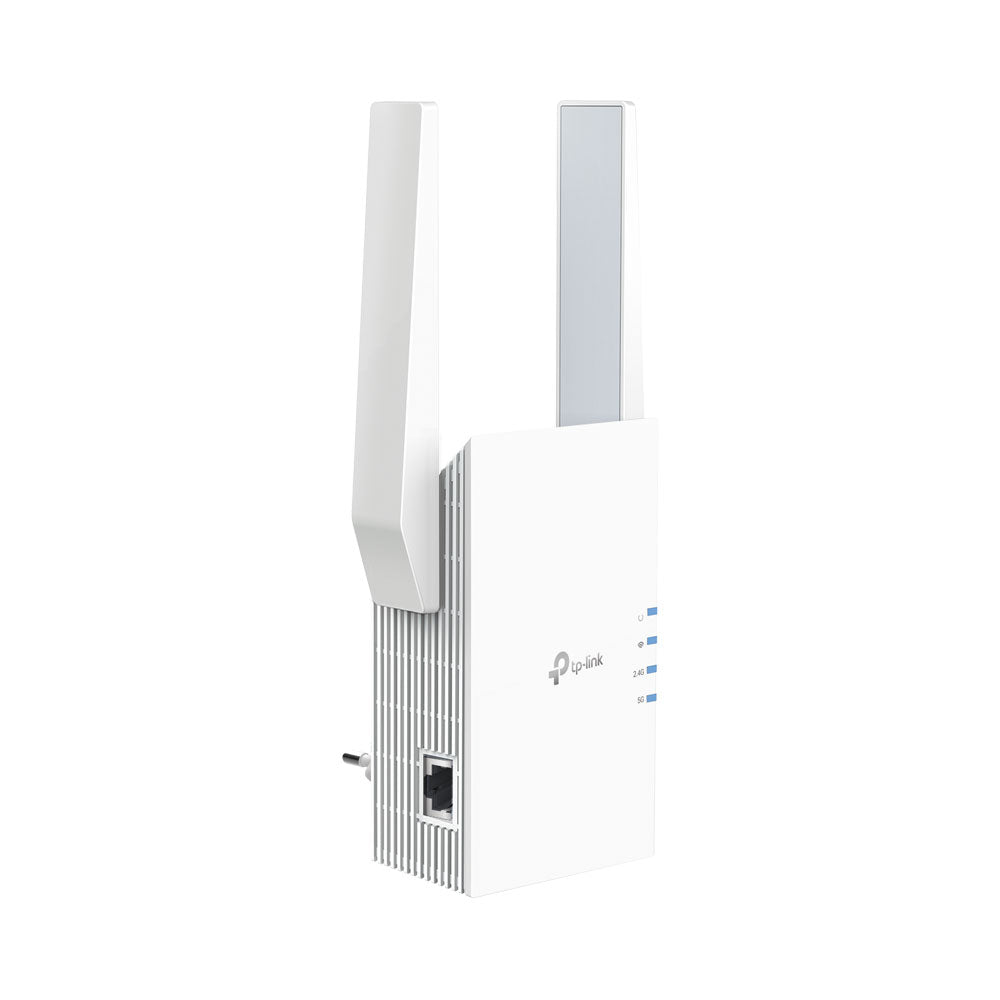

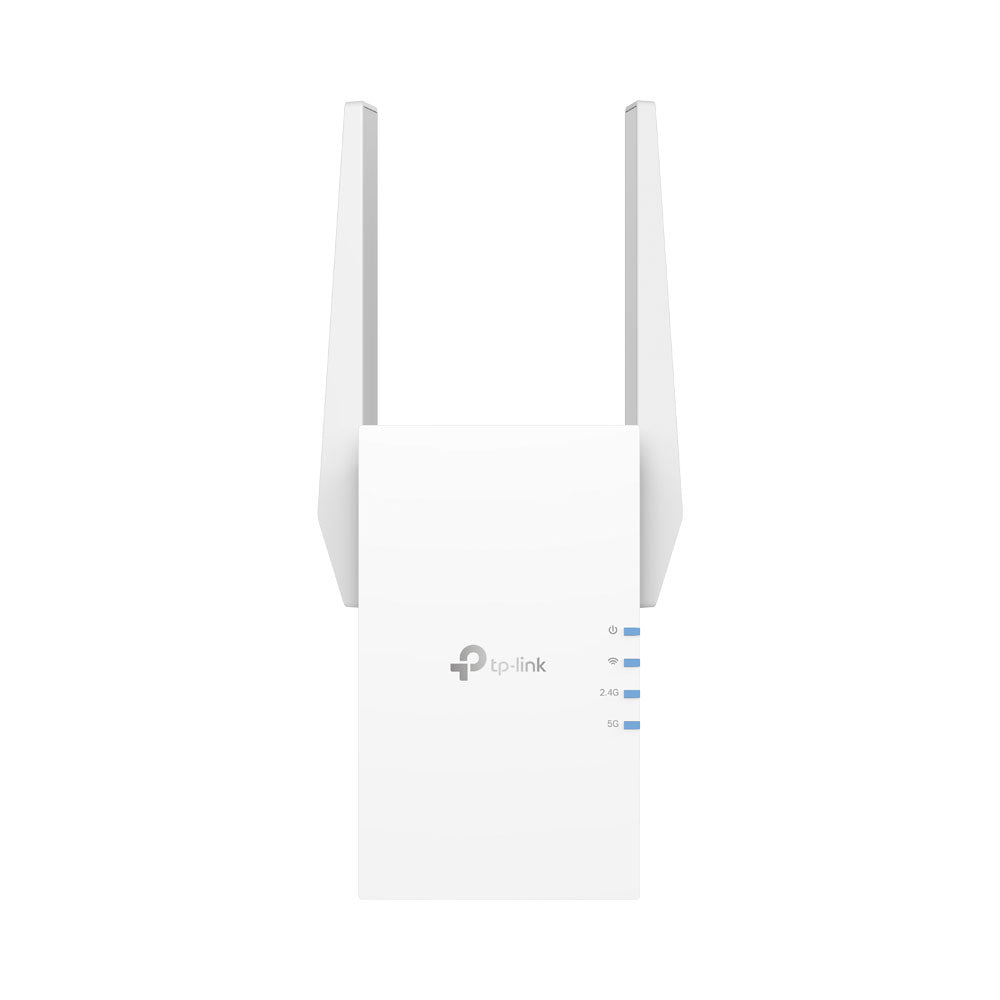

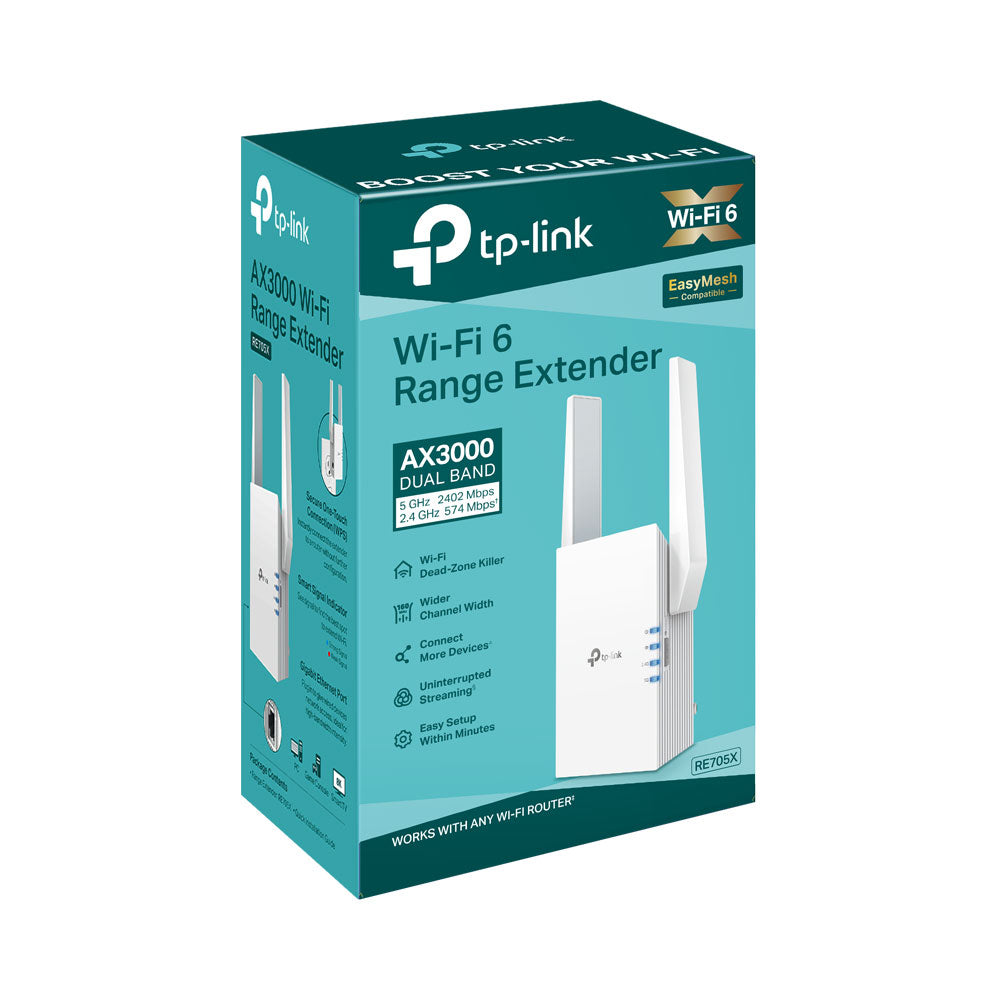

TP-Link RE705X AX3000 Mesh Wi-Fi 6 Extender
The RE705X is a mesh?capable Wi-Fi extender / access point from TP?Link that supports Wi-Fi 6 (802.11ax). It is designed to strengthen wireless coverage, eliminate dead spots, and improve performance in larger homes or areas where your router痴 signal is weak.
Features
- Dual-Band Wi-Fi 6 - Separates 5.0GHz (2402Mbps) and 2.4GHz (574Mbps) Wi-Fi bands for faster speeds and greater capacity with the latest technology
- Uninterrupted Streaming - Easily create a TP-Link OneMesh network for seamless whole home Wi-Fi coverage
- Access Point Mode - Create a new Wi-Fi access point through the Gigabit Ethernet port to enhance your wired network with Wi-Fi capability
- Gigabit Ethernet Port - Provides high-speed wired access, ideal for smart TVs, PCs and game consoles
- App Control - Easy Setup and management with your network using the TP-Link Tether app
Specifications
Hardware Features
- Ports: 1× Gigabit Ethernet Port
- Button: WPS Button, Reset Button
- Input Power: 100-240V~50/60Hz
- Power Consumption: 12.6W
- Dimensions (W × D × H): 97 × 46 × 158mm
- Antenna: 2× External Antennas
Wireless Features
- Working Modes: Range Extender / Access Point
- Wireless Standards: IEEE 802.11a/n/ac/ax 5.0GHz, IEEE 802.11b/g/n/ax 2.4GHz
- Frequency: 2.4GHz and 5.0GHz
- Signal Rate: 574Mbps at 2.4GHz, 2402Mbps at 5.0GHz
- Working Modes: Range Extender / Access Point
- Reception Sensitivity: 5.0GHz:
- 11a 6Mbps:-97dBm
- 11a 54Mbps:-78dBm
- 11ax HE20 MCS0: -97dBm
- 11ax HE20 MCS11: -66dBm
- 11ax HE40 MCS0: -94dBm
- 11ax HE40 MCS11: -62dBm
- 11ax HE80 MCS0: -91dBm
- 11ax HE80 MCS11: -61dBm
- 11ax HE160 MCS11: -59dBm
2.4GHz:
- 11g 6Mbps:-96dBm
- 11g 54Mbps:-78dBm
- 11ax HE20 MCS0: -95dBm
- 11ax HE20 MCS11: -66dBm
- 11ax HE40 MCS0: -93dBm
- 11ax HE40 MCS11: -62dBm
- Transmit Power: CE: 2.4GHz ≤16dBm, 5.0GHz ≤21dBm
- Wireless Functions: Enable/Disable Wireless Radio
- DFS (the latest firmware and hardware version is required)
- Access Control
- LED Control
- Power Schedule
- Wi-Fi Coverage
- Wireless Security: WEP, WPA, WPA2, WPA3
- Transmission Power: CE: 2.4GHz ≤16dBm, 5.0GHz ≤21dBm
- Mesh Technology: EasyMesh Compatible
Others
- Certification: CE, RoHS
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux,
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser
- EnvironmentOperating Temperature: 0°C~40°C
- Storage Temperature: -40°C~70°C
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
