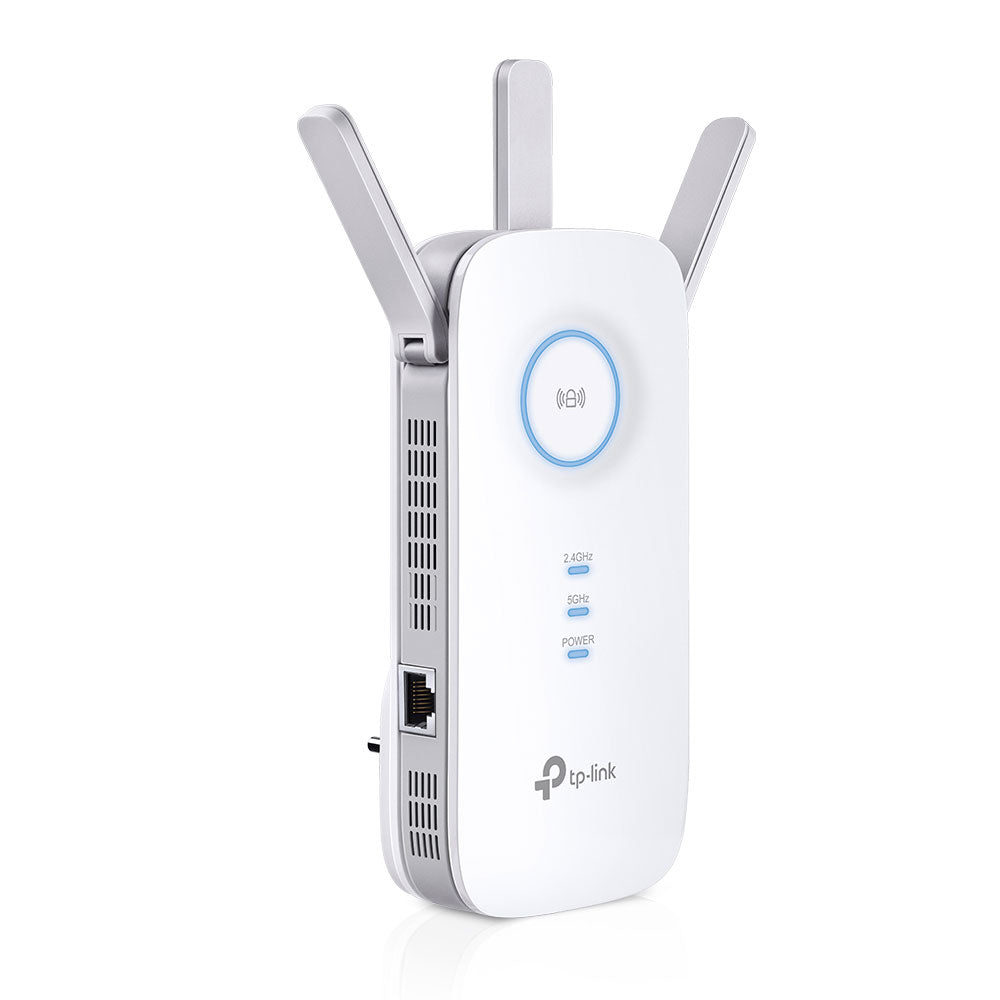

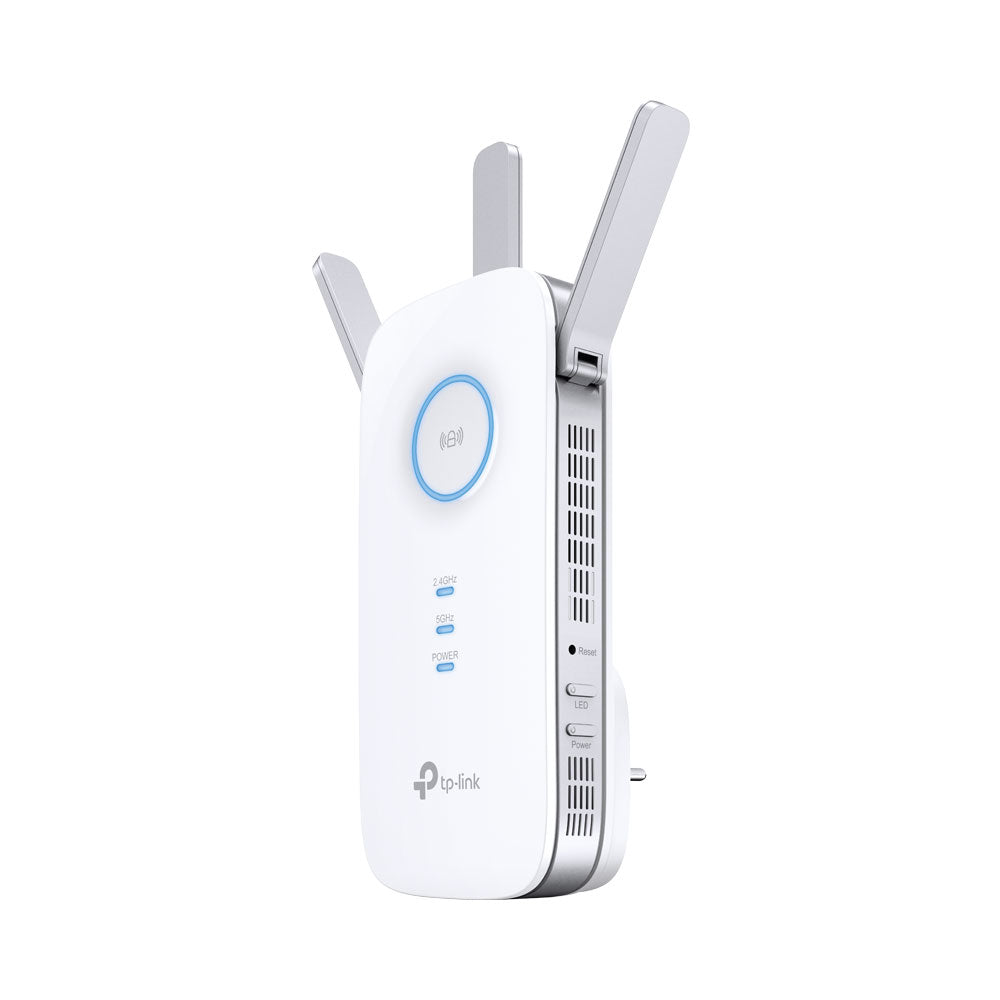

TP-Link RE550 AC1900 Dual-Band Wireless Range Extender with Gigabit Ethernet Port
Eliminate Dead Zones with Powerful AC1900 Wi-Fi.
The TP-Link RE550 AC1900 Dual-Band Range Extender boosts your existing Wi-Fi to deliver faster speeds and stronger coverage throughout your home. With dual-band connectivity up to 1,900Mbps, three adjustable external antennas and a Gigabit Ethernet port, it provides stable connections for streaming, gaming and smart home devices. Easy setup via the TP-Link Tether App makes extending your Wi-Fi quick and effortless.
Features
- Maximum Coverage - Extend Wi-Fi coverage to those hard-to-reach areas, eliminating dead zones
- AC1900 Dual-Band Wi-Fi - Simultaneous 600Mbps on 2.4GHz + 1,300Mbps on 5.0GHz
- Three Antennas - Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections
- Gigabit Ethernet Port - Act as a wireless adapter to connect a wired device to your network at Gigabit speed
- Intelligent Signal Light - Help to find the best location for optimal Wi-Fi coverage by showing the signal strength
- AP Mode - Create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
- TP-Link Tether App - Easily access and manage your network using any iOS or Android mobile device
- Ultimate Compatibility - Extend the range of any Wi-Fi router or wireless access point
Specifications
Standards And Protocols
- IEEE 802.11ac
- IEEE 802.11n
- IEEE 802.11g
- IEEE 802.11b
Interface
- 1× 10/100/1000Mbps Ethernet Port (RJ45)
Button
- WPS Button
- Reset Button
- LED Button
- Power Button
Power Consumption
- 10W (Max. Power Consumption)
Dimensions (W × D × H)
Antenna
Frequency
Signal Rate
- Up to 1,300Mbps (5.0GHz)
- Up to 600Mbps (2.4GHz)
Reception Sensitivity
5.0GHz
- 11a 6Mbps: -93dBm @10% PER
- 11a 54Mbps: -76dBm @10% PER
- 11ac HT20 MCS8: -68dBm @10% PER
- 11ac HT40 MCS9: -64dBm @10% PER
- 11ac HT80 MCS9: -61dBm @10% PER
2.4GHz
- 11g 54Mbps: -77dBm @10% PER
- 11n HT20 MCS7: -73dBm @10% PER
- 11n HT40 MCS7: -70dBm @10% PER
Wireless Modes
- Range Extender
- Access Point
Wireless Functions
- Wireless Statistics
- Concurrent Mode Boost Both 2.4GHz/5.0GHz Wi-Fi Band
- Access Control
- LED Control
- Domain Login Function
- Wi-Fi Coverage
Wireless Security
- 64/128-bit WEP
- WPA-PSK / WPA2-PSK
Transmission Power
- <20dBm (2.4GHz)
- <23dBm (5.0GHz)
Certifications
System Requirements
- Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 10
- macOS
- NetWare
- UNIX
- Linux
Environment
- Operating Temperature: 0~30°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% Non-Condensing
- Storage Humidity: 5~90% Non-Condensing
