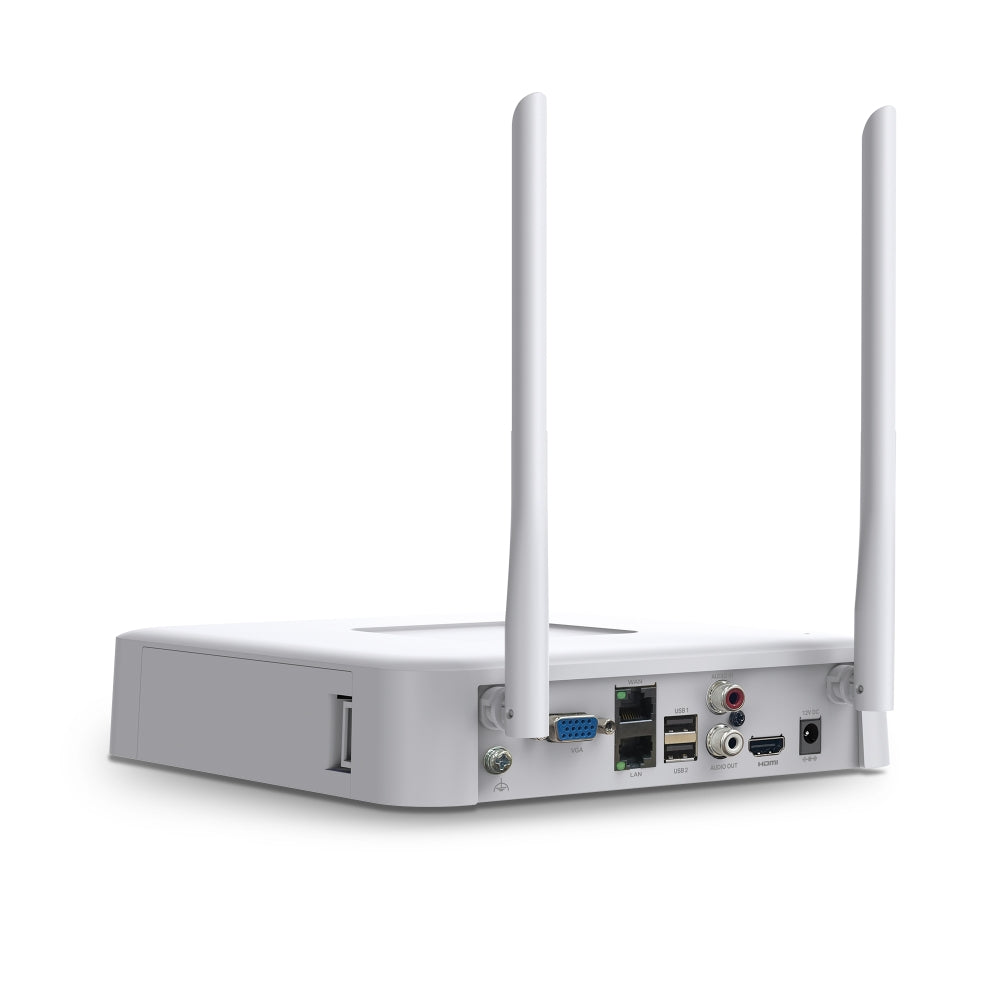

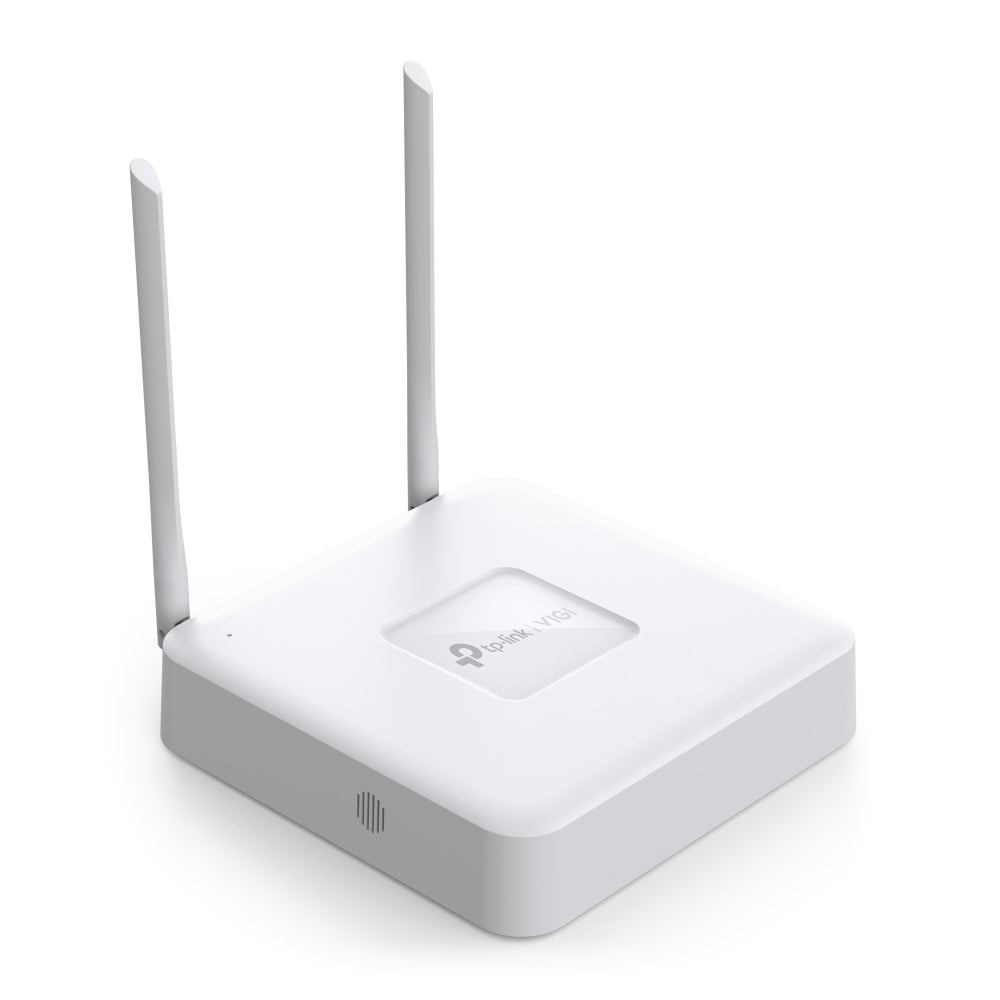

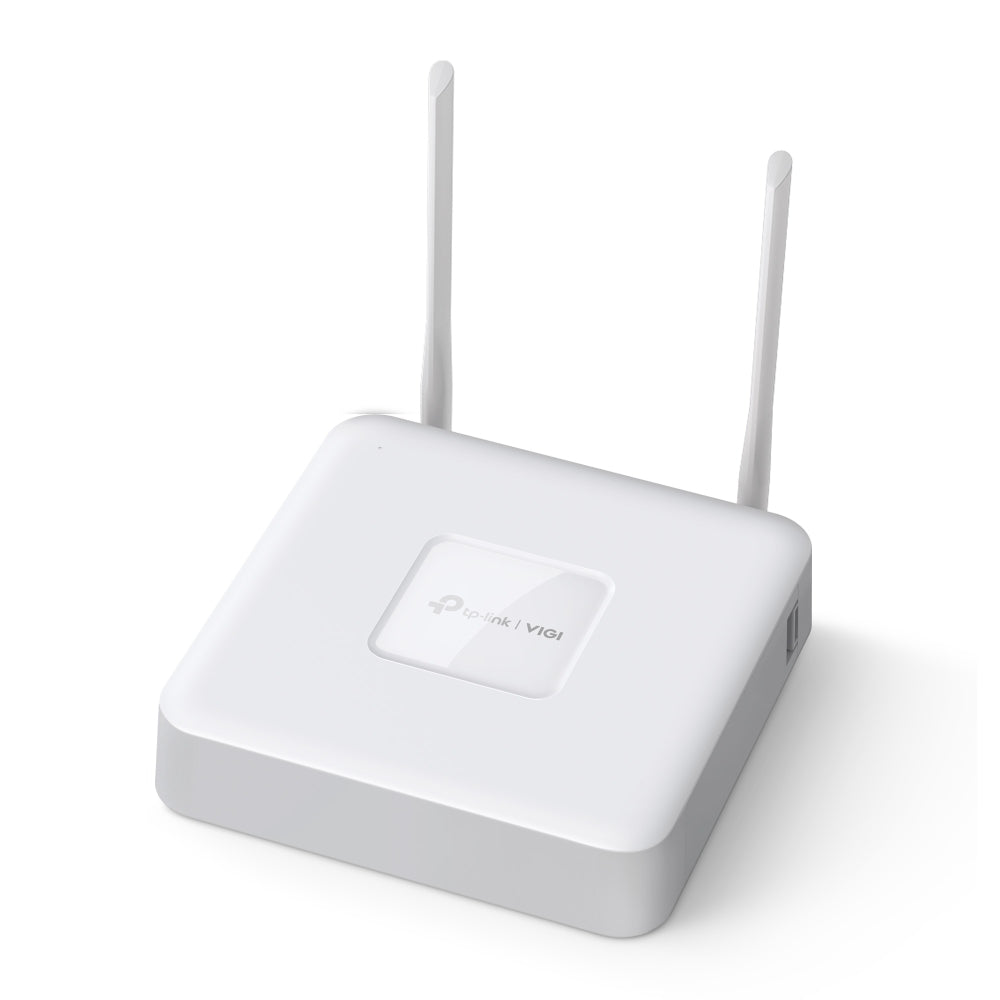

TP-Link VIGI NVR1108H-W 8-Channel Wi-Fi Network Video Recorder
Wireless Surveillance. Simplified Control.
The VIGI NVR1108H-W delivers flexible, cable-free video recording with integrated Wi-Fi connectivity and support for up to 8ﾗ IP cameras. Designed for fast deployment, it enables wireless pairing, simple HDD installation and seamless system expansion without complex wiring. With H.265+ compression and 4K HDMI output, it ensures efficient storage and sharp, high-resolution monitoring. Ideal for small to medium security setups, it combines intelligent detection, remote access and reliable performance for always-on surveillance.
Features
- 8-Channel Wi-Fi NVR - Connect and manage up to 8× IP cameras wirelessly
- Wireless Pairing - Quick and easy setup without complex cabling
- H.265+ Video Compression - Reduces bandwidth and storage requirements while maintaining quality
- 4K HDMI Output - Ultra-clear video output for detailed monitoring
- 80Mbps Incoming Bandwidth - Stable performance for multi-camera systems
- ONVIF Compatibility - Supports third-party cameras for flexible integration
- Smart Playback and Recording - Manual, scheduled and motion-based recording with advanced playback options
- Intelligent Detection - Motion, intrusion, line-crossing and anomaly alerts
- Remote Management - Access via VIGI app, web UI and VMS platforms
- Easy HDD Installation - Quick setup without removing the full enclosure
Specifications
- IP Video Input: 8-Channel
- Incoming Bandwidth: 80Mbps
- Outgoing Bandwidth: 60Mbps
- HDMI Output: up to 3840 × 2160 (4K)
- VGA Output: up to 1920 × 1080
- Video Output Mode: HDMI/VGA Simultaneous
- Multi-View Display: 1 / 4 / 6 / 8 / 9
- Video Compression: H.265+ / H.265 / H.264+ / H.264
- Audio Compression: G.711A / G.711U / G.726
- Recording Resolution: up to 8MP
- Synchronous Playback: 8-Channel
- Decoding Capability:
- 25fps: 2-Ch @ 8MP, 4-Ch @ 4MP
- 30fps: 4-Ch @ 4MP, 3-Ch @ 5MP
- Recording Modes: Manual, Scheduled, Motion Detection
- Playback Modes: Instant, Regular, Tag, Event
- Backup: Regular Backup, Video Clip Backup
- Playback Functions: Play, Pause, Stop, Fast Forward, Fast Backward, Frame-by-Frame, Export, Audio On/Off
- Frequency: 2.4GHz
- Wireless Standards: IEEE 802.11b/g/n
- Wireless Speed: up to 300Mbps
- Channel: 1~13 (Auto)
- Bandwidth: Auto / 20MHz / 40MHz
- Security: WPA-PSK / WPA2-PSK
- Protocols: TCP/IP, DHCP, NTP, UPnP
- Interoperability: ONVIF, CGI
- Mobile Access: Android, iOS
- Browser Support: Chrome, Firefox, Edge

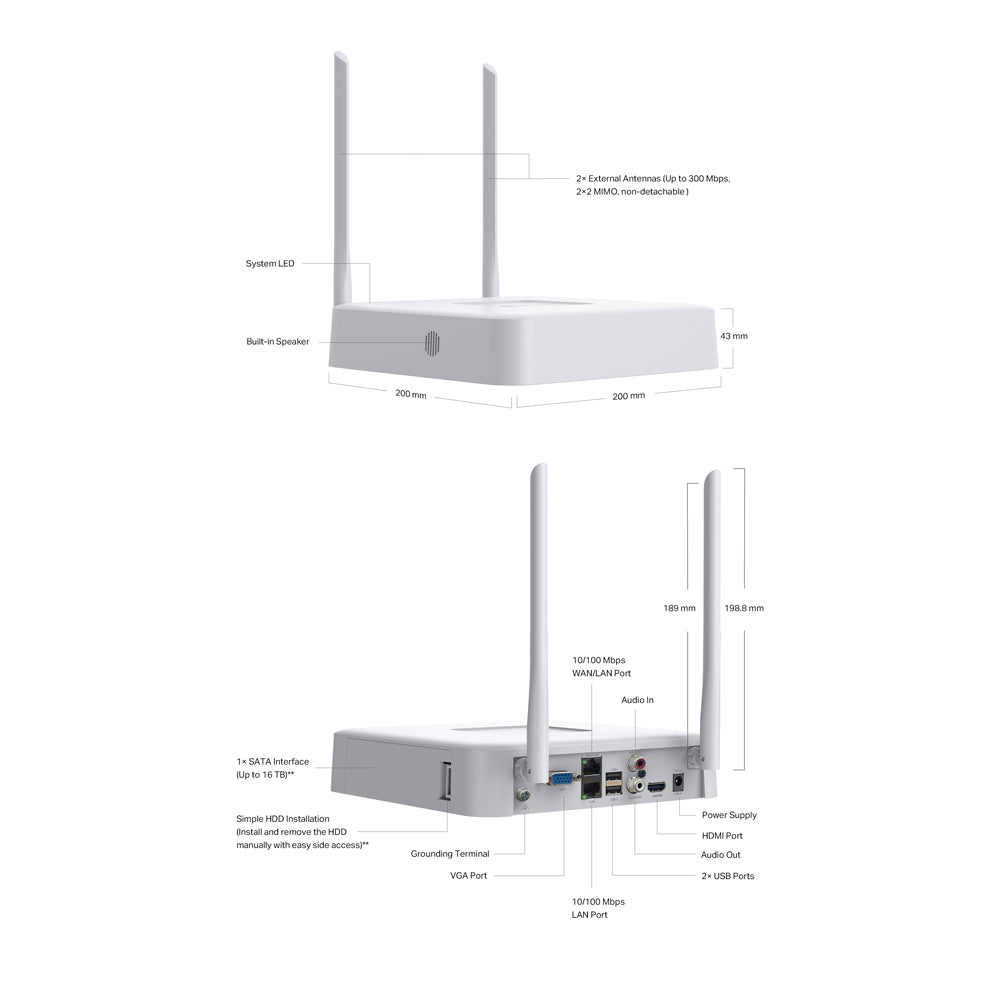

- Network Ports:
- 1× RJ45 WAN (10/100Mbps)
- 1× RJ45 LAN (10/100Mbps)
- USB: 2× USB2.0
- Audio: 1× RCA Input, 1× RCA Output
- Video Outputs: 1× HDMI, 1× VGA
- Storage Interface: 1× SATA
- Smart Events: Motion Detection, Line Crossing, Intrusion, Region Enter/Exit, Object Removal/Abandonment, Human Detection, Vehicle Detection
- Anomaly Alerts: Video Loss, Offline/Conflict, Disk Exception, Login Exception
- Alarm Linkage: Recording, Buzzer, Log, Audible Alarm
- Power Supply: DC 12V 2A
- Power Consumption:
- 5.7W (without HDD)
- 16.3W (with HDD)
- Operating Temperature: -10~55°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Dimensions: 200.3 × 200.3 × 43mm
- Weight: 0.5kg
- Antennas: 2× External Wi-Fi Antennas
