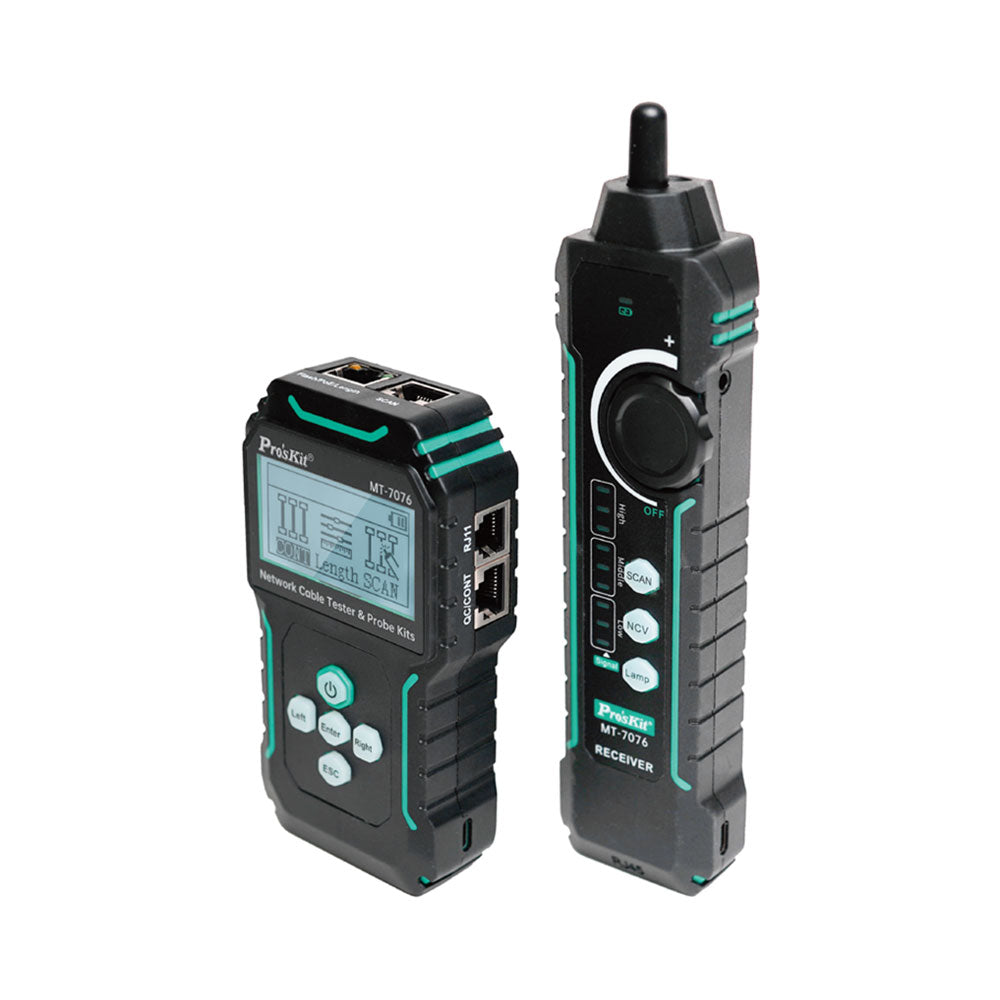

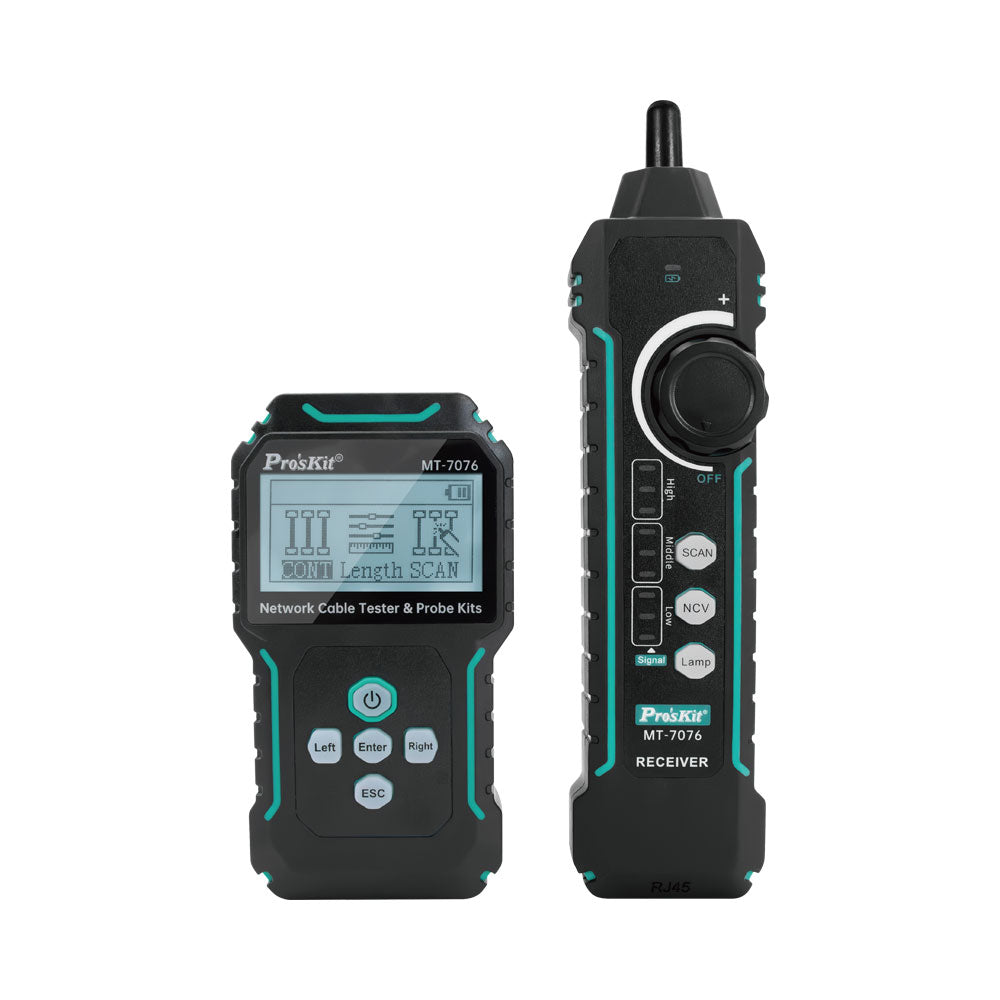

ProsKit MT-7076 PoE Network Cable Tester and Probe Kit with LCD
A professional-grade diagnostic tool designed for fast, accurate network troubleshooting. The ProsKit MT-7076 combines cable testing with PoE detection and tone tracing, allowing installers and technicians to quickly identify, test and trace network cables with confidence. Ideal for structured cabling, CCTV and PoE-enabled networks where efficiency and reliability are critical.
Features
- Analogue and Digital Dual Mode - Supports flexible cable testing across different signal types
- Rechargeable Li-ion Battery - Convenient USB Type-C charging for modern workflows
- PoE Switch and Port Flashing - Identifies active PoE ports and connected switch ports quickly
- NCV Detection - Non-contact voltage detection for added safety during testing
- Crimp Test Function - Verifies correct cable termination and crimp quality
- DC 60V Protection Design - Protects the tester against accidental over-voltage exposure
Specifications
- Display: LCD
- Signal Mode: Analogue and Digital
- Tracing Frequency: 455KHz
- Cable Tracing in Working Network: Yes
- BNC Cable Tracing: No (can be used with alligator clip)
- Scan Range: ≤600m
- Cable Map Display: R and M, 1-8 and G (LCD)
- Cable Map Max Range: 300m
- Cable Length Test Cable Type: CAT5, CAT5e, CAT6
- Cable Length Test Range: 2.5m~200m
- RJ45 Connector Testing: Yes
- PoE Power Supply Mode: End Span, Mid Span, 8-Pins
- PoE Standard Type and Voltage: IEEE 802.3af/at, non-standard voltage values
- Port Flash: 1 time per 3 seconds
- Link Test: 10/100/1000 Mbps, FDX/HDX, Auto-Negotiation and No Auto-Negotiation
- Wire Continuity Ω: No
- Telephone Line Polarity (POL +/-): No
- Flashlight: Yes
- Non-Contact Voltage Detection (NCV): Yes
- Input Protection: DC 60V
- Transmitter Battery: 3.7V 1400mAh Li-ion
- Receiver Battery: 3.7V 1400mAh Li-ion
- Charging Type: USB Type-C
- Duration of Tracing: >10 hours

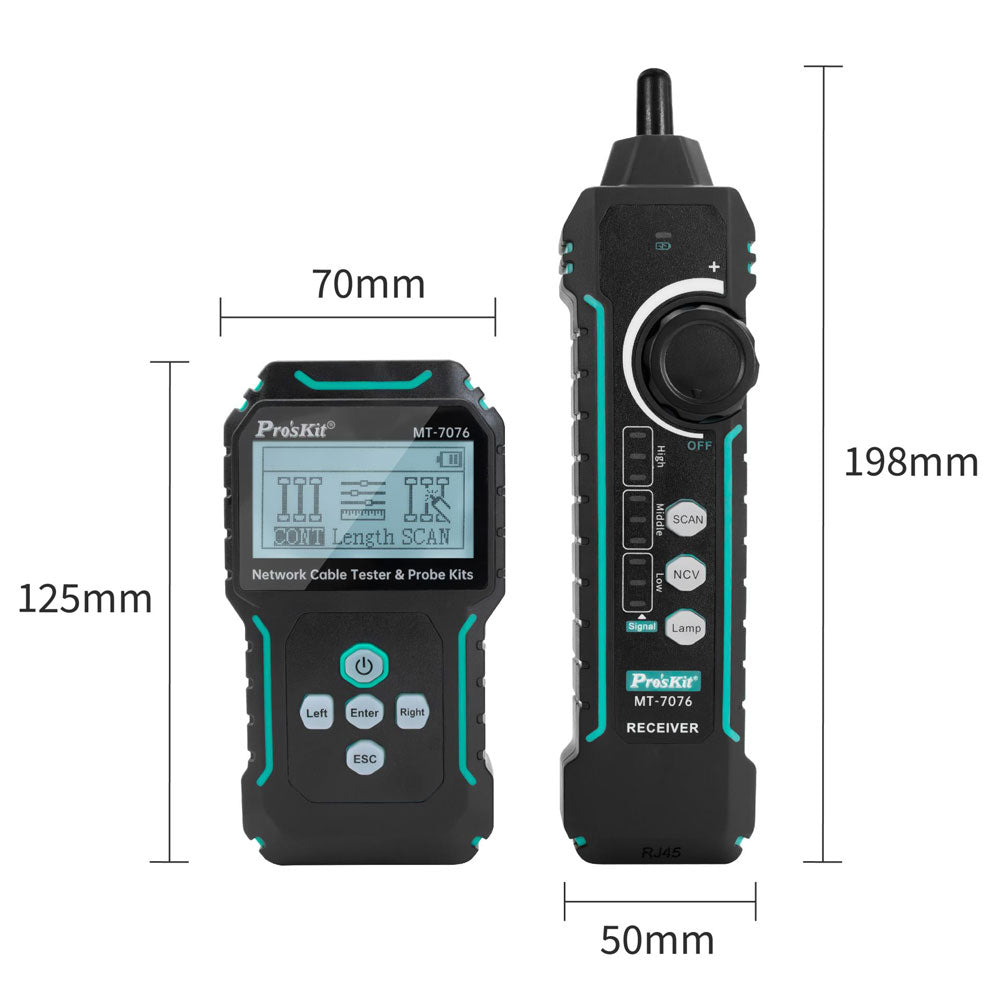

- Transmitter Dimensions: 125 × 70 × 32mm
- Receiver Dimensions: 198 × 50 × 28mm
- Identification: CE
- RoHS Compliant: Yes

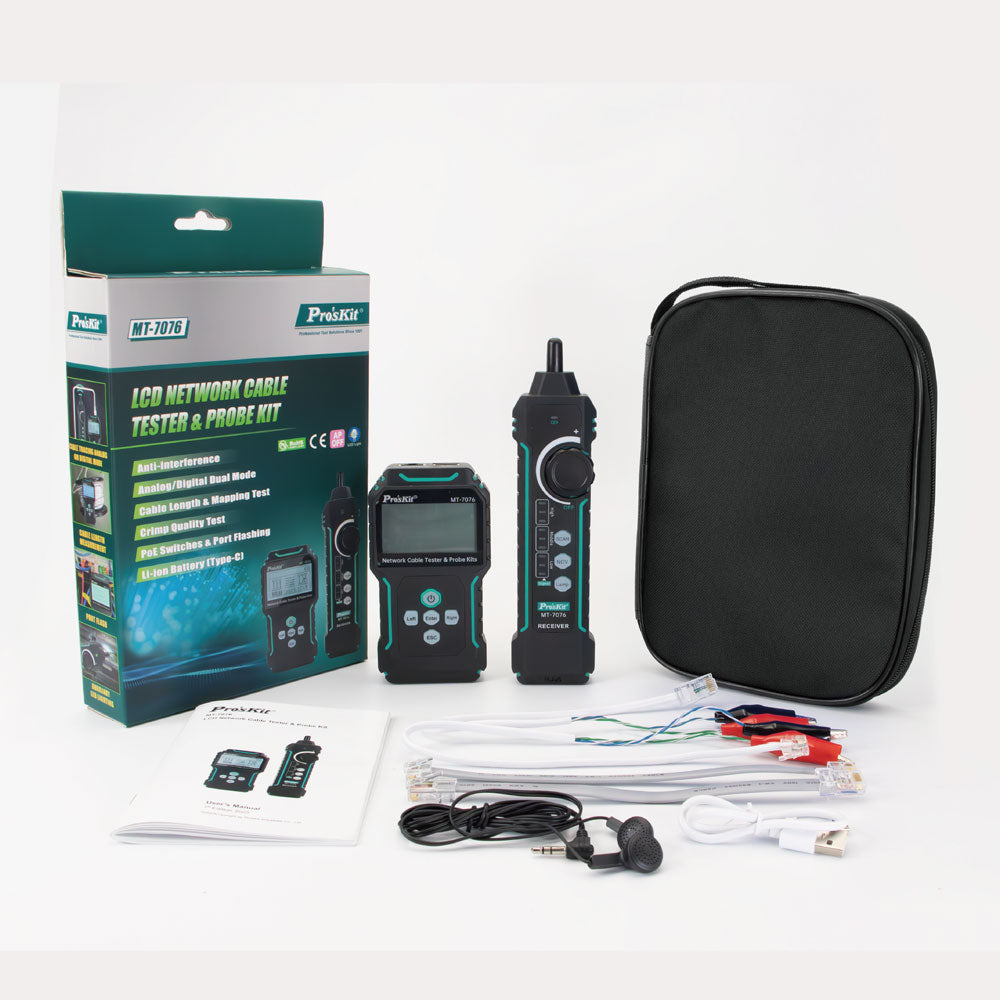

- Storage Bag Included: Yes
