ProsKit NET-MT-7029N PoE Noise-Filtering Tone And Probe Kit (Up To Dc 48V)
Accurately Trace & Identify Wires or Cables: Line Condition, Two-Line Polarity, Continuity and NCV (Non-Contact Voltage) Testing
Features
- Strong Anti-Noise Capability
- PoE Switches & STP Wire Tracing
- Port Locator with Flashing Signal
- Single-way Plug Crimping Quality Test
- Cable Mapping and Status Indication 300m
Specifictations
- Tone frequency: 130KHz
- Max. distance of transmission& cable map: 3km & 300m
- Tone mode: Single tone
- Compatible connectors: For RJ45(8 pin)/RJ11(6 pin) cable map test RJ45 SCAN socket : for RJ45 locating Individual wire pairs RJ11 SCAN socket: for RJ11 locating Individual wire pairs
- Cable types tested: RJ45 Lan cable Cat 5, 5e, 6 (UTP/ STP), RJ11/12 Telephone cable Cat 3 (6P/2C/4C/6C)
- Continuity test: 1 LED (≦300Ω), Coaxial cable & normal solid/Stranded wire by alligator clips patch cord
- Cable map & shielded indication: 8 LEDs Fast/slow dual speed, 1 LED
- Phone line polarity indication: 1 Dual color LED
- Telephone line status indication: 1 Dual color LED
- Network scan & PoE scan: 1 LED & 1 LED
- EMI filter (network scan & PoE scan): YES
- Other function: Live telecommunication equipment test and router test, voltage protection DC 48V, auto power off, low battery display
- Battery type: DC 9V (NEDA 1604/6F22) x1 pcs (not included)

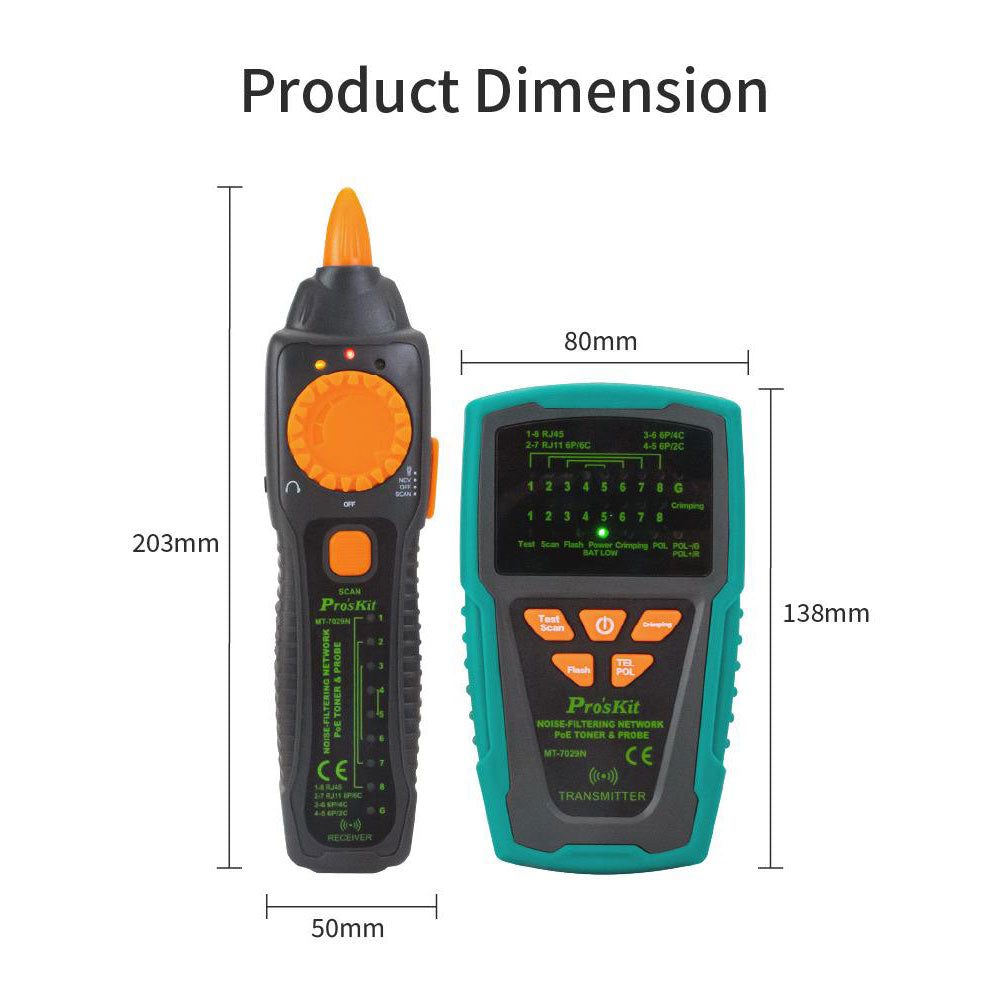

- Dimension (L×W×D): 138×80×35mm
- Frequency: 130KHz
- Compatible connectors: RJ45(8 pin)/RJ11(6 pin)
- Signal status indication: 1 dual color LED & buzzer, building ear jack
- Cable map & shielded indication: 8 LED & 1 LED
- NCV indication: 1 LED (AC90~1000V)
- LED illumination: 1 LED
- Battery type: 9V DC (NEDA 1604/6F22) x1 pc (not included)
- Dimension (L×W×D): 203×50×32mm

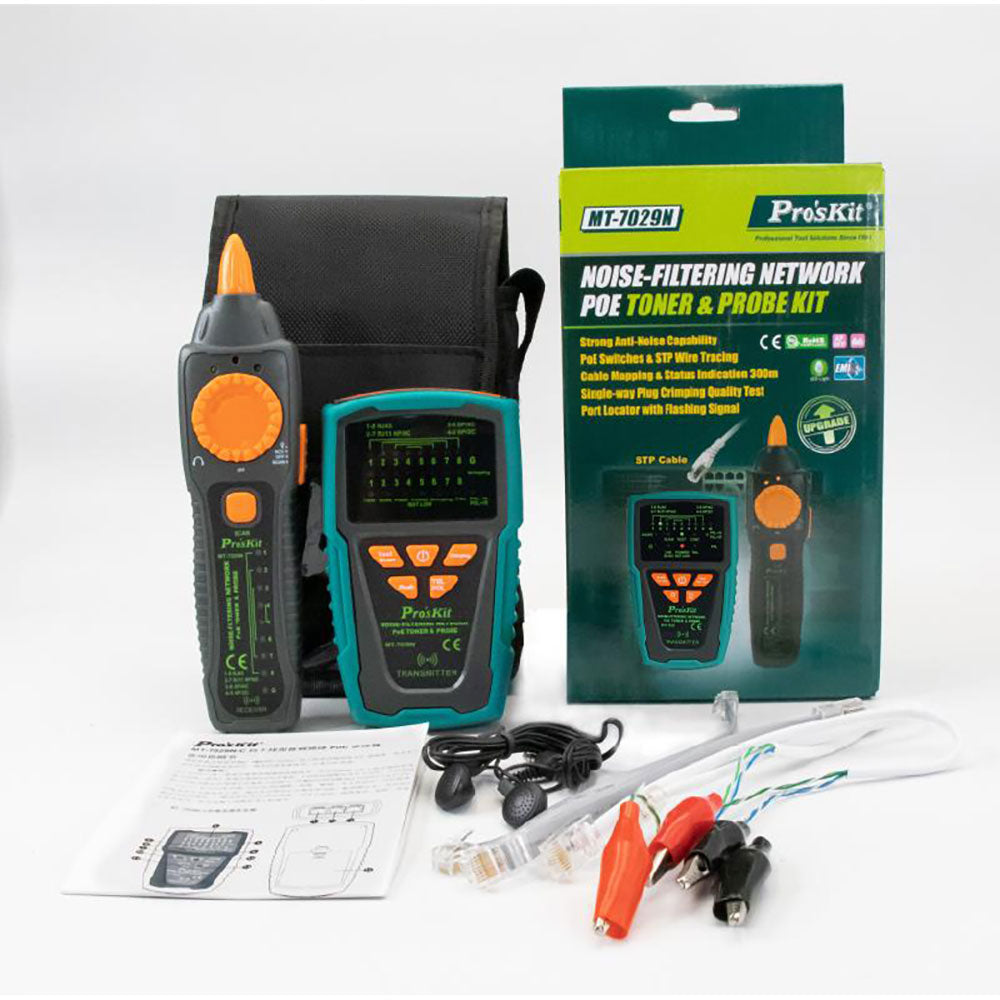

- Accessories: RJ45 cable patch cords, RJ11 cable patch cords, RJ11 to alligator clips patch cord, earphone, storage bag, user manual
