Mercusys MW301R 300Mbps Wireless N Router
The MW301R provides fast, stable Wi-Fi for your connected devices. Wireless speeds of up to 300Mbps make it ideal for HD streaming, online gaming, and rapid file downloads.
Features
- 300Mbps wireless transmission rate is ideal for basic work
- Two 5dBi antennas provides broad wireless coverage
- Intuitive webpage guides you through the setup process in minutes
Specifications
- Dimensions: (W X D X H) 135.77x93.31x25.85mm
- External Power Supply: 5VDC/0.6A
- Antenna Type: 2 x 5dBi fixed omni directional antennas
- Signal Rate: 11n: Up to 300Mbps (Dynamic)
- 11g: Up to 54Mbps (Dynamic)
- 11b: Up to 11Mbps (Dynamic)
- Button: RESET
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency: 2.4 - 2.4835GHz
- Reception Sensitivity:
- 270M: -70dBm@10% PER
- 130M: -74dBm@10% PER
- 108M: -77dBm@10% PER
- 54M: -76dBm@10% PER
- 11M: -90dBm@8% PER
- 6M: -92dBm@10% PER
- 1M: -97dBm@8% PER

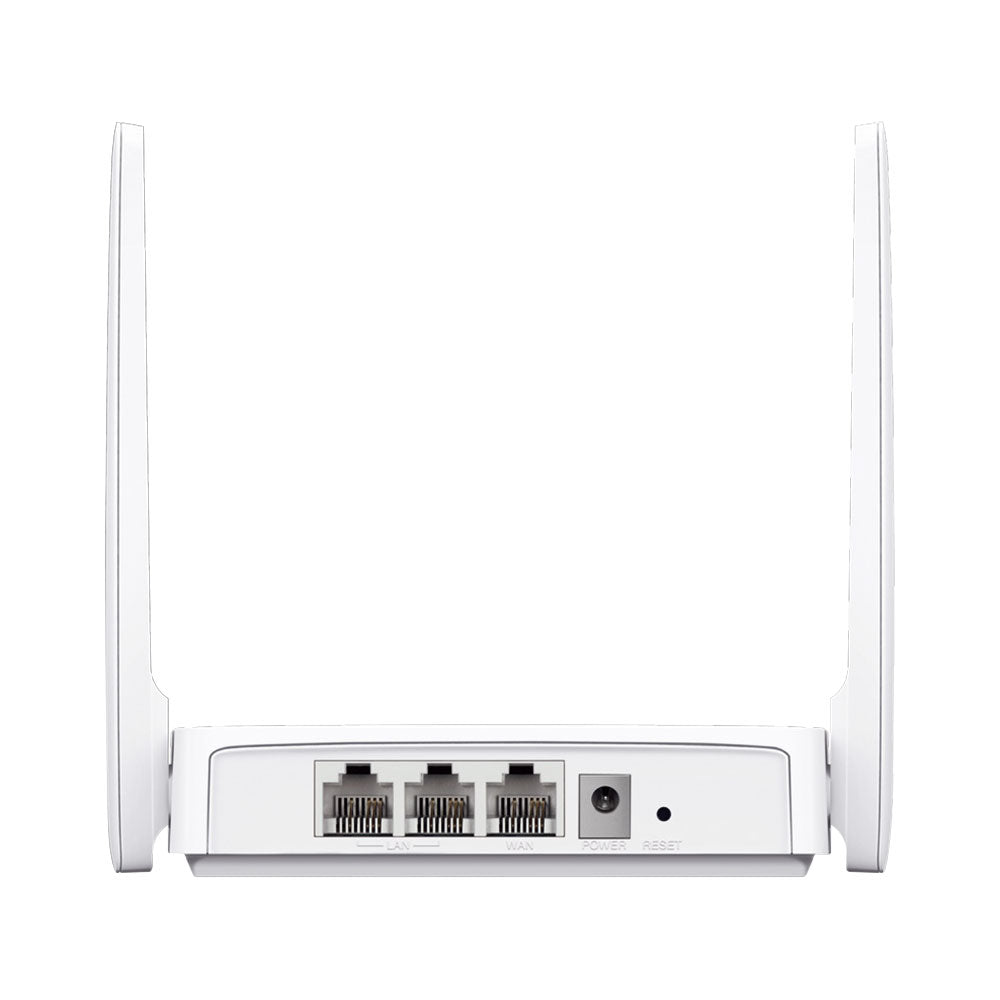

- Interfaces: 2 10/100Mbps LAN ports
- 1 10/100Mbps WAN port
- Certifications: CE, ROHS
- Transmission Power: <20dBm
- Wireless Security: 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
- Wireless Functions: WDS bridge
- WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
- Management: Parental Control, Access control, Local management, Remote management
- DHCP: Server
- Port Forwarding: Virtual server, UPnP, DMZ
- Dynamic DNS: DynDNS、NO-IP
- Firewall Security: IP and MAC address binding
- Protocols: IPv4
- Guest Network: 2.4GHz guest network
