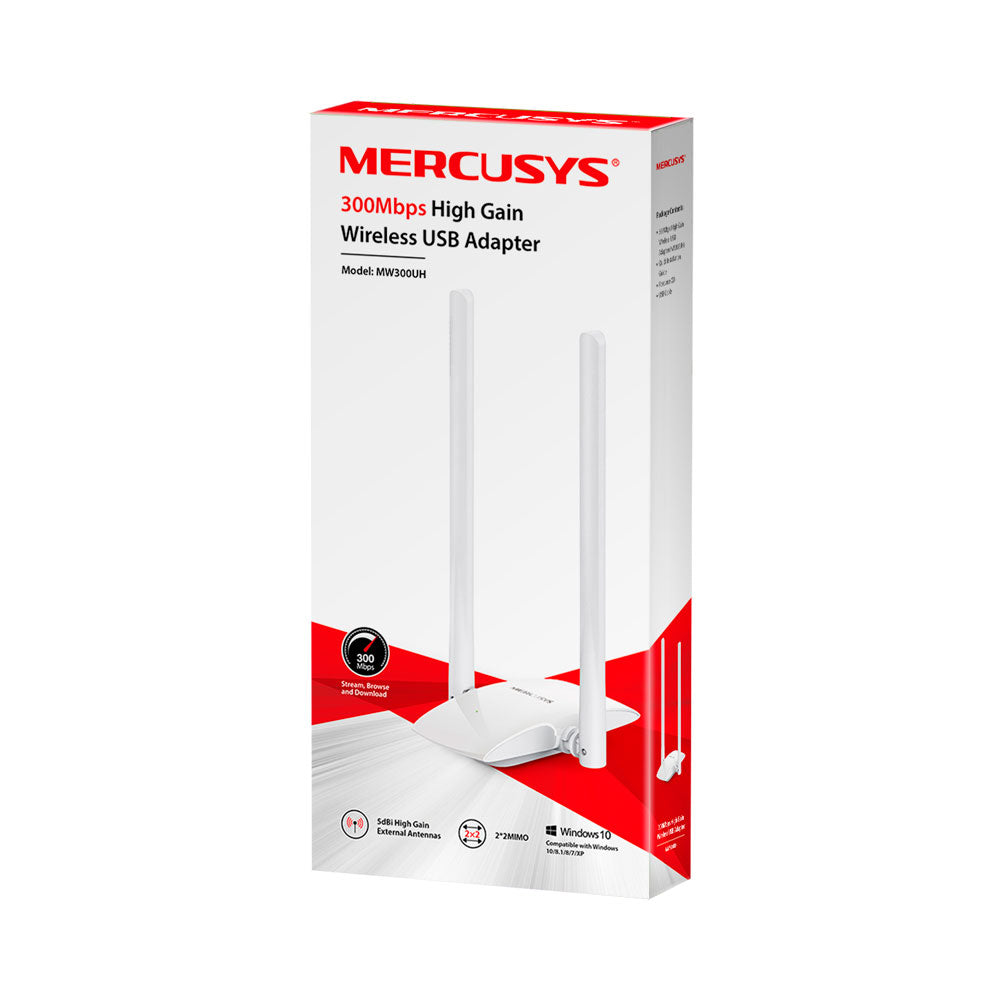

Mercusys MW300UH 300Mbps 5dBi High-Gain Wireless USB2.0 Adapter
Equip Your Devices with Wireless Connectivity.
Upgrade your desktop or laptop with the Mercusys MW300UH 300Mbps High-Gain Wireless USB2.0 Adapter, delivering reliable Wi-Fi for everyday browsing, streaming, and communication. The 5dBi high-gain external antenna improves signal strength and stability, while the adjustable antenna and USB extension cable allow flexible positioning for optimal reception. With enhanced wireless security and easy installation, it?s a simple way to add dependable wireless connectivity to your PC.
Features
- 300Mbps Wireless Speed - Enjoy stable Wi-Fi performance for everyday internet activities such as browsing, streaming, and video calls
- 5dBi High-Gain Antenna - External antenna significantly improves signal reception and transmission for stronger connectivity
- Adjustable Multi-Directional Antenna - Easily rotate and position the antenna for the best wireless signal
- Flexible USB Extension Cable - Allows convenient placement of the adapter to achieve optimal reception
- Enhanced Wireless Security - Supports WPA/WPA2 encryption to protect your network from unauthorised access
- Easy Setup for Windows - Quick installation with driver support for Windows operating systems
Specifications
Antenna Type
Dimensions (W × D × H)
- 113.2 × 63.8 × 21.7mm (Without Antennas)
- 113.2 × 100.5 × 201.1mm (With Vertical Antennas)
Wireless Standards
- IEEE 802.11n
- IEEE 802.11g
- IEEE 802.11b
Frequency
Signal Rate
- 11n: up to 300Mbps (Dynamic)
- 11g: up to 54Mbps (Dynamic)
- 11b: up to 11Mbps (Dynamic)
Reception Sensitivity
- 300M: -68dBm @10% PER
- 270M: -68dBm @10% PER
- 144M: -71dBm @10% PER
- 130M: -71dBm @10% PER
- 54M: -74dBm @10% PER
- 11M: -86dBm @8% PER
- 6M: -90dBm @10% PER
- 1M: -94dBm @8% PER
Transmission Power
Wireless Security
- WEP
- WPA/WPA2
- WPA-PSK/WPA2-PSK
Interface
Certifications
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% Non-Condensing
- Storage Humidity: 5~90% Non-Condensing
System Requirements
- Windows 10 / 8.1 / 8 / 7 / XP (32/64bit)
