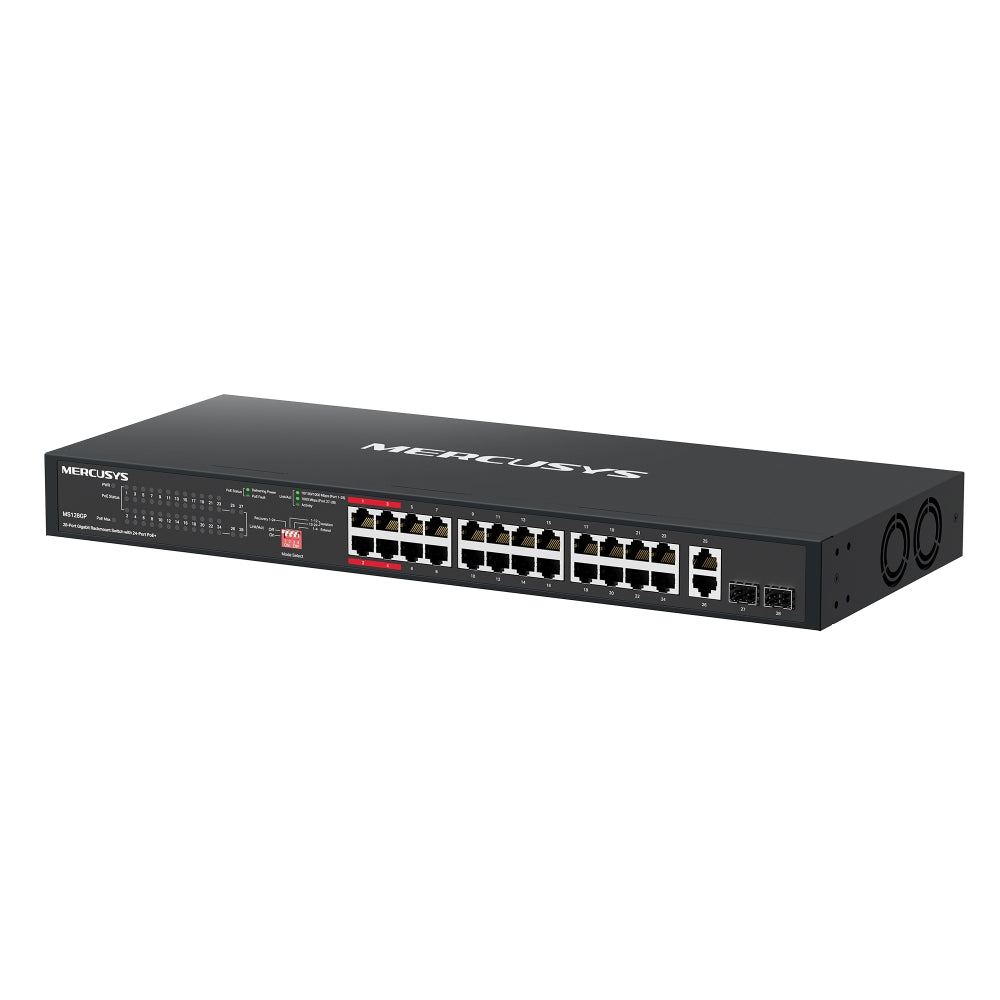

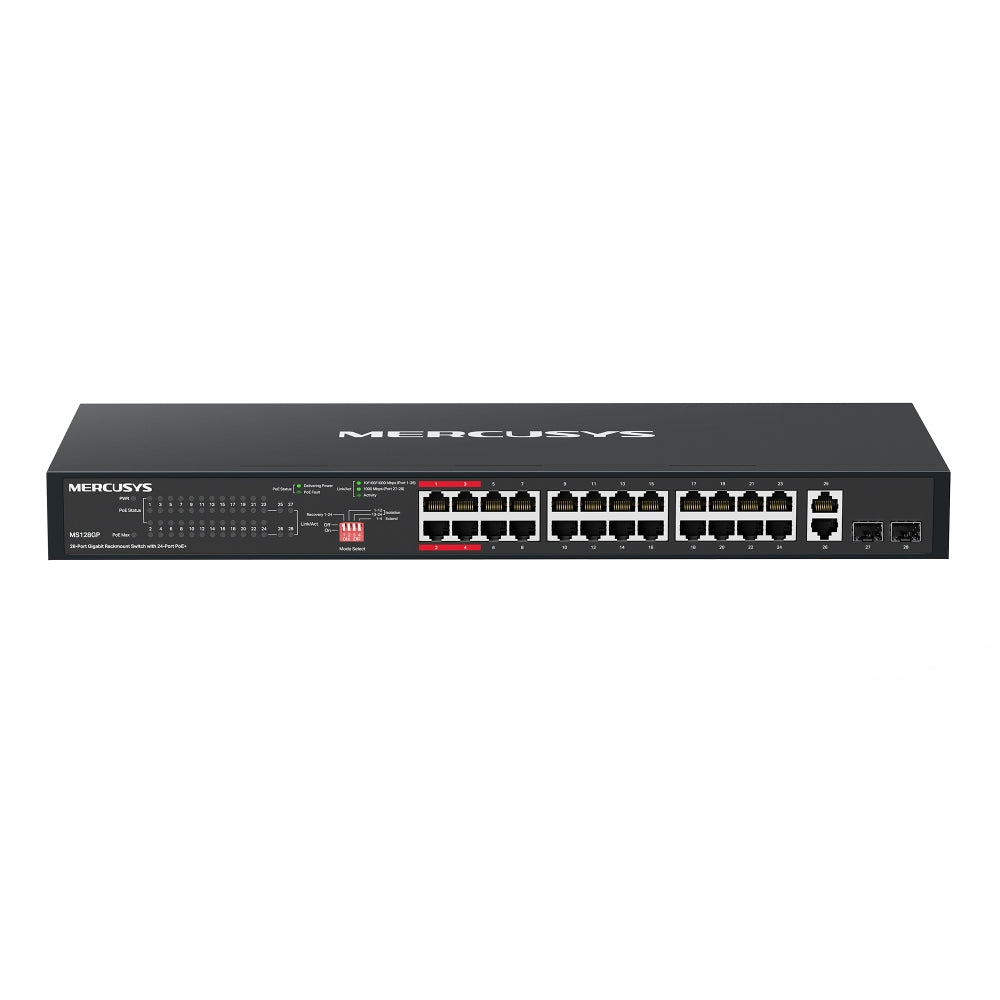

MERCUSYS MS128GP 28-Port Gigabit Rackmount Switch with 24-Port PoE+
High-Power Gigabit PoE Switching for Surveillance and Business Networks.
The MERCUSYS MS128GP is a 28-port Gigabit rackmount switch designed for small and medium business networks, IP surveillance systems and high-density PoE deployments. It features 24× Gigabit PoE+ RJ45 ports, 2× Gigabit non-PoE RJ45 ports and 2× Gigabit SFP slots for flexible copper and fibre connectivity. With a 295W PoE power budget and up to 30W per PoE port, it can power compatible IP cameras, access points, VoIP phones and other PoE devices. Extend Mode supports data and power transmission up to 250m, while Isolation Mode, Priority Mode and PoE Auto Recovery help improve reliability, security and performance. Plug-and-play setup makes deployment simple with no configuration required.
Features
- 28-Port Gigabit Switching - Provides 24× Gigabit PoE+ RJ45 ports, 2× Gigabit RJ45 ports and 2× Gigabit SFP slots

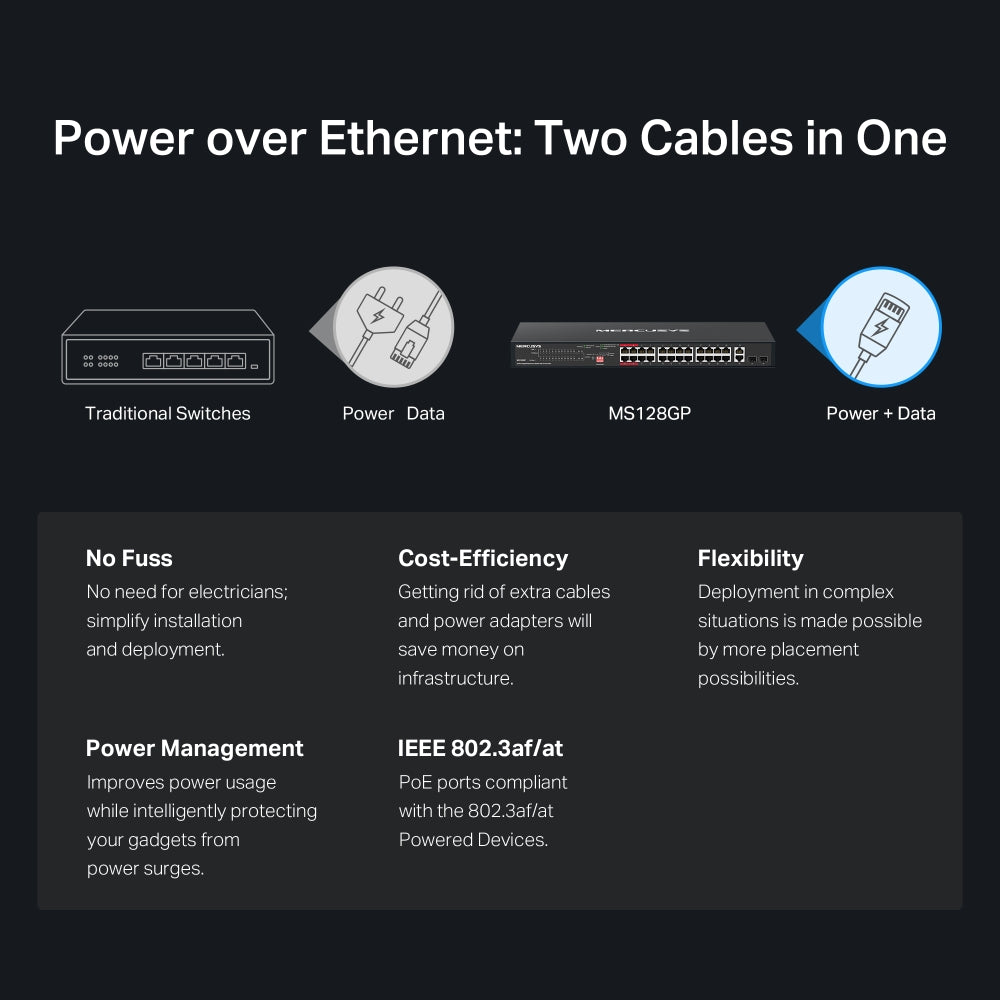

- 24-Port PoE+ Output - Powers compatible IP cameras, access points, VoIP phones and other PoE devices
- 295W PoE Budget - Supports high-power PoE deployments across multiple connected devices
- 30W Per PoE Port - Delivers up to 30W per PoE+ port for IEEE 802.3af/at compliant devices
- Gigabit SFP Uplinks - Provides fibre uplink options for longer-distance network connections

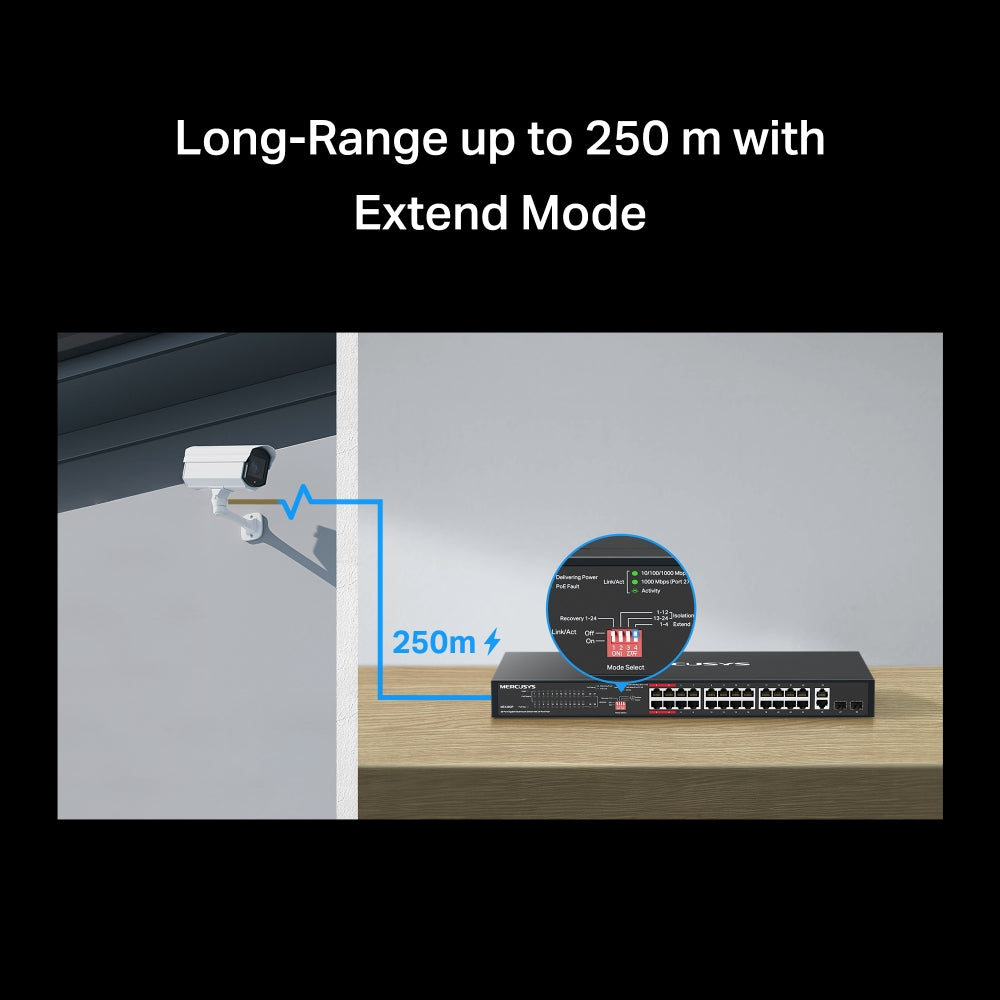

- Extend Mode - Supports data and power transmission up to 250m for selected PoE deployments

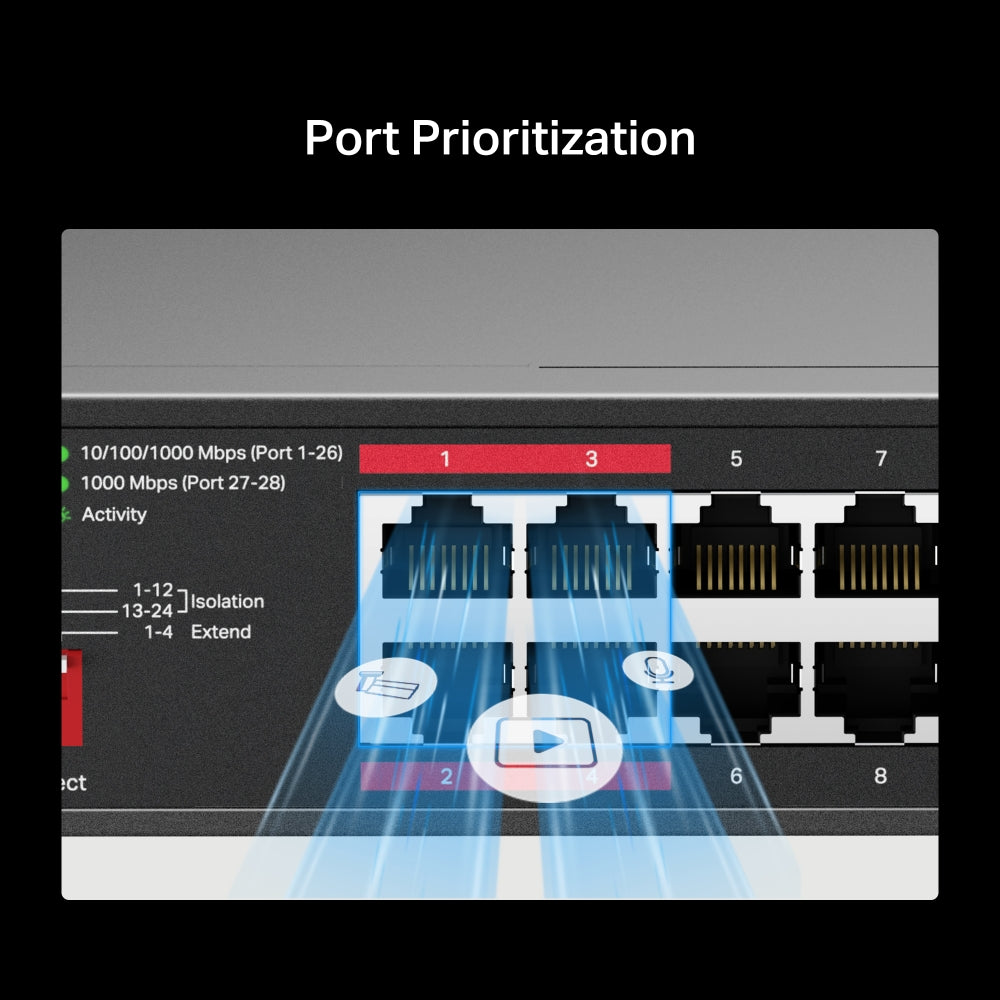

- Priority Mode - Gives ports 1-4 higher priority for sensitive applications such as video monitoring

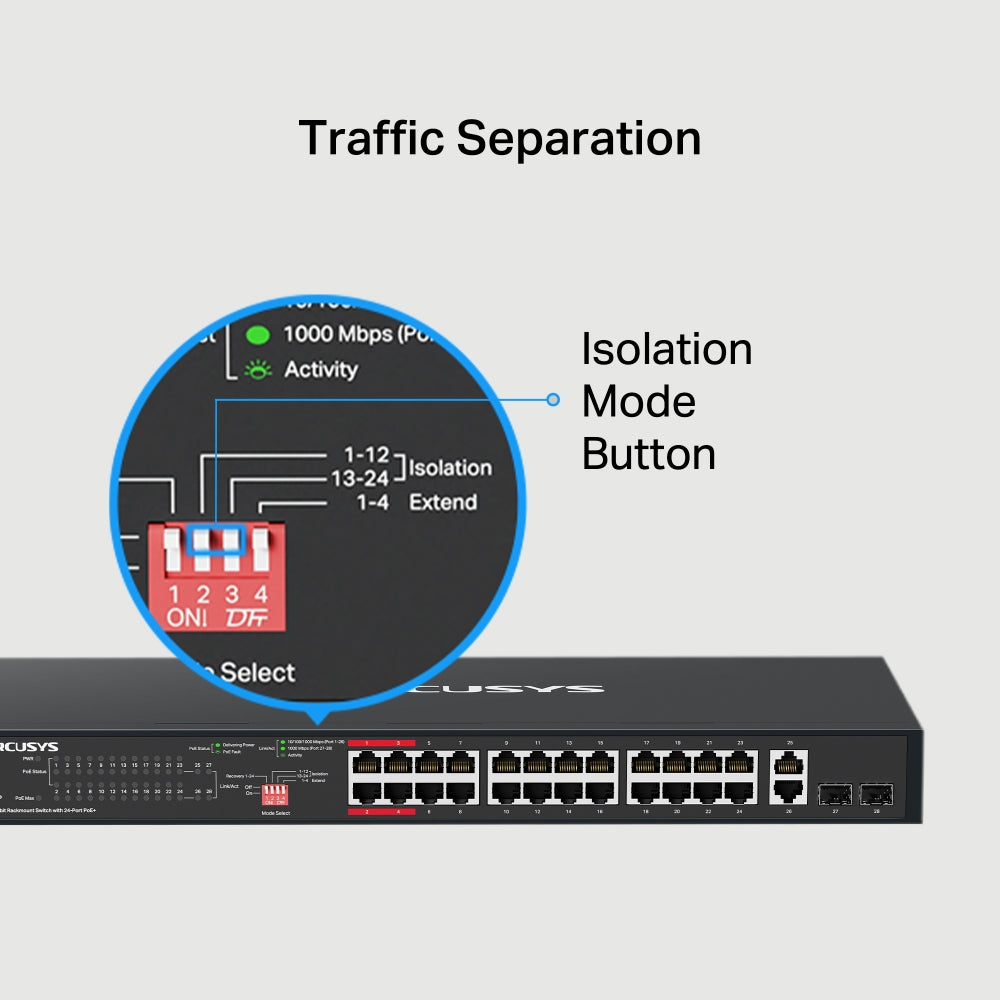

- Isolation Mode - Separates client traffic to improve network security and performance
- PoE Auto Recovery - Automatically reboots dropped or unresponsive PoE devices
- Auto-Negotiation - Automatically adjusts port speed for connected devices
- Auto MDI/MDIX - Supports easier cable connection without crossover cable concerns

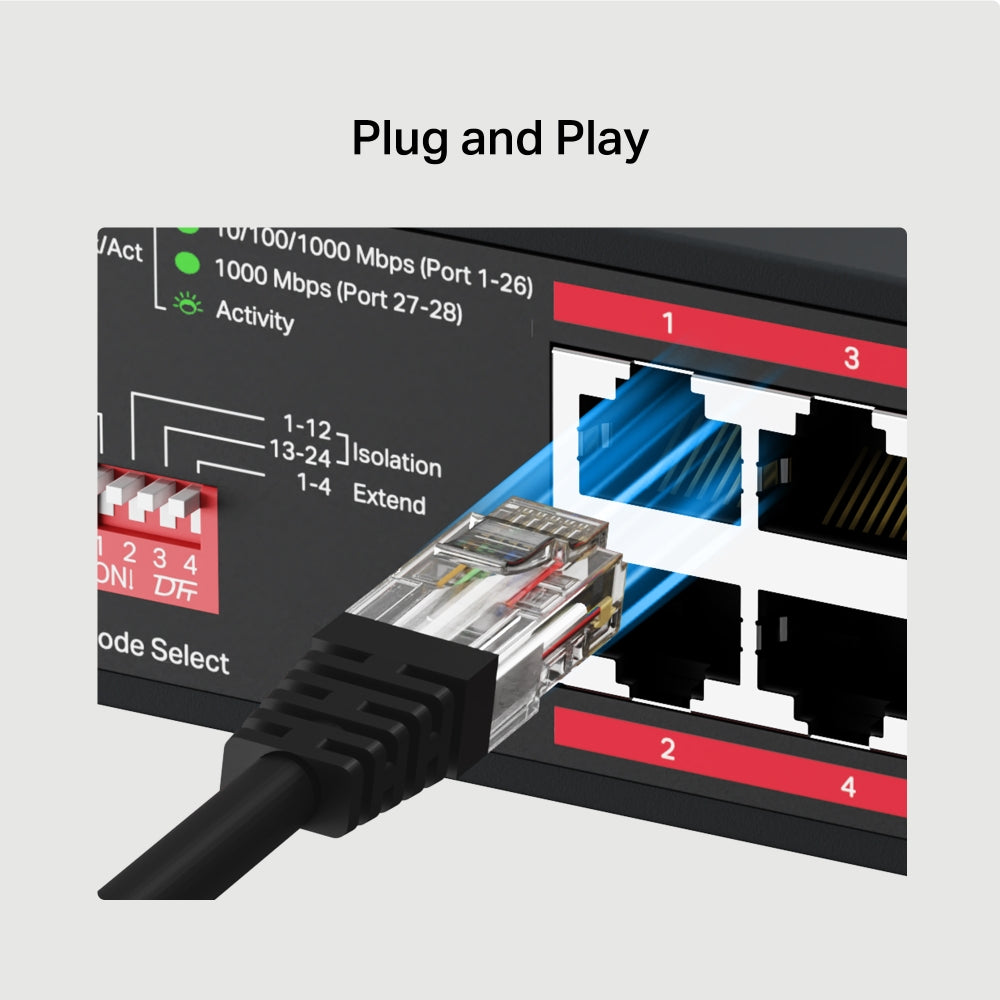

- Plug-and-Play - No configuration or central management required
- Rackmount Design - Suitable for 19-inch cabinet and rack installations
Specifications
- Interface: 24× 10/100/1000Mbps PoE+ RJ45 Ports, 2× 10/100/1000Mbps RJ45 Ports, 2× Gigabit SFP Slots
- PoE Standard: IEEE 802.3af/at
- PoE Ports: Ports 1-24, Up to 30W per Port
- PoE Power Budget: 295W
- Switch Capacity: 56Gbps
- Forwarding Mode: Store-and-Forward
- MAC Address Table: 8K, Auto-Learning, Auto-Ageing
- Transmission Medium: 10BASE-T, 100BASE-TX, 1000BASE-T and 1000BASE-X
- Auto-Negotiation: Supported
- Auto MDI/MDIX: Supported
- PoE Auto Recovery: Supported
- Extend Mode: Supported
- Isolation Mode: Supported
- Flow Control: Supported
- Fan Quantity: 2
- LEDs: Power, Link/Act, PoE Status, PoE Max.
- Standby Power Consumption: 3.74W at 110V 60Hz, 4.01W at 220V 50Hz
- Max. Power Consumption: 350.14W at 110V 60Hz, 336.58W at 220V 50Hz
- Max. Heat Dissipation: 1193.98BTU/hr at 110V 60Hz, 1147.74BTU/hr at 220V 50Hz
- Noise Level: 46.5dBA Max., 29.5dBA Min. at 50cm
- Power Supply: 100~240V AC, 50/60Hz
- Dimensions: 440 × 180 × 44mm
- Operating Temperature: -10~45°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH, Non-Condensing
- Storage Humidity: 5~90% RH, Non-Condensing
- Certification: CE, RoHS
Notes
- Extend Mode supports up to 250m data and power transmission, but port speed is reduced to 10Mbps
- SFP modules are sold separately
- Ports 1-4 have higher transmission priority when network congestion occurs
- The switch is unmanaged and does not require configuration or central management
