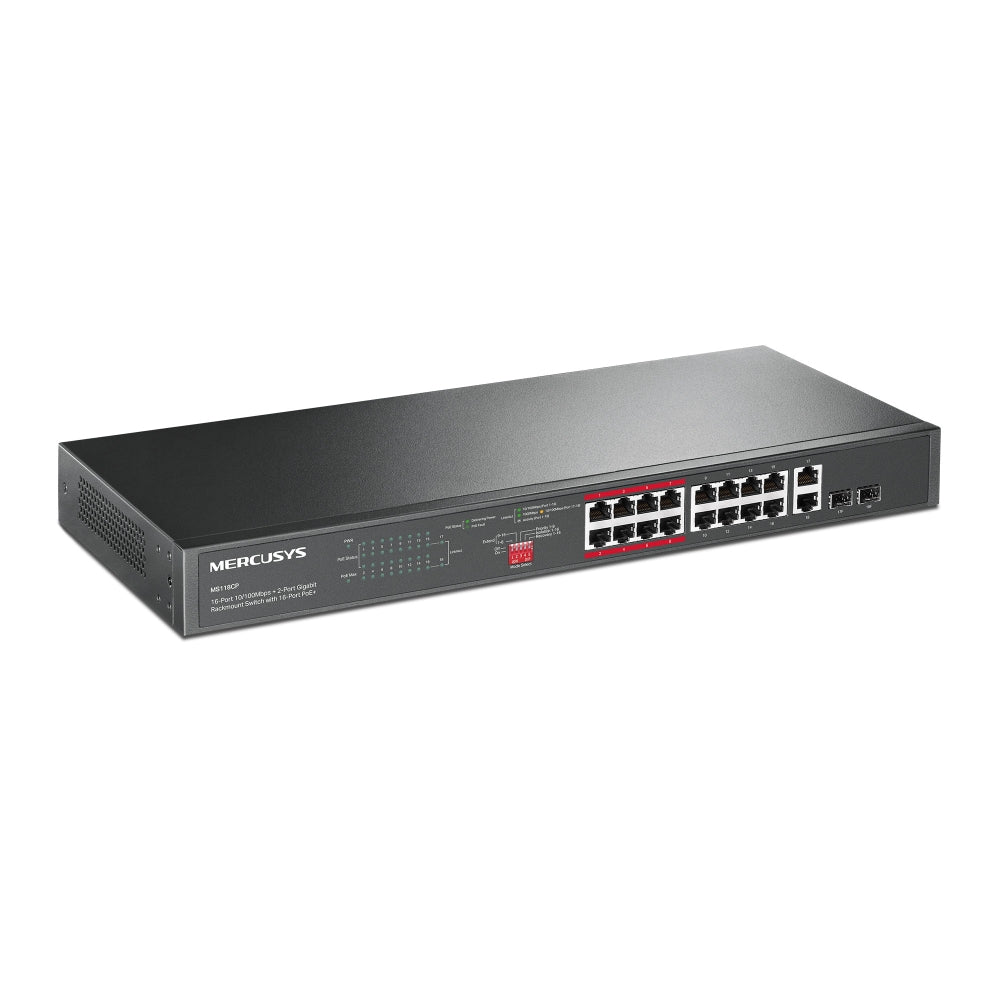

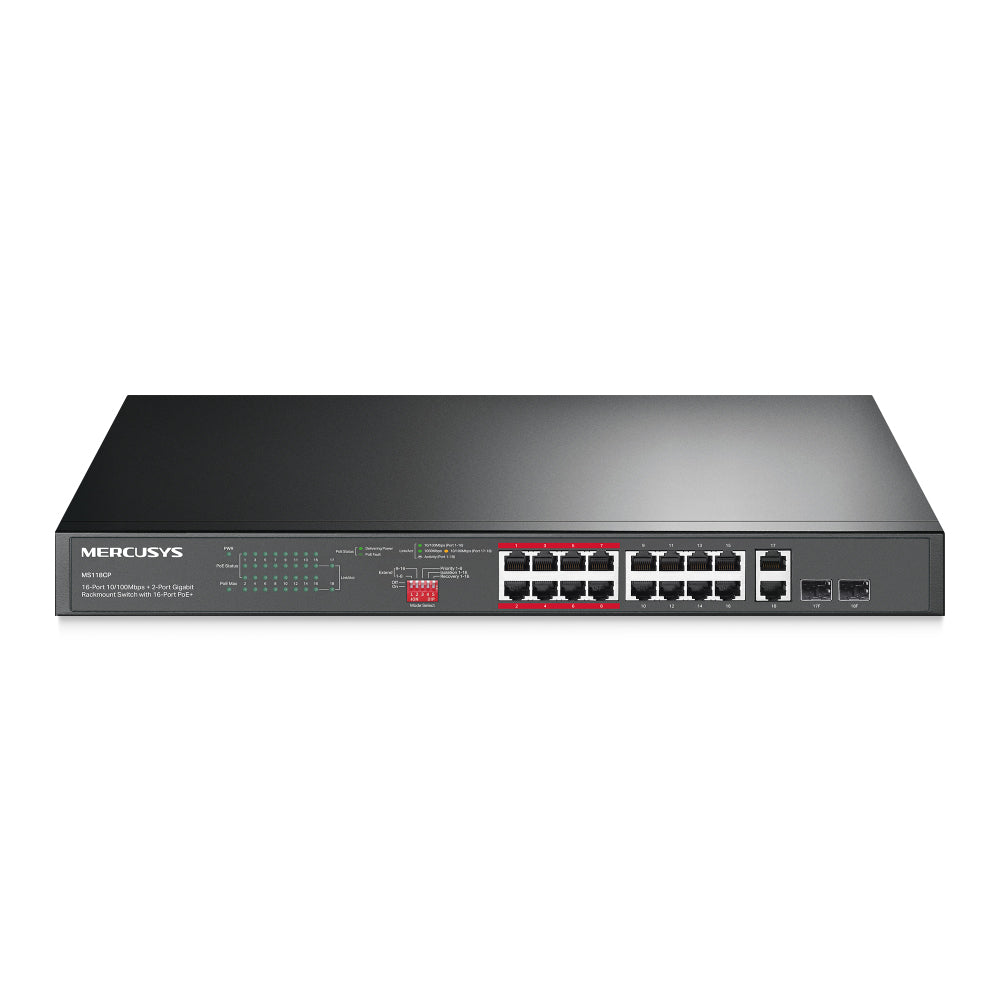

Mercusys MS118CP 16-Port 10/100Mbps PoE+ Rackmount Switch with 2-Port Gigabit Combo Uplinks
Flexible PoE Networking for Professional Surveillance.
The Mercusys MS118CP is a rackmount PoE+ switch designed for small and medium-sized IP surveillance networks. It provides sixteen 10/100Mbps PoE+ ports and two Gigabit combo uplinks with RJ45 and SFP connectivity for flexible links to routers, NVRs and other switches. A shared 190W PoE budget supplies up to 30W per port to compatible IEEE 802.3af/at powered devices. Extend Mode carries power and data up to 250m, while Priority Mode gives preference to ports 1~8 for latency-sensitive traffic. Isolation Mode separates connected clients, and PoE Auto Recovery automatically restarts unresponsive powered devices. Plug-and-play operation allows straightforward deployment without configuration.
Features
- 16-Port PoE+ - Connect and power surveillance devices through sixteen 10/100Mbps ports
- 190W PoE Budget - Supplies up to 30W per port to compatible powered devices
- Gigabit Combo Uplinks - Provides RJ45 and SFP connectivity for flexible network expansion
- Extended Transmission - Carries power and data up to 250m in Extend Mode
- Traffic Prioritisation - Gives ports 1~8 priority for latency-sensitive applications
- Port Isolation - Separates client traffic on ports 1~16 for improved security and performance
- PoE Auto Recovery - Automatically restarts dropped or unresponsive powered devices
- Plug-and-Play - Operates without software installation or manual configuration
Specifications
Network Interfaces
- PoE+ Ports: 16× 10/100Mbps RJ45
- Gigabit RJ45 Ports: 2× 10/100/1000Mbps
- SFP Slots: 2× combo Gigabit SFP
- Supported Fibre: 1000BASE-X MMF and SMF
- PoE Standards: IEEE 802.3af and IEEE 802.3at
Performance
- Switching Capacity: 7.2Gbps
- Packet Forwarding Rate: 5.36Mpps
- MAC Address Table: 8K
- Jumbo Frame: 10KB
- Transfer Method: Store-and-Forward
- Flow Control: IEEE 802.3x
- MAC Functions: Automatic learning and ageing
Poe
- PoE Ports: Ports 1~16
- Maximum Power Per Port: Up to 30W
- Total PoE Power Budget: 190W
- PoE Auto Recovery: Ports 1~16
Operating Modes
- Extend Mode: Up to 250m power and data transmission
- Priority Mode: Ports 1~8
- Isolation Mode: Ports 1~16
Network Media
- 10BASE-T: CAT3, CAT4 or CAT5 UTP; 100Ω STP
- 100BASE-TX: CAT5 or CAT5e UTP; 100Ω STP
- 1000BASE-T: CAT5, CAT5e, CAT6 or higher UTP; 100Ω STP
- Standard Copper-Cable Distance: Up to 100m
Power

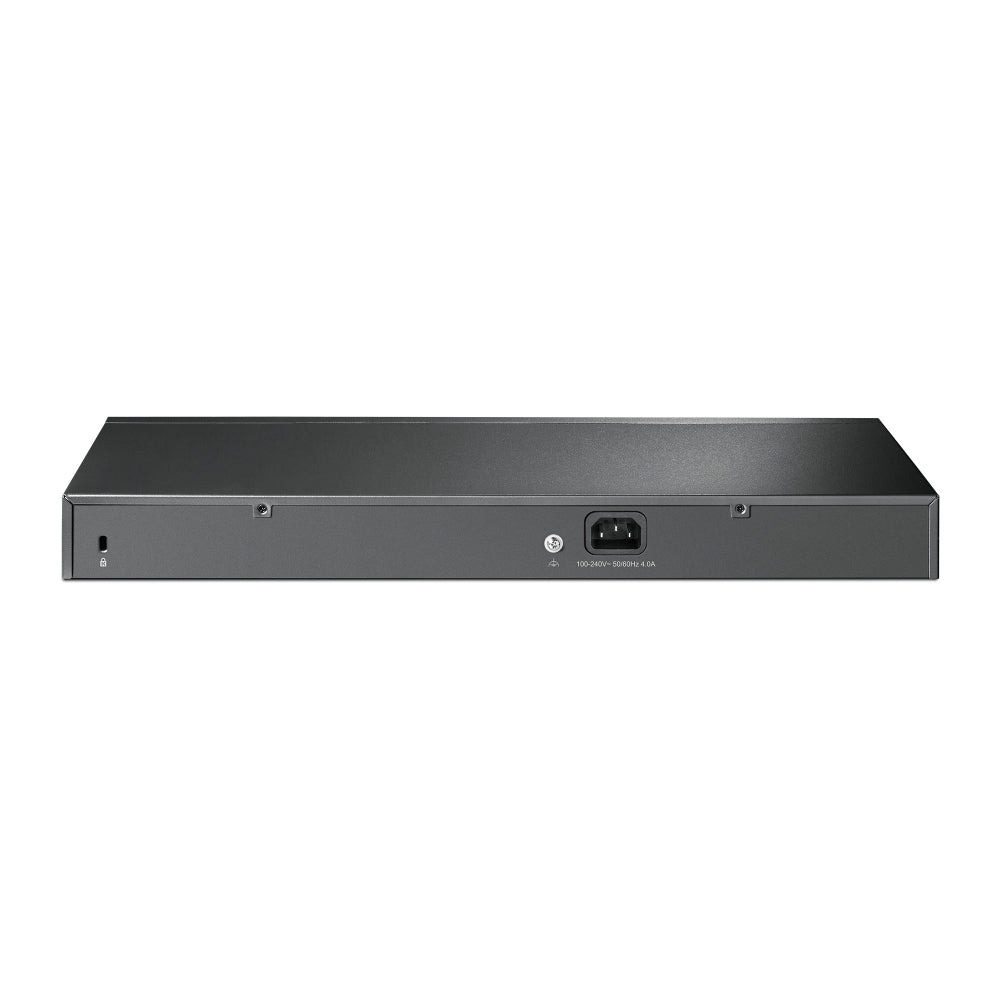

- Power Supply: 100~240V AC, 50/60Hz
- Maximum Power Consumption Without Powered Devices: 13.07W
- Maximum Power Consumption With 190W PoE Load: 218.91W
Physical
- Dimensions: 440 × 180 × 44mm
- Cooling: 2× fans
- Physical Security Lock: Yes
- Installation: Rackmount
Environmental
- Operating Temperature: 0~50°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH, non-condensing
- Storage Humidity: 5~90% RH, non-condensing
Compliance
- Certifications: CE, FCC and RoHS
Note
- Extend Mode reduces the affected ports to 10Mbps; actual transmission distance depends on cable quality
