Mercusys MS110P 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+
Reliable Fast Ethernet Switching with Expanded PoE Capacity.
The Mercusys MS110P 10-Port 10/100Mbps Desktop Switch provides simple and efficient wired networking with eight PoE+ ports designed to power devices such as IP cameras, wireless access points and VoIP phones. With a total PoE power budget of up to 65W, it delivers both power and data through a single Ethernet cable, simplifying installations and reducing cable clutter. Its plug-and-play design, durable metal housing and flexible deployment make it an ideal solution for surveillance systems and small business networks.
Features
- 8× PoE+ Ports - Supports IEEE 802.3af/at standards to power devices such as IP cameras, access points and VoIP phones
- 65W PoE Power Budget - Provides up to 30W per PoE port with a total power budget of 65W for stable device deployment
- PoE Auto Recovery - Automatically reboots your dropped or unresponsive PoE powered devices

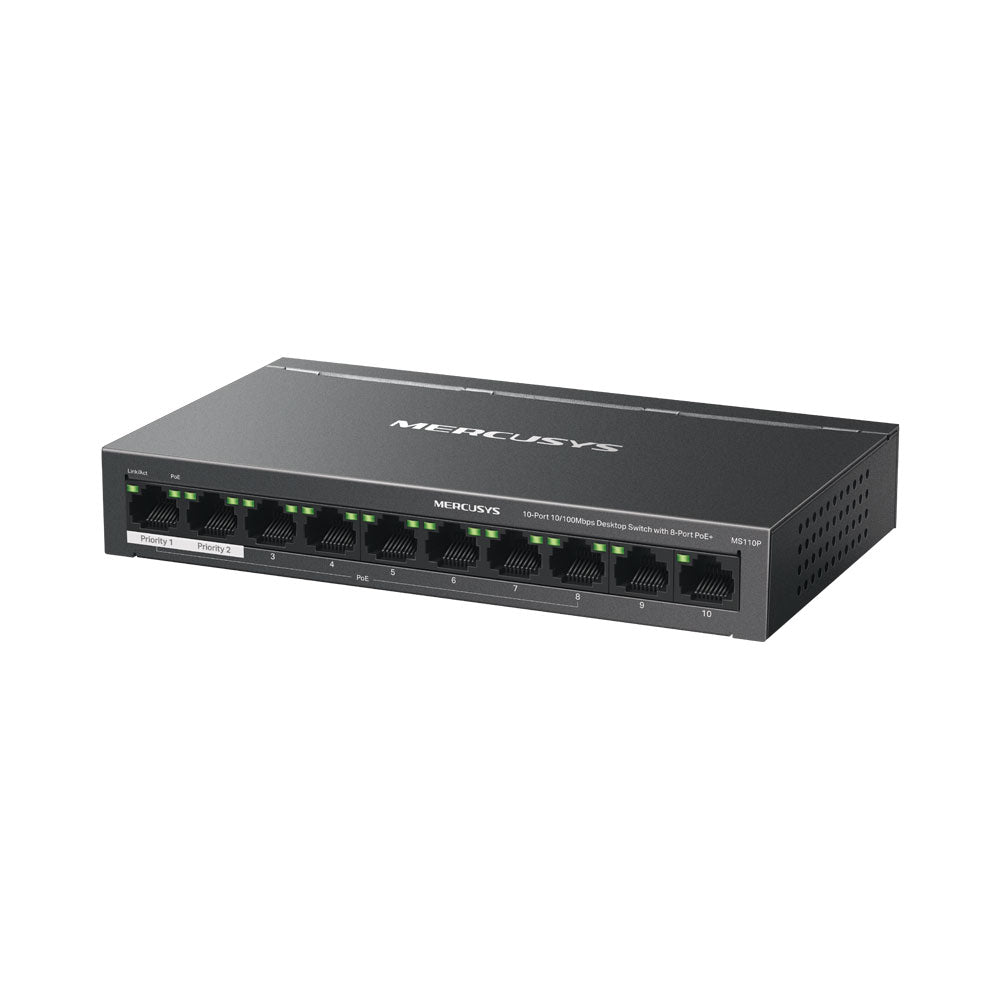

- Fast Ethernet Connectivity - 10× 10/100Mbps RJ45 ports deliver reliable wired networking for homes, offices and surveillance systems
- Extend Mode up to 250m - Extends PoE transmission distance up to 250m for flexible camera and device placement

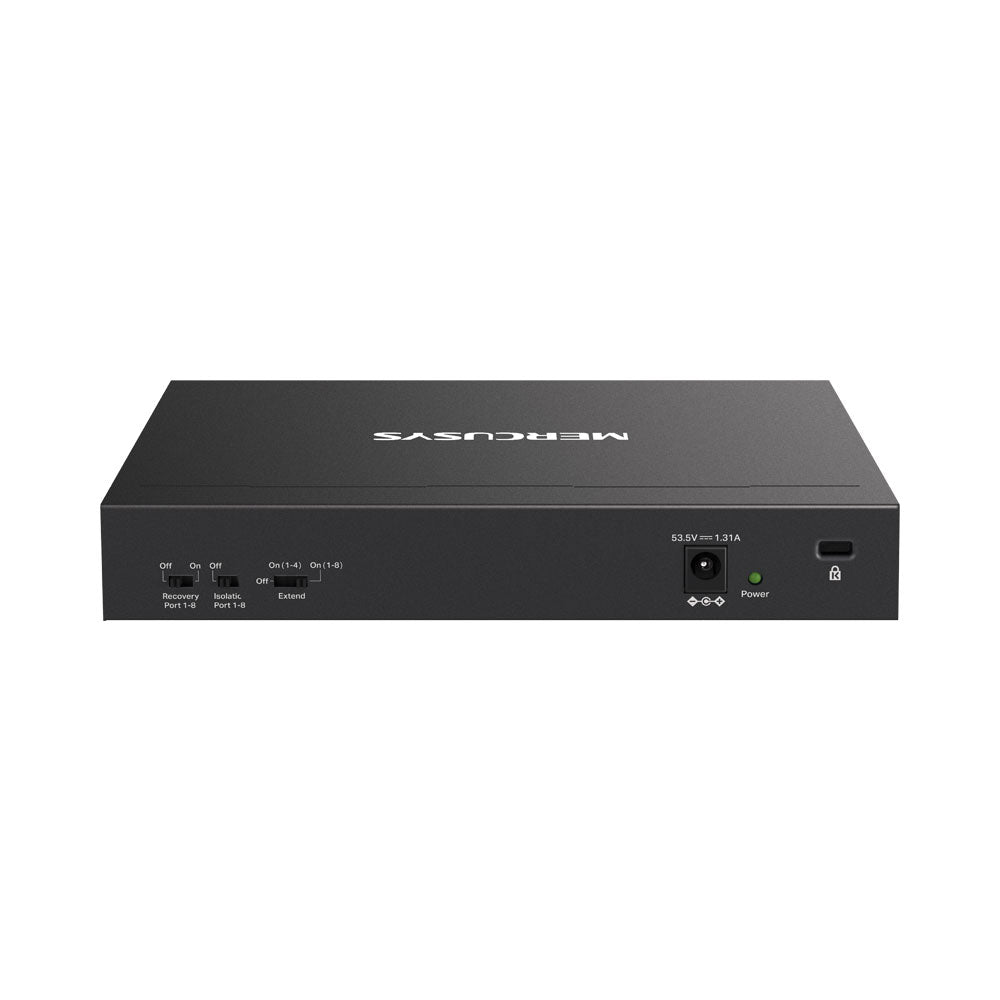

- Durable Metal Housing - Robust metal design with desktop or wall-mount installation for long-term reliability
Specifications
Dimensions (W × D × H)
Poe Ports
- 8× PoE+ Ports (Ports 1~8)
- Standard: IEEE 802.3af/at Powered Devices
- PoE Power Budget: 65W
Interfaces
- 10× 10/100Mbps RJ45 Ports
- Auto-Negotiation, Auto MDI/MDIX
External Power Supply
- External Power Adapter (Output: 53.5V 1.31A)
Installation
Standards And Protocols
Data Rates
- 10/100Mbps at Half-Duplex
- 20/200Mbps at Full-Duplex
Jumbo Frame
Mac Address Table
Max Heat Dissipation
- 10.064 BTU/h (No PD Connected)
- 263.568 BTU/h (With 65W PD Connected)
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH Non-Condensing
- Storage Humidity: 5~95% RH Non-Condensing
