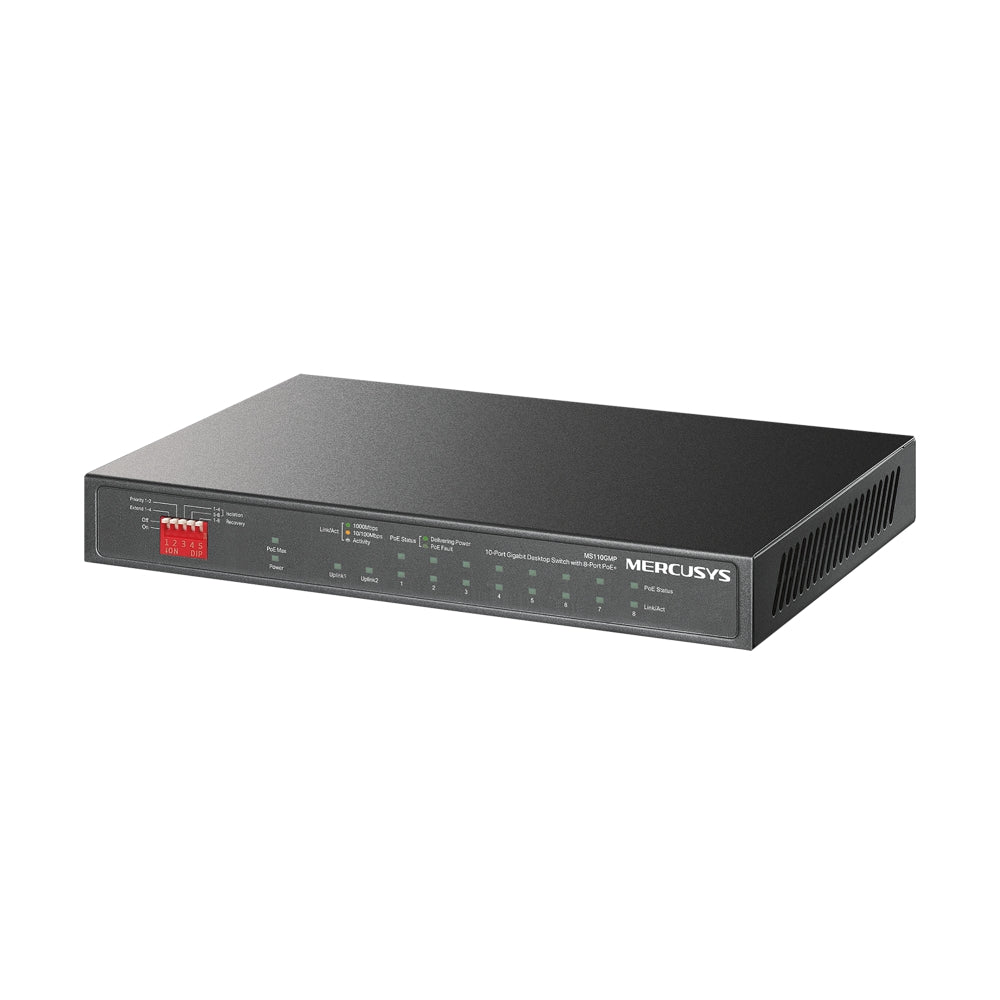

MERCUSYS MS110GMP 10-Port Gigabit Desktop Switch with 8-Port PoE+
Compact Gigabit PoE+ Switching for Cameras, APs and Small Networks.
The MERCUSYS MS110GMP is a 10-port Gigabit desktop switch designed to simplify wired network and PoE deployments. It features 8× Gigabit PoE+ ports and 2× Gigabit uplink ports, delivering data and power over a single cable for IP cameras, access points, VoIP phones and other compatible PoE devices. With a 111W total PoE budget and up to 30W per PoE port, it is ideal for small business, surveillance and office networks. Extend Mode supports transmission up to 250m, while Priority Mode, Isolation Mode and PoE Auto Recovery help improve performance, security and device reliability. The fanless plug-and-play design keeps installation simple and quiet.
Features

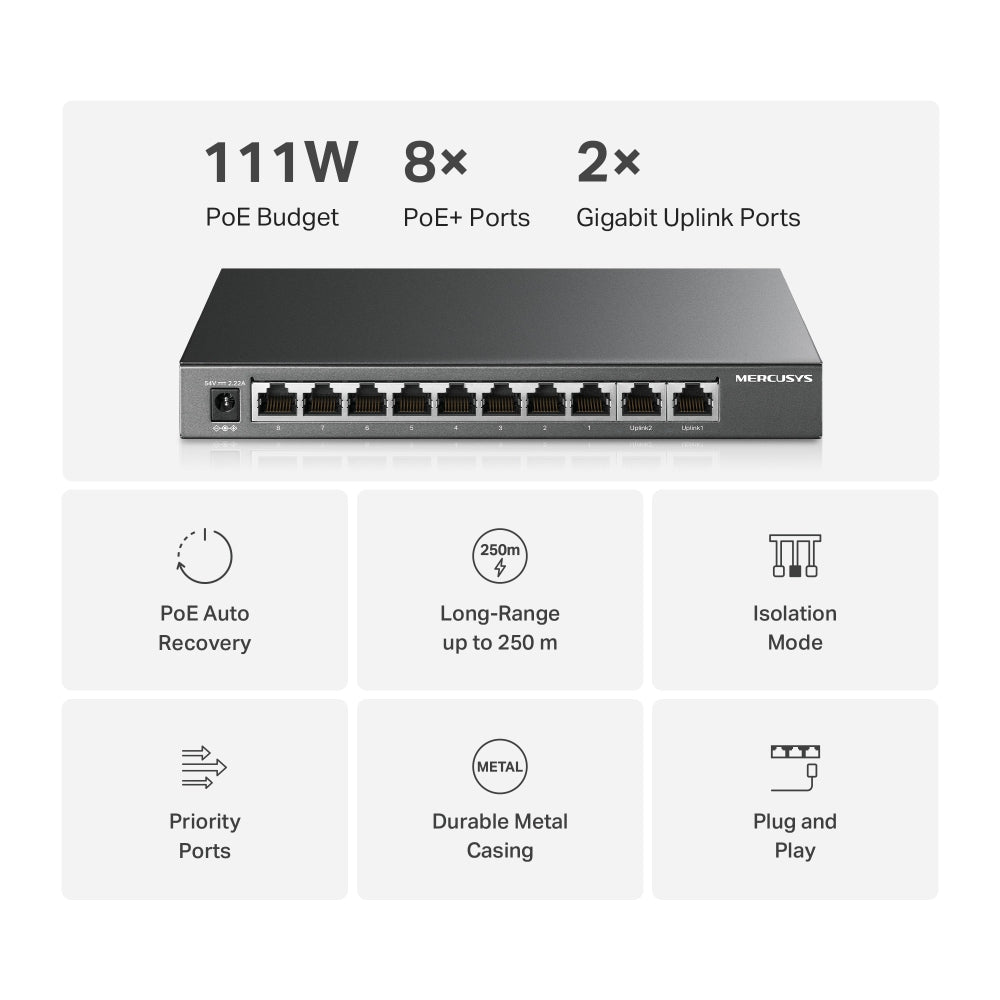

- 10-Port Gigabit Connectivity - Provides 8× Gigabit PoE+ ports and 2× Gigabit uplink ports

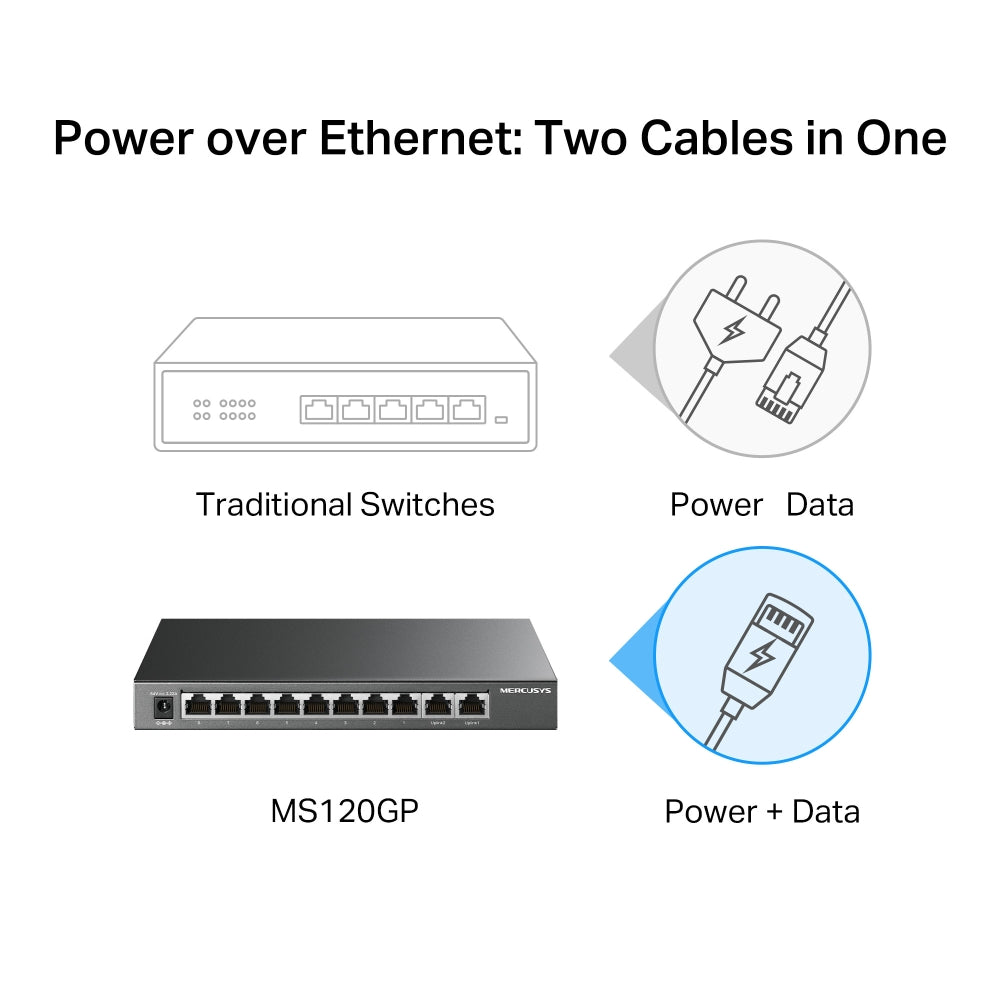

- 8-Port PoE+ Output - Transfers data and power over one cable for compatible PoE devices
- 111W PoE Budget - Supports multiple IP cameras, access points and VoIP phones
- 30W Per PoE Port - Delivers up to 30W per port for IEEE 802.3af/at compliant devices

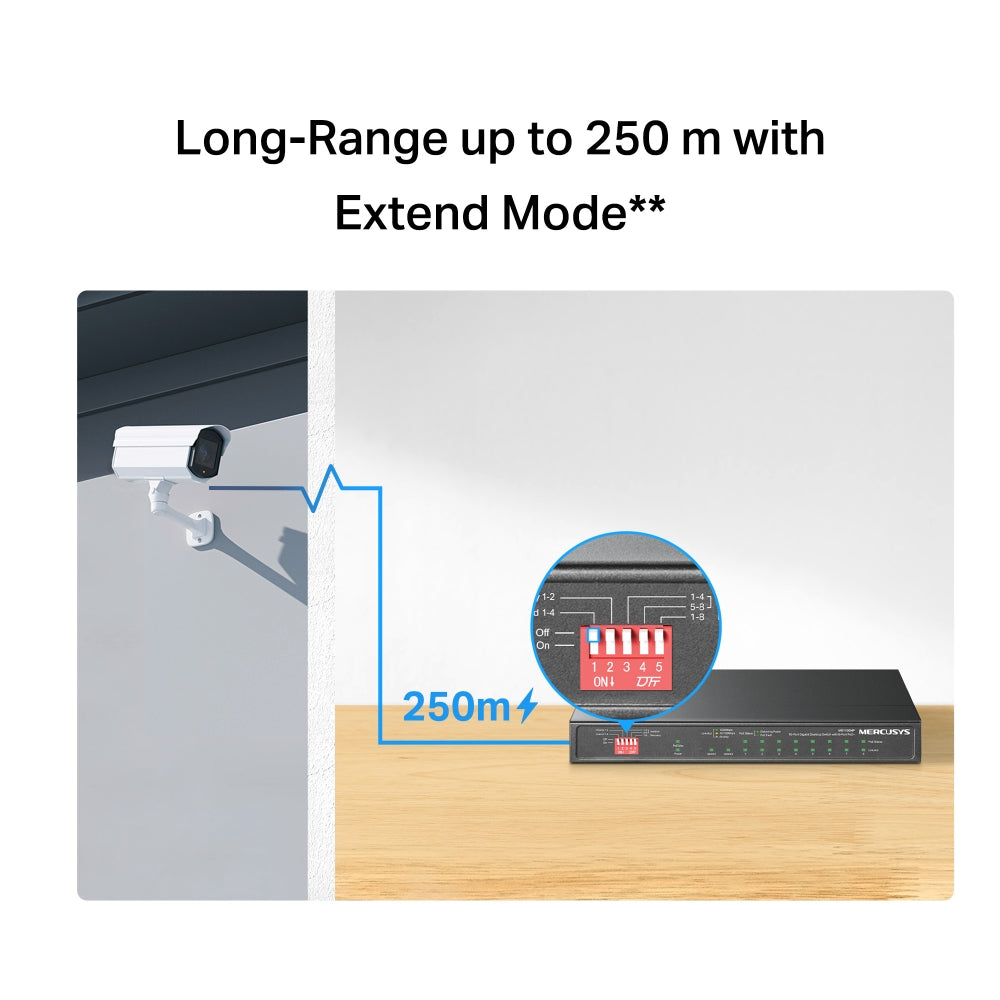

- Extend Mode - Supports data and power transmission up to 250m

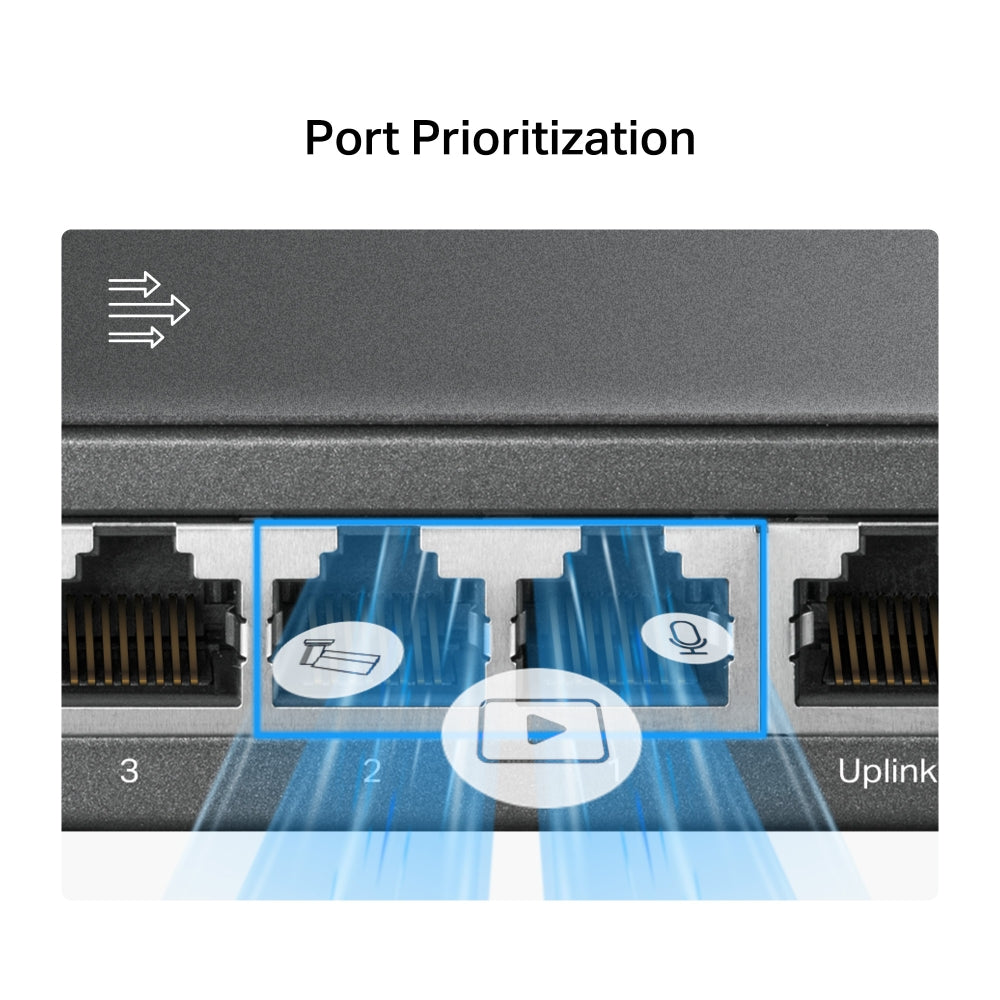

- Priority Mode - Gives ports 1-2 higher priority for sensitive applications

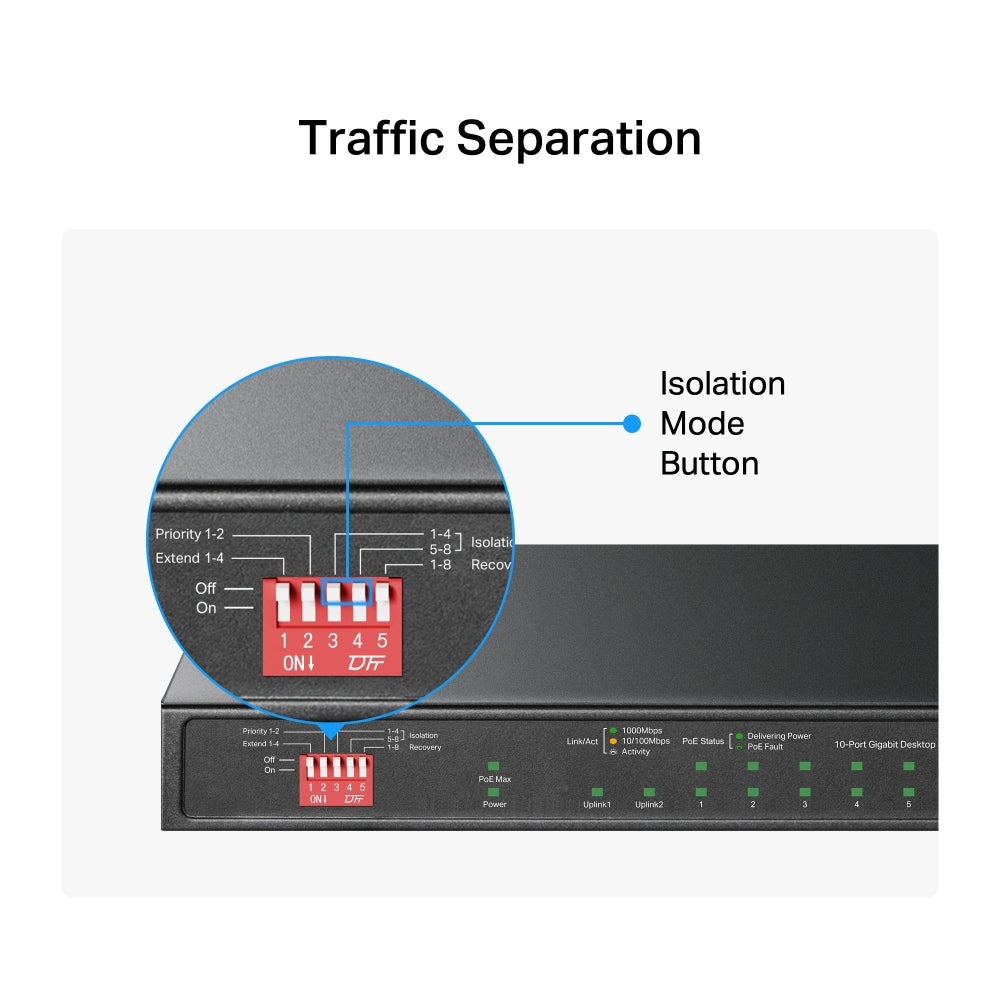

- Isolation Mode - Separates client traffic for improved security and performance

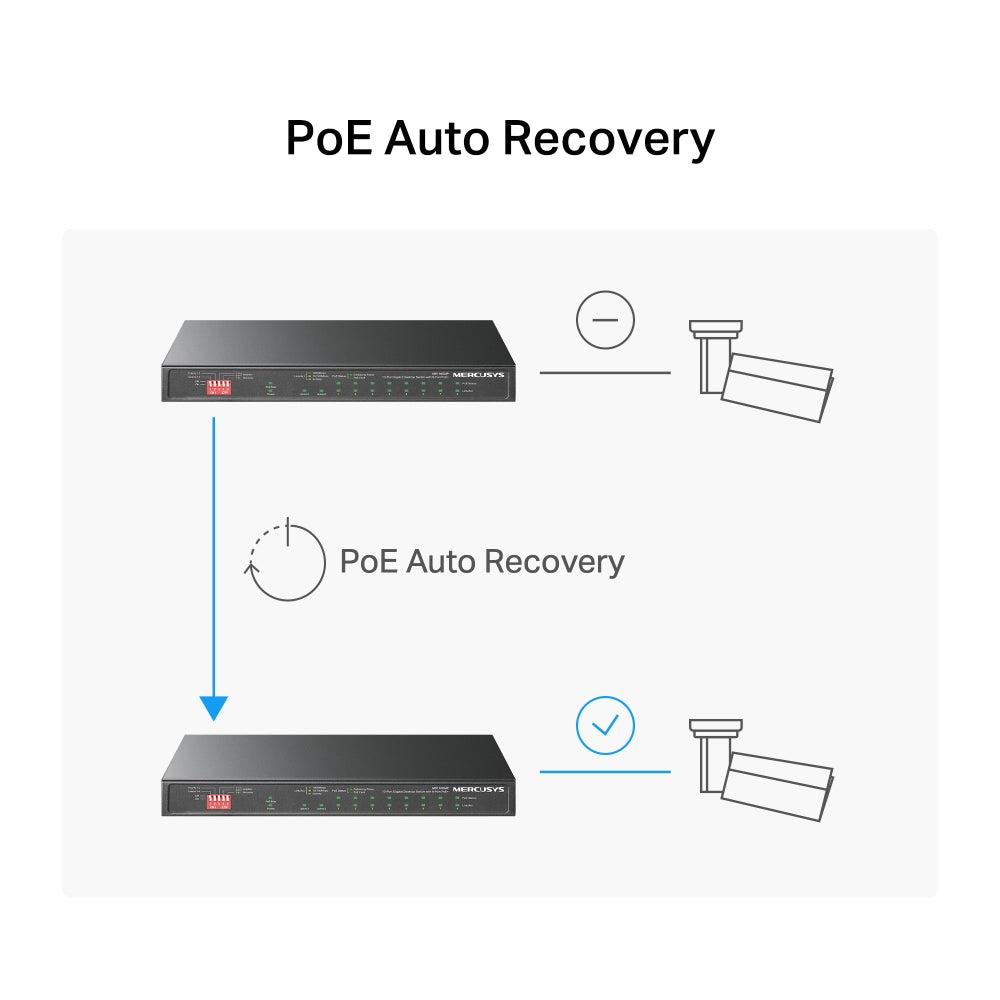

- PoE Auto Recovery - Automatically reboots dropped or unresponsive PoE-powered devices
- Auto-Negotiation - Automatically adjusts port speed for connected devices
- Auto MDI/MDIX - Simplifies installation without needing crossover cables

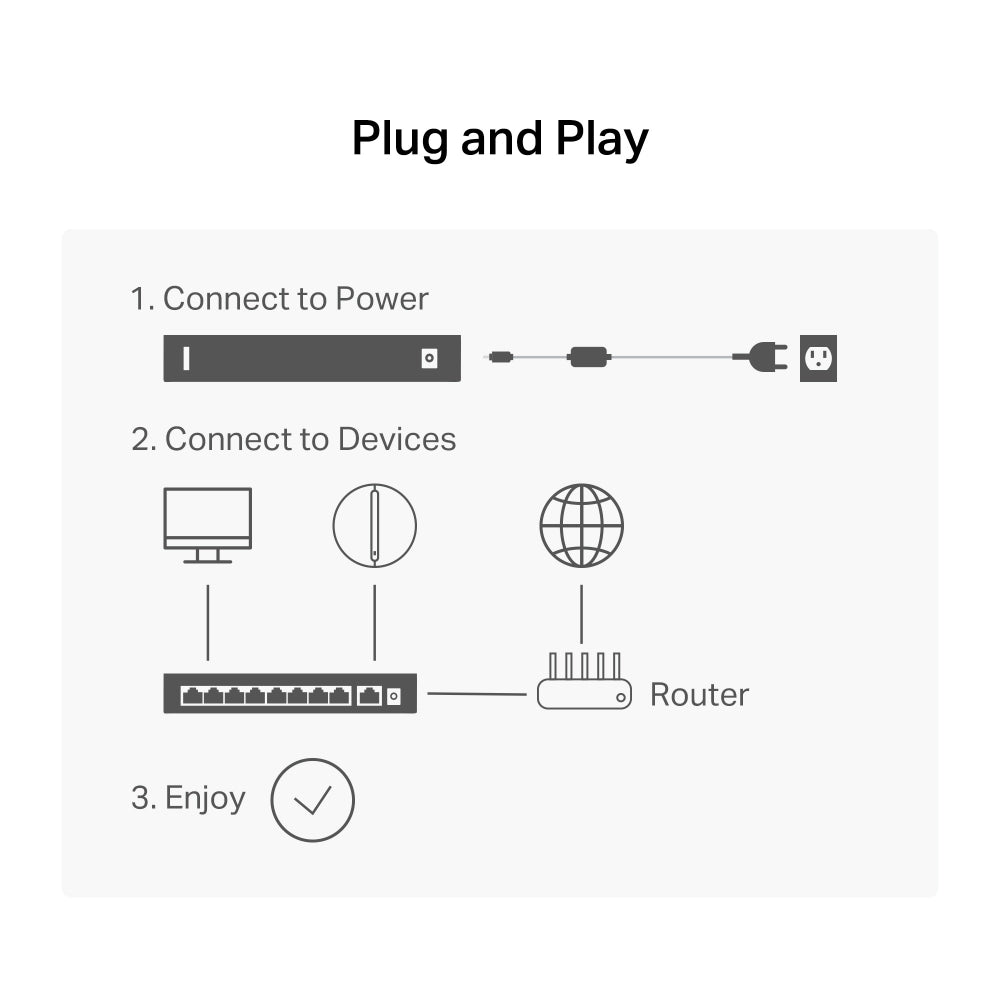

- Fanless Design - Reduces noise for quiet desktop or office placement
Specifications

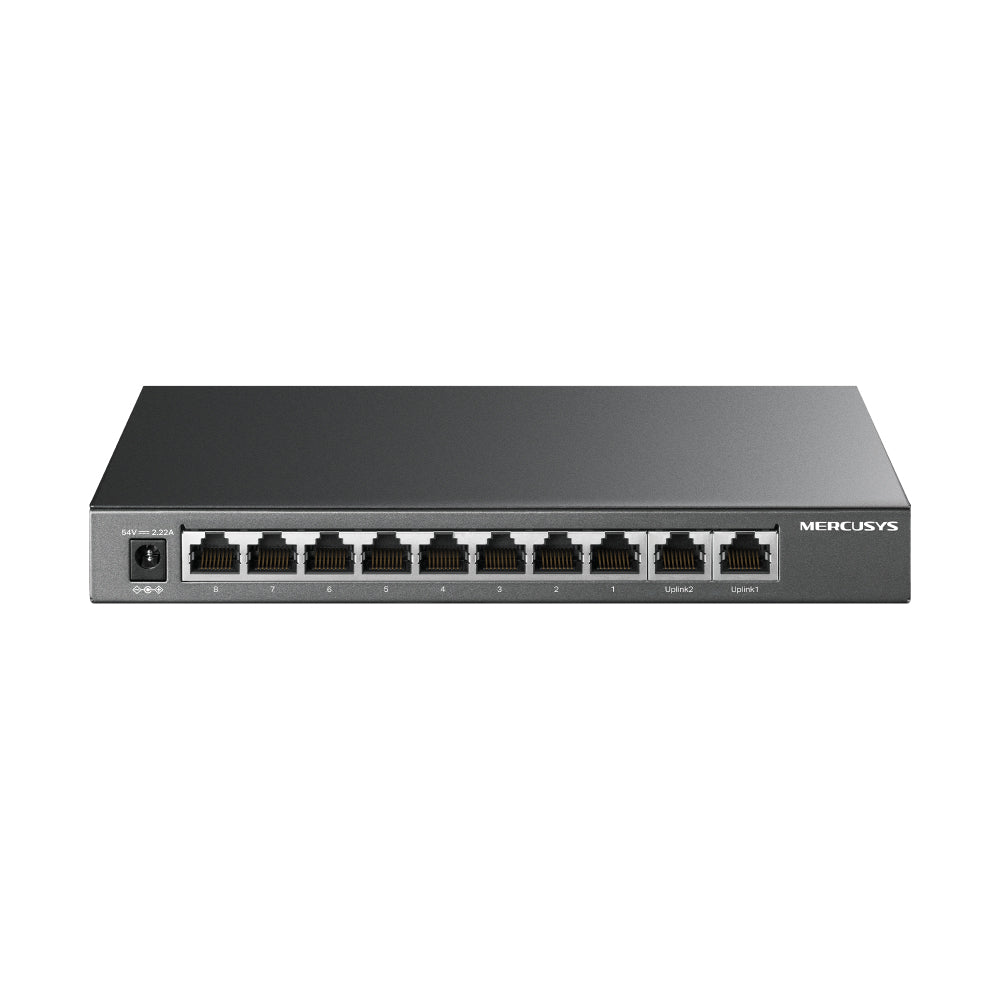

- Interface: 10× 10/100/1000Mbps RJ45 Ports
- PoE Ports: Ports 1-8
- Uplink Ports: 2× Gigabit RJ45 Uplink Ports
- PoE Standard: IEEE 802.3af/at
- PoE Output: Up to 30W per PoE Port
- PoE Power Budget: 111W
- Switching Capacity: 20Gbps
- Forwarding Mode: Store-and-Forward
- MAC Address Table: 4K, Auto-Learning, Auto-Ageing
- Network Media: 10BASE-T, 100BASE-TX and 1000BASE-T
- Auto-Negotiation: Supported
- Auto MDI/MDIX: Supported
- PoE Auto Recovery: Supported
- Extend Mode: Supported
- Isolation Mode: Supported
- Priority Mode: Supported
- Flow Control: Supported
- Fanless Design: Supported

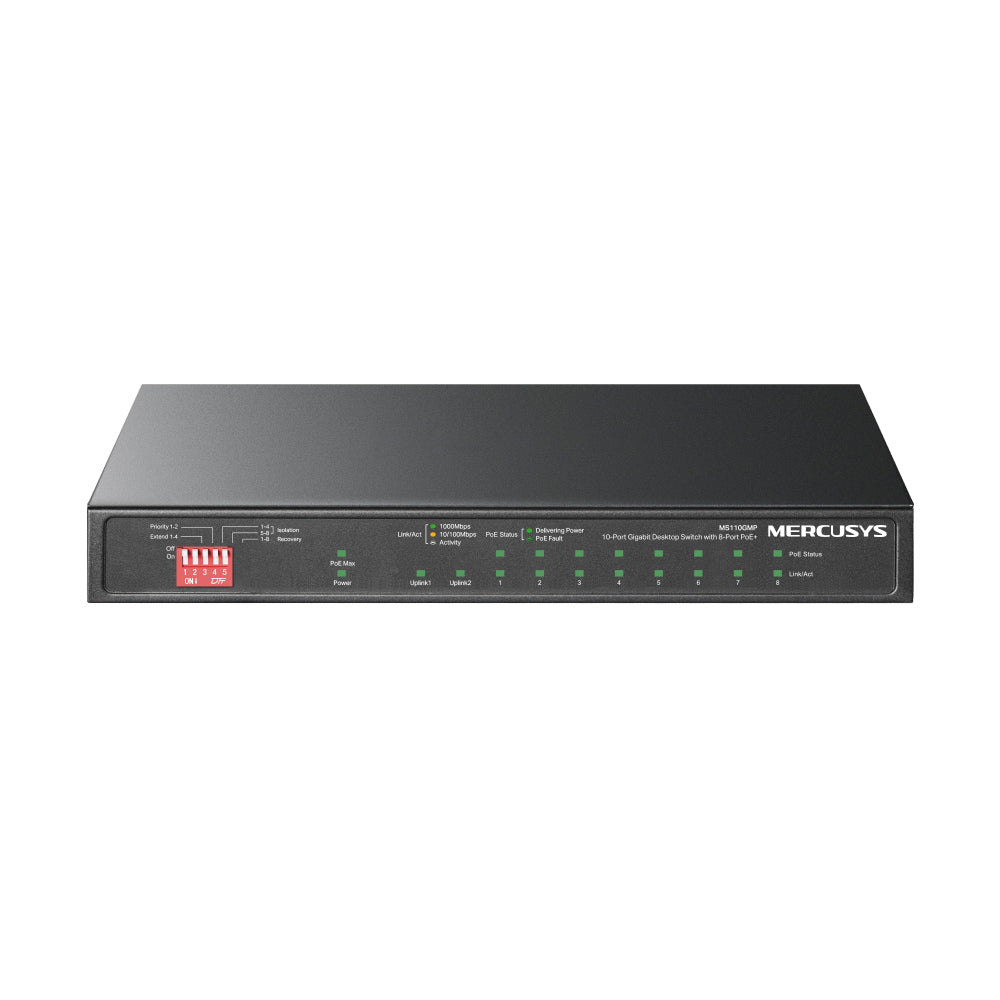

- LEDs: Power, Link/Act, PoE Status, PoE Max.
- External Power Adapter: 54V DC 2.22A
- Max. Power Consumption: 7.37W at 220V/50Hz with No PD Connected, 129.4W at 220V/50Hz with 111W PD Connected
- Max. Heat Dissipation: 25.13BTU/h at 220V/50Hz with No PD Connected, 441.25BTU/h at 220V/50Hz with 111W PD Connected
- Dimensions: 209 × 126 × 26mm
- Operating Temperature: -10~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH, Non-Condensing
- Storage Humidity: 5~90% RH, Non-Condensing
- Certification: CE, RoHS
Notes
- Extend Mode supports up to 250m data and power transmission, but port speed is reduced to 10Mbps
- Ports 1-2 have higher priority when network congestion occurs
- Uplink ports are recommended for connecting to routers, gateways or upstream network devices
