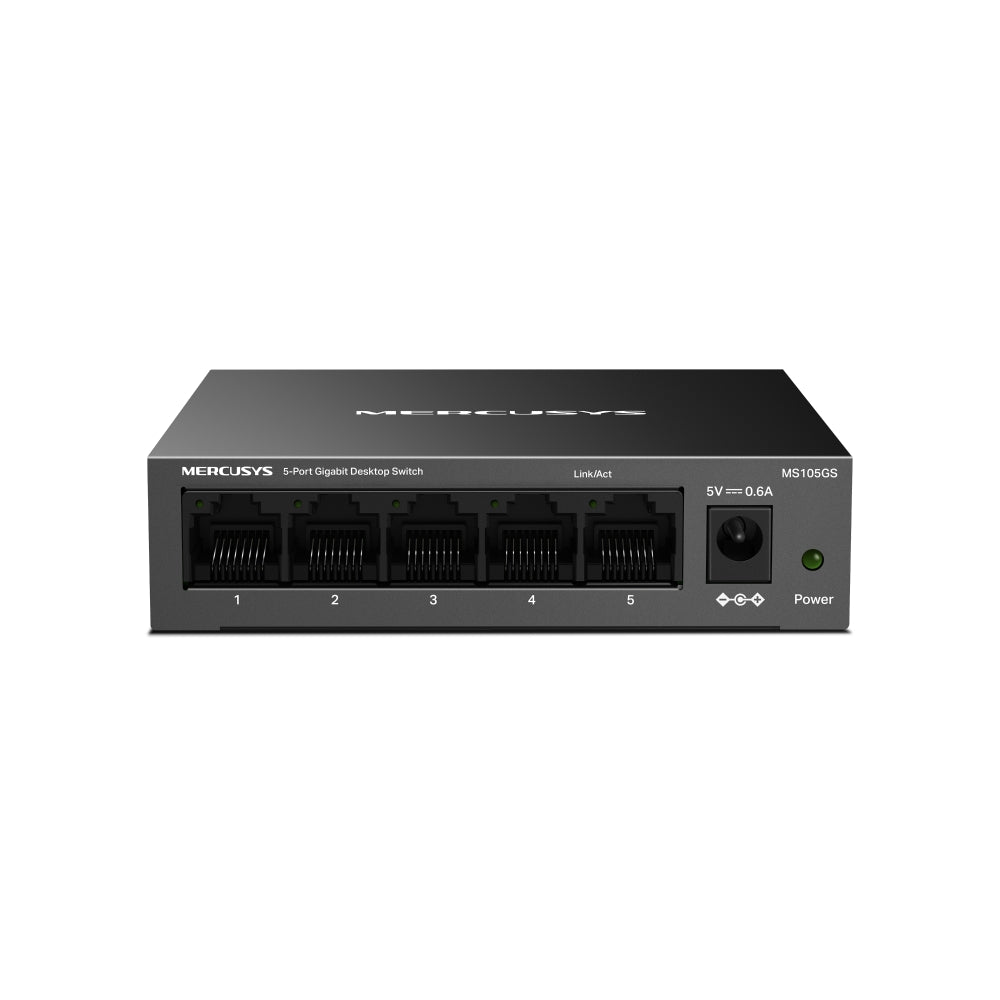

Mercusys MS105GS 5-Port Gigabit Desktop Switch
Fast Networking. Effortless Expansion.
Expand your network effortlessly with the Mercusys MS105GS 5-Port Gigabit Desktop Switch, designed for fast, stable and hassle-free connectivity. With five Gigabit ports, it delivers high-speed performance for bandwidth-intensive applications such as streaming, gaming and file transfers. Its plug-and-play design ensures instant setup with no configuration required, making it ideal for home and small office environments. The durable steel housing and fanless design provide reliable, silent operation and improved heat dissipation for long-term performance. Featuring Green Ethernet technology, the MS105GS reduces power consumption without compromising performance, offering an efficient and cost-effective networking solution.
Features

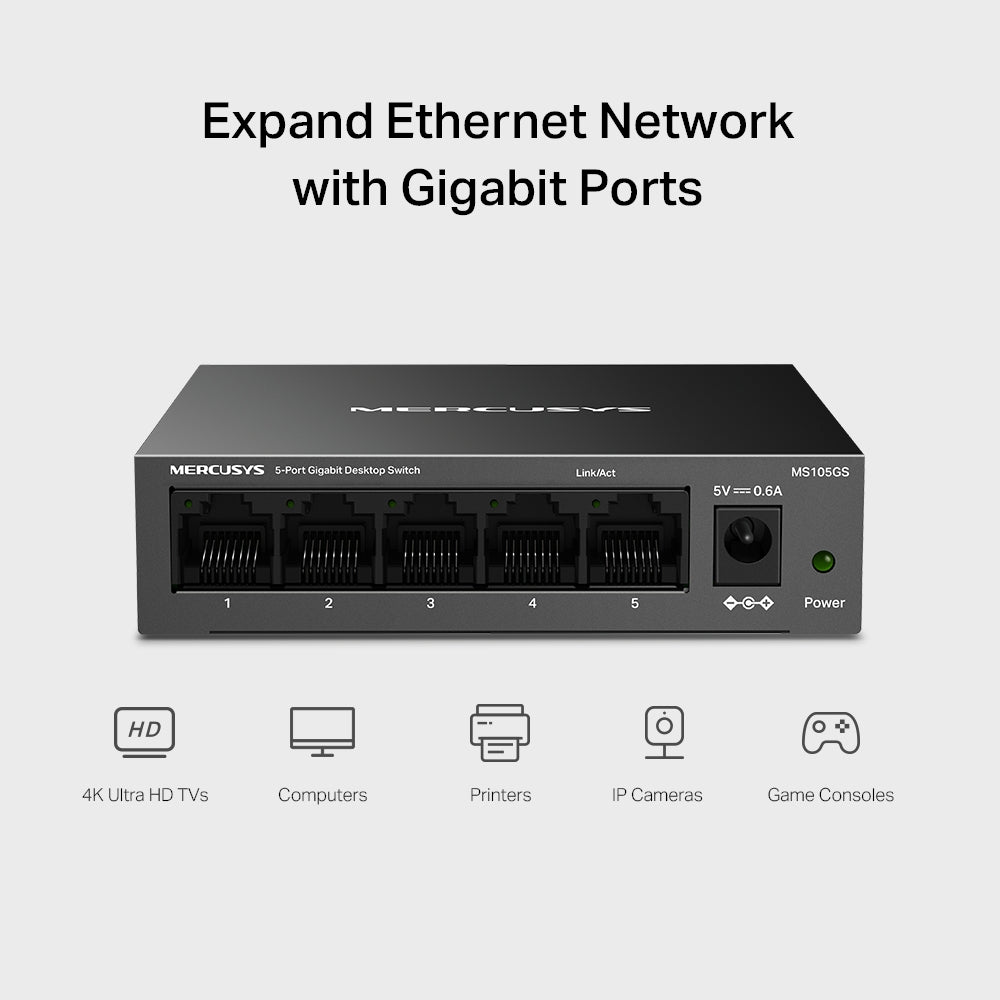

- 5× Gigabit RJ45 Ports - High-speed wired connectivity for multiple devices
- Auto-Negotiation & Auto MDI/MDIX - Seamless compatibility with connected devices
- Plug-and-Play Operation - No configuration required for quick setup

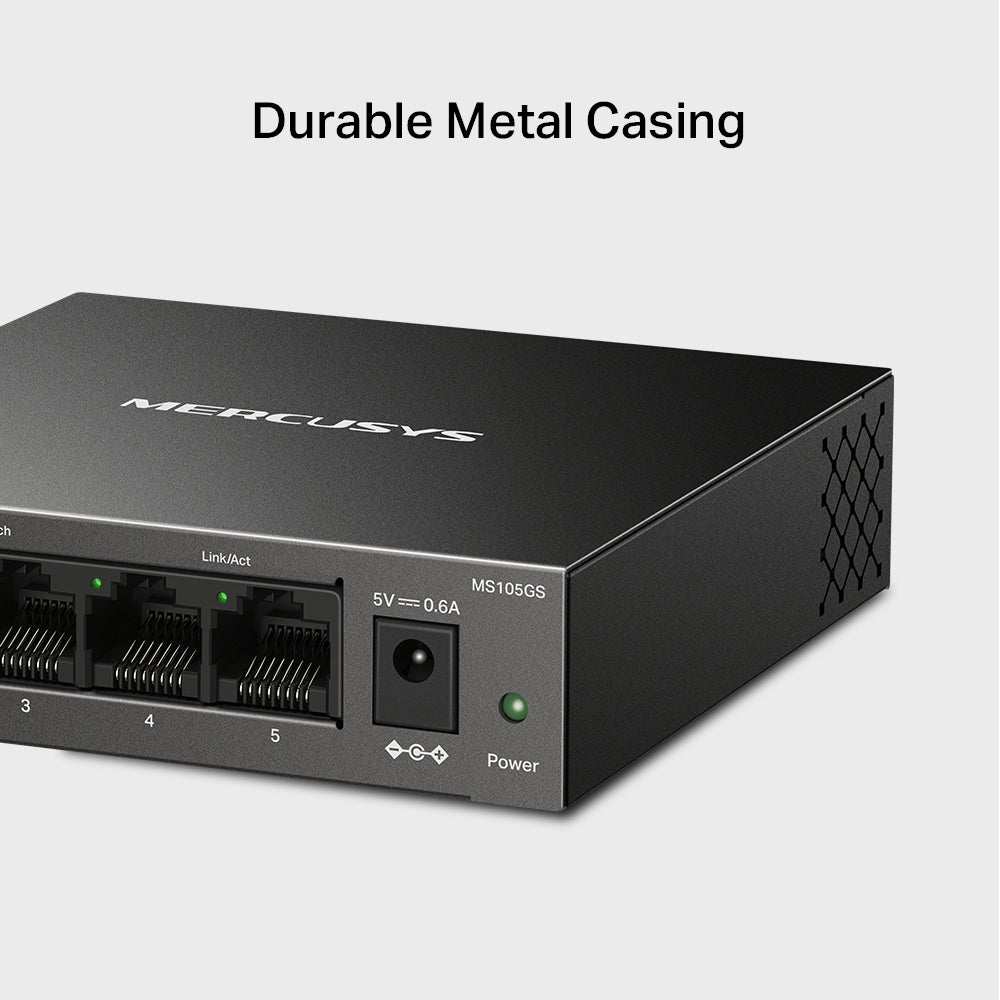

- Steel Housing Design - Durable construction with efficient heat dissipation
- Fanless Operation - Silent performance ideal for home and office use
- Green Ethernet Technology - Reduces power consumption for energy efficiency
Specifications
- Transfer Method: Store-and-Forward
- Interfaces: 5× 10/100/1000Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX
- Standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3p
- Data Rates: 10/100/1000Mbps (Half Duplex), 20/200/2000Mbps (Full Duplex)
- Switch Capacity: 10Gbps
- MAC Address Table: 2K, Auto-Learning, Auto-Aging
- Buffer Capacity: 1Mbit
- Jumbo Frame: 15KB
- Flow Control: Yes
- Fanless: Yes
- LED Indicators: Power, Link/Act
- Power Supply: 5V 0.6A
- Max. Power Consumption: 3.614W
- Max. Heat Dissipation: 12.331BTU/h
- Dimensions: 99.8 × 98 × 25.1mm
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH, Non-Condensing
- Storage Humidity: 5~95% RH, Non-Condensing
- Certification: CE, RoHS
