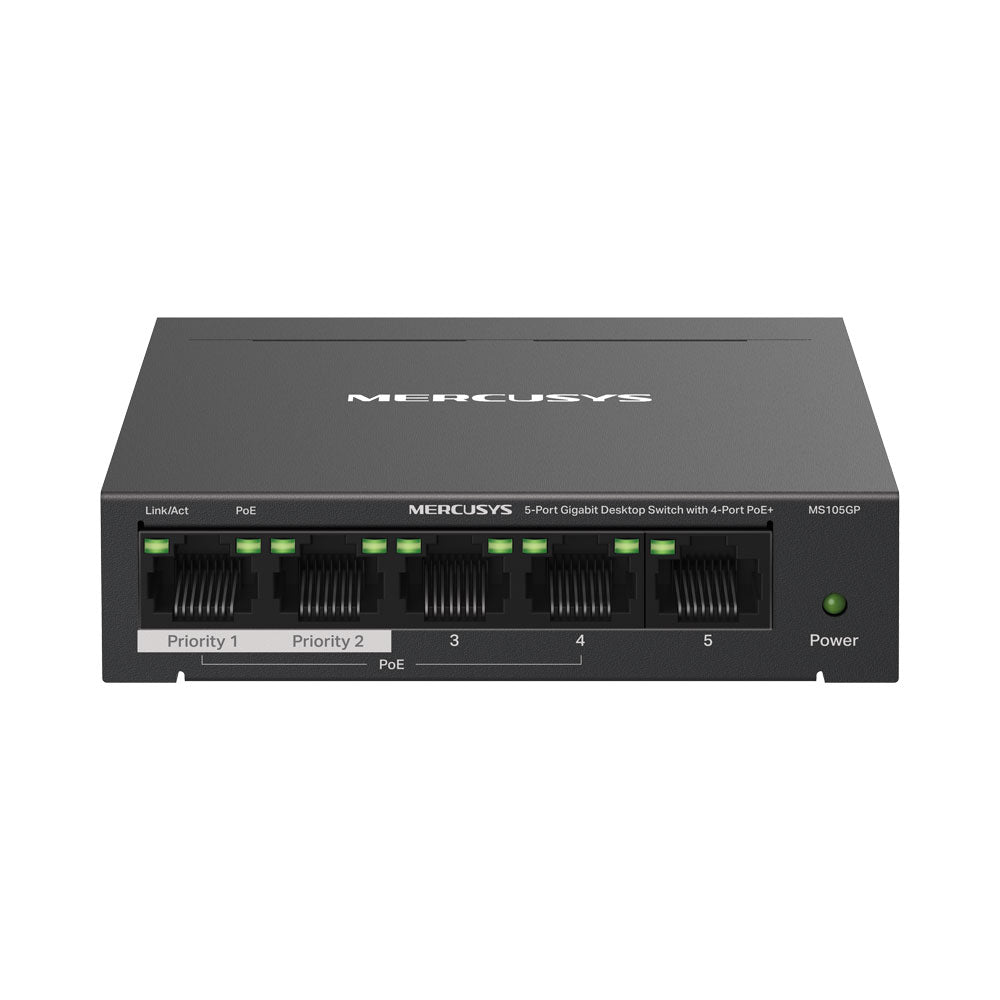

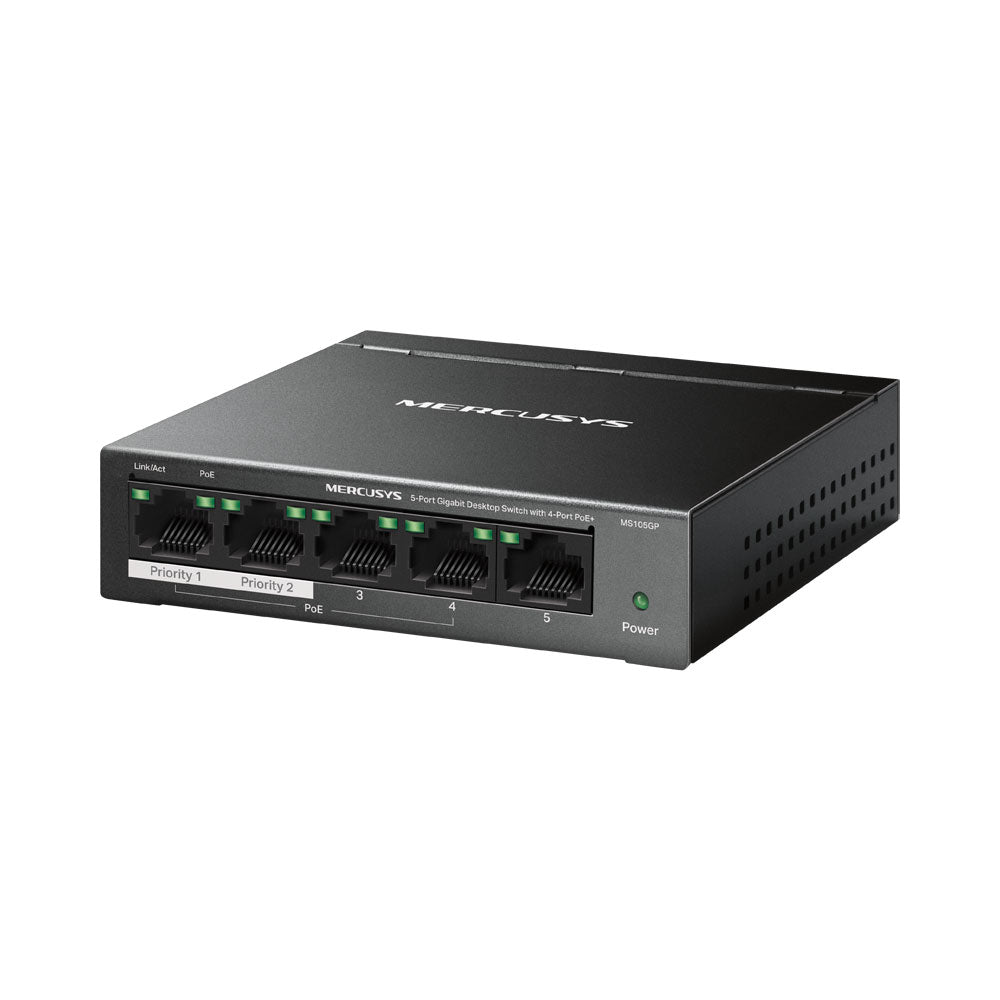

Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+
Reliable Gigabit Networking with Flexible PoE Power.
The Mercusys MS105GP 5-Port Gigabit Desktop Switch provides fast and stable wired connectivity with four PoE+ ports for powering devices such as IP cameras, access points and VoIP phones. With a total PoE power budget of up to 65W, it simplifies installations by delivering both power and data over a single Ethernet cable. Plug-and-play setup, durable metal housing and intelligent power management make it an ideal solution for small business networks and surveillance systems.
Features
- Full Gigabit Ports - 5× 10/100/1000Mbps RJ45 ports
- Two Cables in One - With four PoE+ ports, transfers data and power on one single cable
- High Power PoE+ - Support PoE Power up to 30W for each PoE port and 65W for all PoE ports
- Long-Range up to 250m - Increases PoE transmission distance up to 250m with Extend Mode (Speed decreasing to 10Mbps)

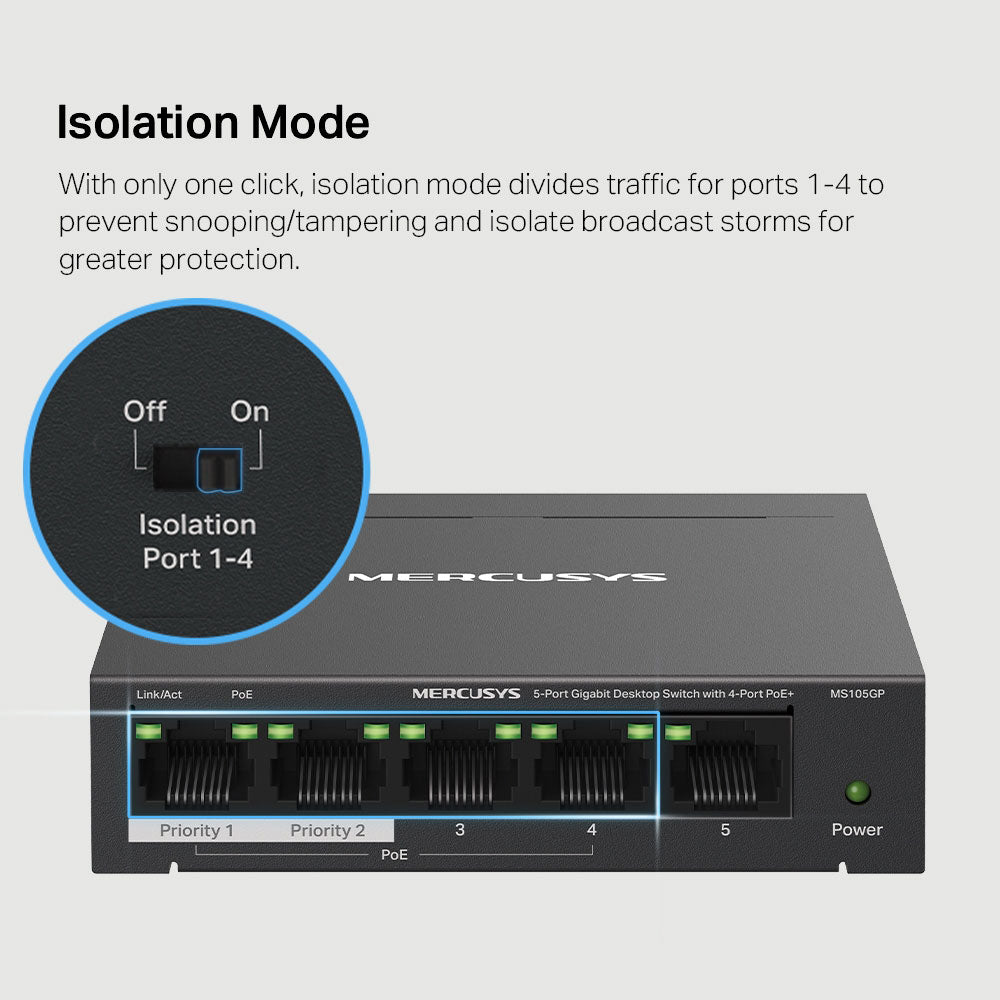

- Isolation Mode - One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices - Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing - Allows for efficient heat dissipation and long network life
- Plug-and-Play - Simple to use and saves time and effort
Specifications
Dimensions (W × D × H)
Poe Ports
- 4× PoE+ Ports (Ports 1~4)
- Standard: IEEE 802.3af/at Powered Devices
- PoE Power Budget: 65W
Interfaces
- 5× RJ45 Gigabit Ethernet Ports
External Power Supply

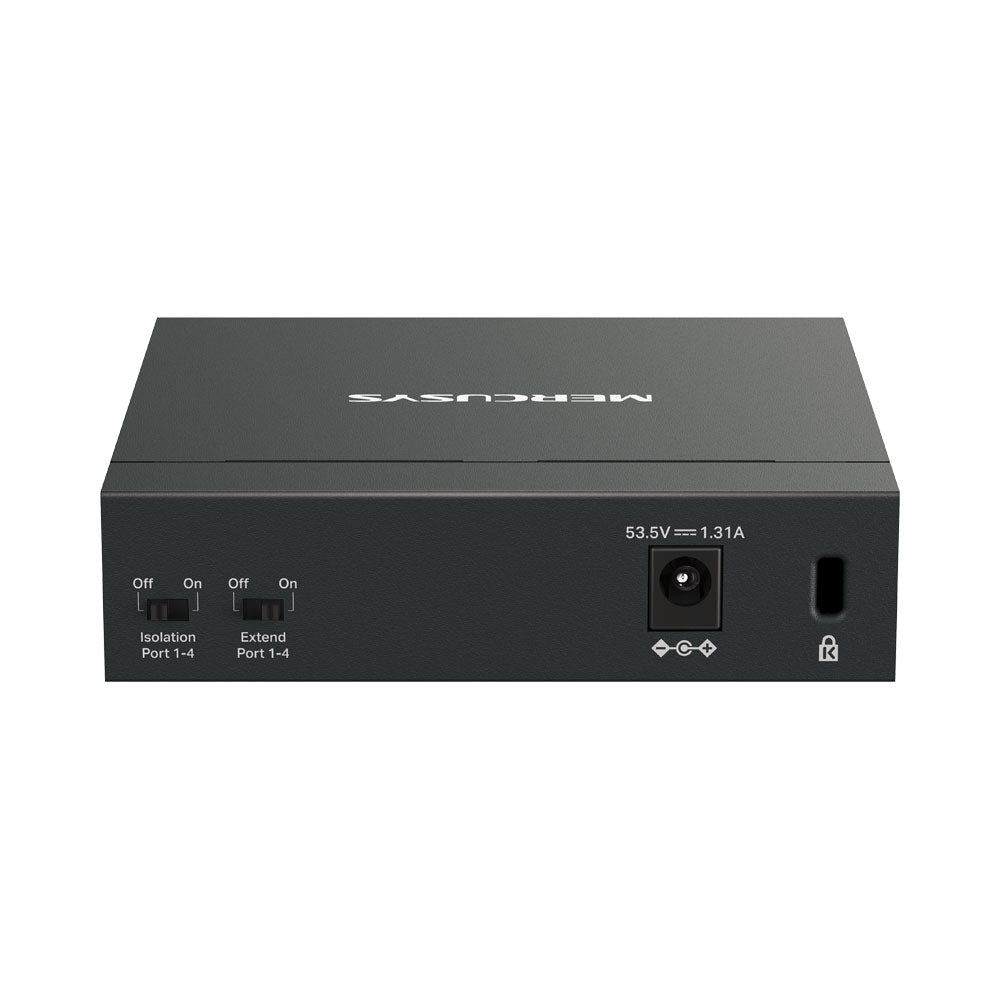

- External Power Adapter (Output: 53.5V 1.31A)
Installation
Standards And Protocols
Data Rates
- 10/100/1000Mbps at Half-Duplex
- 20/200/2000Mbps at Full-Duplex
Jumbo Frame
Mac Address Table
Max Power Consumption
- 3.13W (220V 50Hz, No PD Connected)
- 75.15W (220V 50Hz, With 65W PD Connected)
Max Heat Dissipation
- 10.64 BTU/h (No PD Connected)
- 255.51 BTU/h (With 65W PD Connected)
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH Non-Condensing
- Storage Humidity: 5~95% RH Non-Condensing
