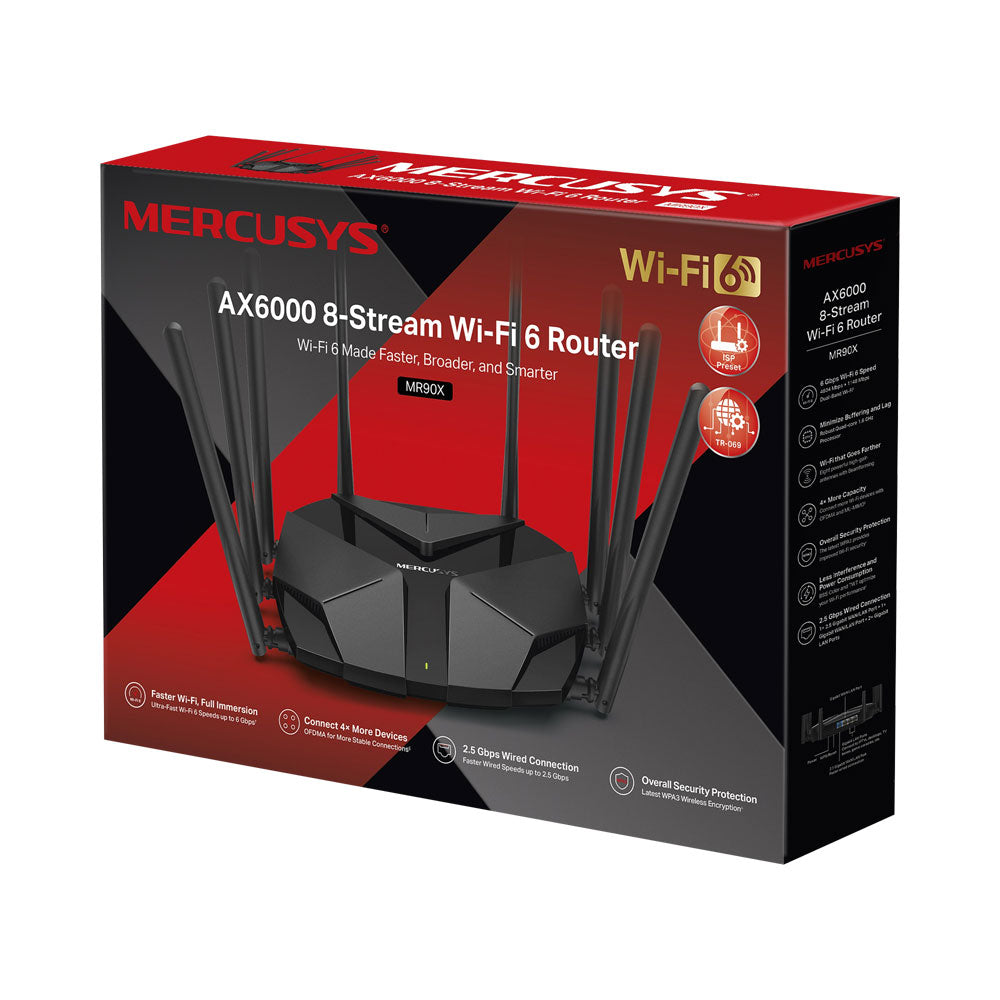

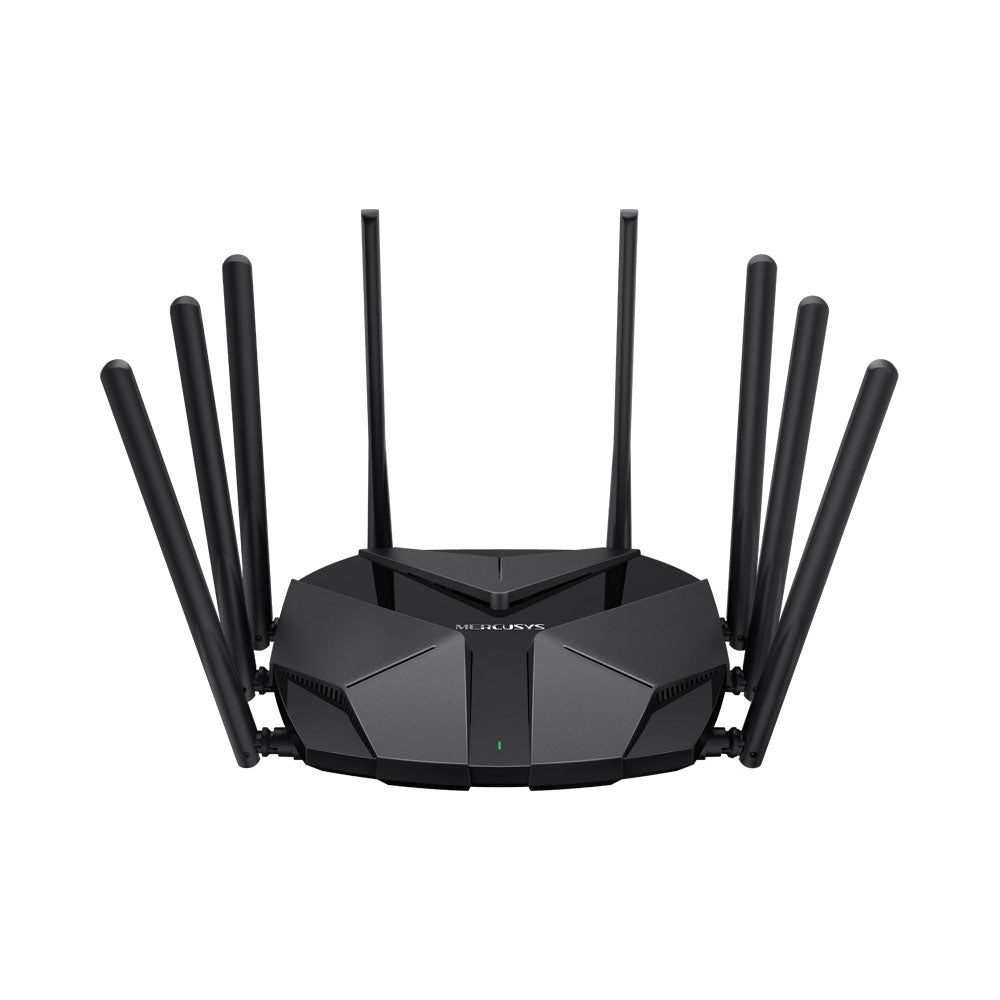

Mercusys MR90X AX6000 Wi-Fi 6 8-Stream Router
Blazing-Fast Wi-Fi 6 for Ultimate Home Networking.
The Mercusys MR90X AX6000 Wi-Fi 6 8-Stream Router delivers powerful next-generation wireless connectivity with combined speeds of up to 6,000Mbps. Designed for demanding networks, it enables smooth 4K/8K streaming, fast downloads and reliable performance for multiple connected devices. Eight high-gain antennas with Beamforming extend coverage throughout your home, while advanced Wi-Fi 6 technologies improve efficiency and reduce congestion. With high-speed Gigabit wired connections and enhanced security, the MR90X provides powerful, stable networking for modern connected homes.
Features
- Optimal Wi-Fi 6 Speeds - Optimal Wi-Fi 6 speeds reaching up to 6Gbps for faster browsing, streaming and downloading, all at the same time

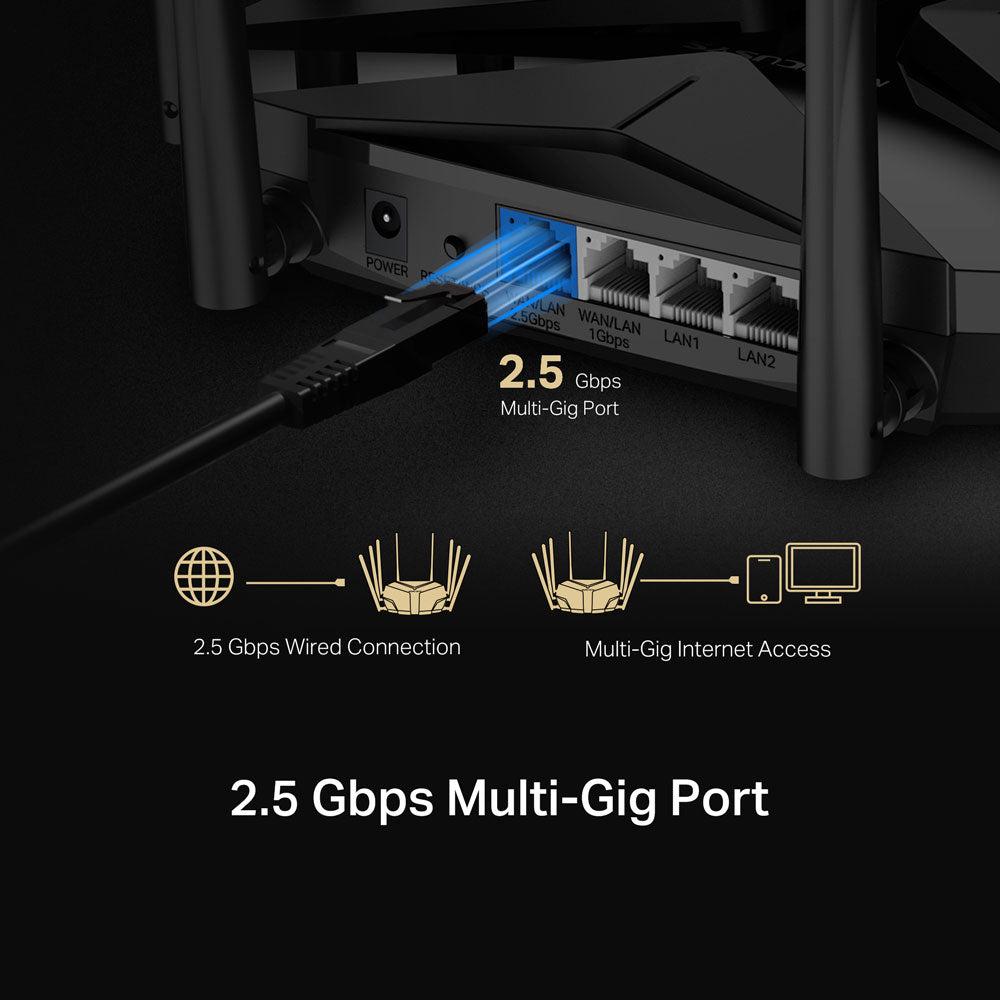

- 2.5Gbps Multi-Gig Port - Break through the 1G bottleneck and drive your devices to peak performance
- More Devices, More Fun - Supports 4×4 MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput
- Wi-Fi That Goes Further - 8× Multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong Wi-Fi signals in every corner
- Overall Security Protection - The latest WPA3 provides improved Wi-Fi security
- Gigabit Wired Connections - Make full use of your internet access and transfer data at dizzying speeds for peak performance
- Eco-Friendly Power Saving - Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
- Less Wi-Fi Interference - Minimises the interference from neighbouring signals to improve transmission efficiency with BSS colouring
- Smart Connect - Intelligently chooses the best available band for each device
Specifications
Wireless Standards
Wi-Fi Speeds
- 4,804Mbps (5.0GHz)
- 1,148Mbps (2.4GHz)
Reception Sensitivity
2.4GHz
- 11g 6Mbps: -97dBm
- 11g 54Mbps: -79dBm
- 11n HT40 MCS7: -74dBm
- 11n HT20 MCS7: -77dBm
5.0GHz
- 11a 6Mbps: -97dBm
- 11a 54Mbps: -79dBm
- 11ac VHT20 MCS8: -75dBm
- 11ac VHT40 MCS9: -71dBm
- 11ac VHT80 MCS9: -67dBm
- 11ax VHT20 MCS11: -67dBm
- 11ax VHT40 MCS11: -64dBm
- 11ax VHT80 MCS11: -61dBm
Transmission Power
- 2.4GHz: <20dBm (EIRP)
- 5.0GHz: <23dBm (Band 1, Band 2)
- 5.0GHz: <30dBm (Band 3)
Wireless Security
- WPA / WPA2-Personal
- WPA2 / WPA3-Personal
Wireless Functions
- Enable / Disable Wireless Radio
- WMM
Dimensions (W × D × H)

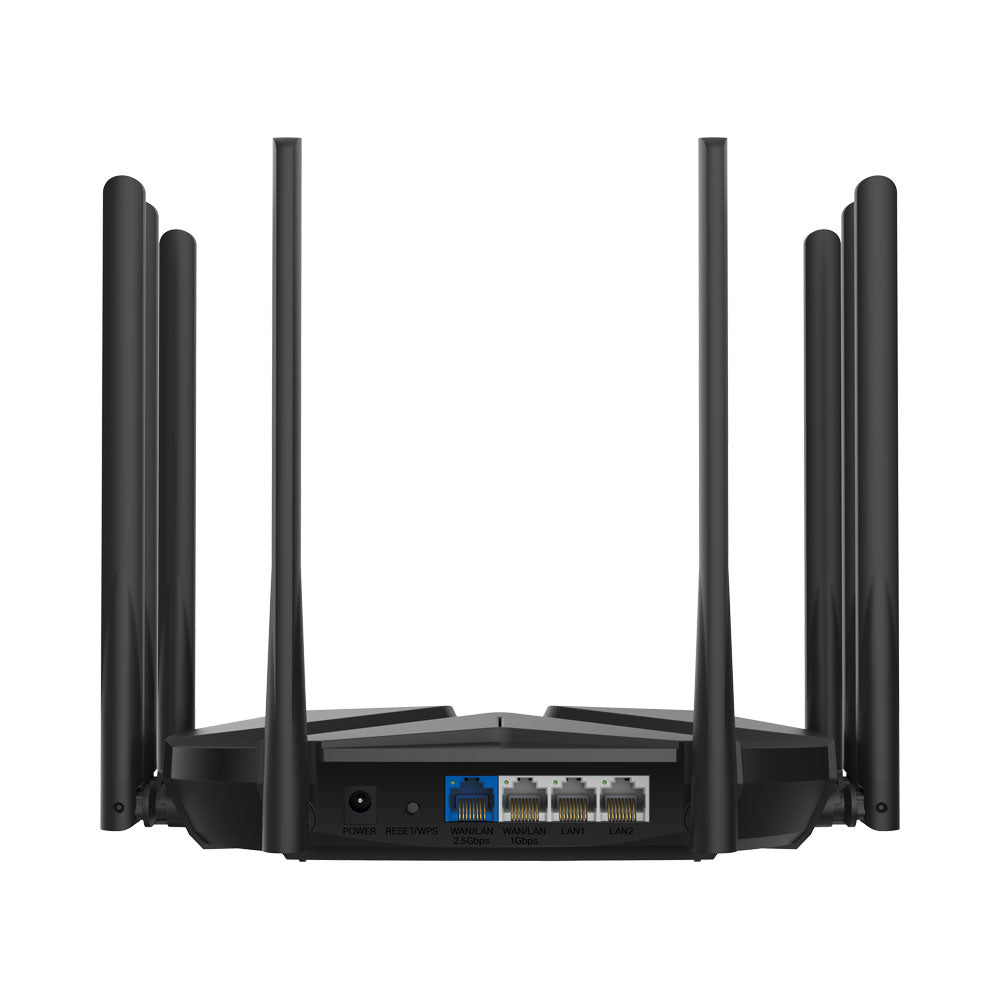

Interfaces
- 1× 2.5Gbps WAN/LAN Port
- 1× Gigabit WAN/LAN Port
- 2× Gigabit LAN Ports
Button
Antenna Type
- 8× Fixed Omni-Directional Antennas
Wan Type
- Dynamic IP
- Static IP
- PPPoE
- L2TP
- PPTP
Management
- Access Control
- Local Management
- Remote Management
Dhcp
Nat Forwarding
- Port Forwarding
- Port Triggering
- UPnP
- DMZ
Firewall Security
- SPI Firewall
- IP and MAC Address Binding
Guest Network
- 2.4GHz Guest Network
- 5.0GHz Guest Network
Vpn Server
Environment
- Operating Temperature: 0~40°C
- Operating Humidity: 10~90% Non-Condensing
- Storage Humidity: 5~90% Non-Condensing
