Mercusys MR80X AX3000 Wi-Fi 6 Dual-Band Router
Reliable Dual-Band Wi-Fi for Everyday Connectivity
The Mercusys MR20 AC750 Wireless Dual-Band Router delivers fast and stable wireless performance for homes and small offices. With combined speeds of up to 750Mbps across 2.4GHz and 5.0GHz bands, it supports smooth streaming, browsing and online gaming. Two high-gain external antennas provide broader coverage and stronger signals, while multiple operating modes allow the router to function as a Router, Access Point or Range Extender to suit different networking needs.
Features
- Optimal Wi-Fi 6 Speeds - Delivers combined wireless speeds of up to 3Gbps for faster browsing, streaming and downloads across multiple devices
- Extended Wi-Fi Coverage - Four multi-directional high-gain antennas with Beamforming provide stable connections and stronger signals throughout your home
- More Devices, More Performance - MU-MIMO and OFDMA technologies reduce congestion and improve network efficiency for multiple devices
- Gigabit Wired Connectivity - Gigabit Ethernet ports enable high-speed wired connections for PCs, smart TVs and gaming consoles
- Smart Connect Technology - Automatically selects the best available Wi-Fi band for each connected device
- Advanced Security Protection - WPA3 encryption enhances wireless security and protects your network from unauthorised access
- Reduced Wi-Fi Interference - BSS colouring minimises interference from neighbouring networks to improve wireless performance
- Energy-Efficient Networking - Target Wake Time (TWT) reduces power consumption for connected mobile and IoT devices
Specifications
Wireless
- Wireless Standards: Compatible with IEEE 802.11ax/ac/a/b/g/n Wi-Fi standards
- Signal Rate:
- 2402Mbps on 5.0GHz
- 574Mbps on 2.4GHz
Reception Sensitivity
- 11g 6Mbps: -97dBm
- 11g 54Mbps: -79dBm
- 11n HT40 MCS7: -74dBm
- 11n HT20 MCS7: -77dBm
- 11a 6Mbps: -97dBm
- 11a 54Mbps: -79dBm
- 11ac VHT20 MCS8: -75dBm
- 11ac VHT40 MCS9: -71dBm
- 11ac VHT80 MCS9: -67dBm
- 11ax VHT20 MCS11: -67dBm
- 11ax VHT40 MCS11: -64dBm
- 11ax VHT80 MCS11: -61dBm
Transmission Power
- 2.4GHz: <20dBm (EIRP)
- 5.0GHz: <23dBm (Band 1, Band 2)
- 5.0GHz: <30dBm (Band 3)
Wireless Security
- WEP
- WPA
- WPA2-Personal
- WPA2 / WPA3-Personal
Wireless Functions
- Enable / Disable Wireless Radio
- WMM
Wan Type
- Dynamic IP
- Static IP
- PPPoE
- L2TP
- PPTP
Management
- Access Control
- Local Management
- Remote Management
Dhcp
Nat Forwarding
- Port Forwarding
- Port Triggering
- UPnP
- DMZ
Firewall Security
- SPI Firewall
- IP and MAC Address Binding
Guest Network
- 2.4GHz Guest Network
- 5.0GHz Guest Network
Vpn Server
Hardware
- Dimensions (W × D × H): 208.8 × 171.6 × 41.7mm

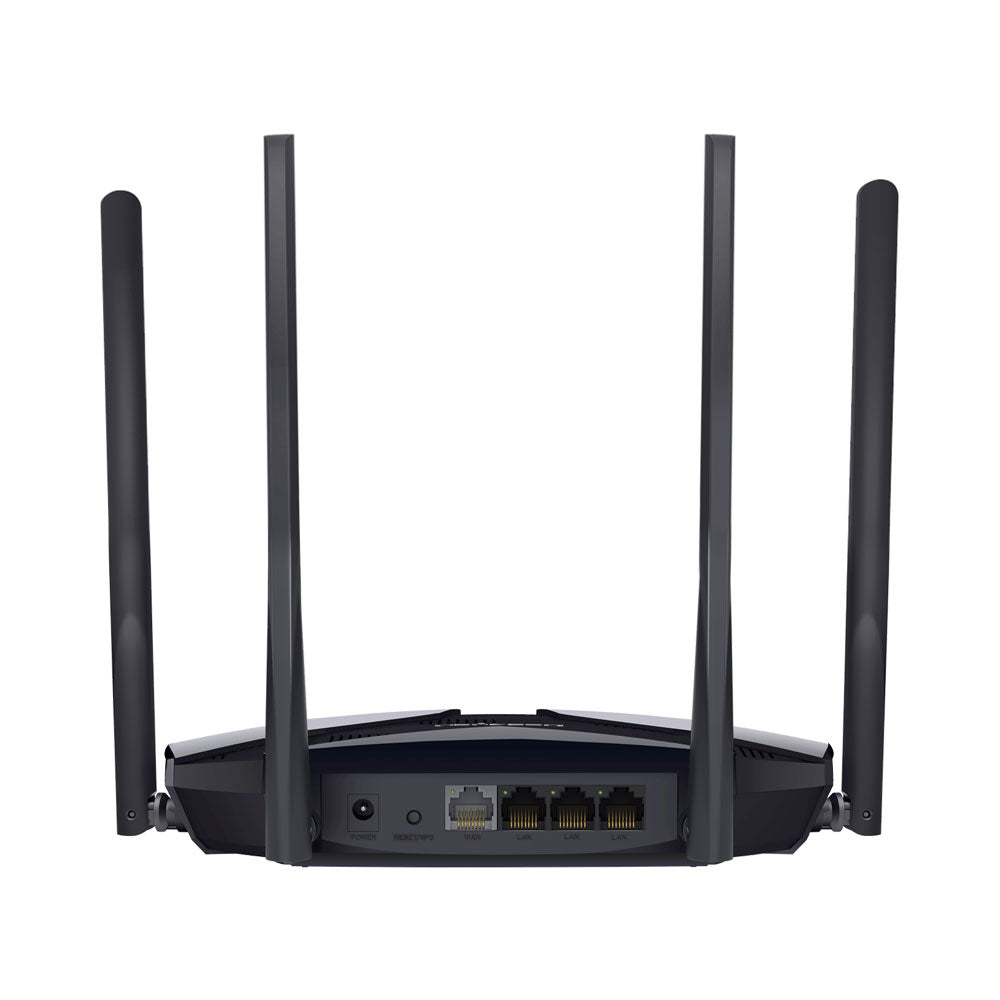

- Interfaces:
- 1× Gigabit WAN Port
- 3× Gigabit LAN Ports
- Button: Reset / WPS Button
- Antenna Type: 4× 5dBi Fixed Omnidirectional Antennas
Environment
- Operating Temperature: 0~40°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
