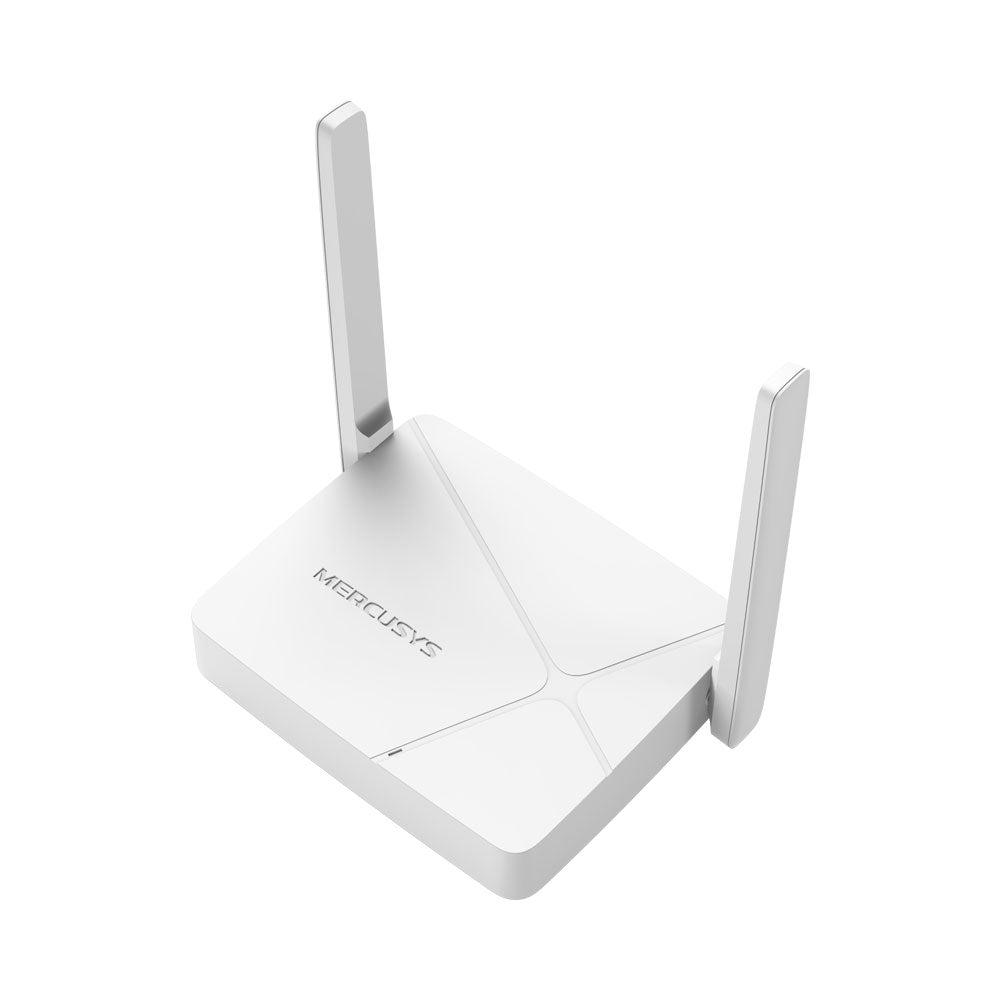

Mercusys MR20 AC750 Wireless Dual-Band Router
Reliable Dual-Band Wi-Fi for Everyday Connectivity
The Mercusys MR20 AC750 Wireless Dual-Band Router delivers fast and stable wireless performance for homes and small offices. With combined speeds of up to 750Mbps across 2.4GHz and 5.0GHz bands, it supports smooth streaming, browsing and online gaming. Two high-gain external antennas provide broader coverage and stronger signals, while multiple operating modes allow the router to function as a Router, Access Point or Range Extender to suit different networking needs.
Features
- AC750 Dual-Band Wi-Fi - Delivers combined wireless speeds of up to 750Mbps (433Mbps on 5.0GHz and 300Mbps on 2.4GHz) for smooth streaming and everyday connectivity
- Broader Wi-Fi Coverage - Two high-gain external antennas provide stable omnidirectional signals for stronger coverage throughout your home
- Multi-Mode Operation - Supports Router Mode, Access Point Mode and Range Extender Mode to suit different networking scenarios
- Easy Setup - Intuitive web interface guides you through the installation process in just a few minutes
- Advanced Network Management - Features such as Parental Controls, QoS and Guest Network help manage and secure your home network
- IPTV and IPv6 Support - Compatible with IPTV services and the latest IPv6 internet protocol for modern network environments
Specifications
Wireless
- Signal Rate:
- 300Mbps on 2.4GHz
- 433Mbps on 5.0GHz
- Compatible with IEEE 802.11ac/a/b/g/n standards
Reception Sensitivity
2.4GHz
- 11g 6Mbps: -94dBm
- 11g 54Mbps: -77dBm
- 11n HT40 MCS7: -73dBm
- 11n HT20 MCS7: -76dBm
5.0GHz
- 11a 6Mbps: -93dBm
- 11a 54Mbps: -75dBm
- 11ac VHT20 MCS8: -70dBm
- 11ac VHT40 MCS9: -65dBm
- 11ac VHT80 MCS9: -62dBm
Transmission Power
- 2.4GHz: <20dBm (EIRP)
- 5.0GHz: <23dBm (EIRP)
Wireless Security
Operation Modes
- Router Mode
- Range Extender Mode
- Access Point Mode
Wan Type
- Dynamic IP
- Static IP
- PPPoE
- L2TP
- PPTP
Management
- Access Control
- Local Management
- Remote Management
Dhcp
Nat Forwarding
- Port Forwarding
- Port Triggering
- UPnP
- DMZ
Firewall Security
- SPI Firewall
- IP and MAC Address Binding
Guest Network
- 2.4GHz Guest Network
- 5.0GHz Guest Network
Hardware
- Dimensions (W × D × H): 114 × 94 × 26mm

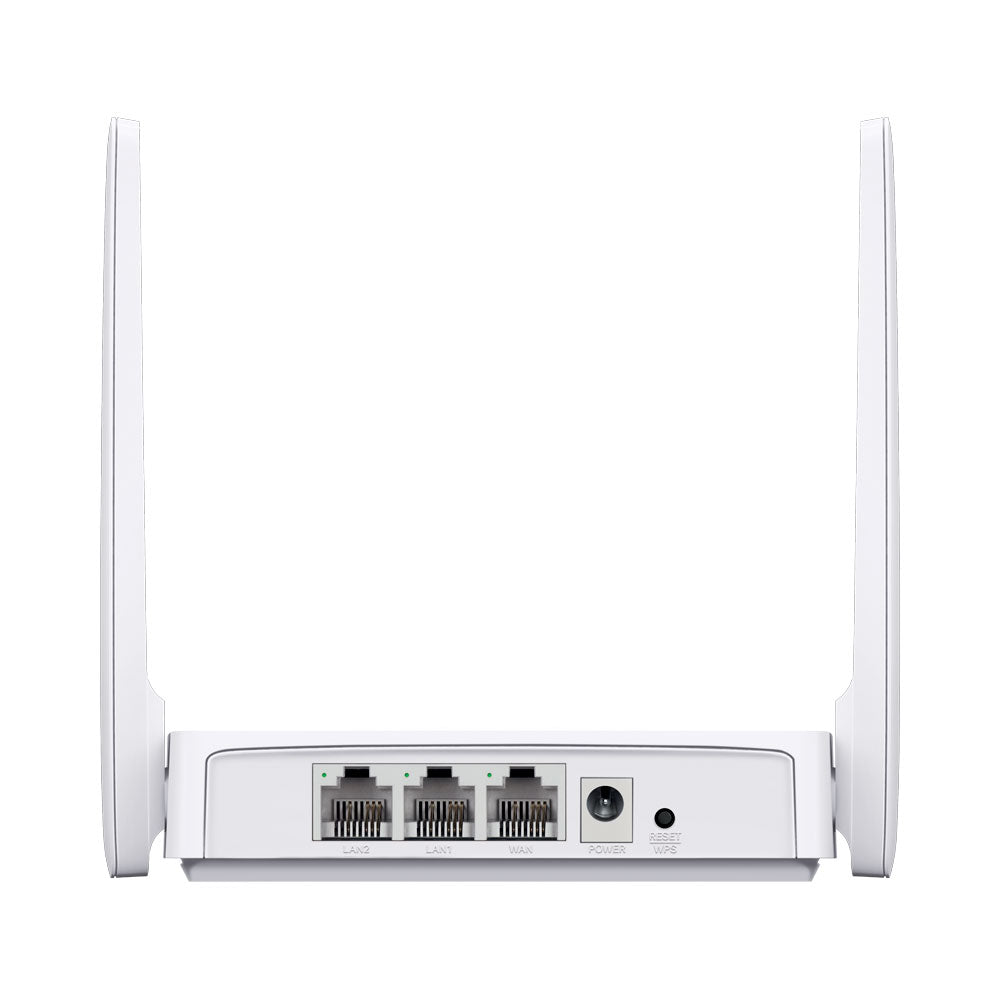

- Interfaces:
- 1× 10/100Mbps WAN Port
- 2× 10/100Mbps LAN Ports
- Button: Reset / WPS Button
- Antenna Type: 2× 5dBi Fixed Omnidirectional Antennas
Environment
- Operating Temperature: 0~40°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
