MERCUSYS AV1000 GIGABIT POWERLINE WI-FI KIT

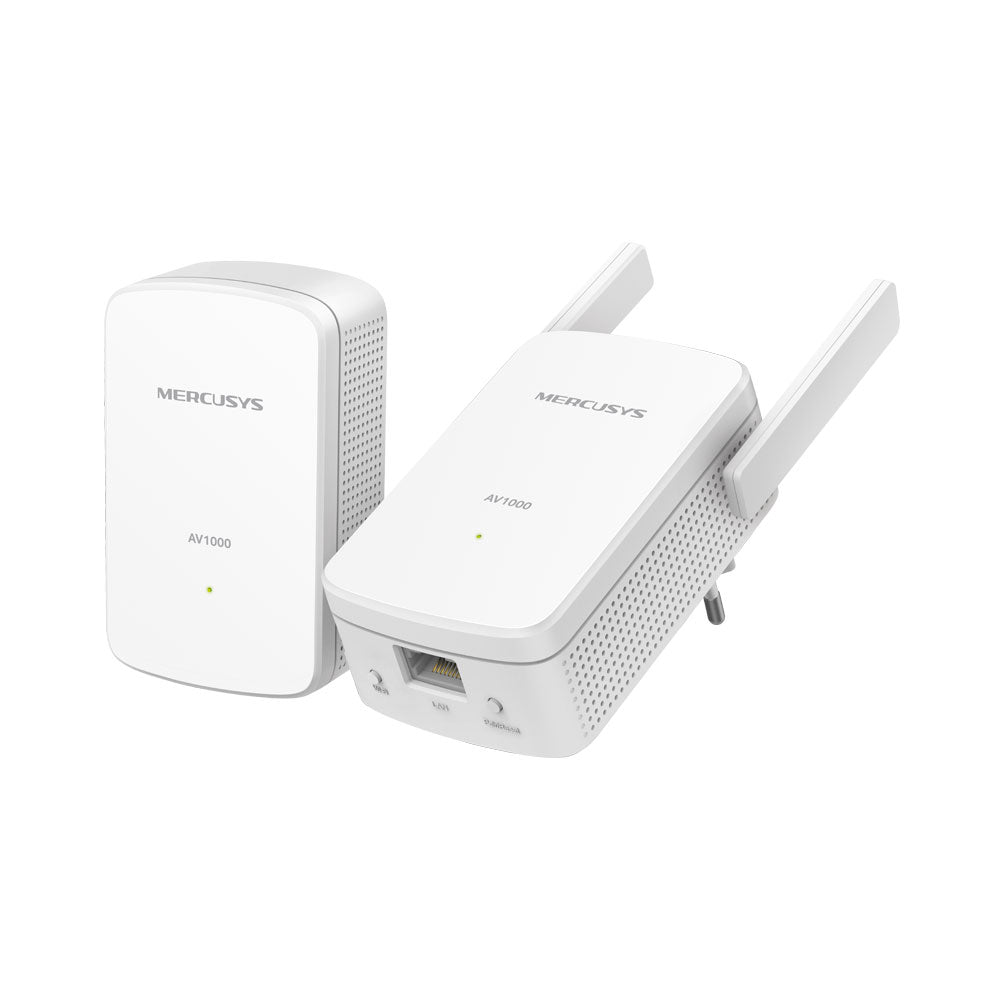

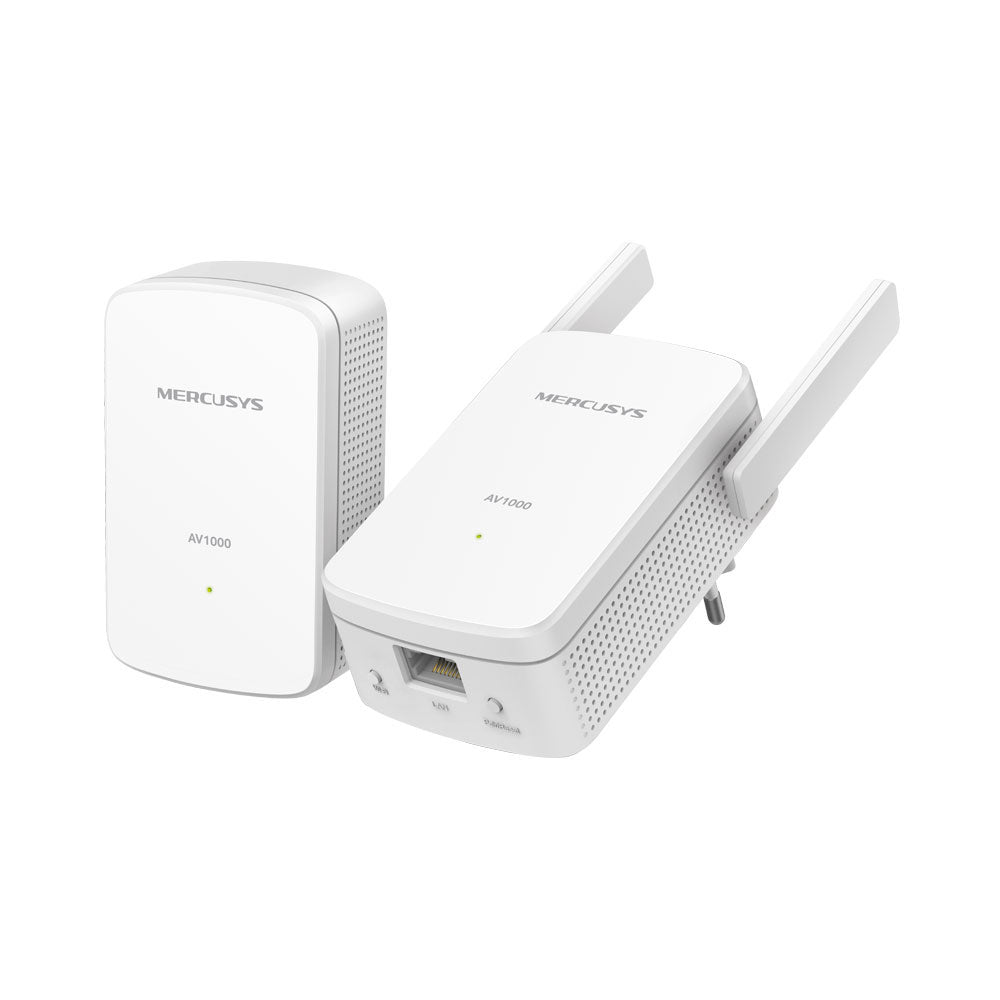

Mercusys MP510 KIT AV1000 Gigabit Powerline Wi-Fi Kit

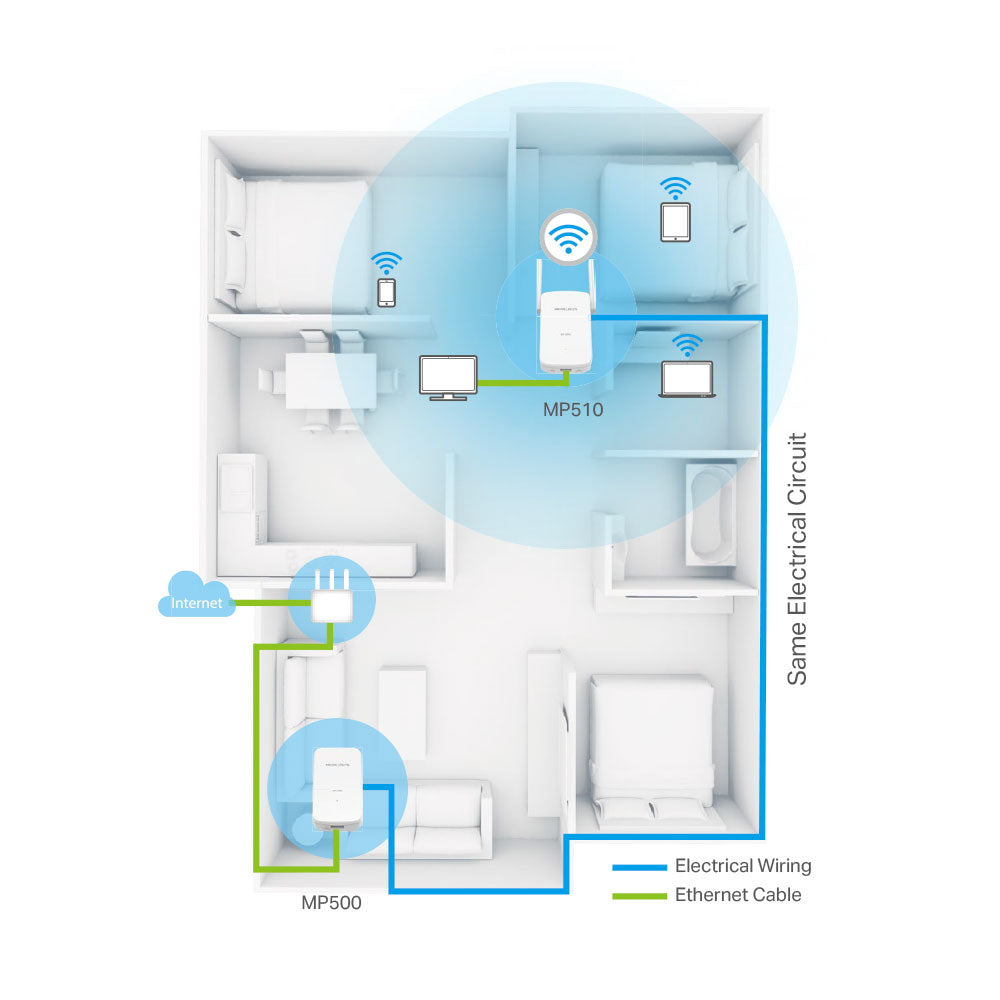

Extend Wired and Wireless Networking Through Your Electrical Wiring.

The Mercusys MP510 KIT AV1000 Gigabit Powerline Wi-Fi Kit expands your network using your home?s existing electrical wiring, delivering Powerline speeds of up to 1,000Mbps and wireless speeds of up to 300Mbps. It creates a stable connection for streaming, gaming and everyday internet use in areas where Wi-Fi coverage may be limited. With Plug-and-Play setup, a Gigabit Ethernet port for high-speed wired connections and wide Wi-Fi coverage, the MP510 KIT provides a simple and reliable way to extend your home network.

Features

• AV1000 Powerline Speed - Delivers high-speed data transfer rates of up to 1,000Mbps over your existing electrical wiring
• 4K HD Streaming Support - Provides stable bandwidth for smooth 4K video streaming, online gaming and large file transfers
• Gigabit Ethernet Port - Provides fast and reliable wired connections for PCs, IPTV, smart TVs and gaming consoles
• Eliminate Wi-Fi Dead Zones - Extend 300Mbps Wi-Fi wherever you need via your home’s existing wiring
• HomePlug AV2 Technology - Ensures improved performance, stable connections and extended network coverage
• Plug-and-Play - Simply plug in the adapters to start networking with no configuration required
• Easy Network Expansion - Expand your network coverage by adding additional compatible Powerline adapters

Specifications

Wireless

• Wireless Speed: Up to 300Mbps
• Wireless Security:

- Wpa

• WPA2-Personal
• WPA3-Personal

- Wep

Software

• Modulation Technology: OFDM (PLC)
• Powerline Security: 128-bit AES Encryption
• Compatibility: Compatible With All Routers and HomePlug AV / AV2 Powerline adapters

Hardware

• Dimensions (W × D × H):
• MP510: 112 × 84.7 × 39mm
• MP500: 101 × 60 × 36mm
• Button: Pair / Reset Button
• LED Indicator: Power

Standards And Protocols

• HomePlug AV2
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.11b/g/n

Power Consumption

• MP510
• Maximum: 6.28W
• Typical: 4.29W
• MP500
• Maximum: 2.87W
• Typical: 2.35W
• Standby: 0.64W

Range

• up to 300m over Existing Electrical Circuit

Certification

• CE
• RoHS

Environment

• Operating Temperature: 0~40°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)

System Requirements

• Windows 2000 / XP / 2003 / Vista
• Windows 7 / 8 / 8.1 / 10
• Mac
• Linux
