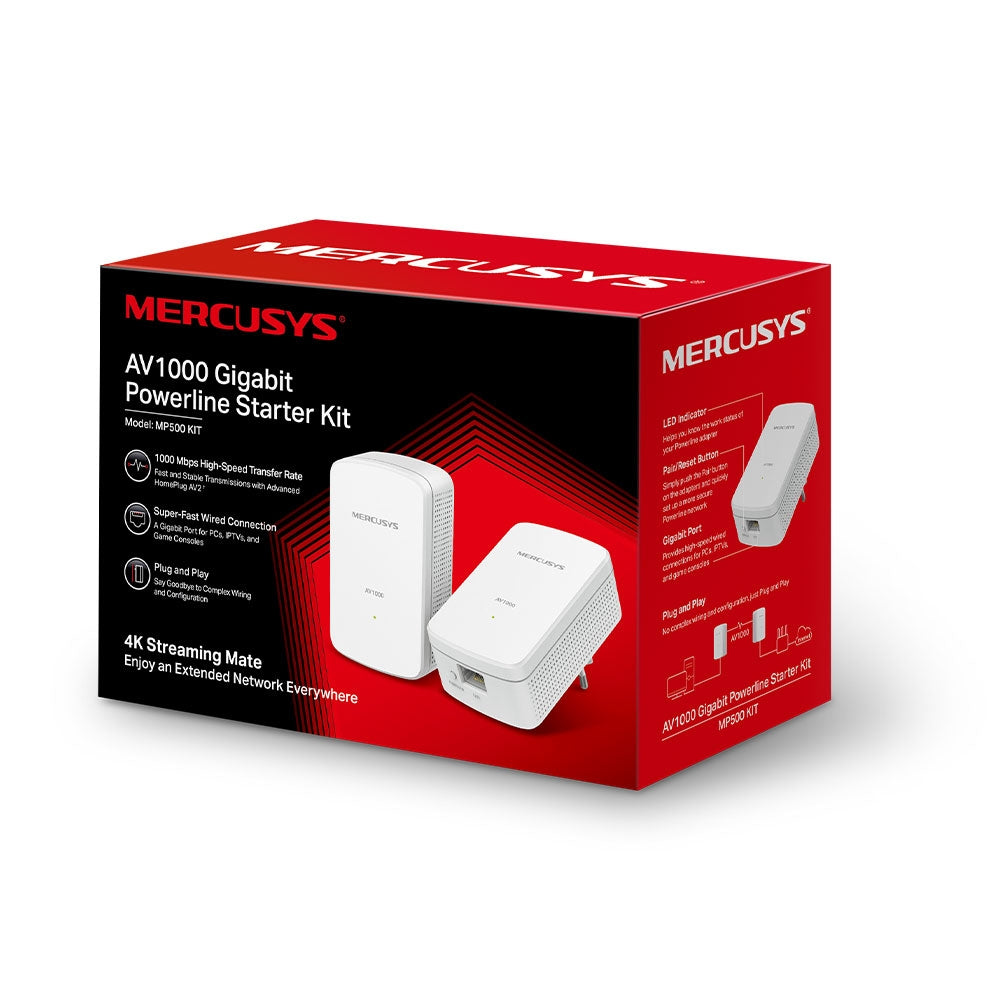

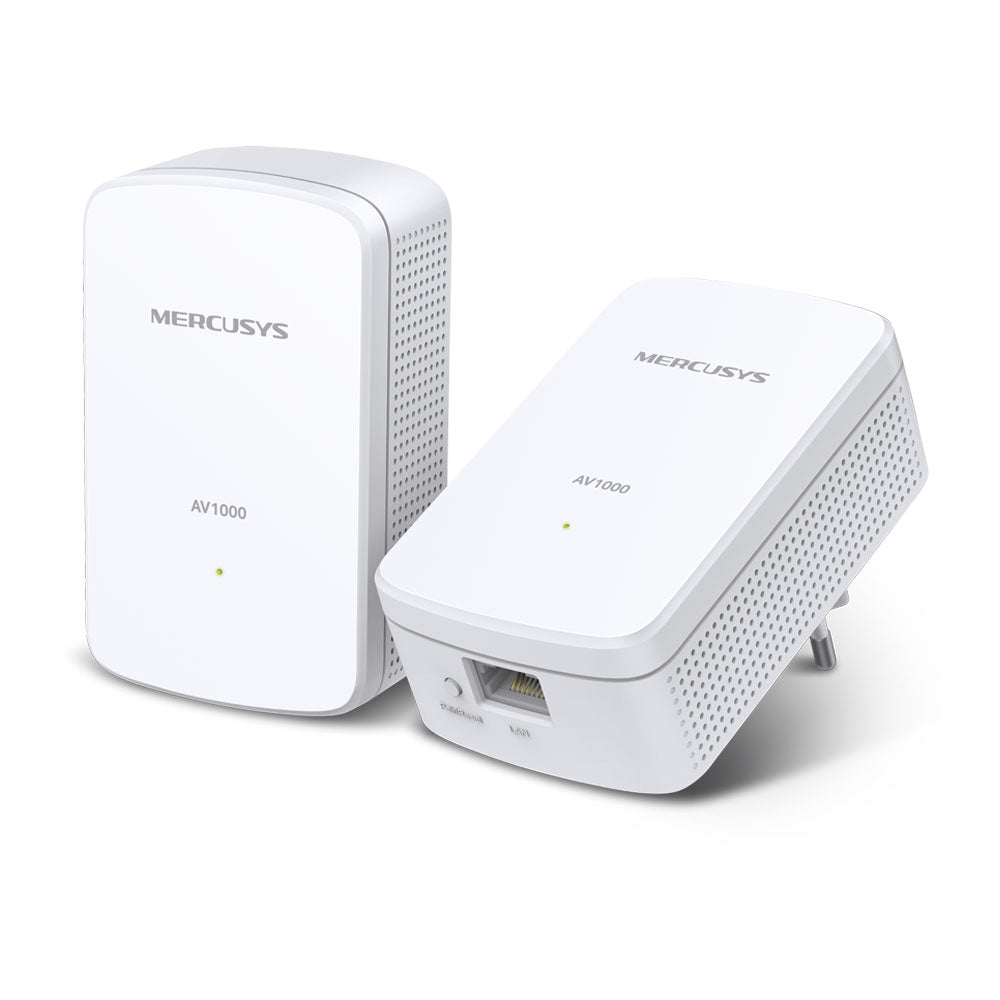

Mercusys MP500 KIT AV1000 Gigabit Powerline Starter Kit
Stable High-Speed Networking Through Your Electrical Wiring.
The Mercusys MP500 AV1000 Gigabit Powerline Kit extends your network using your existing electrical wiring, delivering speeds of up to 1,000Mbps for fast and reliable connectivity. Ideal for streaming 4K video, online gaming and large file transfers, it provides a stable wired connection in areas where Wi-Fi may struggle. With a Gigabit Ethernet port and simple Plug-and-Play setup, the MP500 Kit makes it easy to expand your home network without running additional cables.
Features
- AV1000 Powerline Speed - Delivers high-speed data transfer rates of up to 1,000Mbps over your existing electrical wiring
- 4K HD Streaming Support - Provides stable bandwidth for smooth 4K video streaming, online gaming and large file transfers
- Gigabit Ethernet Port - Provides fast and reliable wired connections for PCs, IPTV, smart TVs and gaming consoles
- HomePlug AV2 Technology - Ensures improved performance, stable connections and extended network coverage
- Plug-and-Play - Simply plug in the adapters to start networking with no configuration required
- Easy Network Expansion - Expand your network coverage by adding additional compatible Powerline adapters
Specifications
Software
- Modulation Technology: OFDM (PLC)
- Security: Powerline Security - 128-bit AES
Hardware

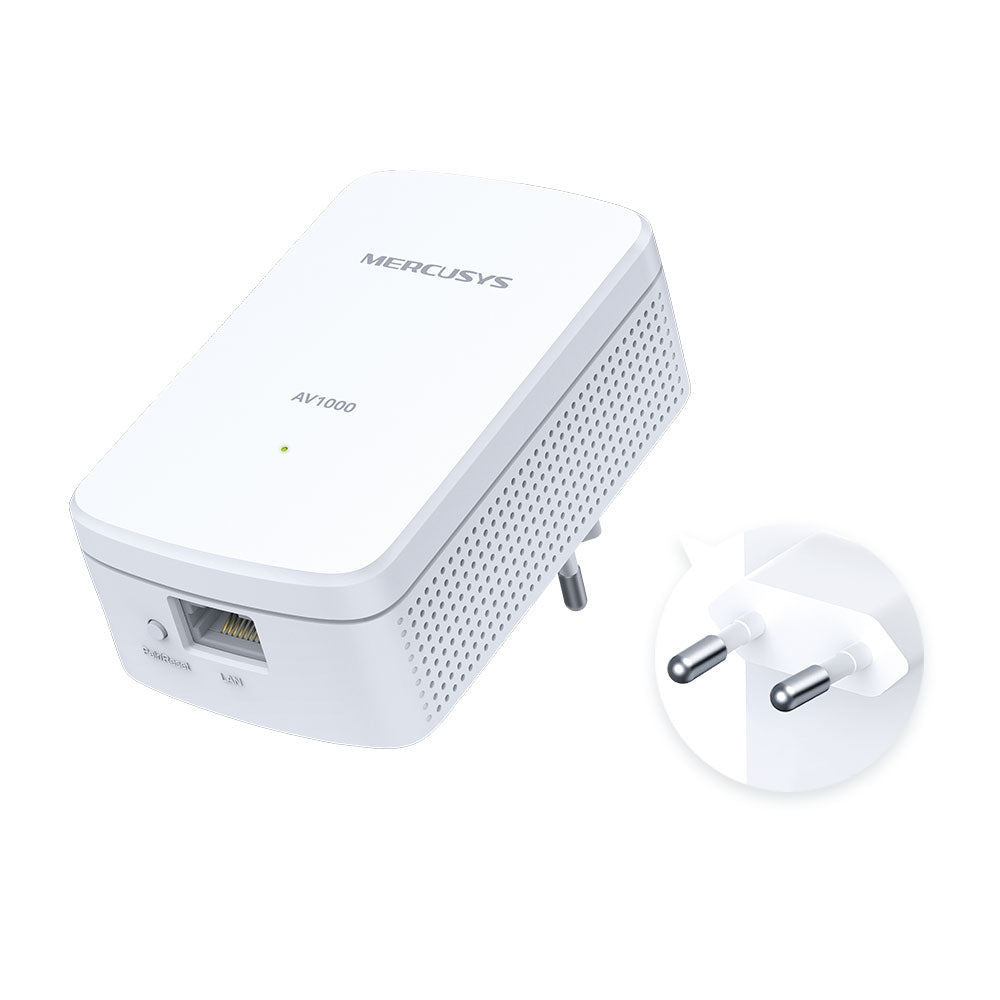

- Plug Type: EU
- Interface: 1× Gigabit Ethernet Port
- Button: Pair / Reset Button
- LED Indicator: Power
Standards And Protocols
- HomePlug AV2
- HomePlug AV
- IEEE 1901
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
Dimensions
- (W × D × H): 101 × 60 × 36mm
Power Consumption
- Maximum: 2.87W (220V / 50Hz)
- Typical: 2.35W (220V / 50Hz)
- Standby: 0.64W (220V / 50Hz)
Range
- up to 300m over Electrical Circuit
Certification
Environment
- Operating Temperature: 0~40°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
