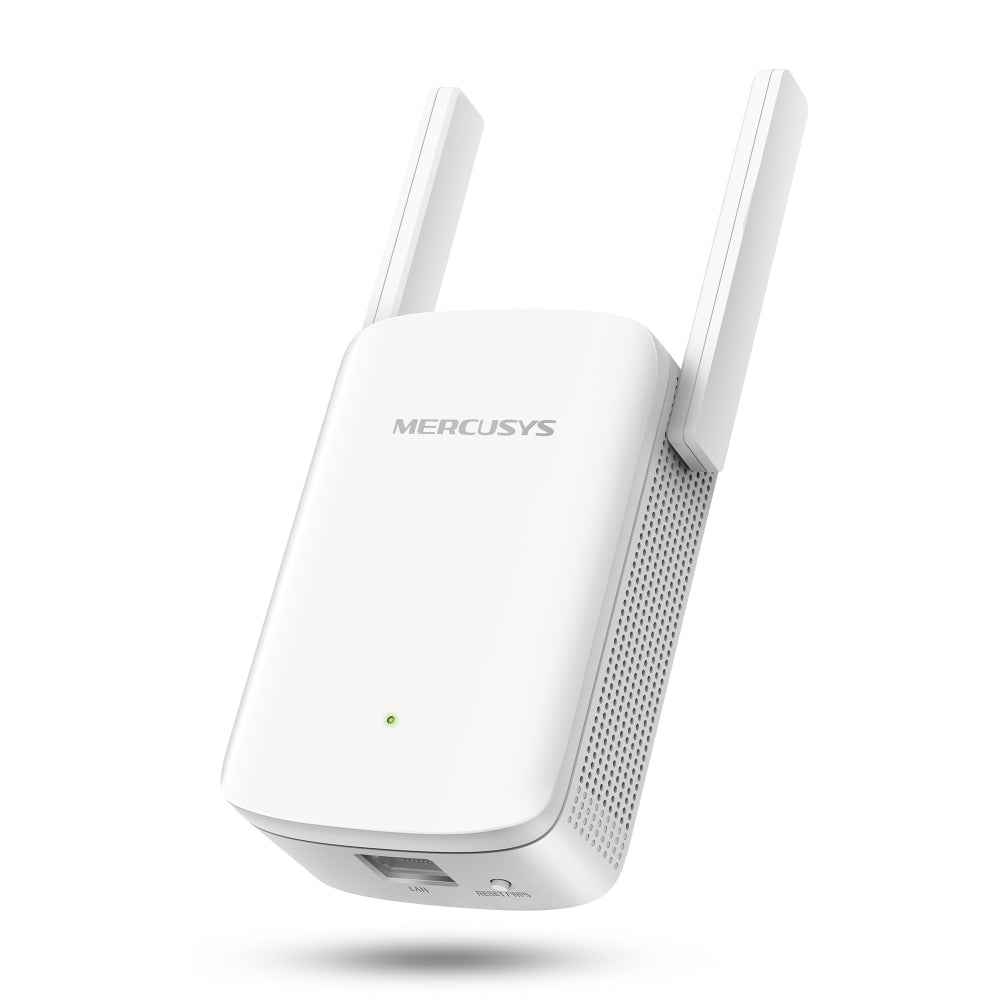

Mercusys ME60X AX1500 Wi-Fi 6 Range Extender
Stronger Wi-Fi Coverage with Wi-Fi 6 Performance.
The Mercusys ME60X AX1500 Wi-Fi 6 Range Extender expands your existing network with faster speeds and wider coverage. Featuring dual-band Wi-Fi 6 technology and a Gigabit Ethernet port, it eliminates dead zones and delivers reliable connections for streaming, gaming and smart home devices throughout your home.
Features
- Dual-Band Speeds up to 1,500Mbps - 1,201Mbps on 5.0GHz and 300Mbps on 2.4GHz
- Wi-Fi 6 Technology - Improves network speed, efficiency and capacity for more connected devices
- Gigabit Wired Connection - Provides high-speed wired connectivity for PCs, IPTV and gaming consoles
- Universal Compatibility - Works with any router to extend Wi-Fi coverage where you need it most
- One-Touch WPS Setup - Quickly expand your Wi-Fi network with a single button press

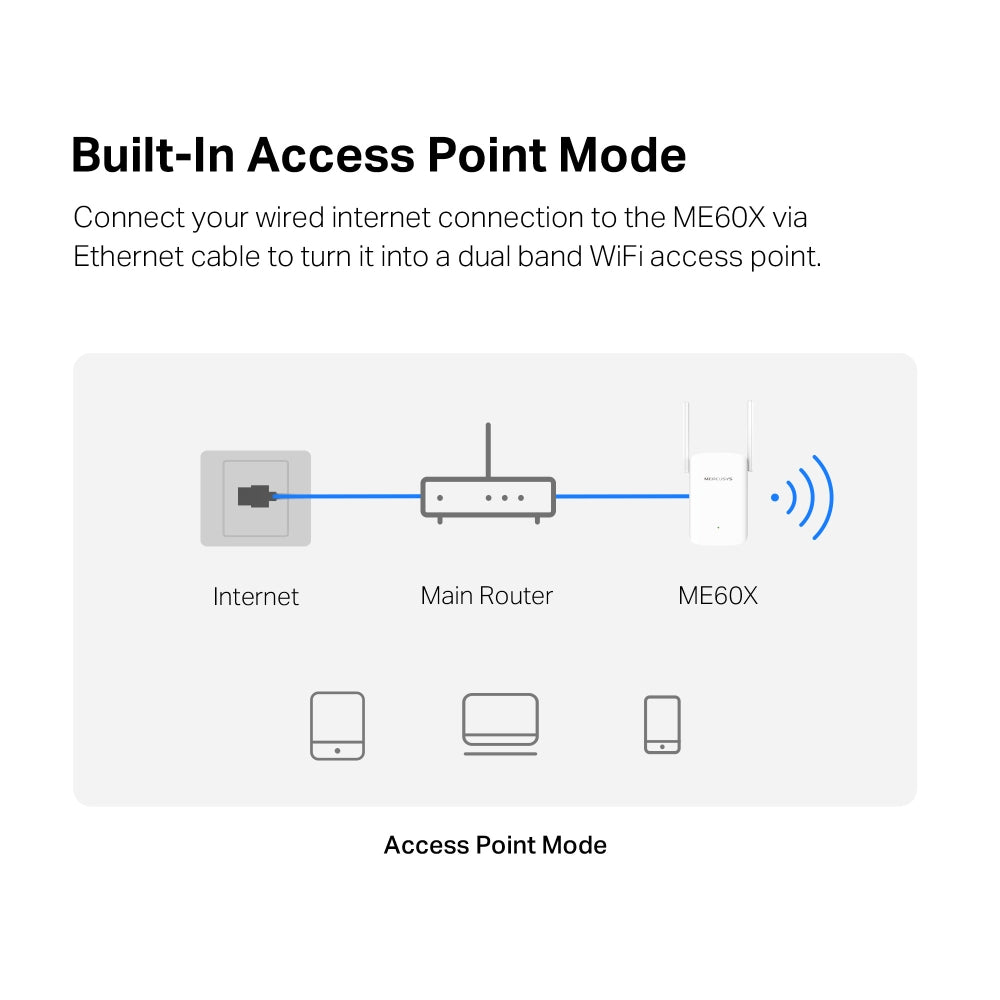

- Access Point Mode - Supports both Range Extender and Access Point operating modes
- App-Based Management - Easily set up and manage your network from iOS or Android devices
Specifications
Wireless Standards
- IEEE 802.11a/n/ac/ax 5.0GHz
- IEEE 802.11b/g/n 2.4GHz
Frequency
Signal Rate
- 300Mbps at 2.4GHz
- 1,201Mbps at 5.0GHz
Reception Sensitivity
5.0GHz
- 11ax HE80 MCS0: -88dBm
- 11ax HE80 MCS11: -58dBm
- 11a 6Mbps: -94dBm
- 11a 54Mbps: -76dBm
- 11ac VHT80 MCS0: -91dBm
- 11ac VHT80 MCS9: -63dBm
2.4GHz
- 11g 6Mbps: -95dBm
- 11g 54Mbps: -77dBm
- 11n HT40: -72dBm
Wireless Security
Hardware
Dimensions (W × D × H)
- 84.7 × 39 × 112mm (Without Plug)
Interface
Button
Antenna
Power Consumption
Certifications
Environment
- Operating Temperature: 0~40°C
- Operating Humidity: 10~90% Non-Condensing
