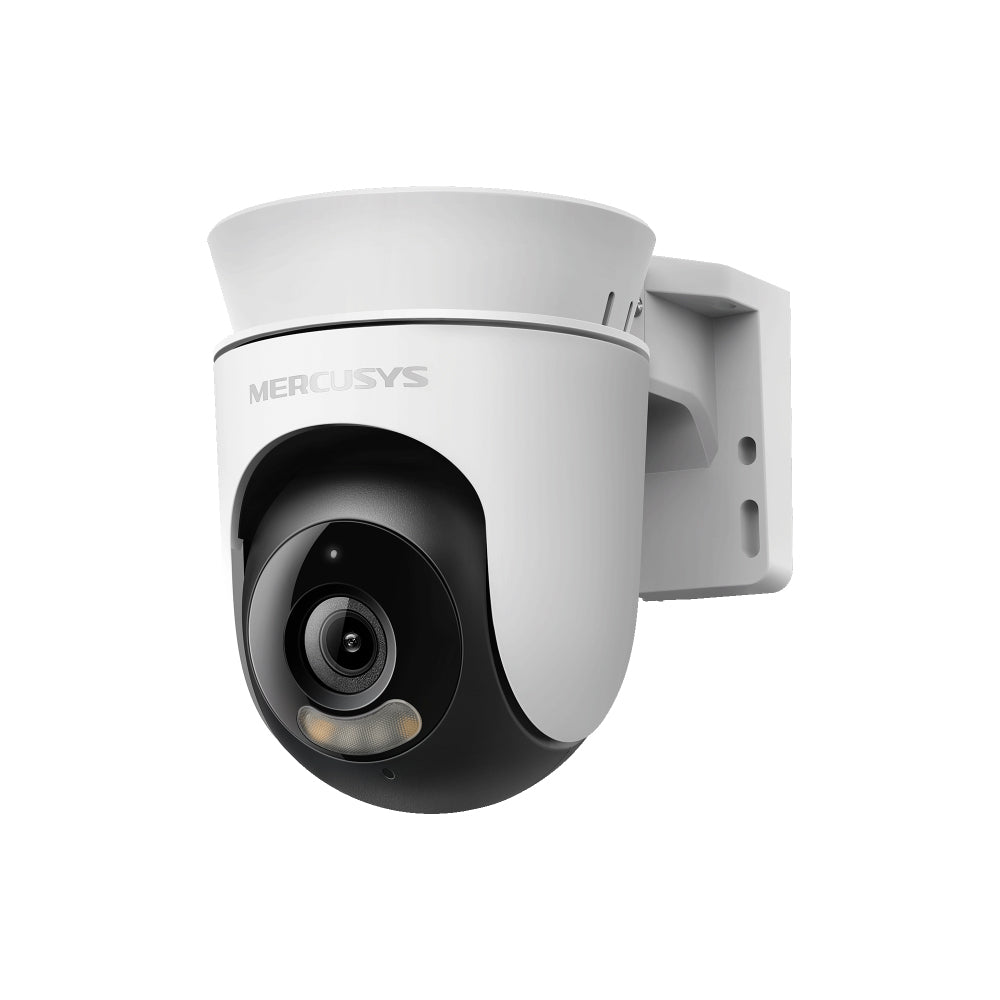

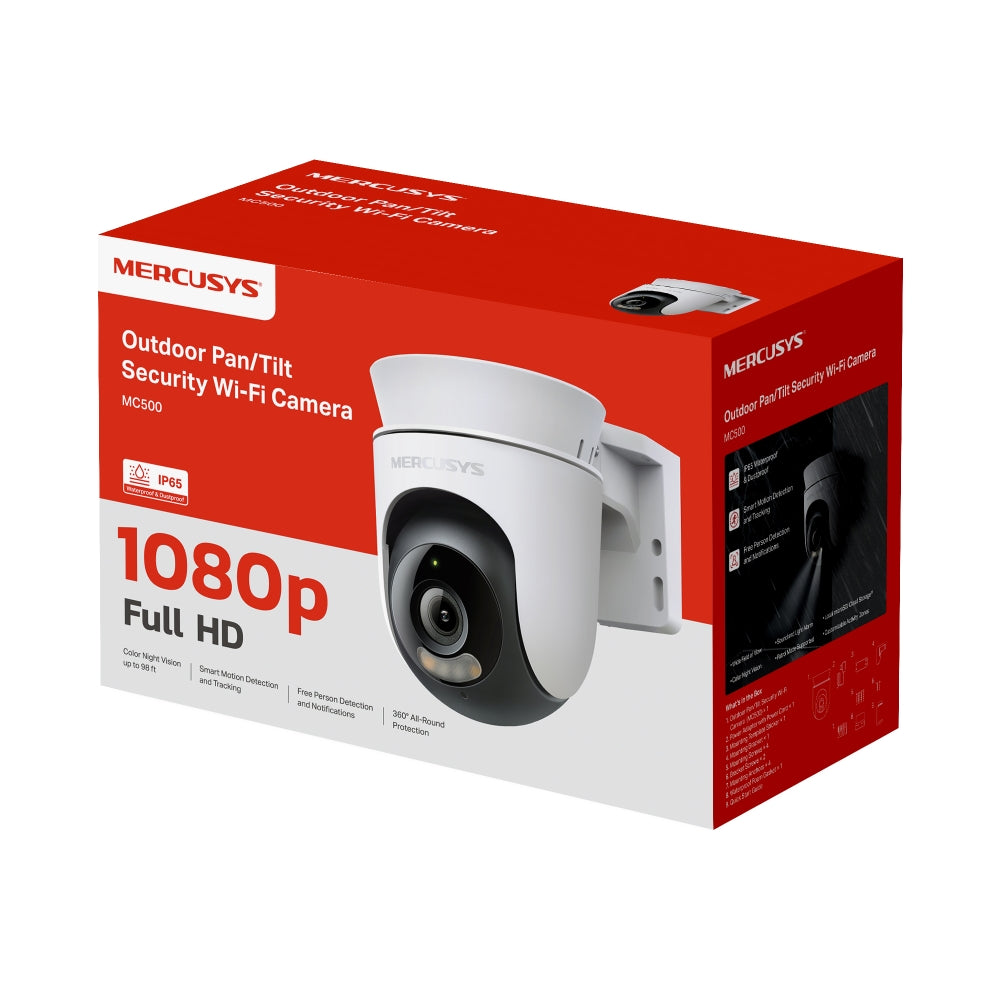

Mercusys MC500 1080p 2MP Outdoor Pan/Tilt Security Wi-Fi Camera
Full HD Outdoor Protection. Smart, Reliable, Always Watching.
Secure your home with the Mercusys MC500 Outdoor Pan/Tilt Wi-Fi Camera, delivering 1080p Full HD clarity and 360ｰ all-round coverage. With smart motion detection and tracking, colour night vision and real-time alerts, you値l always stay informed. Built for outdoor use with IP65 weather resistance, plus two-way audio and a sound and light alarm, it gives you complete control and reliable protection day and night.
Features
- 1080p Full HD Resolution - Clear 2MP video (1920 × 1080) for reliable outdoor monitoring
- Pan and Tilt Coverage - 360° horizontal viewing with smart motion tracking and no blind spots
- Smart Detection - Motion and person detection with instant notifications
- Colour Night Vision - Full-colour visibility with spotlights for enhanced night monitoring
- IP65 Weatherproof Design - Reliable outdoor performance in rain, dust and harsh conditions
- Two-Way Audio - Built-in microphone and speaker for real-time communication

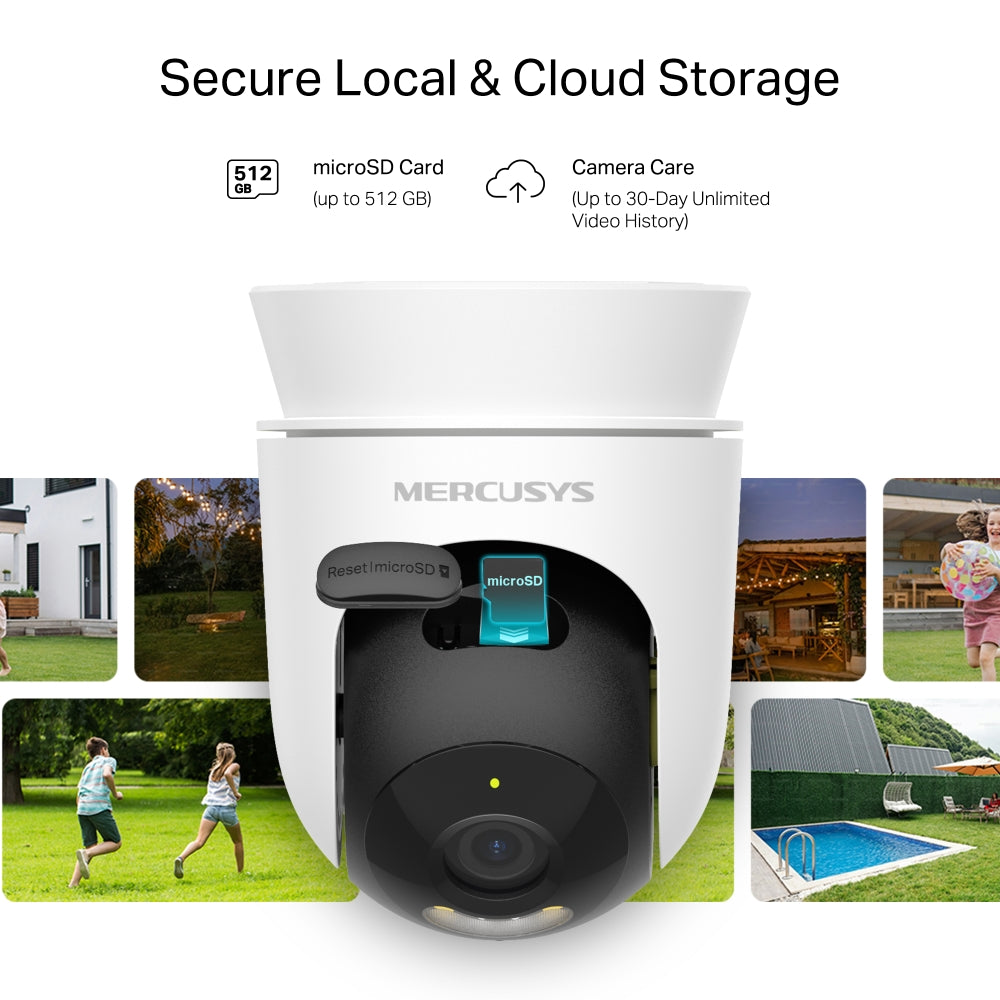

- Flexible Storage - Supports microSD (up to 512GB) and cloud storage options
Specifications
Camera
- Image Sensor: 1/3" Progressive Scan CMOS
- Lens: 4mm, F2.0
- Field of View: 87° (Diagonal), 74° (Horizontal), 40° (Vertical)
- Pan/Tilt Range: 340° Pan, 90° Tilt
- Night Vision: 850nm IR LED (up to 29.9m) + Full-Colour with Spotlights
- Interface: RESET Button, microSD Slot (up to 512GB)
Video And Audio
- Resolution: 2MP (1920 × 1080)
- Frame Rate: 15/20/25/30fps (15fps default)
- Video Compression: H.264
- Digital Zoom: up to 9×
- Image Enhancement: 3DNR, WDR
- Live View: Yes
- Audio: Built-in Microphone and Speaker
- Two-Way Audio: Yes (Noise Cancellation)
- Siren Volume: up to 88dB
Storage
- Local Storage: microSD Card Slot (up to 512GB)
- Cloud Storage: Mercusys Camera Care (Subscription Required)
Detection And Notifications
- Detection Types: Motion Detection, Person Detection
- Activity Zones: Yes
- Notifications: System Alerts
Network
- Connectivity: Wi-Fi
- Wireless: IEEE 802.11 b/g/n (2.4GHz)
- Transmission Rates: 11Mbps (11b), 54Mbps (11g), 72.2Mbps (11n)
- Protocols: TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
- RTSP: Yes
- ONVIF: Yes
Security
- Encryption: 128-bit AES with SSL/TLS
- Wireless Security: WPA/WPA2-PSK
Power
- Power Supply: 9V DC Adapter
- Input: 100~240V AC, 50/60Hz
- Output: 9V 0.85A
General
- Smart Integration: Google Assistant, Amazon Alexa
- Weather Resistance: IP65
- Mounting Options: Wall, Ceiling, Pole Mount
- Operating Temperature: -20~50°C
- Storage Temperature: -40~60°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 0~90% RH (Non-Condensing)
- Dimensions: 141.5 × 93 × 122mm
- Certifications: • CE, NCC, BSMI, NTRA, KC, RCM, ONVIF
