MERCUSYS 4G LTE 300MBPS ROUTER

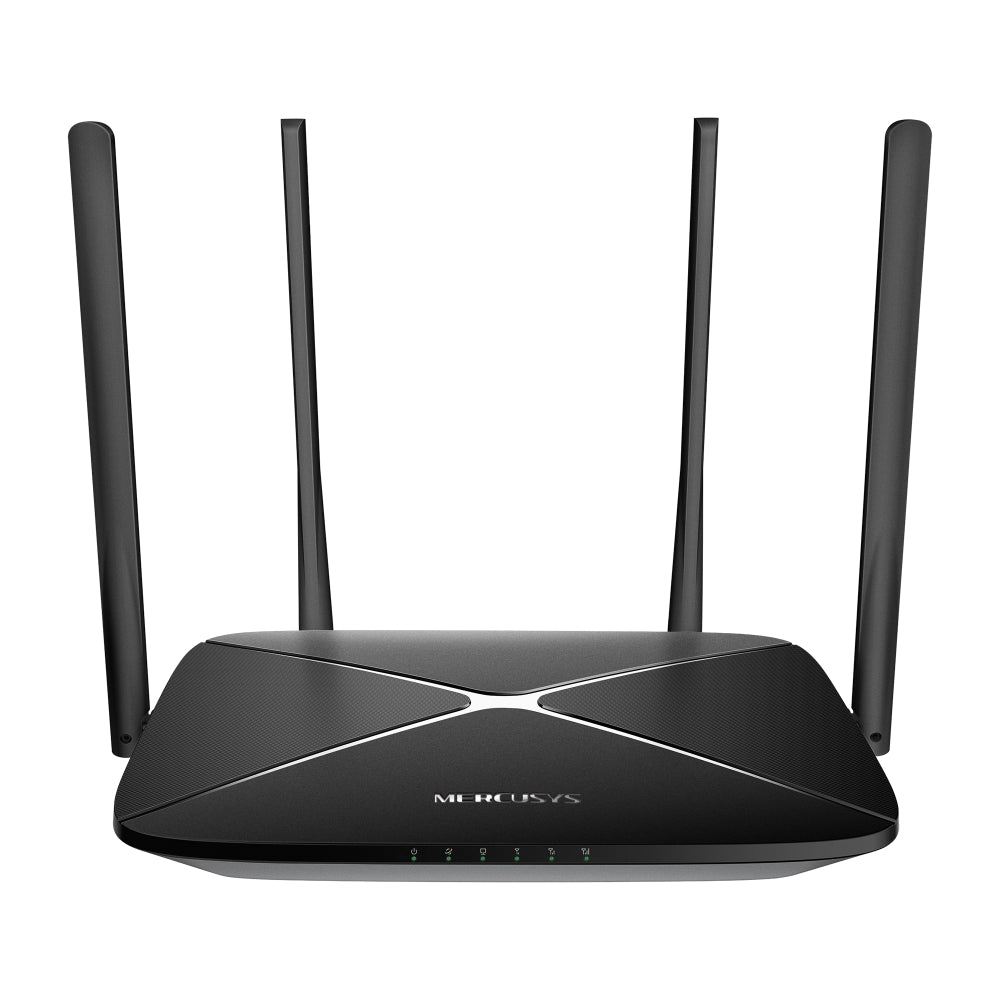

Mercusys MB115-4G 300Mbps Wireless N 4G LTE Router

Reliable 4G Connectivity for Home and Small Office Networks.

The Mercusys MB110-4G 300Mbps Wireless N 4G LTE Router provides fast and stable internet access using a 4G LTE connection. Simply insert a SIM card to instantly create a wireless network, making it ideal for homes, remote offices or locations without fixed broadband.

Delivering wireless speeds up to 300Mbps on 2.4GHz, the MB110-4G ensures smooth browsing, streaming and everyday connectivity. External 4G antennas enhance signal reception for improved network stability, while built-in Ethernet ports allow wired devices such as PCs, TVs and gaming consoles to connect easily.

Features

• 4G LTE Connectivity - Share internet access with up to 32× Wi-Fi devices and enjoy download speeds of up to 150Mbps

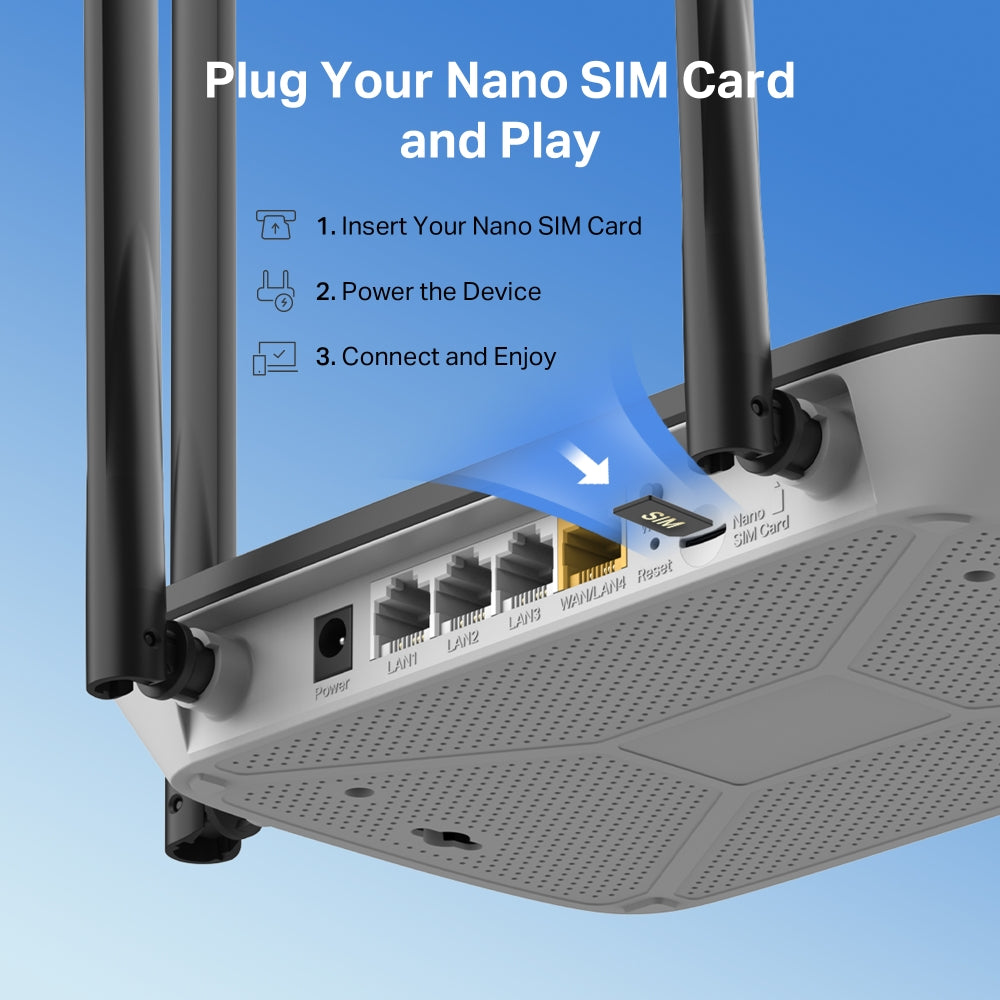

• Plug-and-Play Setup - Simply insert a SIM card to create your wireless network with no configuration required
• 300Mbps Wi-Fi Speeds - Provides fast 2.4GHz wireless connectivity for smooth browsing, streaming and everyday use
• Maximum Network Coverage - Four external antennas deliver stable connections and wider wireless coverage
• Flexible Router Mode - LAN/WAN port supports wired broadband connection when a 4G network is unavailable

Specifications

Wireless

• Network Type:
• FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700MHz)
• TDD-LTE: B38/B40 (2600/2300MHz)
• HSPA+/UMTS: B1/B5/B8 (2100/850/900MHz)
• Wi-Fi Class: N300
• Wi-Fi (2.4GHz): 300Mbps
• Wireless Standards: IEEE 802.11b/g/n
• Frequency: 2.4GHz

Reception Sensitivity

• 11g 54M: -74.5dBm
• 11n HT20 MCS7: -73.5dBm
• 11n HT40 MCS7: -70.5dBm

Transmission Power

• <20dBm (2.4GHz)

Wireless Security

• WPA-PSK
• WPA2-PSK

Wireless Functions

• Smart Connect
• WPS
• Wireless Schedule
• Wireless Clients Statistics

Software

Operation Modes

• 3G/4G Router
• Wireless Router

Cellular Mode

• 4G Preferred
• 4G Only
• 3G Only

Cellular Apn

• Data Roaming
• Network Search
• Profile Create
• APN Settings
• ISP File Upgrade
• PIN Management

Wan Mode

• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP

Dhcp

• Server
• DHCP Client List
• Address Reservation

Nat Forwarding

• ALG
• Virtual Server
• Port Triggering
• UPnP
• DMZ

Protocols

• IPv4
• IPv6

Data Settings

• Data Statistics
• Data Limit

Guest Network

• 2.4GHz Guest Network

Parental Controls

• Time Control
• Website Filtering

Ddns

• Mercusys DDNS
• DynDNS
• NO-IP

Sms

• Inbox
• New Message
• Outbox
• Drafts

Security

• IPv4 SPI Firewall
• Access Control
• Service Filtering
• IP and MAC Binding
• IPv6 Firewall

System Settings

• Time Settings
• LED Control
• Diagnostics
• Firmware Upgrade
• Backup and Restore
• Reboot
• Administration
• System Log
• CWMP Settings

Device Management

• Mercusys App
• Web GUI

Tr-069

• Supported

Hardware

• Dimensions (W × D × H): 219 × 140 × 32mm

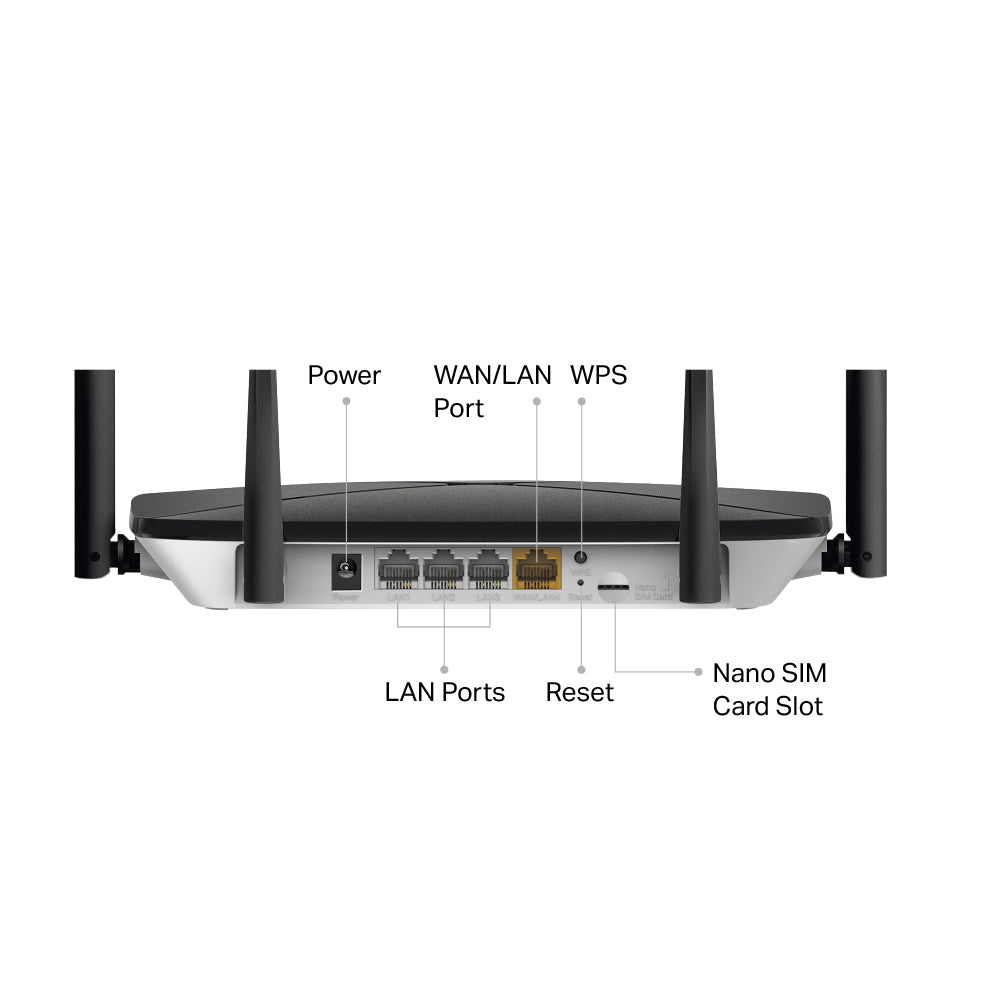

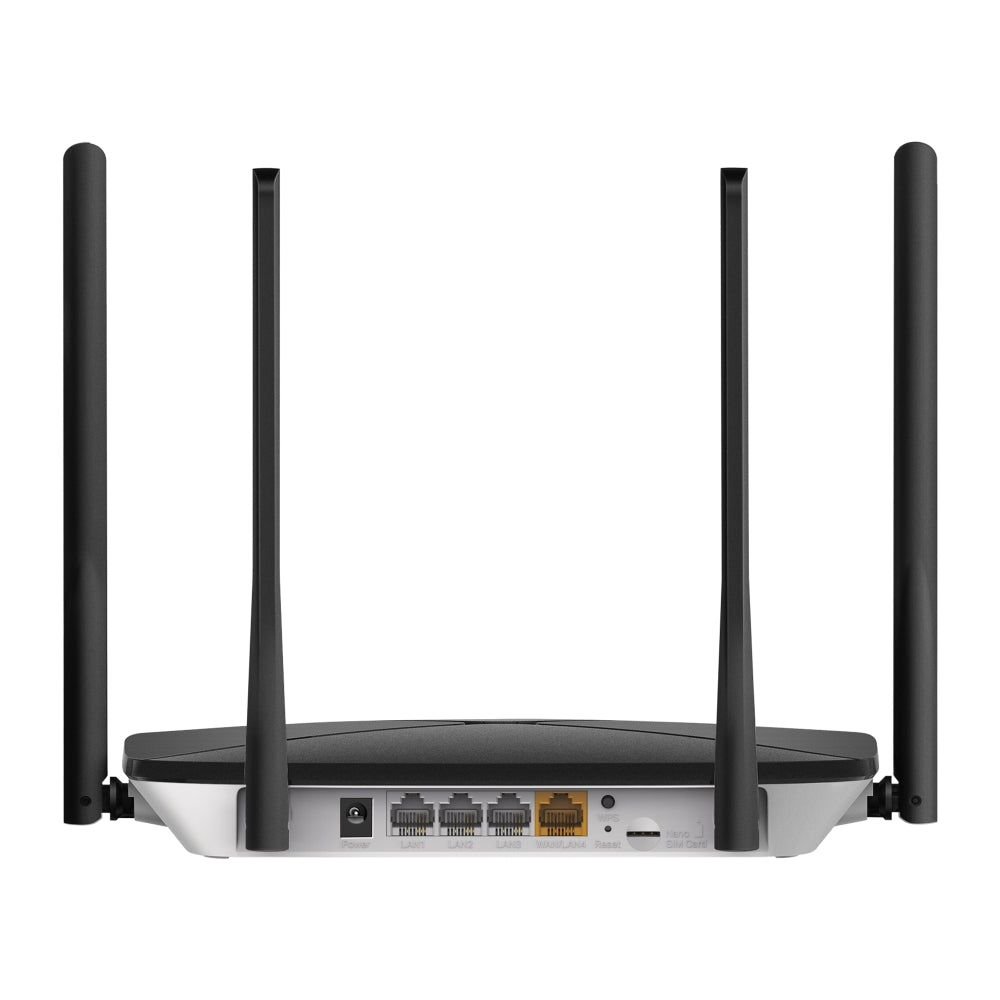

• Interfaces:
• 1× 10/100Mbps LAN/WAN Port
• 3× 10/100Mbps LAN Ports
• 1× Nano SIM Card Slot
• Antenna:
• 2× External 4G LTE Antennas
• 2× External Wi-Fi Antennas
• Button: WPS / Reset Button
• External Power Supply: 9V 0.85A

Led

• Power
• Internet
• LAN
• Signal (3×)

Lte Standard

• CAT4
• 150Mbps Download / 50Mbps Upload

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~60°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)
