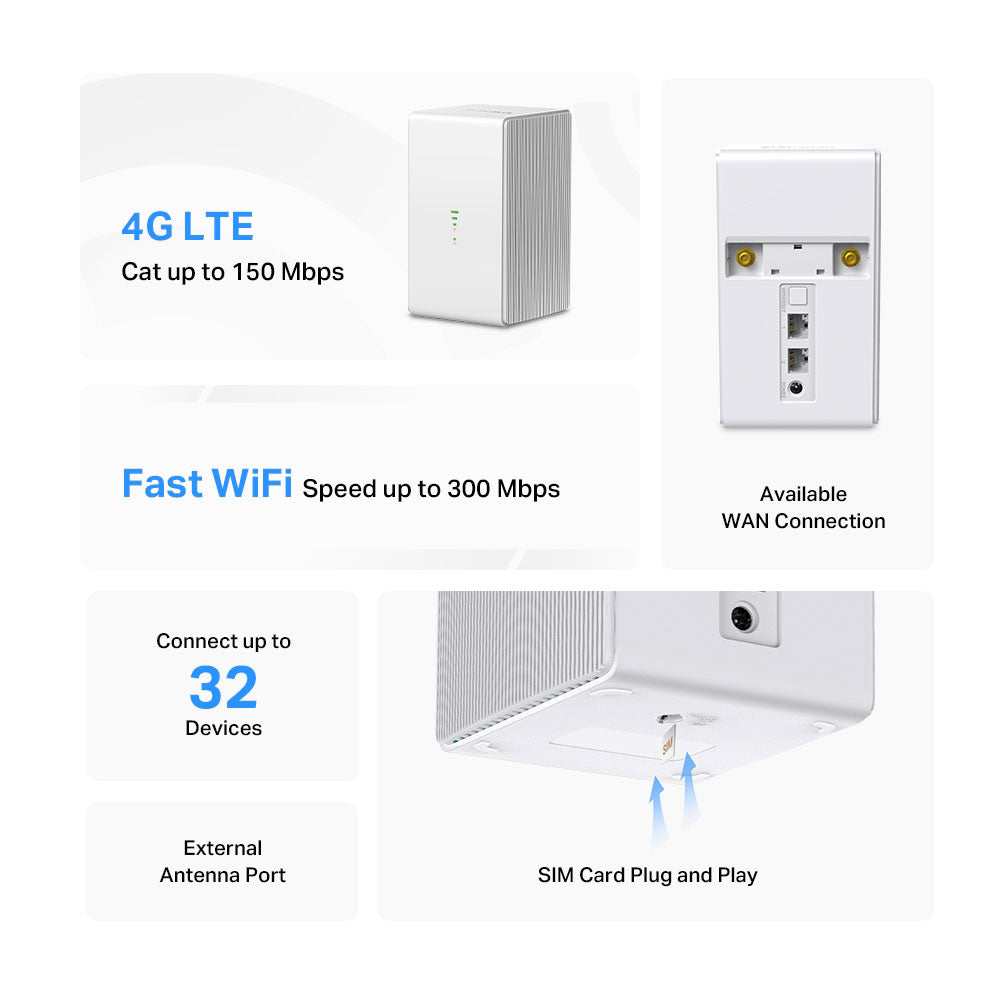

Mercusys MB110-4G 300Mbps Wireless N 4G LTE Router
Reliable 4G Connectivity for Home and Small Office Networks.
The Mercusys MB110-4G 300Mbps Wireless N 4G LTE Router provides fast and stable internet access using a 4G LTE connection. Simply insert a SIM card to instantly create a wireless network, making it ideal for homes, remote offices or locations without fixed broadband.
Delivering wireless speeds up to 300Mbps on 2.4GHz, the MB110-4G ensures smooth browsing, streaming and everyday connectivity. External 4G antennas enhance signal reception for improved network stability, while built-in Ethernet ports allow wired devices such as PCs, TVs and gaming consoles to connect easily.
Features
- 4G Network - Share internet access with up to 32× Wi-Fi devices and enjoy download speeds of up to 150Mbps
- Plug In a SIM Card and Play - No configurations needed, compatibility of SIM cards are assured by years of field tests
- 300Mbps Wi-Fi - Fast Wi-Fi speeds up to 300Mbps to share your network
- Wi-Fi Router Mode - Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
Specifications
Wireless
- Wireless Standards: IEEE 802.11b/g/n
- Frequency: 2.4GHz
- Signal Rate: 300Mbps
Reception Sensitivity
- 11g 54M: -74dBm
- 11n HT20: -71dBm
- 11n HT40: -68dBm
Transmission Power
Wireless Security
Wireless Functions
- Enable/Disable Wireless Radio
- Wireless Schedule
- WMM
- Wireless Statistics
Hardware
- Dimensions (W × D × H): 90 × 92 × 150.5mm

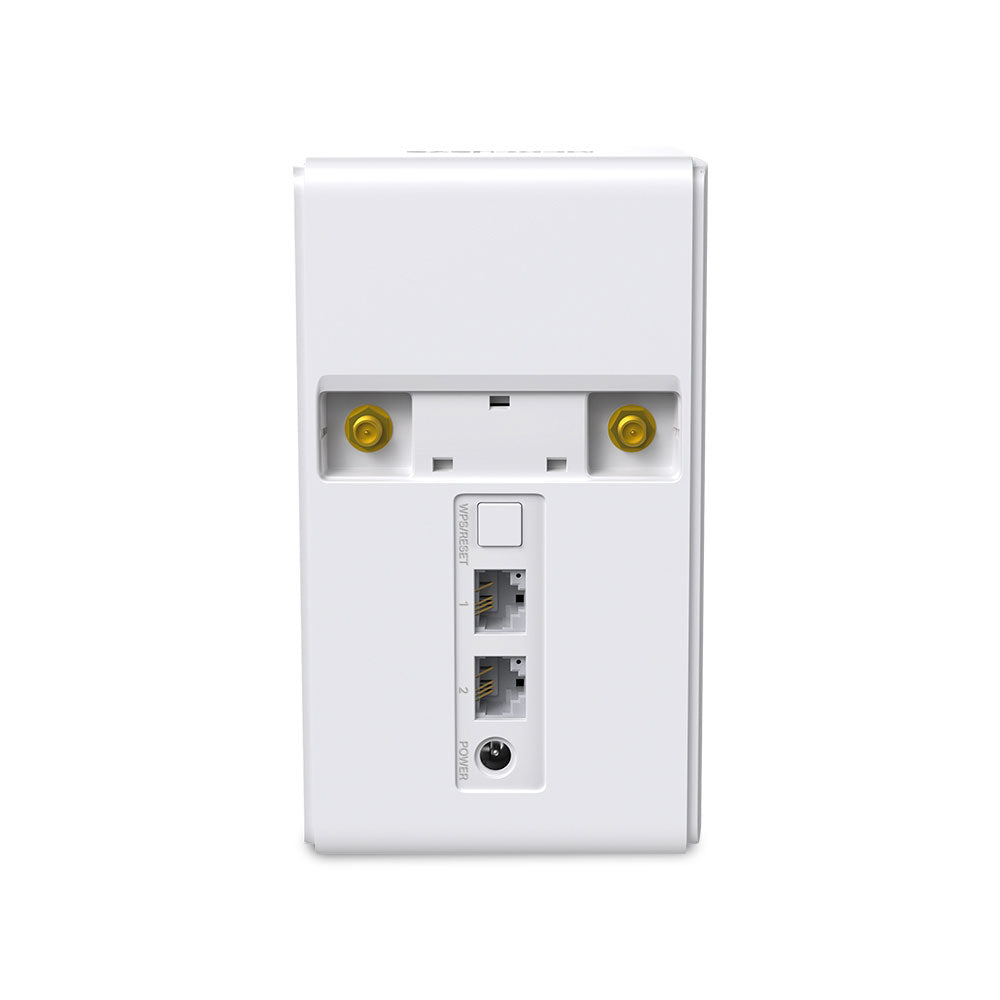

Interfaces
- 1× 10/100Mbps LAN/WAN Port
- 1× 10/100Mbps LAN Port
- 2× 4G/3G External Antenna Ports
- 1× Nano SIM Card Slot
Button
Ethernet Ports
- 1× 10/100Mbps LAN/WAN Port
- 1× 10/100Mbps LAN
Network Type
- FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700MHz)
- TDD-LTE: B38/B40 (2600/2300MHz)
- HSPA+/UMTS: B1/B5/B8 (2100/850/900MHz)
Software
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
